DISPLIB::ArtifactSettingsView Class Reference

The ArtifactSettingsView class provides an artifact rejection settings view. More...

#include <artifactsettingsview.h>

Public Types
typedef QSharedPointer< ArtifactSettingsView >	SPtr
typedef QSharedPointer< ArtifactSettingsView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	changeArtifactThreshold (const QMap< QString, double > &mapThresholds)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	ArtifactSettingsView (const QString &sSettingsPath="", const QList< FIFFLIB::FiffChInfo > &fiffChInfoList=QList< FIFFLIB::FiffChInfo >(), QWidget *parent=nullptr)
	~ArtifactSettingsView ()
void	setChInfo (const QList< FIFFLIB::FiffChInfo > &fiffChInfoList)
QMap< QString, double >	getThresholdMap ()
void	setThresholdMap (const QMap< QString, double > &mapThresholds)
bool	getDoArtifactThresholdRejection ()
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	redrawGUI ()
void	onChangeArtifactThreshold ()

Protected Attributes
QMap< QString, QDoubleSpinBox * >	m_mapChThresholdsDoubleSpinBoxes
QMap< QString, QSpinBox * >	m_mapChThresholdsSpinBoxes
QMap< QString, double >	m_mapThresholdsFirst
QMap< QString, int >	m_mapThresholdsSecond
QMap< QString, double >	m_mapThresholds
QList< FIFFLIB::FiffChInfo >	m_fiffChInfoList
bool	m_bDoArtifactThresholdReduction
QPointer< QCheckBox >	m_pArtifactRejectionCheckBox
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

The ArtifactSettingsView class provides an artifact rejection settings view.

DECLARE CLASS ArtifactSettingsView

Definition at line 88 of file artifactsettingsview.h.

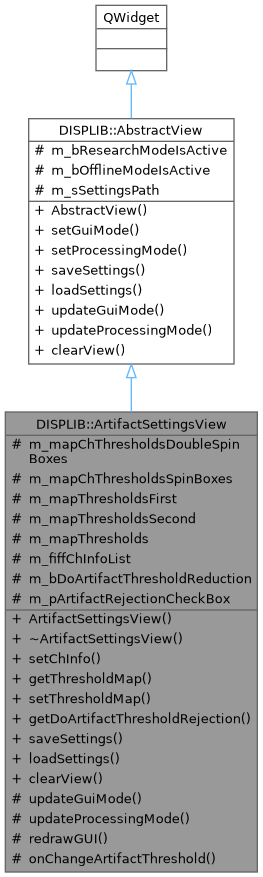

Inheritance diagram for DISPLIB::ArtifactSettingsView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<ArtifactSettingsView> DISPLIB::ArtifactSettingsView::ConstSPtr

Const shared pointer type for AveragingAdjustmentWidget.

Definition at line 94 of file artifactsettingsview.h.

SPtr

typedef QSharedPointer<ArtifactSettingsView> DISPLIB::ArtifactSettingsView::SPtr

Shared pointer type for AveragingAdjustmentWidget.

Definition at line 93 of file artifactsettingsview.h.

Constructor & Destructor Documentation

ArtifactSettingsView()

ArtifactSettingsView::ArtifactSettingsView ( const QString & sSettingsPath = "", const QList< FIFFLIB::FiffChInfo > & fiffChInfoList = QList<FIFFLIB::FiffChInfo>(), QWidget * parent = nullptr )

explicit

Definition at line 70 of file artifactsettingsview.cpp.

~ArtifactSettingsView()

ArtifactSettingsView::~ArtifactSettingsView

(

)

Destroys the ArtifactSettingsView.

Definition at line 89 of file artifactsettingsview.cpp.

Member Function Documentation

changeArtifactThreshold

void DISPLIB::ArtifactSettingsView::changeArtifactThreshold ( const QMap< QString, double > & mapThresholds )

signal

clearView()

void ArtifactSettingsView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 364 of file artifactsettingsview.cpp.

getDoArtifactThresholdRejection()

bool ArtifactSettingsView::getDoArtifactThresholdRejection

(

)

Definition at line 124 of file artifactsettingsview.cpp.

getThresholdMap()

QMap< QString, double > ArtifactSettingsView::getThresholdMap

(

)

Definition at line 107 of file artifactsettingsview.cpp.

loadSettings()

void ArtifactSettingsView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 165 of file artifactsettingsview.cpp.

onChangeArtifactThreshold()

void ArtifactSettingsView::onChangeArtifactThreshold ( )

protected

Definition at line 312 of file artifactsettingsview.cpp.

redrawGUI()

void ArtifactSettingsView::redrawGUI ( )

protected

Redraw the GUI.

Definition at line 237 of file artifactsettingsview.cpp.

saveSettings()

void ArtifactSettingsView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 135 of file artifactsettingsview.cpp.

setChInfo()

void ArtifactSettingsView::setChInfo

(

const QList< FIFFLIB::FiffChInfo > &

fiffChInfoList

)

Definition at line 97 of file artifactsettingsview.cpp.

setThresholdMap()

void ArtifactSettingsView::setThresholdMap

(

const QMap< QString, double > &

mapThresholds

)

Definition at line 114 of file artifactsettingsview.cpp.

updateGuiMode()

void ArtifactSettingsView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in]

mode

The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 213 of file artifactsettingsview.cpp.

updateProcessingMode()

void ArtifactSettingsView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in]

mode

The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 225 of file artifactsettingsview.cpp.

Member Data Documentation

m_bDoArtifactThresholdReduction

bool DISPLIB::ArtifactSettingsView::m_bDoArtifactThresholdReduction

protected

Definition at line 166 of file artifactsettingsview.h.

m_fiffChInfoList

QList<FIFFLIB::FiffChInfo> DISPLIB::ArtifactSettingsView::m_fiffChInfoList

protected

Definition at line 164 of file artifactsettingsview.h.

m_mapChThresholdsDoubleSpinBoxes

QMap<QString,QDoubleSpinBox*> DISPLIB::ArtifactSettingsView::m_mapChThresholdsDoubleSpinBoxes

protected

Definition at line 157 of file artifactsettingsview.h.

m_mapChThresholdsSpinBoxes

QMap<QString,QSpinBox*> DISPLIB::ArtifactSettingsView::m_mapChThresholdsSpinBoxes

protected

Definition at line 158 of file artifactsettingsview.h.

m_mapThresholds

QMap<QString,double> DISPLIB::ArtifactSettingsView::m_mapThresholds

protected

Definition at line 162 of file artifactsettingsview.h.

m_mapThresholdsFirst

QMap<QString,double> DISPLIB::ArtifactSettingsView::m_mapThresholdsFirst

protected

Definition at line 160 of file artifactsettingsview.h.

m_mapThresholdsSecond

QMap<QString,int> DISPLIB::ArtifactSettingsView::m_mapThresholdsSecond

protected

Definition at line 161 of file artifactsettingsview.h.

m_pArtifactRejectionCheckBox

QPointer<QCheckBox> DISPLIB::ArtifactSettingsView::m_pArtifactRejectionCheckBox

protected

Definition at line 168 of file artifactsettingsview.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/artifactsettingsview.h
• src/libraries/disp/viewers/artifactsettingsview.cpp
