BIDSLIB::BrainVisionReader Class Reference

The BrainVisionReader reads BrainVision file triplets (.vhdr/.vmrk/.eeg) and exposes them through the AbstractFormatReader interface. More...

#include <bids_brain_vision_reader.h>

Public Member Functions
	BrainVisionReader ()
	Default constructor.
	~BrainVisionReader () override
bool	open (const QString &sFilePath) override
	Open and parse the file header. Must be called before reading data.
FIFFLIB::FiffInfo	getInfo () const override
	Return measurement metadata as FiffInfo.
Eigen::MatrixXf	readRawSegment (int iStartSampleIdx, int iEndSampleIdx) const override
	Read a segment of raw data.
long	getSampleCount () const override
	Return total number of samples across the recording.
float	getFrequency () const override
	Return the sampling frequency in Hz.
int	getChannelCount () const override
	Return the number of measurement channels.
FIFFLIB::FiffRawData	toFiffRawData () const override
	Convert the entire dataset to a FiffRawData structure.
QString	formatName () const override
	Return a descriptive name for the format (e.g. "EDF", "BrainVision").
bool	supportsExtension (const QString &sExtension) const override
	Check whether this reader can handle the given file extension.
QVector< BrainVisionMarker >	getMarkers () const
	Return all parsed markers from the .vmrk file.
QVector< BrainVisionChannelInfo >	getChannelInfos () const
	Return all channel infos.
Public Member Functions inherited from BIDSLIB::AbstractFormatReader
virtual	~AbstractFormatReader ()=default
	Virtual destructor.

Static Public Member Functions
static float	unitScale (const QString &sUnit)

Additional Inherited Members
Public Types inherited from BIDSLIB::AbstractFormatReader
using	UPtr = std::unique_ptr<AbstractFormatReader>
Protected Member Functions inherited from BIDSLIB::AbstractFormatReader
	AbstractFormatReader ()=default

Detailed Description

The BrainVisionReader reads BrainVision file triplets (.vhdr/.vmrk/.eeg) and exposes them through the AbstractFormatReader interface.

BrainVision is the most common format for iEEG (sEEG/ECoG) recordings in BIDS datasets. The format stores data as little-endian binary (INT_16, INT_32, or IEEE_FLOAT_32), either MULTIPLEXED (channels interleaved per time point) or VECTORIZED (channels contiguous).

Definition at line 117 of file bids_brain_vision_reader.h.

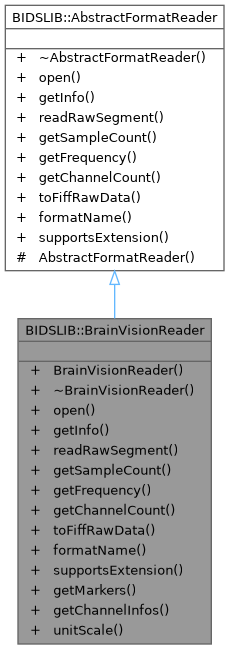

Inheritance diagram for BIDSLIB::BrainVisionReader:

Constructor & Destructor Documentation

BrainVisionReader()

BrainVisionReader::BrainVisionReader

(

)

Default constructor.

Definition at line 124 of file bids_brain_vision_reader.cpp.

~BrainVisionReader()

BrainVisionReader::~BrainVisionReader ( )

override

Definition at line 130 of file bids_brain_vision_reader.cpp.

Member Function Documentation

formatName()

QString BrainVisionReader::formatName ( ) const

overridevirtual

Return a descriptive name for the format (e.g. "EDF", "BrainVision").

Implements BIDSLIB::AbstractFormatReader.

Definition at line 567 of file bids_brain_vision_reader.cpp.

getChannelCount()

int BrainVisionReader::getChannelCount ( ) const

overridevirtual

Return the number of measurement channels.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 542 of file bids_brain_vision_reader.cpp.

getChannelInfos()

QVector< BrainVisionChannelInfo > BrainVisionReader::getChannelInfos

(

)

const

Return all channel infos.

Definition at line 589 of file bids_brain_vision_reader.cpp.

getFrequency()

float BrainVisionReader::getFrequency ( ) const

overridevirtual

Return the sampling frequency in Hz.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 535 of file bids_brain_vision_reader.cpp.

getInfo()

FIFFLIB::FiffInfo BrainVisionReader::getInfo ( ) const

overridevirtual

Return measurement metadata as FiffInfo.

Returns

FiffInfo populated from the native format header.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 413 of file bids_brain_vision_reader.cpp.

getMarkers()

QVector< BrainVisionMarker > BrainVisionReader::getMarkers

(

)

const

Return all parsed markers from the .vmrk file.

Definition at line 582 of file bids_brain_vision_reader.cpp.

getSampleCount()

long BrainVisionReader::getSampleCount ( ) const

overridevirtual

Return total number of samples across the recording.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 528 of file bids_brain_vision_reader.cpp.

open()

bool BrainVisionReader::open ( const QString & sFilePath )

overridevirtual

Open and parse the file header. Must be called before reading data.

Parameters

[in]

sFilePath

Absolute path to the primary data file.

Returns

True if the file was opened and parsed successfully.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 139 of file bids_brain_vision_reader.cpp.

readRawSegment()

Eigen::MatrixXf BrainVisionReader::readRawSegment ( int iStartSampleIdx, int iEndSampleIdx ) const

overridevirtual

Read a segment of raw data.

Parameters

[in]	iStartSampleIdx	First sample index (0-based, inclusive).
[in]	iEndSampleIdx	Last sample index (0-based, exclusive).

Returns

Matrix of shape (n_channels x n_samples) with calibrated physical values.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 430 of file bids_brain_vision_reader.cpp.

supportsExtension()

bool BrainVisionReader::supportsExtension ( const QString & sExtension ) const

overridevirtual

Check whether this reader can handle the given file extension.

Parameters

[in]

sExtension

File extension including dot (e.g. ".edf", ".vhdr").

Returns

True if this reader supports the extension.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 574 of file bids_brain_vision_reader.cpp.

toFiffRawData()

FiffRawData BrainVisionReader::toFiffRawData ( ) const

overridevirtual

Convert the entire dataset to a FiffRawData structure.

Returns

FiffRawData populated with info, calibrations, and sample bounds.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 549 of file bids_brain_vision_reader.cpp.

unitScale()

float BrainVisionReader::unitScale ( const QString & sUnit )

static

Definition at line 397 of file bids_brain_vision_reader.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/bids/readers/bids_brain_vision_reader.h
• src/libraries/bids/readers/bids_brain_vision_reader.cpp
