MultiViewLayout Class Reference

Multi-view geometry computations. More...

#include <multiviewlayout.h>

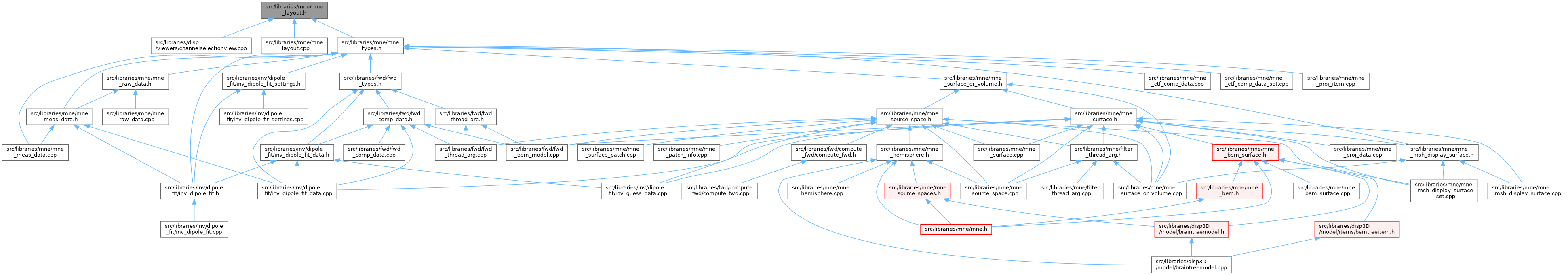

Public Member Functions
	MultiViewLayout ()=default
float	splitX () const
float	splitY () const
void	setSplitX (float x)
void	setSplitY (float y)
void	resetSplits ()
int	hitTolerancePx () const
int	minPanePx () const
int	separatorLinePx () const
QRect	slotRect (int slot, int numEnabled, const QSize &outputSize) const
SplitterHit	hitTestSplitter (const QPoint &pos, int numEnabled, const QSize &outputSize) const
int	viewportIndexAt (const QPoint &pos, const QVector< int > &enabledViewports, const QSize &outputSize) const
QRect	insetForSeparator (const QRect &paneRect, int slot, int numEnabled) const
void	separatorGeometries (int numEnabled, const QSize &widgetSize, QRect &verticalRect, QRect &horizontalRect) const
void	dragSplitter (const QPoint &pos, SplitterHit activeSplitter, const QSize &widgetSize)

Static Public Member Functions
static Qt::CursorShape	cursorForHit (SplitterHit hit)

Detailed Description

Multi-view geometry computations.

Pure-geometry class for multi-view viewport layout.

This class has no widget dependencies — it works with sizes, rectangles, and fractional split positions. The hosting widget queries this class for rectangles and hit-test results, and updates separator widgets accordingly.

Layout rules:

• 1 pane → full area
• 2 panes → side-by-side, split at m_splitX
• 3 panes → full-width top row + 2 bottom panes split at m_splitX
• 4 panes → 2×2 grid split at (m_splitX, m_splitY)

Definition at line 78 of file multiviewlayout.h.

Constructor & Destructor Documentation

MultiViewLayout()

MultiViewLayout::MultiViewLayout ( )

default

Constructor.

Member Function Documentation

cursorForHit()

Qt::CursorShape MultiViewLayout::cursorForHit ( SplitterHit hit )

static

Return the Qt::CursorShape appropriate for a splitter hit.

Parameters

[in]

hit

Hit-test result.

Returns

Cursor shape (ArrowCursor if None).

Definition at line 149 of file multiviewlayout.cpp.

dragSplitter()

void MultiViewLayout::dragSplitter	(	const QPoint &	pos,
		SplitterHit	activeSplitter,
		const QSize &	widgetSize )

Update split fractions from a mouse drag position.

Parameters

[in]	pos	Current cursor position.
[in]	activeSplitter	Which splitter is being dragged.
[in]	widgetSize	Widget size in pixels.

Definition at line 269 of file multiviewlayout.cpp.

hitTestSplitter()

SplitterHit MultiViewLayout::hitTestSplitter	(	const QPoint &	pos,
		int	numEnabled,
		const QSize &	outputSize ) const

Hit-test the splitter bars.

Parameters

[in]	pos	Cursor position (widget coords).
[in]	numEnabled	Total number of enabled panes.
[in]	outputSize	Total output pixel size.

Returns

Which splitter(s) are under the cursor.

Definition at line 104 of file multiviewlayout.cpp.

hitTolerancePx()

int MultiViewLayout::hitTolerancePx ( ) const

inline

Definition at line 97 of file multiviewlayout.h.

insetForSeparator()

QRect MultiViewLayout::insetForSeparator	(	const QRect &	paneRect,
		int	slot,
		int	numEnabled ) const

Apply a separator-pixel inset to a pane rect so adjacent panes don't overlap the separator bar. This is used in the render loop to trim viewports.

Parameters

[in]	paneRect	Original pane rectangle.
[in]	slot	Slot index (0-based).
[in]	numEnabled	Total enabled count.

Returns

Inset rectangle.

Definition at line 176 of file multiviewlayout.cpp.

minPanePx()

int MultiViewLayout::minPanePx ( ) const

inline

Definition at line 98 of file multiviewlayout.h.

resetSplits()

void MultiViewLayout::resetSplits ( )

inline

Definition at line 93 of file multiviewlayout.h.

separatorGeometries()

void MultiViewLayout::separatorGeometries	(	int	numEnabled,
		const QSize &	widgetSize,
		QRect &	verticalRect,
		QRect &	horizontalRect ) const

Compute the separator widget geometries.

Parameters

[in]	numEnabled	Number of enabled panes.
[in]	widgetSize	Widget size in pixels.
[out]	verticalRect	Geometry for the vertical separator (empty if hidden).
[out]	horizontalRect	Geometry for the horizontal separator (empty if hidden).

Definition at line 218 of file multiviewlayout.cpp.

separatorLinePx()

int MultiViewLayout::separatorLinePx ( ) const

inline

Definition at line 99 of file multiviewlayout.h.

setSplitX()

void MultiViewLayout::setSplitX ( float x )

inline

Definition at line 91 of file multiviewlayout.h.

setSplitY()

void MultiViewLayout::setSplitY ( float y )

inline

Definition at line 92 of file multiviewlayout.h.

slotRect()

QRect MultiViewLayout::slotRect	(	int	slot,
		int	numEnabled,
		const QSize &	outputSize ) const

Compute the pixel rectangle for a layout slot.

Parameters

[in]	slot	Slot index (0-based among enabled viewports).
[in]	numEnabled	Total number of enabled panes (1–4).
[in]	outputSize	Total output pixel size.

Returns

Pixel rectangle for the slot.

Definition at line 48 of file multiviewlayout.cpp.

splitX()

float MultiViewLayout::splitX ( ) const

inline

Definition at line 89 of file multiviewlayout.h.

splitY()

float MultiViewLayout::splitY ( ) const

inline

Definition at line 90 of file multiviewlayout.h.

viewportIndexAt()

int MultiViewLayout::viewportIndexAt	(	const QPoint &	pos,
		const QVector< int > &	enabledViewports,
		const QSize &	outputSize ) const

Given a cursor position and output size, determine which viewport index the cursor is in.

Parameters

[in]	pos	Cursor position (widget coords).
[in]	enabledViewports	Ordered list of enabled viewport indices.
[in]	outputSize	Total output pixel size.

Returns

Viewport index, or -1 if outside.

Definition at line 161 of file multiviewlayout.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp3D_rhi/view/multiviewlayout.h
• src/libraries/disp3D_rhi/view/multiviewlayout.cpp
