mne_surface_or_volume.h File Reference

Discriminated geometry container that can represent either a triangulated surface or a discrete/volume source space. More...

#include "mne_global.h"
#include <mne/mne_types.h>
#include "mne_vol_geom.h"
#include "mne_mgh_tag_group.h"
#include "mne_triangle.h"
#include "mne_nearest.h"
#include "mne_patch_info.h"
#include <fiff/fiff_sparse_matrix.h>
#include <fiff/fiff_coord_trans.h>
#include <Eigen/Core>
#include <QSharedPointer>
#include <memory>
#include <optional>
#include <vector>
#include <QStringList>
#include <QDebug>

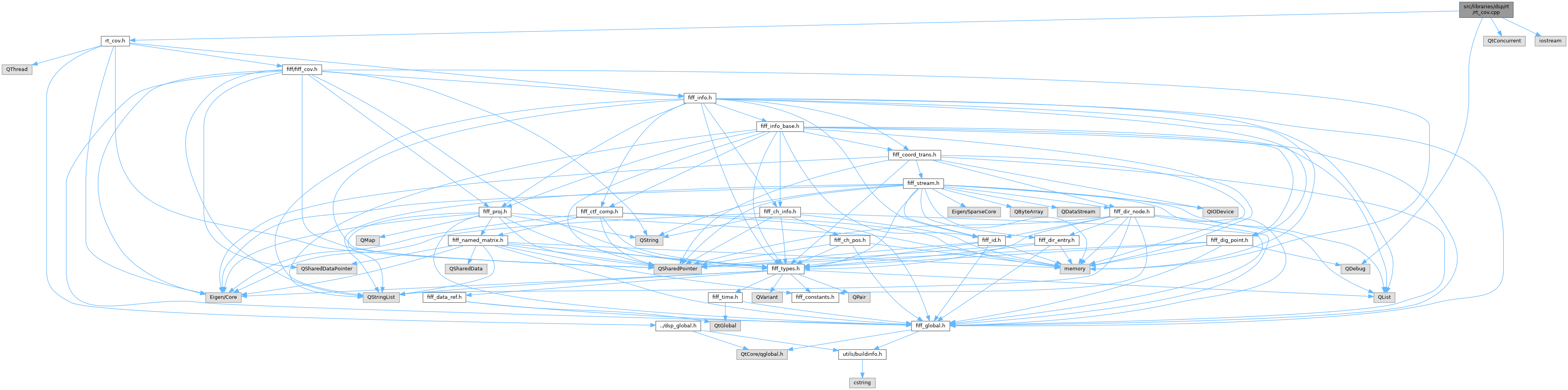

Include dependency graph for mne_surface_or_volume.h:

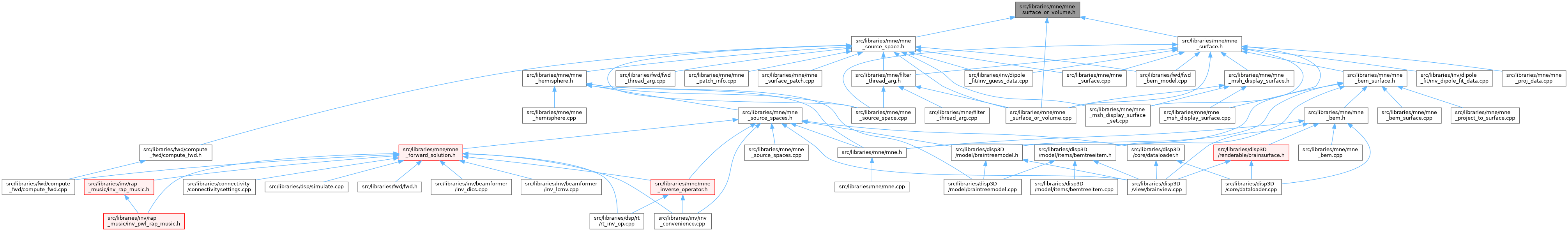

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	MNELIB::MNESurfaceOrVolume
	Defines a source space or a surface. More...

Namespaces
namespace	FIFFLIB
	FIFF file I/O, in-memory data structures and high-level readers/writers.
namespace	MNELIB
	Core MNE data structures (source spaces, source estimates, hemispheres).

Macros
#define	FIFFV_MNE_COORD_SURFACE_RAS   FIFFV_COORD_MRI /* The surface RAS coordinates */

Variables
constexpr auto	FIFF_MNE_SOURCE_SPACE_NNEIGHBORS = 3594
constexpr auto	FIFF_MNE_SOURCE_SPACE_NEIGHBORS = 3595
constexpr auto	TRIANGLE_FILE_MAGIC_NUMBER = (0xfffffe)
constexpr auto	NEW_QUAD_FILE_MAGIC_NUMBER = (0xfffffd)
constexpr auto	QUAD_FILE_MAGIC_NUMBER = (0xffffff)
constexpr auto	TAG_OLD_SURF_GEOM = 20

Detailed Description

Discriminated geometry container that can represent either a triangulated surface or a discrete/volume source space.

SPDX-License-Identifier: BSD-3-Clause Copyright (c) 2026 MNE-CPP Authors

Author

Christoph Dinh chris.nosp@m.toph.nosp@m..dinh.nosp@m.@mne.nosp@m.-cpp..nosp@m.org

Since

2.0.0

Date

March 2026

MNELIB::MNESurfaceOrVolume is the direct port of the mneSurfaceOrVolumeRec / mneSourceSpaceRec structure of MNE-C and is the common base used by MNELIB::MNESourceSpace and MNELIB::MNEBemSurface. It carries the union of fields used by both flavours - vertices, triangles, normals, voxel size and lattice geometry - so a single loader can return either kind without templated machinery.

Definition in file mne_surface_or_volume.h.

Macro Definition Documentation

FIFFV_MNE_COORD_SURFACE_RAS

#define FIFFV_MNE_COORD_SURFACE_RAS   FIFFV_COORD_MRI /* The surface RAS coordinates */

Definition at line 60 of file mne_surface_or_volume.h.

Variable Documentation

FIFF_MNE_SOURCE_SPACE_NEIGHBORS

auto FIFF_MNE_SOURCE_SPACE_NEIGHBORS = 3595

inlineconstexpr

Definition at line 58 of file mne_surface_or_volume.h.

FIFF_MNE_SOURCE_SPACE_NNEIGHBORS

auto FIFF_MNE_SOURCE_SPACE_NNEIGHBORS = 3594

inlineconstexpr

Definition at line 57 of file mne_surface_or_volume.h.

NEW_QUAD_FILE_MAGIC_NUMBER

auto NEW_QUAD_FILE_MAGIC_NUMBER = (0xfffffd)

inlineconstexpr

Definition at line 63 of file mne_surface_or_volume.h.

QUAD_FILE_MAGIC_NUMBER

auto QUAD_FILE_MAGIC_NUMBER = (0xffffff)

inlineconstexpr

Definition at line 64 of file mne_surface_or_volume.h.

TAG_OLD_SURF_GEOM

auto TAG_OLD_SURF_GEOM = 20

inlineconstexpr

Definition at line 66 of file mne_surface_or_volume.h.

TRIANGLE_FILE_MAGIC_NUMBER

auto TRIANGLE_FILE_MAGIC_NUMBER = (0xfffffe)

inlineconstexpr

Definition at line 62 of file mne_surface_or_volume.h.
