QRhi-based GPU-accelerated channel time-series renderer used by the modern raw browser. More...

#include <channelrhiview.h>

Classes
struct	EventMarker
	Stimulus / event marker — a coloured vertical line at a given sample. More...
struct	AnnotationSpan
	Time-span annotation overlay. More...

Signals
void	scrollSampleChanged (float sample)
void	samplesPerPixelChanged (float spp)
void	viewResized (int newWidth, int newHeight)
void	channelOffsetChanged (int firstChannel)
void	sampleClicked (int sample)
void	sampleRangeSelected (int startSample, int endSample)
void	annotationBoundaryMoved (int annotationIndex, bool isStartBoundary, int newSample)
void	cursorDataChanged (float timeSec, float amplitude, const QString &channelName, const QString &unitLabel)

Public Member Functions
	ChannelRhiView (QWidget *parent=nullptr)
	~ChannelRhiView () override
void	setModel (ChannelDataModel *model)
void	setEvents (const QVector< EventMarker > &events)
void	setEpochMarkers (const QVector< int > &triggerSamples)
void	setEpochMarkersVisible (bool visible)
bool	epochMarkersVisible () const
void	setClippingVisible (bool visible)
bool	clippingVisible () const
void	setZScoreMode (bool enabled)
bool	zScoreMode () const
void	setAnnotations (const QVector< AnnotationSpan > &annotations)
void	setAnnotationSelectionEnabled (bool enabled)
void	setEventsVisible (bool visible)
bool	eventsVisible () const
void	setAnnotationsVisible (bool visible)
bool	annotationsVisible () const
float	scrollSample () const
float	samplesPerPixel () const
void	setScrollSample (float sample)
void	setSamplesPerPixel (float spp)
void	scrollTo (float targetSample, int durationMs=200)
void	zoomTo (float targetSpp, int durationMs=200)
void	setBackgroundColor (const QColor &color)
QColor	backgroundColor () const
void	setPrefetchFactor (float factor)
int	visibleFirstSample () const
int	visibleSampleCount () const
void	setChannelIndices (const QVector< int > &indices)
int	totalLogicalChannels () const
void	setFirstVisibleChannel (int ch)
int	firstVisibleChannel () const
void	setVisibleChannelCount (int count)
int	visibleChannelCount () const
void	setFrozen (bool frozen)
bool	isFrozen () const
void	setGridVisible (bool visible)
bool	gridVisible () const
void	setSfreq (float sfreq)
void	setFirstFileSample (int first)
void	setLastFileSample (int last)
int	lastFileSample () const
void	setWheelScrollsChannels (bool channelsMode)
bool	wheelScrollsChannels () const
void	setScrollSpeedFactor (float factor)
float	scrollSpeedFactor () const
void	setHideBadChannels (bool hide)
bool	hideBadChannels () const
void	setCrosshairEnabled (bool enabled)
bool	crosshairEnabled () const
void	setClockTimeFormat (bool useClock)
bool	clockTimeFormat () const
void	setScalebarsVisible (bool visible)
bool	scalebarsVisible () const
void	setButterflyMode (bool enabled)
bool	butterflyMode () const

Protected Member Functions
void	initialize (QRhiCommandBuffer *cb) override
void	render (QRhiCommandBuffer *cb) override
void	releaseResources () override
void	paintEvent (QPaintEvent *event) override
void	drawCrosshair (QPainter &p)
void	drawScalebars (QPainter &p)
void	drawRulerOverlay (QPainter &p)
void	drawAnnotationSelectionOverlay (QPainter &p)
void	emitCursorData ()
bool	rulerActive () const
bool	annotationSelecting () const
void	resizeEvent (QResizeEvent *event) override
void	wheelEvent (QWheelEvent *event) override
void	mousePressEvent (QMouseEvent *event) override
void	mouseMoveEvent (QMouseEvent *event) override
void	mouseReleaseEvent (QMouseEvent *event) override
void	mouseDoubleClickEvent (QMouseEvent *event) override

Properties
float	scrollSample
float	samplesPerPixel

Friends
class	::CrosshairOverlay

Detailed Description

QRhi-based GPU-accelerated channel time-series renderer used by the modern raw browser.

Manages its own pipeline, samplers, resource bindings and a small CrosshairOverlay for the time / amplitude cursor; exposes callbacks for the host ChannelDataView to push samples, change scaling or update the visible window.

Definition at line 78 of file channelrhiview.h.

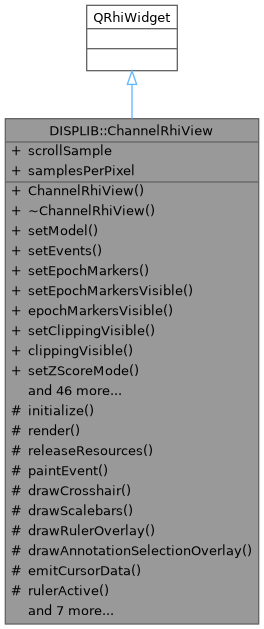

Inheritance diagram for DISPLIB::ChannelRhiView:

Constructor & Destructor Documentation

◆ ChannelRhiView()

ChannelRhiView::ChannelRhiView ( QWidget * parent = nullptr )

explicit

Definition at line 138 of file channelrhiview.cpp.

◆ ~ChannelRhiView()

ChannelRhiView::~ChannelRhiView ( )

overridedefault

Member Function Documentation

◆ annotationBoundaryMoved

void DISPLIB::ChannelRhiView::annotationBoundaryMoved	(	int	annotationIndex,
		bool	isStartBoundary,
		int	newSample )

signal

Emitted when the user finishes dragging an annotation boundary.

Parameters

[in]	annotationIndex	Index in the annotation span list.
[in]	isStartBoundary	True if the start boundary was dragged.
[in]	newSample	New absolute sample position of the boundary.

◆ annotationSelecting()

bool DISPLIB::ChannelRhiView::annotationSelecting ( ) const

inlineprotected

Definition at line 430 of file channelrhiview.h.

◆ annotationsVisible()

bool ChannelRhiView::annotationsVisible ( ) const

Definition at line 746 of file channelrhiview.cpp.

◆ backgroundColor()

QColor DISPLIB::ChannelRhiView::backgroundColor ( ) const

inline

Definition at line 209 of file channelrhiview.h.

◆ butterflyMode()

bool DISPLIB::ChannelRhiView::butterflyMode ( ) const

inline

Definition at line 369 of file channelrhiview.h.

◆ channelOffsetChanged

void DISPLIB::ChannelRhiView::channelOffsetChanged ( int firstChannel )

signal

Emitted whenever the first visible channel index changes.

◆ clippingVisible()

bool DISPLIB::ChannelRhiView::clippingVisible ( ) const

inline

Definition at line 135 of file channelrhiview.h.

◆ clockTimeFormat()

bool DISPLIB::ChannelRhiView::clockTimeFormat ( ) const

inline

Definition at line 351 of file channelrhiview.h.

◆ crosshairEnabled()

bool DISPLIB::ChannelRhiView::crosshairEnabled ( ) const

inline

Definition at line 345 of file channelrhiview.h.

◆ cursorDataChanged

void DISPLIB::ChannelRhiView::cursorDataChanged	(	float	timeSec,
		float	amplitude,
		const QString &	channelName,
		const QString &	unitLabel )

signal

Emitted continuously when the crosshair is active and the mouse moves.

Parameters

[in]	timeSec	Time at cursor in seconds relative to file start.
[in]	amplitude	Raw amplitude value under the cursor in physical units.
[in]	channelName	Name of the channel under the cursor.
[in]	unitLabel	Short unit label ("T", "V", "AU", …).

◆ drawAnnotationSelectionOverlay()

void ChannelRhiView::drawAnnotationSelectionOverlay ( QPainter & p )

protected

Definition at line 2362 of file channelrhiview.cpp.

◆ drawCrosshair()

void ChannelRhiView::drawCrosshair ( QPainter & p )

protected

Definition at line 2006 of file channelrhiview.cpp.

◆ drawRulerOverlay()

void ChannelRhiView::drawRulerOverlay ( QPainter & p )

protected

Definition at line 2212 of file channelrhiview.cpp.

◆ drawScalebars()

void ChannelRhiView::drawScalebars ( QPainter & p )

protected

Definition at line 2132 of file channelrhiview.cpp.

◆ emitCursorData()

void ChannelRhiView::emitCursorData ( )

protected

Definition at line 2096 of file channelrhiview.cpp.

◆ epochMarkersVisible()

bool DISPLIB::ChannelRhiView::epochMarkersVisible ( ) const

inline

Definition at line 132 of file channelrhiview.h.

◆ eventsVisible()

bool ChannelRhiView::eventsVisible ( ) const

Definition at line 733 of file channelrhiview.cpp.

◆ firstVisibleChannel()

int DISPLIB::ChannelRhiView::firstVisibleChannel ( ) const

inline

Definition at line 257 of file channelrhiview.h.

◆ gridVisible()

bool DISPLIB::ChannelRhiView::gridVisible ( ) const

inline

Definition at line 281 of file channelrhiview.h.

◆ hideBadChannels()

bool DISPLIB::ChannelRhiView::hideBadChannels ( ) const

inline

Definition at line 334 of file channelrhiview.h.

◆ initialize()

void ChannelRhiView::initialize ( QRhiCommandBuffer * cb )

overrideprotected

Definition at line 769 of file channelrhiview.cpp.

◆ isFrozen()

bool DISPLIB::ChannelRhiView::isFrozen ( ) const

inline

Definition at line 274 of file channelrhiview.h.

◆ lastFileSample()

int DISPLIB::ChannelRhiView::lastFileSample ( ) const

inline

Definition at line 308 of file channelrhiview.h.

◆ mouseDoubleClickEvent()

void ChannelRhiView::mouseDoubleClickEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2779 of file channelrhiview.cpp.

◆ mouseMoveEvent()

void ChannelRhiView::mouseMoveEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2535 of file channelrhiview.cpp.

◆ mousePressEvent()

void ChannelRhiView::mousePressEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2454 of file channelrhiview.cpp.

◆ mouseReleaseEvent()

void ChannelRhiView::mouseReleaseEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2667 of file channelrhiview.cpp.

◆ paintEvent()

void ChannelRhiView::paintEvent ( QPaintEvent * event )

overrideprotected

Definition at line 1569 of file channelrhiview.cpp.

◆ releaseResources()

void ChannelRhiView::releaseResources ( )

overrideprotected

Definition at line 778 of file channelrhiview.cpp.

◆ render()

void ChannelRhiView::render ( QRhiCommandBuffer * cb )

overrideprotected

Definition at line 1385 of file channelrhiview.cpp.

◆ resizeEvent()

void ChannelRhiView::resizeEvent ( QResizeEvent * event )

overrideprotected

Definition at line 2405 of file channelrhiview.cpp.

◆ rulerActive()

bool DISPLIB::ChannelRhiView::rulerActive ( ) const

inlineprotected

Definition at line 429 of file channelrhiview.h.

◆ sampleClicked

void DISPLIB::ChannelRhiView::sampleClicked ( int sample )

signal

Emitted whenever the user clicks; provides the sample index under the cursor.

◆ sampleRangeSelected

void DISPLIB::ChannelRhiView::sampleRangeSelected	(	int	startSample,
		int	endSample )

signal

Emitted when the user selects a time span with Shift+drag in annotation mode.

◆ samplesPerPixel()

float DISPLIB::ChannelRhiView::samplesPerPixel ( ) const

inline

Definition at line 164 of file channelrhiview.h.

◆ samplesPerPixelChanged

void DISPLIB::ChannelRhiView::samplesPerPixelChanged ( float spp )

signal

◆ scalebarsVisible()

bool DISPLIB::ChannelRhiView::scalebarsVisible ( ) const

inline

Definition at line 360 of file channelrhiview.h.

◆ scrollSample()

float DISPLIB::ChannelRhiView::scrollSample ( ) const

inline

Definition at line 163 of file channelrhiview.h.

◆ scrollSampleChanged

void DISPLIB::ChannelRhiView::scrollSampleChanged ( float sample )

signal

◆ scrollSpeedFactor()

float DISPLIB::ChannelRhiView::scrollSpeedFactor ( ) const

inline

Definition at line 322 of file channelrhiview.h.

◆ scrollTo()

void ChannelRhiView::scrollTo	(	float	targetSample,
		int	durationMs = 200 )

Smoothly animate the scroll position.

Parameters

[in]	targetSample	Target left-edge sample index.
[in]	durationMs	Animation duration in milliseconds (0 = instant).

Definition at line 309 of file channelrhiview.cpp.

◆ setAnnotations()

void ChannelRhiView::setAnnotations ( const QVector< AnnotationSpan > & annotations )

Set the list of time-span annotations to overlay on the traces.

Parameters

[in] annotations List of AnnotationSpan objects.

Definition at line 707 of file channelrhiview.cpp.

◆ setAnnotationSelectionEnabled()

void ChannelRhiView::setAnnotationSelectionEnabled ( bool enabled )

Enable or disable annotation range selection. When enabled, Shift+drag emits sampleRangeSelected on mouse release instead of acting as a pure measurement tool.

Definition at line 717 of file channelrhiview.cpp.

◆ setAnnotationsVisible()

void ChannelRhiView::setAnnotationsVisible ( bool visible )

Definition at line 737 of file channelrhiview.cpp.

◆ setBackgroundColor()

void ChannelRhiView::setBackgroundColor ( const QColor & color )

Background colour of the render surface.

Parameters

[in] color The new background colour.

Definition at line 342 of file channelrhiview.cpp.

◆ setButterflyMode()

void ChannelRhiView::setButterflyMode ( bool enabled )

Toggle butterfly mode: all channels of the same type are overlaid in a single lane.

Definition at line 515 of file channelrhiview.cpp.

◆ setChannelIndices()

void ChannelRhiView::setChannelIndices ( const QVector< int > & indices )

Restrict rendering to a specific subset of channel indices. When indices is empty all channels in the model are shown (no filter). When set, scrolling and visible-channel-count are relative to this subset.

Parameters

[in] indices Ordered list of model channel indices to display. Pass an empty vector to clear the filter.

Definition at line 578 of file channelrhiview.cpp.

◆ setClippingVisible()

void ChannelRhiView::setClippingVisible ( bool visible )

Definition at line 684 of file channelrhiview.cpp.

◆ setClockTimeFormat()

void DISPLIB::ChannelRhiView::setClockTimeFormat ( bool useClock )

inline

Set whether the crosshair label uses clock time (mm:ss.ms) or seconds.

Definition at line 350 of file channelrhiview.h.

◆ setCrosshairEnabled()

void ChannelRhiView::setCrosshairEnabled ( bool enabled )

Enable or disable the crosshair cursor overlay. When enabled, a vertical + horizontal cross follows the mouse and the view continuously emits cursorDataChanged() with the time/amplitude under the cursor.

Definition at line 489 of file channelrhiview.cpp.

◆ setEpochMarkers()

void ChannelRhiView::setEpochMarkers ( const QVector< int > & triggerSamples )

Definition at line 662 of file channelrhiview.cpp.

◆ setEpochMarkersVisible()

void ChannelRhiView::setEpochMarkersVisible ( bool visible )

Definition at line 672 of file channelrhiview.cpp.

◆ setEvents()

void ChannelRhiView::setEvents ( const QVector< EventMarker > & events )

Set the list of stimulus / event markers to overlay on the traces. Each marker is drawn as a coloured vertical line spanning all channel rows, with a small colour-coded label chip at the bottom of the view. Pass an empty vector to clear all markers.

Parameters

[in] events List of EventMarker objects.

Definition at line 652 of file channelrhiview.cpp.

◆ setEventsVisible()

void ChannelRhiView::setEventsVisible ( bool visible )

Definition at line 724 of file channelrhiview.cpp.

◆ setFirstFileSample()

void ChannelRhiView::setFirstFileSample ( int first )

Set the absolute sample index of the first sample in the file. Used to align grid tick lines with the time ruler labels.

Parameters

[in] first Absolute sample index of the file's first sample.

Definition at line 436 of file channelrhiview.cpp.

◆ setFirstVisibleChannel()

void ChannelRhiView::setFirstVisibleChannel ( int ch )

Set the index of the first visible channel row.

Parameters

[in] ch Zero-based channel index (within the active filter if any).

Definition at line 373 of file channelrhiview.cpp.

◆ setFrozen()

void ChannelRhiView::setFrozen ( bool frozen )

Freeze or unfreeze drag-panning (mouse drag and inertia). Wheel scroll and the scrollbar remain active when frozen.

Definition at line 403 of file channelrhiview.cpp.

◆ setGridVisible()

void ChannelRhiView::setGridVisible ( bool visible )

Show or hide the time and amplitude grid overlay.

Definition at line 414 of file channelrhiview.cpp.

◆ setHideBadChannels()

void ChannelRhiView::setHideBadChannels ( bool hide )

Show or hide waveform traces of channels marked bad. When hide is true bad channels are removed from the logical channel list used for scrolling and rendering so the trace lanes collapse upward in sync with the label panel.

Parameters

[in] hide true = remove bad channels from the visible trace list.

Definition at line 455 of file channelrhiview.cpp.

◆ setLastFileSample()

void ChannelRhiView::setLastFileSample ( int last )

Set the absolute sample index of the last sample in the file. Used to clamp scrolling so mouse pan cannot exceed the file end. Pass -1 (default) for unlimited.

Parameters

[in] last Absolute sample index of the file's last sample.

Definition at line 448 of file channelrhiview.cpp.

◆ setModel()

void ChannelRhiView::setModel ( ChannelDataModel * model )

Attach the data model. The view does NOT take ownership.

Parameters

[in] model The channel data model to render.

Definition at line 210 of file channelrhiview.cpp.

◆ setPrefetchFactor()

void ChannelRhiView::setPrefetchFactor ( float factor )

How many samples to prefetch beyond the visible window on each side (in multiples of the visible window). Default = 1.0.

Parameters

[in] factor Prefetch factor.

Definition at line 352 of file channelrhiview.cpp.

◆ setSamplesPerPixel()

void ChannelRhiView::setSamplesPerPixel ( float spp )

Set the horizontal zoom (samples per screen pixel). Triggers a VBO rebuild with new decimation.

Parameters

[in] spp Samples per pixel (> 1 = zoomed out, < 1 = zoomed in).

Definition at line 294 of file channelrhiview.cpp.

◆ setScalebarsVisible()

void ChannelRhiView::setScalebarsVisible ( bool visible )

Show or hide per-channel-type scalebars in the bottom-right corner.

Definition at line 505 of file channelrhiview.cpp.

◆ setScrollSample()

void ChannelRhiView::setScrollSample ( float sample )

Set the left-edge scroll position. Updates only the GPU uniform — no VBO rebuild unless the prefetch window is exhausted.

Parameters

[in] sample Absolute sample index for the left viewport edge.

Definition at line 239 of file channelrhiview.cpp.

◆ setScrollSpeedFactor()

void ChannelRhiView::setScrollSpeedFactor ( float factor )

Definition at line 482 of file channelrhiview.cpp.

◆ setSfreq()

void ChannelRhiView::setSfreq ( float sfreq )

Set the sampling frequency (Hz) used to place time-grid tick lines. Call this from ChannelDataView::init() after FiffInfo is available.

Definition at line 426 of file channelrhiview.cpp.

◆ setVisibleChannelCount()

void ChannelRhiView::setVisibleChannelCount ( int count )

Set how many channel rows are displayed simultaneously.

Parameters

[in] count Number of channels to show (clamped to 1–model count).

Definition at line 389 of file channelrhiview.cpp.

◆ setWheelScrollsChannels()

void ChannelRhiView::setWheelScrollsChannels ( bool channelsMode )

Control what the vertical mouse wheel scrolls. When channelsMode is true the vertical wheel scrolls through channels. When false the vertical wheel scrolls through time (same as horizontal).

Parameters

[in] channelsMode true = vertical wheel → channels, false → time.

Definition at line 475 of file channelrhiview.cpp.

◆ setZScoreMode()

void ChannelRhiView::setZScoreMode ( bool enabled )

Definition at line 695 of file channelrhiview.cpp.

◆ totalLogicalChannels()

int ChannelRhiView::totalLogicalChannels ( ) const

Total number of logical channels available for scrolling (respects active filter).

Definition at line 596 of file channelrhiview.cpp.

◆ viewResized

void DISPLIB::ChannelRhiView::viewResized	(	int	newWidth,
		int	newHeight )

signal

◆ visibleChannelCount()

int DISPLIB::ChannelRhiView::visibleChannelCount ( ) const

inline

Definition at line 266 of file channelrhiview.h.

◆ visibleFirstSample()

int ChannelRhiView::visibleFirstSample ( ) const

Returns the absolute sample index currently shown at x = 0 (left edge). (Same as scrollSample rounded to int.)

Definition at line 359 of file channelrhiview.cpp.

◆ visibleSampleCount()

int ChannelRhiView::visibleSampleCount ( ) const

Returns the number of samples currently visible.

Definition at line 366 of file channelrhiview.cpp.

◆ wheelEvent()

void ChannelRhiView::wheelEvent ( QWheelEvent * event )

overrideprotected

Definition at line 2418 of file channelrhiview.cpp.

◆ wheelScrollsChannels()

bool DISPLIB::ChannelRhiView::wheelScrollsChannels ( ) const

inline

Definition at line 319 of file channelrhiview.h.

◆ zoomTo()

void ChannelRhiView::zoomTo	(	float	targetSpp,
		int	durationMs = 200 )

Smoothly animate the zoom level.

Parameters

[in]	targetSpp	Target samples-per-pixel.
[in]	durationMs	Animation duration in milliseconds (0 = instant).

Definition at line 325 of file channelrhiview.cpp.

◆ zScoreMode()

bool DISPLIB::ChannelRhiView::zScoreMode ( ) const

inline

Definition at line 138 of file channelrhiview.h.

◆ ::CrosshairOverlay

friend class ::CrosshairOverlay

friend

Definition at line 423 of file channelrhiview.h.

Property Documentation

◆ samplesPerPixel

float DISPLIB::ChannelRhiView::samplesPerPixel

readwrite

Definition at line 83 of file channelrhiview.h.

◆ scrollSample

float DISPLIB::ChannelRhiView::scrollSample

readwrite

Definition at line 82 of file channelrhiview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/helpers/channelrhiview.h
src/libraries/disp/viewers/helpers/channelrhiview.cpp

Classes

Signals

Public Member Functions

Protected Member Functions

Properties

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ChannelRhiView()

◆ ~ChannelRhiView()

Member Function Documentation

◆ annotationBoundaryMoved

◆ annotationSelecting()

◆ annotationsVisible()

◆ backgroundColor()

◆ butterflyMode()

◆ channelOffsetChanged

◆ clippingVisible()

◆ clockTimeFormat()

◆ crosshairEnabled()

◆ cursorDataChanged

◆ drawAnnotationSelectionOverlay()

◆ drawCrosshair()

◆ drawRulerOverlay()

◆ drawScalebars()

◆ emitCursorData()

◆ epochMarkersVisible()

◆ eventsVisible()

◆ firstVisibleChannel()

◆ gridVisible()

◆ hideBadChannels()

◆ initialize()

◆ isFrozen()

◆ lastFileSample()

◆ mouseDoubleClickEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ paintEvent()

◆ releaseResources()

◆ render()

◆ resizeEvent()

◆ rulerActive()

◆ sampleClicked

◆ sampleRangeSelected

◆ samplesPerPixel()

◆ samplesPerPixelChanged

◆ scalebarsVisible()

◆ scrollSample()

◆ scrollSampleChanged

◆ scrollSpeedFactor()

◆ scrollTo()

◆ setAnnotations()

◆ setAnnotationSelectionEnabled()

◆ setAnnotationsVisible()

◆ setBackgroundColor()

◆ setButterflyMode()

◆ setChannelIndices()

◆ setClippingVisible()

◆ setClockTimeFormat()

◆ setCrosshairEnabled()

◆ setEpochMarkers()

◆ setEpochMarkersVisible()

◆ setEvents()

◆ setEventsVisible()

◆ setFirstFileSample()

◆ setFirstVisibleChannel()

◆ setFrozen()

◆ setGridVisible()

◆ setHideBadChannels()

◆ setLastFileSample()

◆ setModel()

◆ setPrefetchFactor()

◆ setSamplesPerPixel()

◆ setScalebarsVisible()

◆ setScrollSample()

◆ setScrollSpeedFactor()

◆ setSfreq()

◆ setVisibleChannelCount()

◆ setWheelScrollsChannels()
