DISPLIB::ModalitySelectionView Class Reference

Per-modality visibility toggle panel (one QCheckBox per channel modality). More...

#include <modalityselectionview.h>

Public Types
typedef QSharedPointer< ModalitySelectionView >	SPtr
typedef QSharedPointer< const ModalitySelectionView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	modalitiesChanged (const QMap< QString, bool > &modalityMap)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	ModalitySelectionView (const QList< FIFFLIB::FiffChInfo > &lChannelList, const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~ModalitySelectionView ()
void	setModalityMap (const QMap< QString, bool > &modalityMap)
QMap< QString, bool >	getModalityMap ()
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	redrawGUI ()
void	onUpdateModalityCheckbox (Qt::CheckState state)

Protected Attributes
QMap< QString, bool >	m_modalityMap
QList< QCheckBox * >	m_qListModalityCheckBox
QStringList	m_lChannelTypeList
QString	m_sSettingsPath
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Per-modality visibility toggle panel (one QCheckBox per channel modality).

Builds itself from the active FiffInfo modalities and emits modalitiesChanged so ButterflyView and AverageLayoutView can hide entire modalities at once.

Definition at line 69 of file modalityselectionview.h.

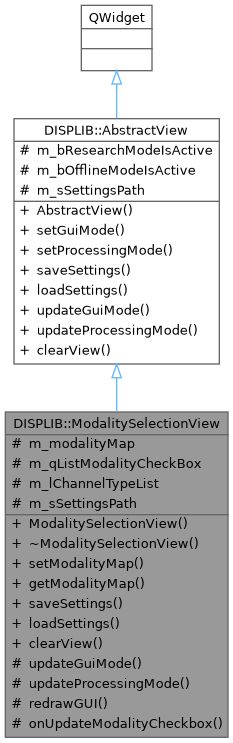

Inheritance diagram for DISPLIB::ModalitySelectionView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const ModalitySelectionView> DISPLIB::ModalitySelectionView::ConstSPtr

Const shared pointer type for ModalitySelectionView.

Definition at line 75 of file modalityselectionview.h.

SPtr

typedef QSharedPointer<ModalitySelectionView> DISPLIB::ModalitySelectionView::SPtr

Shared pointer type for ModalitySelectionView.

Definition at line 74 of file modalityselectionview.h.

Constructor & Destructor Documentation

ModalitySelectionView()

ModalitySelectionView::ModalitySelectionView	(	const QList< FIFFLIB::FiffChInfo > &	lChannelList,
		const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a ModalitySelectionView which is a child of parent.

Parameters

[in]

parent

parent of widget.

Definition at line 45 of file modalityselectionview.cpp.

~ModalitySelectionView()

ModalitySelectionView::~ModalitySelectionView

(

)

Destroys the ModalitySelectionView.

Definition at line 84 of file modalityselectionview.cpp.

Member Function Documentation

clearView()

void ModalitySelectionView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 244 of file modalityselectionview.cpp.

getModalityMap()

QMap< QString, bool > ModalitySelectionView::getModalityMap

(

)

Get the activation of the already created modality check boxes.

Returns

The current modality map.

Definition at line 91 of file modalityselectionview.cpp.

loadSettings()

void ModalitySelectionView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 128 of file modalityselectionview.cpp.

modalitiesChanged

void DISPLIB::ModalitySelectionView::modalitiesChanged ( const QMap< QString, bool > & modalityMap )

signal

Emit this signal whenever the user changed the modality.

onUpdateModalityCheckbox()

void ModalitySelectionView::onUpdateModalityCheckbox ( Qt::CheckState state )

protected

Slot called when modality check boxes were changed

Definition at line 229 of file modalityselectionview.cpp.

redrawGUI()

void ModalitySelectionView::redrawGUI ( )

protected

Redraw the GUI.

Definition at line 190 of file modalityselectionview.cpp.

saveSettings()

void ModalitySelectionView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 98 of file modalityselectionview.cpp.

setModalityMap()

void ModalitySelectionView::setModalityMap

(

const QMap< QString, bool > &

modalityMap

)

Set the modality checkboxes.

Parameters

[in]

modalityMap

The modality map.

Definition at line 181 of file modalityselectionview.cpp.

updateGuiMode()

void ModalitySelectionView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in]

mode

The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 157 of file modalityselectionview.cpp.

updateProcessingMode()

void ModalitySelectionView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in]

mode

The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 169 of file modalityselectionview.cpp.

Member Data Documentation

m_lChannelTypeList

QStringList DISPLIB::ModalitySelectionView::m_lChannelTypeList

protected

Channel type list.

Definition at line 160 of file modalityselectionview.h.

m_modalityMap

QMap<QString, bool> DISPLIB::ModalitySelectionView::m_modalityMap

protected

Map of different modalities.

Definition at line 157 of file modalityselectionview.h.

m_qListModalityCheckBox

QList<QCheckBox*> DISPLIB::ModalitySelectionView::m_qListModalityCheckBox

protected

List of modality checkboxes.

Definition at line 158 of file modalityselectionview.h.

m_sSettingsPath

QString DISPLIB::ModalitySelectionView::m_sSettingsPath

protected

The settings path to store the GUI settings to.

Definition at line 162 of file modalityselectionview.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/modalityselectionview.h
• src/libraries/disp/viewers/modalityselectionview.cpp
