Stim-channel chooser plus threshold spinbox for on-line trigger detection. More...

#include <triggerdetectionview.h>

Public Types
typedef QSharedPointer< TriggerDetectionView >	SPtr
typedef QSharedPointer< const TriggerDetectionView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	resetTriggerCounter ()
void	triggerInfoChanged (const QMap< double, QColor > &value, bool bActive, const QString &sTriggerCh, double dThreshold)
void	detectTriggers (const QString &sChannelName, double iThreshold)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	TriggerDetectionView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~TriggerDetectionView ()
void	init (const QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo)
void	setNumberDetectedTriggersAndTypes (int totalNumberDetections, const QMap< int, QList< QPair< int, double > > > &mapDetectedTriggers)
QString	getSelectedStimChannel ()
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	onTriggerInfoChanged ()
void	onRealTimeTriggerColorChanged (bool state)
void	onRealTimeTriggerColorTypeChanged (const QString &value)
void	onResetTriggerNumbers ()
void	onDetectTriggers ()

Protected Attributes
Ui::TriggerDetectionViewWidget *	m_pUi
QSharedPointer< FIFFLIB::FiffInfo >	m_pFiffInfo
QMap< double, QColor >	m_qMapTriggerColor
QString	m_sSettingsPath
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Stim-channel chooser plus threshold spinbox for on-line trigger detection.

Picks the stim channel to monitor, sets the rising-edge threshold and resets the detected-event list; detected events feed the averaging pipeline and the ChannelDataView trigger overlay.

Definition at line 72 of file triggerdetectionview.h.

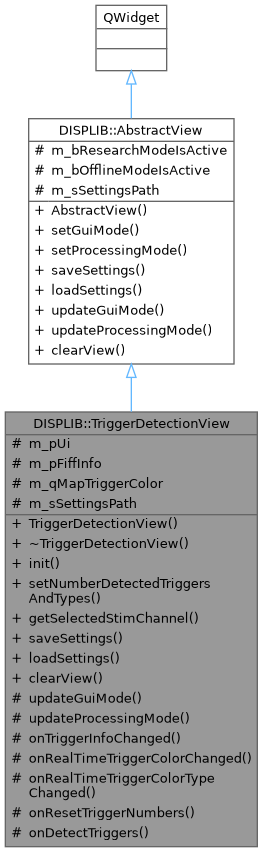

Inheritance diagram for DISPLIB::TriggerDetectionView:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const TriggerDetectionView> DISPLIB::TriggerDetectionView::ConstSPtr

Const shared pointer type for TriggerDetectionView.

Definition at line 78 of file triggerdetectionview.h.

◆ SPtr

typedef QSharedPointer<TriggerDetectionView> DISPLIB::TriggerDetectionView::SPtr

Shared pointer type for TriggerDetectionView.

Definition at line 77 of file triggerdetectionview.h.

Constructor & Destructor Documentation

◆ TriggerDetectionView()

TriggerDetectionView::TriggerDetectionView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a TriggerDetectionView which is a child of parent.

Parameters

[in] parent parent of widget.

Definition at line 48 of file triggerdetectionview.cpp.

◆ ~TriggerDetectionView()

TriggerDetectionView::~TriggerDetectionView ( )

Destroys the TriggerDetectionView.

Definition at line 68 of file triggerdetectionview.cpp.

Member Function Documentation

◆ clearView()

void TriggerDetectionView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 310 of file triggerdetectionview.cpp.

◆ detectTriggers

void DISPLIB::TriggerDetectionView::detectTriggers	(	const QString &	sChannelName,
		double	iThreshold )

signal

Emit this signal when user clicks detect trigger button.

◆ getSelectedStimChannel()

QString TriggerDetectionView::getSelectedStimChannel ( )

Gets currently selected STIM channel in GUI

Returns: currently selected STIM channel.

Definition at line 303 of file triggerdetectionview.cpp.

◆ init()

void TriggerDetectionView::init ( const QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo )

Init the view.

Definition at line 77 of file triggerdetectionview.cpp.

◆ loadSettings()

void TriggerDetectionView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 172 of file triggerdetectionview.cpp.

◆ onDetectTriggers()

void TriggerDetectionView::onDetectTriggers ( )

protected

Slot called when detect triggers is pressed

Definition at line 292 of file triggerdetectionview.cpp.

◆ onRealTimeTriggerColorChanged()

void TriggerDetectionView::onRealTimeTriggerColorChanged ( bool state )

protected

Slot called when trigger detection color button was clicked

Definition at line 250 of file triggerdetectionview.cpp.

◆ onRealTimeTriggerColorTypeChanged()

void TriggerDetectionView::onRealTimeTriggerColorTypeChanged ( const QString & value )

protected

Slot called when trigger type changed

Definition at line 269 of file triggerdetectionview.cpp.

◆ onResetTriggerNumbers()

void TriggerDetectionView::onResetTriggerNumbers ( )

protected

Slot called when reset number of detected triggers was pressed

Definition at line 280 of file triggerdetectionview.cpp.

◆ onTriggerInfoChanged()

void TriggerDetectionView::onTriggerInfoChanged ( )

protected

Slot called when trigger info changed

Definition at line 238 of file triggerdetectionview.cpp.

◆ resetTriggerCounter

void DISPLIB::TriggerDetectionView::resetTriggerCounter ( )

signal

Emit this signal whenever the user pressed the trigger counter.

◆ saveSettings()

void TriggerDetectionView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 148 of file triggerdetectionview.cpp.

◆ setNumberDetectedTriggersAndTypes()

void TriggerDetectionView::setNumberDetectedTriggersAndTypes	(	int	totalNumberDetections,
		const QMap< int, QList< QPair< int, double > > > &	mapDetectedTriggers )

Set total number of detected triggers and trigger types.

Parameters

[in]	totalNumberDetections	The numger of detected triggers.
[in]	mapDetectedTriggers	The currently detected triggers.

Definition at line 127 of file triggerdetectionview.cpp.

◆ triggerInfoChanged

void DISPLIB::TriggerDetectionView::triggerInfoChanged	(	const QMap< double, QColor > &	value,
		bool	bActive,
		const QString &	sTriggerCh,
		double	dThreshold )

signal

Emit this signal whenever the trigger information changed.

◆ updateGuiMode()

void TriggerDetectionView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in] mode The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 198 of file triggerdetectionview.cpp.

◆ updateProcessingMode()

void TriggerDetectionView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in] mode The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 210 of file triggerdetectionview.cpp.

Member Data Documentation

◆ m_pFiffInfo

QSharedPointer<FIFFLIB::FiffInfo> DISPLIB::TriggerDetectionView::m_pFiffInfo

protected

Connected fiff info.

Definition at line 187 of file triggerdetectionview.h.

◆ m_pUi

Ui::TriggerDetectionViewWidget* DISPLIB::TriggerDetectionView::m_pUi

protected

Definition at line 185 of file triggerdetectionview.h.

◆ m_qMapTriggerColor

QMap<double, QColor> DISPLIB::TriggerDetectionView::m_qMapTriggerColor

protected

Trigger colors per detected type.

Definition at line 189 of file triggerdetectionview.h.

◆ m_sSettingsPath

QString DISPLIB::TriggerDetectionView::m_sSettingsPath

protected

The settings path to store the GUI settings to.

Definition at line 191 of file triggerdetectionview.h.
