mne_icp.h File Reference

Iterative Closest Point alignment between MEG digitiser points and an MRI head surface. More...

#include "mne_global.h"
#include <QSharedPointer>
#include <Eigen/Core>

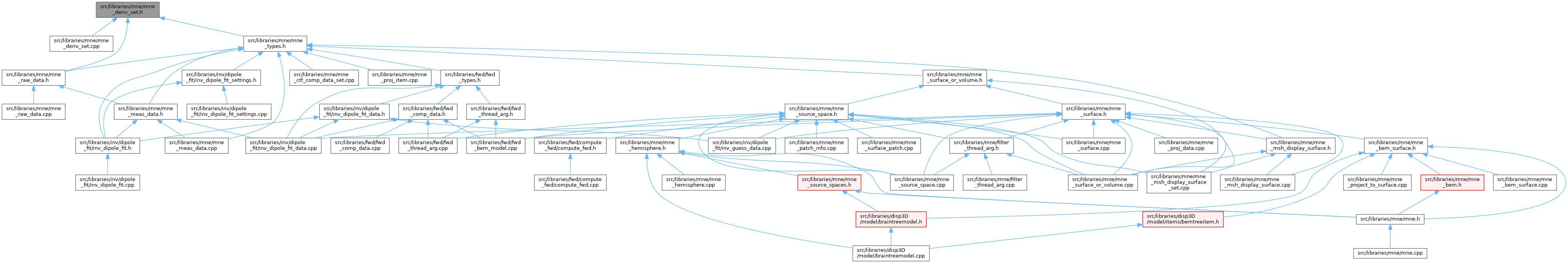

Include dependency graph for mne_icp.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Namespaces
namespace	FIFFLIB
	FIFF file I/O, in-memory data structures and high-level readers/writers.
namespace	MNELIB
	Core MNE data structures (source spaces, source estimates, hemispheres).

Functions
bool	MNELIB::performIcp (const QSharedPointer< MNELIB::MNEProjectToSurface > mneSurfacePoints, const Eigen::MatrixXf &matPointCloud, FIFFLIB::FiffCoordTrans &transFromTo, float &fRMSE, bool bScale=false, int iMaxIter=20, float fTol=0.001, const Eigen::VectorXf &vecWeights=vecDefaultWeights)
bool	MNELIB::fitMatchedPoints (const Eigen::MatrixXf &matSrcPoint, const Eigen::MatrixXf &matDstPoint, Eigen::Matrix4f &matTrans, float fScale=1.0, bool bScale=false, const Eigen::VectorXf &vecWeights=vecDefaultWeights)
bool	MNELIB::discard3DPointOutliers (const QSharedPointer< MNELIB::MNEProjectToSurface > mneSurfacePoints, const Eigen::MatrixXf &matPointCloud, const FIFFLIB::FiffCoordTrans &transFromTo, Eigen::VectorXi &vecTake, Eigen::MatrixXf &matTakePoint, float fMaxDist=0.0)

Variables
const Eigen::VectorXf	MNELIB::vecDefaultWeights

Detailed Description

Iterative Closest Point alignment between MEG digitiser points and an MRI head surface.

SPDX-License-Identifier: BSD-3-Clause Copyright (c) 2026 MNE-CPP Authors

Author

Christoph Dinh chris.nosp@m.toph.nosp@m..dinh.nosp@m.@mne.nosp@m.-cpp..nosp@m.org

Since

2.0.0

Date

March 2026

MNELIB::MNEIcp wraps the classical point-to-surface ICP used by mne-cpp's coregistration tools to refine an initial head <-> MRI transformation. It projects each digitiser point onto the nearest triangle of an MNEBemSurface (via MNEProjectToSurface), solves a rigid-body least squares with SVD and iterates until convergence.

Definition in file mne_icp.h.
