CONNECTIVITYLIB::UnbiasedSquaredPhaseLagIndex Class Reference

This class computes the phase lag index connectivity metric. More...

#include <unbiasedsquaredphaselagindex.h>

Public Types
typedef QSharedPointer< UnbiasedSquaredPhaseLagIndex >	SPtr
typedef QSharedPointer< const UnbiasedSquaredPhaseLagIndex >	ConstSPtr
Public Types inherited from CONNECTIVITYLIB::AbstractMetric
typedef QSharedPointer< AbstractMetric >	SPtr
typedef QSharedPointer< const AbstractMetric >	ConstSPtr

Public Member Functions
	UnbiasedSquaredPhaseLagIndex ()
Public Member Functions inherited from CONNECTIVITYLIB::AbstractMetric
	AbstractMetric ()

Static Public Member Functions
static Network	calculate (ConnectivitySettings &connectivitySettings)

Static Protected Member Functions
static void	compute (ConnectivitySettings::IntermediateTrialData &inputData, QVector< QPair< int, Eigen::MatrixXcd > > &vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXd > > &vecPairCsdImagSignSum, QMutex &mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > &tapers)
static void	computeUSPLI (ConnectivitySettings &connectivitySettings, Network &finalNetwork)

Additional Inherited Members
Static Public Attributes inherited from CONNECTIVITYLIB::AbstractMetric
static bool	m_bStorageModeIsActive = false
static int	m_iNumberBinStart = -1
static int	m_iNumberBinAmount = -1

Detailed Description

This class computes the phase lag index connectivity metric.

This class computes the phase lag index connectivity metric.

Definition at line 86 of file unbiasedsquaredphaselagindex.h.

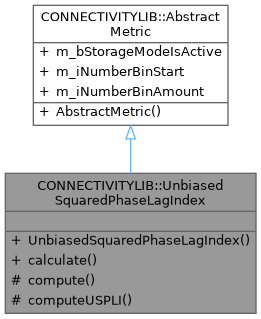

Inheritance diagram for CONNECTIVITYLIB::UnbiasedSquaredPhaseLagIndex:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const UnbiasedSquaredPhaseLagIndex> CONNECTIVITYLIB::UnbiasedSquaredPhaseLagIndex::ConstSPtr

Const shared pointer type for UnbiasedSquaredPhaseLagIndex.

Definition at line 91 of file unbiasedsquaredphaselagindex.h.

SPtr

typedef QSharedPointer<UnbiasedSquaredPhaseLagIndex> CONNECTIVITYLIB::UnbiasedSquaredPhaseLagIndex::SPtr

Shared pointer type for UnbiasedSquaredPhaseLagIndex.

Definition at line 90 of file unbiasedsquaredphaselagindex.h.

Constructor & Destructor Documentation

UnbiasedSquaredPhaseLagIndex()

UnbiasedSquaredPhaseLagIndex::UnbiasedSquaredPhaseLagIndex ( )

explicit

Constructs a UnbiasedSquaredPhaseLagIndex object.

Definition at line 79 of file unbiasedsquaredphaselagindex.cpp.

Member Function Documentation

calculate()

Network UnbiasedSquaredPhaseLagIndex::calculate ( ConnectivitySettings & connectivitySettings )

static

Calculates the USPLI between the rows of the data matrix.

Parameters

[in]

connectivitySettings

The input data and parameters.

Returns

The connectivity information in form of a network structure.

Definition at line 85 of file unbiasedsquaredphaselagindex.cpp.

compute()

void UnbiasedSquaredPhaseLagIndex::compute ( ConnectivitySettings::IntermediateTrialData & inputData, QVector< QPair< int, Eigen::MatrixXcd > > & vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXd > > & vecPairCsdImagSignSum, QMutex & mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > & tapers )

staticprotected

Computes the PLI values. This function gets called in parallel.

Parameters

[in]	inputData	The input data.
[out]

The sum of all CSD matrices for each trial.

Parameters

[out]

The sum of all imag sign CSD matrices for each trial.

Parameters

[in]	mutex	The mutex used to safely access vecPairCsdSum.
[in]	iNRows	The number of rows.
[in]	iNFreqs	The number of frequenciy bins.
[in]	iNfft	The FFT length.
[in]	tapers	The taper information.

Definition at line 189 of file unbiasedsquaredphaselagindex.cpp.

computeUSPLI()

void UnbiasedSquaredPhaseLagIndex::computeUSPLI ( ConnectivitySettings & connectivitySettings, Network & finalNetwork )

staticprotected

Reduces the USPLI computation to a final result.

Parameters

[out]	connectivitySettings	The input data.
[in]	finalNetwork	The final network.

Definition at line 313 of file unbiasedsquaredphaselagindex.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/connectivity/metrics/unbiasedsquaredphaselagindex.h
• src/libraries/connectivity/metrics/unbiasedsquaredphaselagindex.cpp
