BIDSLIB::EDFReader Class Reference

The EDFReader reads European Data Format (EDF/EDF+) files and exposes them through the AbstractFormatReader interface. More...

#include <bids_edf_reader.h>

Public Member Functions
	EDFReader (float fScaleFactor=1e6)
	EDFReader Default constructor.
	~EDFReader () override
bool	open (const QString &sFilePath) override
	Open and parse the file header. Must be called before reading data.
FIFFLIB::FiffInfo	getInfo () const override
	Return measurement metadata as FiffInfo.
Eigen::MatrixXf	readRawSegment (int iStartSampleIdx, int iEndSampleIdx) const override
	Read a segment of raw data.
long	getSampleCount () const override
	Return total number of samples across the recording.
float	getFrequency () const override
	Return the sampling frequency in Hz.
int	getChannelCount () const override
	Return the number of measurement channels.
FIFFLIB::FiffRawData	toFiffRawData () const override
	Convert the entire dataset to a FiffRawData structure.
QString	formatName () const override
	Return a descriptive name for the format (e.g. "EDF", "BrainVision").
bool	supportsExtension (const QString &sExtension) const override
	Check whether this reader can handle the given file extension.
QVector< EDFChannelInfo >	getAllChannelInfos () const
	Return all channel infos (measurement + extra).
QVector< EDFChannelInfo >	getMeasurementChannelInfos () const
	Return measurement channel infos only.
Public Member Functions inherited from BIDSLIB::AbstractFormatReader
virtual	~AbstractFormatReader ()=default
	Virtual destructor.

Additional Inherited Members
Public Types inherited from BIDSLIB::AbstractFormatReader
using	UPtr = std::unique_ptr<AbstractFormatReader>
Protected Member Functions inherited from BIDSLIB::AbstractFormatReader
	AbstractFormatReader ()=default

Detailed Description

The EDFReader reads European Data Format (EDF/EDF+) files and exposes them through the AbstractFormatReader interface.

The EDF specification stores data as 16-bit little-endian integers in fixed-duration "data records", with channels interleaved within each record.

Definition at line 93 of file bids_edf_reader.h.

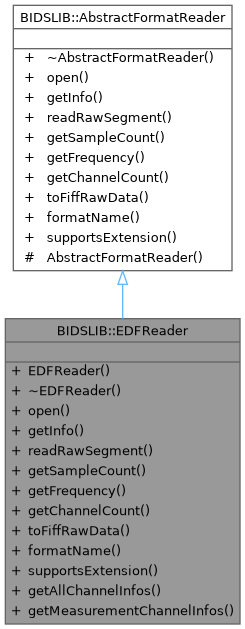

Inheritance diagram for BIDSLIB::EDFReader:

Constructor & Destructor Documentation

EDFReader()

EDFReader::EDFReader ( float fScaleFactor = 1e6 )

explicit

EDFReader Default constructor.

Parameters

[in]

fScaleFactor

Raw value scaling factor (default: 1e6 for uV→V conversion).

Definition at line 120 of file bids_edf_reader.cpp.

~EDFReader()

EDFReader::~EDFReader ( )

override

Definition at line 127 of file bids_edf_reader.cpp.

Member Function Documentation

formatName()

QString EDFReader::formatName ( ) const

overridevirtual

Return a descriptive name for the format (e.g. "EDF", "BrainVision").

Implements BIDSLIB::AbstractFormatReader.

Definition at line 406 of file bids_edf_reader.cpp.

getAllChannelInfos()

QVector< EDFChannelInfo > EDFReader::getAllChannelInfos

(

)

const

Return all channel infos (measurement + extra).

Definition at line 421 of file bids_edf_reader.cpp.

getChannelCount()

int EDFReader::getChannelCount ( ) const

overridevirtual

Return the number of measurement channels.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 381 of file bids_edf_reader.cpp.

getFrequency()

float EDFReader::getFrequency ( ) const

overridevirtual

Return the sampling frequency in Hz.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 371 of file bids_edf_reader.cpp.

getInfo()

FiffInfo EDFReader::getInfo ( ) const

overridevirtual

Return measurement metadata as FiffInfo.

Returns

FiffInfo populated from the native format header.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 251 of file bids_edf_reader.cpp.

getMeasurementChannelInfos()

QVector< EDFChannelInfo > EDFReader::getMeasurementChannelInfos

(

)

const

Return measurement channel infos only.

Definition at line 428 of file bids_edf_reader.cpp.

getSampleCount()

long EDFReader::getSampleCount ( ) const

overridevirtual

Return total number of samples across the recording.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 361 of file bids_edf_reader.cpp.

open()

bool EDFReader::open ( const QString & sFilePath )

overridevirtual

Open and parse the file header. Must be called before reading data.

Parameters

[in]

sFilePath

Absolute path to the primary data file.

Returns

True if the file was opened and parsed successfully.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 136 of file bids_edf_reader.cpp.

readRawSegment()

MatrixXf EDFReader::readRawSegment ( int iStartSampleIdx, int iEndSampleIdx ) const

overridevirtual

Read a segment of raw data.

Parameters

[in]	iStartSampleIdx	First sample index (0-based, inclusive).
[in]	iEndSampleIdx	Last sample index (0-based, exclusive).

Returns

Matrix of shape (n_channels x n_samples) with calibrated physical values.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 268 of file bids_edf_reader.cpp.

supportsExtension()

bool EDFReader::supportsExtension ( const QString & sExtension ) const

overridevirtual

Check whether this reader can handle the given file extension.

Parameters

[in]

sExtension

File extension including dot (e.g. ".edf", ".vhdr").

Returns

True if this reader supports the extension.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 413 of file bids_edf_reader.cpp.

toFiffRawData()

FiffRawData EDFReader::toFiffRawData ( ) const

overridevirtual

Convert the entire dataset to a FiffRawData structure.

Returns

FiffRawData populated with info, calibrations, and sample bounds.

Implements BIDSLIB::AbstractFormatReader.

Definition at line 388 of file bids_edf_reader.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/bids/readers/bids_edf_reader.h
• src/libraries/bids/readers/bids_edf_reader.cpp
