COMLIB::RtCmdClient Class Reference

TCP client for sending JSON commands to and receiving responses from mne_rt_server (port 4217). More...

#include <rt_cmd_client.h>

Public Types
typedef QSharedPointer< RtCmdClient >	SPtr
typedef QSharedPointer< const RtCmdClient >	ConstSPtr

Signals
void	response (QString p_sResponse)

Public Member Functions
	RtCmdClient (QObject *parent=nullptr)
bool	hasCommand (const QString &p_sCommand) const
QString	sendCLICommand (const QString &p_sCommand)
void	sendCommandJSON (const Command &p_command)
QString	readAvailableData ()
qint32	requestBufsize ()
void	requestCommands ()
qint32	requestConnectors (QMap< qint32, QString > &p_qMapConnectors)
bool	waitForDataAvailable (qint32 msecs=30000) const
Command &	operator[] (const QString &key)
const Command	operator[] (const QString &key) const

Detailed Description

TCP client for sending JSON commands to and receiving responses from mne_rt_server (port 4217).

The real-time command client class provides an interface to communicate with the command port 4217 of a running mne_rt_server.

Definition at line 71 of file rt_cmd_client.h.

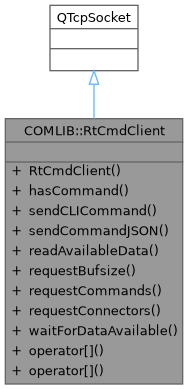

Inheritance diagram for COMLIB::RtCmdClient:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const RtCmdClient> COMLIB::RtCmdClient::ConstSPtr

Const shared pointer type for RtCmdClient.

Definition at line 77 of file rt_cmd_client.h.

SPtr

typedef QSharedPointer<RtCmdClient> COMLIB::RtCmdClient::SPtr

Shared pointer type for RtCmdClient.

Definition at line 76 of file rt_cmd_client.h.

Constructor & Destructor Documentation

RtCmdClient()

RtCmdClient::RtCmdClient ( QObject * parent = nullptr )

explicit

Creates the real-time command client.

Parameters

[in]

parent

Parent QObject (optional).

Definition at line 64 of file rt_cmd_client.cpp.

Member Function Documentation

hasCommand()

bool COMLIB::RtCmdClient::hasCommand ( const QString & p_sCommand ) const

inline

Checks if a command is managed;

Parameters

p_sCommand

Command to check.

Returns

true if part of command manager, false otherwise.

Definition at line 208 of file rt_cmd_client.h.

operator[]() [1/2]

Command & RtCmdClient::operator[]

(

const QString &

key

)

Subscript operator [] to access commands by command name

Parameters

[in]

key

the command key word.

Returns

Command object related to command key word.

Definition at line 349 of file rt_cmd_client.cpp.

operator[]() [2/2]

const Command RtCmdClient::operator[]

(

const QString &

key

)

const

Subscript operator [] to access commands by command name

Parameters

key	the command key word.

Returns

Command object related to command key word.

Definition at line 356 of file rt_cmd_client.cpp.

readAvailableData()

QString COMLIB::RtCmdClient::readAvailableData ( )

inline

Returns the available data.

Returns

the available data.

Definition at line 196 of file rt_cmd_client.h.

requestBufsize()

qint32 RtCmdClient::requestBufsize

(

)

Request buffer size from mne_rt_server

Definition at line 180 of file rt_cmd_client.cpp.

requestCommands()

void RtCmdClient::requestCommands

(

)

Request available commands from mne_rt_server

Definition at line 212 of file rt_cmd_client.cpp.

requestConnectors()

qint32 RtCmdClient::requestConnectors

(

QMap< qint32, QString > &

p_qMapConnectors

)

Request available connectors from mne_rt_server

Parameters

[in]

p_qMapConnectors

list of connectors.

Returns

the active connector.

Definition at line 241 of file rt_cmd_client.cpp.

response

void COMLIB::RtCmdClient::response ( QString p_sResponse )

signal

Emits the received response.

Parameters

[in]

p_sResponse

the received response.

sendCLICommand()

QString RtCmdClient::sendCLICommand

(

const QString &

p_sCommand

)

Sends a command line formatted command to a connected mne_rt_server

Parameters

[in]

p_sCommand

The command to send.

Returns

mne_rt_server reply.

Definition at line 73 of file rt_cmd_client.cpp.

sendCommandJSON()

void RtCmdClient::sendCommandJSON

(

const Command &

p_command

)

Sends a command to a connected mne_rt_server

Parameters

[in]

p_command

The command to send.

Returns

mne_rt_server reply.

Definition at line 98 of file rt_cmd_client.cpp.

waitForDataAvailable()

bool RtCmdClient::waitForDataAvailable

(

qint32

msecs = 30000

)

const

Wait for ready read until data are available.

Parameters

[in]

msecs

time to wait in milliseconds, if -1 function will not time out. Default value is 30000.

Returns

Command object related to command key word.

Definition at line 329 of file rt_cmd_client.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/com/rt_client/rt_cmd_client.h
• src/libraries/com/rt_client/rt_cmd_client.cpp
