DISPLIB::FilterPlotScene Class Reference

The FilterPlotScene class provides the scene where a filter response can be plotted. More...

#include <filterplotscene.h>

Public Types

typedef QSharedPointer< FilterPlotScene > SPtr
typedef QSharedPointer< const FilterPlotScene > ConstSPtr

Public Member Functions

 FilterPlotScene (QGraphicsView *view, QObject *parent=0)
void updateFilter (const RTPROCESSINGLIB::FilterKernel &operatorFilter, int samplingFreq, int cutOffLow, int cutOffHigh)
Public Member Functions inherited from DISPLIB::LayoutScene
 LayoutScene (QGraphicsView *view, QObject *parent=0)

Protected Member Functions

void plotMagnitudeDiagram (int samplingFreq, const QString &filtername=QString())
void plotFilterFrequencyResponse ()
Protected Member Functions inherited from DISPLIB::LayoutScene
void wheelEvent (QGraphicsSceneWheelEvent *event)
void mouseDoubleClickEvent (QGraphicsSceneMouseEvent *mouseEvent)
void mousePressEvent (QGraphicsSceneMouseEvent *mouseEvent)
void mouseMoveEvent (QGraphicsSceneMouseEvent *mouseEvent)
void mouseReleaseEvent (QGraphicsSceneMouseEvent *mouseEvent)
void keyPressEvent (QKeyEvent *keyEvent)
void keyReleaseEvent (QKeyEvent *keyEvent)
bool event (QEvent *event)
bool gestureEvent (QGestureEvent *event)
void panTriggered (QPanGesture *)
void pinchTriggered (QPinchGesture *)
void swipeTriggered (QSwipeGesture *)
bool eventFilter (QObject *object, QEvent *event)

Protected Attributes

RTPROCESSINGLIB::FilterKernel m_pCurrentFilter
QGraphicsPathItem * m_pGraphicsItemPath
int m_iMaxMagnitude
int m_iScalingFactor
int m_iNumberHorizontalLines
int m_iNumberVerticalLines
int m_iAxisTextSize
int m_iDiagramMarginsHoriz
int m_iDiagramMarginsVert
int m_iCutOffLow
int m_iCutOffHigh
int m_iCutOffMarkerWidth
int m_iPlotLength
QColor m_cPenColor
Protected Attributes inherited from DISPLIB::LayoutScene
QGraphicsView * m_qvView
bool m_bDragMode
QPointF m_mousePressPosition

Detailed Description

The FilterPlotScene class provides the scene where a filter response can be plotted.

DECLARE CLASS FilterPlotScene

Definition at line 79 of file filterplotscene.h.

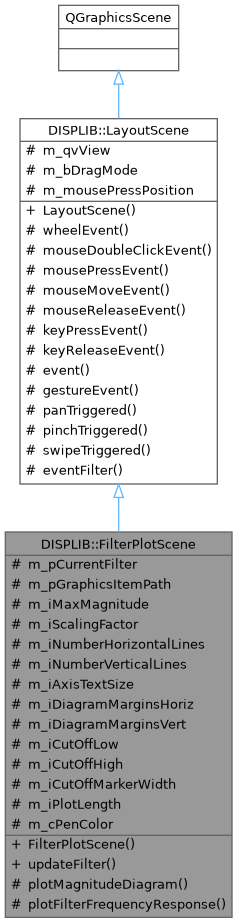

Inheritance diagram for DISPLIB::FilterPlotScene:
Inheritance graph

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const FilterPlotScene> DISPLIB::FilterPlotScene::ConstSPtr

Const shared pointer type for FilterPlotScene class.

Definition at line 85 of file filterplotscene.h.

◆ SPtr

typedef QSharedPointer<FilterPlotScene> DISPLIB::FilterPlotScene::SPtr

Shared pointer type for FilterPlotScene class.

Definition at line 84 of file filterplotscene.h.

Constructor & Destructor Documentation

◆ FilterPlotScene()

FilterPlotScene::FilterPlotScene ( QGraphicsView * view,
QObject * parent = 0 )

Constructs a FilterPlotScene dialog which is a child of parent.

Parameters
[in]parentpointer to parent widget; If parent is 0, the new FilterPlotScene becomes a window. If parent is another widget, FilterPlotScene becomes a child window inside parent. FilterPlotScene is deleted when its parent is deleted.

Definition at line 66 of file filterplotscene.cpp.

Member Function Documentation

◆ plotFilterFrequencyResponse()

void FilterPlotScene::plotFilterFrequencyResponse ( )
protected

Plots the filter's frequency response.

Definition at line 220 of file filterplotscene.cpp.

◆ plotMagnitudeDiagram()

void FilterPlotScene::plotMagnitudeDiagram ( int samplingFreq,
const QString & filtername = QString() )
protected

Draws the diagram to plot the magnitude.

Parameters
[in]holdsthe current sampling frequency.
[in]holdsthe current name of the filter. Default is an empty QString.

Definition at line 114 of file filterplotscene.cpp.

◆ updateFilter()

void FilterPlotScene::updateFilter ( const RTPROCESSINGLIB::FilterKernel & operatorFilter,
int samplingFreq,
int cutOffLow,
int cutOffHigh )

Updates the current filter.

Parameters
[in]operatorFilterpointer to the current filter operator which is to be plotted.
[in]samplingFreqholds the current sampling frequency.
[in]cutOffLowcut off frequqency lowpass or lower cut off when filter is a bandpass.
[in]cutOffHighcut off frequqency highpass or higher cut off when filter is a bandpass.

Definition at line 85 of file filterplotscene.cpp.

Member Data Documentation

◆ m_cPenColor

QColor DISPLIB::FilterPlotScene::m_cPenColor
protected

Color of the text and plot of the filter freq response plot.

Definition at line 142 of file filterplotscene.h.

◆ m_iAxisTextSize

int DISPLIB::FilterPlotScene::m_iAxisTextSize
protected

point size of the plotted text.

Definition at line 135 of file filterplotscene.h.

◆ m_iCutOffHigh

int DISPLIB::FilterPlotScene::m_iCutOffHigh
protected

cut off frequqency highpass or higher cut off when filter is a bandpass.

Definition at line 139 of file filterplotscene.h.

◆ m_iCutOffLow

int DISPLIB::FilterPlotScene::m_iCutOffLow
protected

cut off frequqency lowpass or lower cut off when filter is a bandpass.

Definition at line 138 of file filterplotscene.h.

◆ m_iCutOffMarkerWidth

int DISPLIB::FilterPlotScene::m_iCutOffMarkerWidth
protected

cut off marker width.

Definition at line 140 of file filterplotscene.h.

◆ m_iDiagramMarginsHoriz

int DISPLIB::FilterPlotScene::m_iDiagramMarginsHoriz
protected

horizontal space between the filter and diagram plot.

Definition at line 136 of file filterplotscene.h.

◆ m_iDiagramMarginsVert

int DISPLIB::FilterPlotScene::m_iDiagramMarginsVert
protected

vertical space between the filter and diagram plot.

Definition at line 137 of file filterplotscene.h.

◆ m_iMaxMagnitude

int DISPLIB::FilterPlotScene::m_iMaxMagnitude
protected

the maximum magnitude shown in the diagram.

Definition at line 131 of file filterplotscene.h.

◆ m_iNumberHorizontalLines

int DISPLIB::FilterPlotScene::m_iNumberHorizontalLines
protected

number of plotted horizontal ()lines.

Definition at line 133 of file filterplotscene.h.

◆ m_iNumberVerticalLines

int DISPLIB::FilterPlotScene::m_iNumberVerticalLines
protected

number of plotted vertical lines.

Definition at line 134 of file filterplotscene.h.

◆ m_iPlotLength

int DISPLIB::FilterPlotScene::m_iPlotLength
protected

Length of current filter impulse response plot.

Definition at line 141 of file filterplotscene.h.

◆ m_iScalingFactor

int DISPLIB::FilterPlotScene::m_iScalingFactor
protected

Scales the db filter magnitudes by the specified factor in order to provide better plotting.

Definition at line 132 of file filterplotscene.h.

◆ m_pCurrentFilter

RTPROCESSINGLIB::FilterKernel DISPLIB::FilterPlotScene::m_pCurrentFilter
protected

Pointer to the filter operator.

Definition at line 127 of file filterplotscene.h.

◆ m_pGraphicsItemPath

QGraphicsPathItem* DISPLIB::FilterPlotScene::m_pGraphicsItemPath
protected

Pointer to the graphics path item in the filterplotscene.

Definition at line 129 of file filterplotscene.h.

The documentation for this class was generated from the following files:
