DISPLIB::EvokedSetModel Class Reference

The EvokedSetModel class implements the data access model for evoked set data. More...

#include <evokedsetmodel.h>

Public Types
typedef QSharedPointer< EvokedSetModel >	SPtr
typedef QSharedPointer< const EvokedSetModel >	ConstSPtr

Signals
void	newSelection (QList< qint32 > selection)
void	newAverageColorMap (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	newAverageActivationMap (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)

Public Member Functions
	EvokedSetModel (QObject *parent=0)
	~EvokedSetModel ()
bool	isInit () const
qint32	getNumSamples () const
virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const
virtual int	columnCount (const QModelIndex &parent=QModelIndex()) const
QVariant	data (int row, int column, int role=Qt::DisplayRole) const
virtual QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const
virtual QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const
void	init ()
void	setEvokedSet (QSharedPointer< FIFFLIB::FiffEvokedSet > pEvokedSet)
QSharedPointer< FIFFLIB::FiffEvokedSet >	getEvokedSet ()
void	updateData ()
QSharedPointer< QMap< QString, QColor > >	getAverageColor () const
QSharedPointer< QMap< QString, bool > >	getAverageActivation () const
void	setAverageColor (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	setAverageActivation (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)
FIFFLIB::fiff_int_t	getKind (qint32 row) const
bool	getIsChannelBad (qint32 row) const
FIFFLIB::fiff_int_t	getUnit (qint32 row) const
FIFFLIB::fiff_int_t	getCoil (qint32 row) const
const QMap< qint32, qint32 > &	getIdxSelMap () const
int	getNumberOfTimeSpacers () const
QPair< QVariant, QVariant >	getBaselineInfo () const
int	getNumAverages () const
qint32	getNumPreStimSamples () const
float	getSamplingFrequency () const
void	selectRows (const QList< qint32 > &selection)
void	resetSelection ()
qint32	numVLines () const
bool	isFreezed () const
void	updateProjection (const QList< FIFFLIB::FiffProj > &projs)
void	updateCompensator (int to)
void	toggleFreeze ()

Detailed Description

The EvokedSetModel class implements the data access model for evoked set data.

DECLARE CLASS EvokedSetModel

Definition at line 101 of file evokedsetmodel.h.

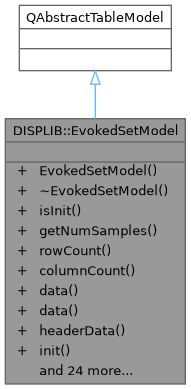

Inheritance diagram for DISPLIB::EvokedSetModel:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const EvokedSetModel> DISPLIB::EvokedSetModel::ConstSPtr

Const shared pointer type for EvokedSetModel.

Definition at line 107 of file evokedsetmodel.h.

SPtr

typedef QSharedPointer<EvokedSetModel> DISPLIB::EvokedSetModel::SPtr

Shared pointer type for EvokedSetModel.

Definition at line 106 of file evokedsetmodel.h.

Constructor & Destructor Documentation

EvokedSetModel()

EvokedSetModel::EvokedSetModel

(

QObject *

parent = 0

)

Constructs an real-time multi sample array table model for the given parent.

Parameters

[in]

parent

parent of the table model.

Definition at line 75 of file evokedsetmodel.cpp.

~EvokedSetModel()

EvokedSetModel::~EvokedSetModel

(

)

Definition at line 91 of file evokedsetmodel.cpp.

Member Function Documentation

columnCount()

int EvokedSetModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of columns for the children of the given parent.

Parameters

[in]

parent

not used.

Returns

number of columns.

Definition at line 108 of file evokedsetmodel.cpp.

data() [1/2]

QVariant EvokedSetModel::data ( const QModelIndex & index, int role = Qt::DisplayRole ) const

virtual

Returns the data stored under the given role for the item referred to by the index.

Parameters

[in]	index	determines item location.
[in]	role	role to return.

Returns

accessed data.

Definition at line 115 of file evokedsetmodel.cpp.

data() [2/2]

QVariant EvokedSetModel::data	(	int	row,
		int	column,
		int	role = Qt::DisplayRole ) const

Data for the row and column and given display role

Parameters

[in]	row	index row.
[in]	column	index column.
[in]	role	display role to access.

Returns

the accessed data.

Definition at line 511 of file evokedsetmodel.cpp.

getAverageActivation()

QSharedPointer< QMap< QString, bool > > EvokedSetModel::getAverageActivation

(

)

const

Get the current average activations

Returns

Pointer to the current average activations.

Definition at line 420 of file evokedsetmodel.cpp.

getAverageColor()

QSharedPointer< QMap< QString, QColor > > EvokedSetModel::getAverageColor

(

)

const

Get the current average colors

Returns

Pointer to the current average colors.

Definition at line 413 of file evokedsetmodel.cpp.

getBaselineInfo()

QPair< QVariant, QVariant > EvokedSetModel::getBaselineInfo

(

)

const

Returns the current baseline information

Returns

the current baseline information as a from to QPair.

Definition at line 592 of file evokedsetmodel.cpp.

getCoil()

fiff_int_t EvokedSetModel::getCoil

(

qint32

row

)

const

Returns the coil type of a given channel number

Parameters

[in]

row

row number which correspodns to a given channel.

Returns

coil type of given channel number.

Definition at line 479 of file evokedsetmodel.cpp.

getEvokedSet()

QSharedPointer< FIFFLIB::FiffEvokedSet > EvokedSetModel::getEvokedSet

(

)

Definition at line 796 of file evokedsetmodel.cpp.

getIdxSelMap()

const QMap< qint32, qint32 > & EvokedSetModel::getIdxSelMap

(

)

const

Returns a map which conatins the channel idx and its corresponding selection status

Returns

the channel idx to selection status.

Definition at line 518 of file evokedsetmodel.cpp.

getIsChannelBad()

bool EvokedSetModel::getIsChannelBad

(

qint32

row

)

const

Returns true or fals whether the provided channel is bad.

Parameters

[in]

row

row number which correspodns to a given channel.

Returns

Returns true or fals whether the provided channel is bad.

Definition at line 453 of file evokedsetmodel.cpp.

getKind()

fiff_int_t EvokedSetModel::getKind

(

qint32

row

)

const

Returns the kind of a given channel number

Parameters

[in]

row

row number which correspodns to a given channel.

Returns

kind of given channel number.

Definition at line 441 of file evokedsetmodel.cpp.

getNumAverages()

int EvokedSetModel::getNumAverages

(

)

const

Returns the current number of stored averages

Returns

the current number of stored averages.

Definition at line 600 of file evokedsetmodel.cpp.

getNumberOfTimeSpacers()

int EvokedSetModel::getNumberOfTimeSpacers

(

)

const

Returns the current number for the time spacers

Returns

the current number for the time spacers.

Definition at line 578 of file evokedsetmodel.cpp.

getNumPreStimSamples()

qint32 EvokedSetModel::getNumPreStimSamples

(

)

const

Returns the number of pre-stimulus samples

Returns

the number of pre-stimulus samples.

Definition at line 538 of file evokedsetmodel.cpp.

getNumSamples()

qint32 EvokedSetModel::getNumSamples

(

)

const

Returns the number of samples.

Returns

The number of samples.

Definition at line 498 of file evokedsetmodel.cpp.

getSamplingFrequency()

float EvokedSetModel::getSamplingFrequency

(

)

const

Returns the current sampling frequency

Returns

the current sampling frequency.

Definition at line 564 of file evokedsetmodel.cpp.

getUnit()

fiff_int_t EvokedSetModel::getUnit

(

qint32

row

)

const

Returns the unit of a given channel number

Parameters

[in]

row

row number which correspodns to a given channel.

Returns

unit of given channel number.

Definition at line 467 of file evokedsetmodel.cpp.

headerData()

QVariant EvokedSetModel::headerData ( int section, Qt::Orientation orientation, int role = Qt::DisplayRole ) const

virtual

Returns the data for the given role and section in the header with the specified orientation.

Parameters

[in]	section	For horizontal headers, the section number corresponds to the column number. Similarly, for vertical headers, the section number corresponds to the row number.
[in]	orientation	Qt::Horizontal or Qt::Vertical.
[in]	role	role to show.

Returns

accessed eader data.

Definition at line 219 of file evokedsetmodel.cpp.

init()

void EvokedSetModel::init

(

)

Definition at line 265 of file evokedsetmodel.cpp.

isFreezed()

bool EvokedSetModel::isFreezed

(

)

const

Returns current freezing status

Returns

the current freezing status.

Definition at line 571 of file evokedsetmodel.cpp.

isInit()

bool EvokedSetModel::isInit

(

)

const

Returns whether this class is initalized.

Returns

Flag specifying whether this class is initalized.

Definition at line 491 of file evokedsetmodel.cpp.

newAverageActivationMap

void DISPLIB::EvokedSetModel::newAverageActivationMap ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

signal

Emmited when new average activation is available

Parameters

[in]

qMapAverageActivation

the average activation map.

newAverageColorMap

void DISPLIB::EvokedSetModel::newAverageColorMap ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

signal

Emmited when new average color is available

Parameters

[in]

qMapAverageColor

the average color map.

newSelection

void DISPLIB::EvokedSetModel::newSelection ( QList< qint32 > selection )

signal

Emmited when new selcetion was made

Parameters

[in]

selection

list of all selected channels.

numVLines()

qint32 EvokedSetModel::numVLines

(

)

const

Returns the number of vertical lines (one per second)

Returns

number of vertical lines.

Definition at line 525 of file evokedsetmodel.cpp.

resetSelection()

void EvokedSetModel::resetSelection

(

)

Resets the current selection (selects all channels)

Definition at line 632 of file evokedsetmodel.cpp.

rowCount()

int EvokedSetModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of rows under the given parent. When the parent is valid it means that rowCount is returning the number of children of parent.

Parameters

[in]

parent

not used.

Returns

number of rows.

Definition at line 97 of file evokedsetmodel.cpp.

selectRows()

void EvokedSetModel::selectRows

(

const QList< qint32 > &

selection

)

Selects the given list of channel indeces and unselect all other channels

Parameters

[in]

selection

channel index list to select.

Definition at line 607 of file evokedsetmodel.cpp.

setAverageActivation()

void EvokedSetModel::setAverageActivation

(

const QSharedPointer< QMap< QString, bool > >

qMapAverageActivation

)

Set the average activations

Parameters

[in]

qMapAverageActivation

Pointer to the new average activations.

Definition at line 434 of file evokedsetmodel.cpp.

setAverageColor()

void EvokedSetModel::setAverageColor

(

const QSharedPointer< QMap< QString, QColor > >

qMapAverageColor

)

Set the average colors

Parameters

[in]

qMapAverageColor

Pointer to the new average colors.

Definition at line 427 of file evokedsetmodel.cpp.

setEvokedSet()

void EvokedSetModel::setEvokedSet

(

QSharedPointer< FIFFLIB::FiffEvokedSet >

pEvokedSet

)

Sets corresponding evoked set

Parameters

[in]

pEvokedSet

The evoked set.

Definition at line 252 of file evokedsetmodel.cpp.

toggleFreeze()

void EvokedSetModel::toggleFreeze

(

)

Toggle freeze for all channels when a channel is double clicked

Definition at line 779 of file evokedsetmodel.cpp.

updateCompensator()

void EvokedSetModel::updateCompensator

(

int

to

)

Update the compensator

Parameters

[in]

to

Compensator to use in fiff constant format FiffCtfComp.kind (NOT FiffCtfComp.ctfkind).

Definition at line 720 of file evokedsetmodel.cpp.

updateData()

void EvokedSetModel::updateData

(

)

Update stored data

Definition at line 313 of file evokedsetmodel.cpp.

updateProjection()

void EvokedSetModel::updateProjection

(

const QList< FIFFLIB::FiffProj > &

projs

)

Update projections

Definition at line 651 of file evokedsetmodel.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/helpers/evokedsetmodel.h
• src/libraries/disp/viewers/helpers/evokedsetmodel.cpp
