Source estimate lifecycle manager. More...

#include <sourceestimatemanager.h>

Signals
void	loaded (int numTimePoints)
void	thresholdsUpdated (float min, float mid, float max)
void	timePointChanged (int index, float time)
void	loadingProgress (int percent, const QString &message)
void	realtimeColorsAvailable (const QVector< uint32_t > &colorsLh, const QVector< uint32_t > &colorsRh)

Public Member Functions
	SourceEstimateManager (QObject *parent=nullptr)
	~SourceEstimateManager () override
bool	load (const QString &lhPath, const QString &rhPath, const QMap< QString, std::shared_ptr< BrainSurface > > &surfaces, const QString &activeSurfaceType)
bool	isLoading () const
bool	isLoaded () const
void	setTimePoint (int index, const QMap< QString, std::shared_ptr< BrainSurface > > &surfaces, const SubView &singleView, const QVector< SubView > &subViews)
int	currentTimePoint () const
float	tstep () const
float	tmin () const
int	numTimePoints () const
int	closestIndex (float timeSec) const
void	setColormap (const QString &name)
void	setThresholds (float min, float mid, float max)
void	startStreaming (const QMap< QString, std::shared_ptr< BrainSurface > > &surfaces, const SubView &singleView, const QVector< SubView > &subViews)
void	stopStreaming ()
bool	isStreaming () const
void	pushData (const Eigen::VectorXd &data)
void	setInterval (int msec)
void	setLooping (bool enabled)
const SourceEstimateOverlay *	overlay () const

Detailed Description

Source estimate lifecycle manager.

Manages source estimate data: async loading, time-point navigation, colormap/threshold control, and real-time streaming via RtSourceDataController.

BrainView delegates all source-estimate operations to this component, keeping its own code free of STC lifecycle details.

Definition at line 72 of file sourceestimatemanager.h.

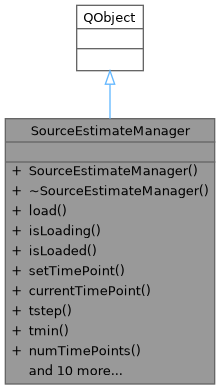

Inheritance diagram for SourceEstimateManager:

Constructor & Destructor Documentation

◆ SourceEstimateManager()

SourceEstimateManager::SourceEstimateManager ( QObject * parent = nullptr )

explicit

Constructor.

Parameters

[in] parent Parent QObject.

Definition at line 55 of file sourceestimatemanager.cpp.

◆ ~SourceEstimateManager()

SourceEstimateManager::~SourceEstimateManager ( )

override

Destructor.

Definition at line 62 of file sourceestimatemanager.cpp.

Member Function Documentation

◆ closestIndex()

int SourceEstimateManager::closestIndex ( float timeSec ) const

Returns: index closest to timeSec, or -1.

Definition at line 240 of file sourceestimatemanager.cpp.

◆ currentTimePoint()

int SourceEstimateManager::currentTimePoint ( ) const

inline

Returns: current time-point index.

Definition at line 132 of file sourceestimatemanager.h.

◆ isLoaded()

bool SourceEstimateManager::isLoaded ( ) const

Returns: true if source estimate data has been loaded successfully.

Definition at line 145 of file sourceestimatemanager.cpp.

◆ isLoading()

bool SourceEstimateManager::isLoading ( ) const

inline

Returns: true while an async STC load is in progress.

Definition at line 109 of file sourceestimatemanager.h.

◆ isStreaming()

bool SourceEstimateManager::isStreaming ( ) const

inline

Returns: true while real-time streaming is active.

Definition at line 182 of file sourceestimatemanager.h.

◆ load()

bool SourceEstimateManager::load	(	const QString &	lhPath,
		const QString &	rhPath,
		const QMap< QString, std::shared_ptr< BrainSurface > > &	surfaces,
		const QString &	activeSurfaceType )

Start async STC file loading on a background thread.

Parameters

[in]	lhPath	Path to left-hemisphere STC file.
[in]	rhPath	Path to right-hemisphere STC file.
[in]	surfaces	Surface map for finding lh/rh brain surfaces.
[in]	activeSurfaceType	Active surface type name (e.g. "pial").

Returns: true if loading was started, false on error.

Definition at line 72 of file sourceestimatemanager.cpp.

◆ loaded

void SourceEstimateManager::loaded ( int numTimePoints )

signal

Emitted when STC data finishes loading.

◆ loadingProgress

void SourceEstimateManager::loadingProgress	(	int	percent,
		const QString &	message )

signal

Emitted during async loading to report progress.

◆ numTimePoints()

int SourceEstimateManager::numTimePoints ( ) const

Returns: number of time points, or 0.

Definition at line 233 of file sourceestimatemanager.cpp.

◆ overlay()

const SourceEstimateOverlay * SourceEstimateManager::overlay ( ) const

Returns: read-only pointer to the overlay (may be null).

Definition at line 366 of file sourceestimatemanager.cpp.

◆ pushData()

void SourceEstimateManager::pushData ( const Eigen::VectorXd & data )

Push a single column of source data into the streaming queue.

Definition at line 342 of file sourceestimatemanager.cpp.

◆ realtimeColorsAvailable

void SourceEstimateManager::realtimeColorsAvailable	(	const QVector< uint32_t > &	colorsLh,
		const QVector< uint32_t > &	colorsRh )

signal

Emitted when the real-time pipeline produces a new set of per-vertex colours. The host widget should apply these to its surfaces and repaint.

◆ setColormap()

void SourceEstimateManager::setColormap ( const QString & name )

Set the colormap used for source estimate visualisation.

Parameters

[in] name Colormap name (e.g. "Hot", "Jet").

Definition at line 255 of file sourceestimatemanager.cpp.

◆ setInterval()

void SourceEstimateManager::setInterval ( int msec )

Set the streaming playback interval in milliseconds.

Definition at line 350 of file sourceestimatemanager.cpp.

◆ setLooping()

void SourceEstimateManager::setLooping ( bool enabled )

Enable or disable looping of the streaming queue.

Definition at line 358 of file sourceestimatemanager.cpp.

◆ setThresholds()

void SourceEstimateManager::setThresholds	(	float	min,
		float	mid,
		float	max )

Set source estimate thresholds.

Parameters

[in]	min	Minimum threshold.
[in]	mid	Mid threshold.
[in]	max	Maximum threshold.

Definition at line 263 of file sourceestimatemanager.cpp.

◆ setTimePoint()

void SourceEstimateManager::setTimePoint	(	int	index,
		const QMap< QString, std::shared_ptr< BrainSurface > > &	surfaces,
		const SubView &	singleView,
		const QVector< SubView > &	subViews )

Set the current STC time-point and apply colours to matching surfaces.

Parameters

[in]	index	Time-point index.
[in]	surfaces	Surface map.
[in]	singleView	Single-view state (for active surface type).
[in]	subViews	Multi-view states.

Definition at line 189 of file sourceestimatemanager.cpp.

◆ startStreaming()

void SourceEstimateManager::startStreaming	(	const QMap< QString, std::shared_ptr< BrainSurface > > &	surfaces,
		const SubView &	singleView,
		const QVector< SubView > &	subViews )

Start real-time playback. Feeds all STC time-points into the streaming queue and begins the interpolation pipeline.

Parameters

[in]	surfaces	Surface map (for colour application).
[in]	singleView	Single-view state.
[in]	subViews	Multi-view states.

Definition at line 274 of file sourceestimatemanager.cpp.

◆ stopStreaming()

void SourceEstimateManager::stopStreaming ( )

Stop real-time streaming.

Definition at line 329 of file sourceestimatemanager.cpp.

◆ thresholdsUpdated

void SourceEstimateManager::thresholdsUpdated	(	float	min,
		float	mid,
		float	max )

signal

Emitted when thresholds are auto-computed from data.

◆ timePointChanged

void SourceEstimateManager::timePointChanged	(	int	index,
		float	time )

signal

Emitted when the active time point changes.

◆ tmin()

float SourceEstimateManager::tmin ( ) const

Returns: start time of the STC data (seconds), or 0.

Definition at line 226 of file sourceestimatemanager.cpp.

◆ tstep()

float SourceEstimateManager::tstep ( ) const

Returns: time step between STC samples (seconds), or 0.

Definition at line 219 of file sourceestimatemanager.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp3D_rhi/scene/sourceestimatemanager.h
src/libraries/disp3D_rhi/scene/sourceestimatemanager.cpp
