Controller for real-time source estimate streaming. More...

#include <rtsourcedatacontroller.h>

Signals
void	newSmoothedDataAvailable (const QVector< uint32_t > &colorsLh, const QVector< uint32_t > &colorsRh)
void	newRawDataAvailable (const Eigen::VectorXd &dataLh, const Eigen::VectorXd &dataRh)
void	newInterpolationMatrixLeftAvailable (QSharedPointer< Eigen::SparseMatrix< float > > interpMat)
void	newInterpolationMatrixRightAvailable (QSharedPointer< Eigen::SparseMatrix< float > > interpMat)

Public Member Functions
	RtSourceDataController (QObject *parent=nullptr)
	~RtSourceDataController () override
void	addData (const Eigen::VectorXd &data)
void	setInterpolationMatrixLeft (QSharedPointer< Eigen::SparseMatrix< float > > mat)
void	setInterpolationMatrixRight (QSharedPointer< Eigen::SparseMatrix< float > > mat)
void	setStreamingState (bool state)
bool	isStreaming () const
void	setTimeInterval (int msec)
void	setNumberAverages (int numAvr)
void	setColormapType (const QString &name)
void	setThresholds (double min, double mid, double max)
void	setLoopState (bool enabled)
void	setSFreq (double sFreq)
void	clearData ()
void	setSurfaceColor (const QVector< uint32_t > &baseColorsLh, const QVector< uint32_t > &baseColorsRh)
void	setStreamSmoothedData (bool bStreamSmoothedData)
void	setInterpolationFunction (const QString &sInterpolationFunction)
void	setCancelDistance (double dCancelDist)
void	setInterpolationInfoLeft (const Eigen::MatrixX3f &matVertices, const QVector< QVector< int > > &vecNeighborVertices, const QVector< int > &vecSourceVertices)
void	setInterpolationInfoRight (const Eigen::MatrixX3f &matVertices, const QVector< QVector< int > > &vecNeighborVertices, const QVector< int > &vecSourceVertices)
void	recomputeInterpolation ()
void	setVisualizationType (int iVisType)
void	setAnnotationInfoLeft (const Eigen::VectorXi &vecLabelIds, const QList< FSLIB::Label > &lLabels, const Eigen::VectorXi &vecVertNo)
void	setAnnotationInfoRight (const Eigen::VectorXi &vecLabelIds, const QList< FSLIB::Label > &lLabels, const Eigen::VectorXi &vecVertNo)

Detailed Description

Controller for real-time source estimate streaming.

RtSourceDataController orchestrates real-time source estimate streaming. It manages a background data worker thread, an optional background interpolation matrix worker thread, and a timer that drives the data flow.

The controller provides a simple public API for:

Pushing new source estimate data
Setting interpolation matrices (LH/RH) directly or triggering on-the-fly recomputation when parameters change
Configuring streaming parameters (speed, looping, averaging)
Configuring visualization parameters (colormap, thresholds)
Starting/stopping the streaming

On-the-fly recomputation:

Set surface/source geometry via setInterpolationInfoLeft/Right()
Configure interpolation function and cancel distance via setInterpolationFunction() / setCancelDistance()
Call recomputeInterpolation() to trigger background computation
The new matrices are automatically forwarded to the data worker

Usage:

Create controller
Set interpolation matrices via setInterpolationMatrixLeft/Right()
Connect newSmoothedDataAvailable() to your rendering update slot
Call addData() to push source estimate vectors
Call setStreamingState(true) to start streaming

Definition at line 98 of file rtsourcedatacontroller.h.

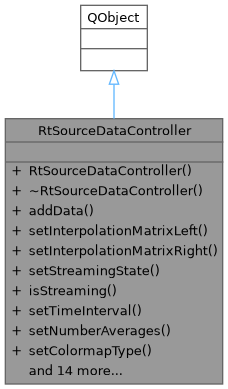

Inheritance diagram for RtSourceDataController:

Constructor & Destructor Documentation

◆ RtSourceDataController()

RtSourceDataController::RtSourceDataController ( QObject * parent = nullptr )

explicit

Constructor. Creates the worker and background thread.

Parameters

[in] parent Parent QObject.

Definition at line 53 of file rtsourcedatacontroller.cpp.

◆ ~RtSourceDataController()

RtSourceDataController::~RtSourceDataController ( )

override

Destructor. Stops the worker thread and cleans up.

Definition at line 100 of file rtsourcedatacontroller.cpp.

Member Function Documentation

◆ addData()

void RtSourceDataController::addData ( const Eigen::VectorXd & data )

Add a source estimate data vector to the streaming queue. The vector should contain source values for all sources (LH + RH concatenated).

Parameters

[in] data Source activity vector (nSourcesLH + nSourcesRH).

Definition at line 122 of file rtsourcedatacontroller.cpp.

◆ clearData()

void RtSourceDataController::clearData ( )

Clear all queued data and reset the worker state.

Definition at line 230 of file rtsourcedatacontroller.cpp.

◆ isStreaming()

bool RtSourceDataController::isStreaming ( ) const

Check if streaming is active.

Returns: True if streaming is running.

Definition at line 165 of file rtsourcedatacontroller.cpp.

◆ newInterpolationMatrixLeftAvailable

void RtSourceDataController::newInterpolationMatrixLeftAvailable ( QSharedPointer< Eigen::SparseMatrix< float > > interpMat )

signal

Emitted when a new left hemisphere interpolation matrix has been computed.

Parameters

[in] interpMat Sparse interpolation matrix (nVertices x nSources).

◆ newInterpolationMatrixRightAvailable

void RtSourceDataController::newInterpolationMatrixRightAvailable ( QSharedPointer< Eigen::SparseMatrix< float > > interpMat )

signal

Emitted when a new right hemisphere interpolation matrix has been computed.

Parameters

[in] interpMat Sparse interpolation matrix (nVertices x nSources).

◆ newRawDataAvailable

void RtSourceDataController::newRawDataAvailable	(	const Eigen::VectorXd &	dataLh,
		const Eigen::VectorXd &	dataRh )

signal

Emitted when raw (non-interpolated) data is available.

Parameters

[in]	dataLh	Source values for left hemisphere.
[in]	dataRh	Source values for right hemisphere.

◆ newSmoothedDataAvailable

void RtSourceDataController::newSmoothedDataAvailable	(	const QVector< uint32_t > &	colorsLh,
		const QVector< uint32_t > &	colorsRh )

signal

Emitted when new interpolated per-vertex color data is available for rendering.

Parameters

[in]	colorsLh	Per-vertex ABGR color array for the left hemisphere.
[in]	colorsRh	Per-vertex ABGR color array for the right hemisphere.

◆ recomputeInterpolation()

void RtSourceDataController::recomputeInterpolation ( )

Trigger an asynchronous recomputation of the interpolation matrices. The new matrices will be automatically forwarded to the data worker.

Definition at line 298 of file rtsourcedatacontroller.cpp.

◆ setAnnotationInfoLeft()

void RtSourceDataController::setAnnotationInfoLeft	(	const Eigen::VectorXi &	vecLabelIds,
		const QList< FSLIB::Label > &	lLabels,
		const Eigen::VectorXi &	vecVertNo )

Set annotation info for the left hemisphere.

Parameters

[in]	vecLabelIds	Per-vertex label IDs.
[in]	lLabels	FreeSurfer Labels.
[in]	vecVertNo	Source vertex numbers.

Definition at line 340 of file rtsourcedatacontroller.cpp.

◆ setAnnotationInfoRight()

void RtSourceDataController::setAnnotationInfoRight	(	const Eigen::VectorXi &	vecLabelIds,
		const QList< FSLIB::Label > &	lLabels,
		const Eigen::VectorXi &	vecVertNo )

Set annotation info for the right hemisphere.

Parameters

[in]	vecLabelIds	Per-vertex label IDs.
[in]	lLabels	FreeSurfer Labels.
[in]	vecVertNo	Source vertex numbers.

Definition at line 351 of file rtsourcedatacontroller.cpp.

◆ setCancelDistance()

void RtSourceDataController::setCancelDistance ( double dCancelDist )

Set the cancel distance for on-the-fly matrix computation. Distances larger than this are ignored in the interpolation.

Parameters

[in] dCancelDist Cancel distance in meters.

Definition at line 267 of file rtsourcedatacontroller.cpp.

◆ setColormapType()

void RtSourceDataController::setColormapType ( const QString & name )

Set the colormap type.

Parameters

[in] name Colormap name ("Hot", "Jet", "Viridis", "Cool", "RedBlue").

Definition at line 194 of file rtsourcedatacontroller.cpp.

◆ setInterpolationFunction()

void RtSourceDataController::setInterpolationFunction ( const QString & sInterpolationFunction )

Set the interpolation function for on-the-fly matrix computation.

Parameters

[in] sInterpolationFunction Function name ("linear", "gaussian", "square", "cubic").

Definition at line 258 of file rtsourcedatacontroller.cpp.

◆ setInterpolationInfoLeft()

void RtSourceDataController::setInterpolationInfoLeft	(	const Eigen::MatrixX3f &	matVertices,
		const QVector< QVector< int > > &	vecNeighborVertices,
		const QVector< int > &	vecSourceVertices )

Set the surface and source geometry for the left hemisphere. Used for on-the-fly interpolation matrix computation.

Parameters

[in]	matVertices	Vertex positions (nVerts x 3).
[in]	vecNeighborVertices	Per-vertex neighbor index lists.
[in]	vecSourceVertices	Source vertex indices into the surface.

Definition at line 276 of file rtsourcedatacontroller.cpp.

◆ setInterpolationInfoRight()

void RtSourceDataController::setInterpolationInfoRight	(	const Eigen::MatrixX3f &	matVertices,
		const QVector< QVector< int > > &	vecNeighborVertices,
		const QVector< int > &	vecSourceVertices )

Set the surface and source geometry for the right hemisphere. Used for on-the-fly interpolation matrix computation.

Parameters

[in]	matVertices	Vertex positions (nVerts x 3).
[in]	vecNeighborVertices	Per-vertex neighbor index lists.
[in]	vecSourceVertices	Source vertex indices into the surface.

Definition at line 287 of file rtsourcedatacontroller.cpp.

◆ setInterpolationMatrixLeft()

void RtSourceDataController::setInterpolationMatrixLeft ( QSharedPointer< Eigen::SparseMatrix< float > > mat )

Set the interpolation matrix for the left hemisphere.

Parameters

[in] mat Sparse interpolation matrix (nVerticesLH x nSourcesLH).

Definition at line 132 of file rtsourcedatacontroller.cpp.

◆ setInterpolationMatrixRight()

void RtSourceDataController::setInterpolationMatrixRight ( QSharedPointer< Eigen::SparseMatrix< float > > mat )

Set the interpolation matrix for the right hemisphere.

Parameters

[in] mat Sparse interpolation matrix (nVerticesRH x nSourcesRH).

Definition at line 141 of file rtsourcedatacontroller.cpp.

◆ setLoopState()

void RtSourceDataController::setLoopState ( bool enabled )

Enable or disable looping (replay data when queue is exhausted).

Parameters

[in] enabled True to enable looping.

Definition at line 212 of file rtsourcedatacontroller.cpp.

◆ setNumberAverages()

void RtSourceDataController::setNumberAverages ( int numAvr )

Set the number of samples to average before emitting.

Parameters

[in] numAvr Number of averages (1 = no averaging).

Definition at line 185 of file rtsourcedatacontroller.cpp.

◆ setSFreq()

void RtSourceDataController::setSFreq ( double sFreq )

Set the sampling frequency of the incoming data.

Parameters

[in] sFreq Sampling frequency in Hz.

Definition at line 221 of file rtsourcedatacontroller.cpp.

◆ setStreamingState()

void RtSourceDataController::setStreamingState ( bool state )

Start or stop the streaming.

Parameters

[in] state True to start, false to stop.

Definition at line 150 of file rtsourcedatacontroller.cpp.

◆ setStreamSmoothedData()

void RtSourceDataController::setStreamSmoothedData ( bool bStreamSmoothedData )

Toggle between emitting interpolated color data (smoothed) and raw source values split by hemisphere.

Parameters

[in] bStreamSmoothedData True for smoothed colors (default), false for raw.

Definition at line 249 of file rtsourcedatacontroller.cpp.

◆ setSurfaceColor()

void RtSourceDataController::setSurfaceColor	(	const QVector< uint32_t > &	baseColorsLh,
		const QVector< uint32_t > &	baseColorsRh )

Set the base surface colors for both hemispheres. Sub-threshold vertices will display these colors (e.g., curvature or annotation coloring) instead of being transparent.

Parameters

[in]	baseColorsLh	Per-vertex ABGR colors for the left hemisphere.
[in]	baseColorsRh	Per-vertex ABGR colors for the right hemisphere.

Definition at line 239 of file rtsourcedatacontroller.cpp.

◆ setThresholds()

void RtSourceDataController::setThresholds	(	double	min,
		double	mid,
		double	max )

Set the normalization thresholds.

Parameters

[in]	min	Lower threshold.
[in]	mid	Mid-point threshold.
[in]	max	Upper threshold.

Definition at line 203 of file rtsourcedatacontroller.cpp.

◆ setTimeInterval()

void RtSourceDataController::setTimeInterval ( int msec )

Set the streaming interval (time between frames).

Parameters

[in] msec Interval in milliseconds (default: 17ms ≈ 60fps).

Definition at line 172 of file rtsourcedatacontroller.cpp.

◆ setVisualizationType()

void RtSourceDataController::setVisualizationType ( int iVisType )

Set the visualization type (interpolation-based or annotation-based).

Parameters

[in] iVisType 0 = InterpolationBased, 1 = AnnotationBased.

Definition at line 331 of file rtsourcedatacontroller.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp3D_rhi/workers/rtsourcedatacontroller.h
src/libraries/disp3D_rhi/workers/rtsourcedatacontroller.cpp

Signals

Public Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ RtSourceDataController()

◆ ~RtSourceDataController()

Member Function Documentation

◆ addData()

◆ clearData()

◆ isStreaming()

◆ newInterpolationMatrixLeftAvailable

◆ newInterpolationMatrixRightAvailable

◆ newRawDataAvailable

◆ newSmoothedDataAvailable

◆ recomputeInterpolation()

◆ setAnnotationInfoLeft()

◆ setAnnotationInfoRight()

◆ setCancelDistance()

◆ setColormapType()

◆ setInterpolationFunction()

◆ setInterpolationInfoLeft()

◆ setInterpolationInfoRight()

◆ setInterpolationMatrixLeft()

◆ setInterpolationMatrixRight()

◆ setLoopState()

◆ setNumberAverages()

◆ setSFreq()

◆ setStreamingState()

◆ setStreamSmoothedData()

◆ setSurfaceColor()

◆ setThresholds()

◆ setTimeInterval()

◆ setVisualizationType()
