DISP3DRHILIB::RtSensorDataWorker Class Reference

Background worker for real-time sensor data streaming. More...

#include <rtsensordataworker.h>

Public Slots
void	streamData ()

Signals
void	newRtSensorColors (const QString &surfaceKey, const QVector< uint32_t > &colors)
void	newRtRawSensorData (const Eigen::VectorXf &data)

Public Member Functions
	RtSensorDataWorker (QObject *parent=nullptr)
void	addData (const Eigen::VectorXf &data)
void	clear ()
void	setMappingMatrix (QSharedPointer< Eigen::MatrixXf > mat)
void	setNumberAverages (int numAvr)
void	setColormapType (const QString &name)
void	setThresholds (double min, double max)
void	setLoopState (bool enabled)
void	setSFreq (double sFreq)
void	setStreamSmoothedData (bool bStreamSmoothedData)

Detailed Description

Background worker for real-time sensor data streaming.

RtSensorDataWorker processes incoming sensor measurement data in a background thread. It manages a data queue, performs averaging, applies a dense mapping matrix (MEG or EEG sensor → surface vertex), normalises values symmetrically, and converts them to per-vertex ABGR colours for rendering.

This worker is driven by a timer in the RtSensorDataController and follows the same architecture as RtSourceDataWorker, adapted for dense sensor-to-surface mapping instead of sparse source interpolation.

Definition at line 70 of file rtsensordataworker.h.

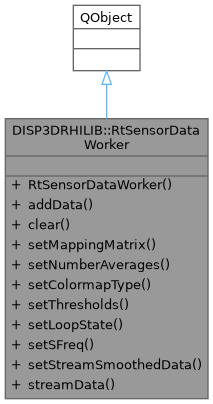

Inheritance diagram for DISP3DRHILIB::RtSensorDataWorker:

Constructor & Destructor Documentation

RtSensorDataWorker()

RtSensorDataWorker::RtSensorDataWorker ( QObject * parent = nullptr )

explicit

Constructor.

Parameters

[in]

parent

Parent QObject.

Definition at line 53 of file rtsensordataworker.cpp.

Member Function Documentation

addData()

void RtSensorDataWorker::addData

(

const Eigen::VectorXf &

data

)

Add a new sensor measurement vector to the streaming queue. The vector contains one measurement per picked sensor channel.

Parameters

[in]

data

Sensor measurement vector (nChannels x 1).

Definition at line 60 of file rtsensordataworker.cpp.

clear()

void RtSensorDataWorker::clear

(

)

Clear all queued data and reset averaging state.

Definition at line 81 of file rtsensordataworker.cpp.

newRtRawSensorData

void DISP3DRHILIB::RtSensorDataWorker::newRtRawSensorData ( const Eigen::VectorXf & data )

signal

Emitted when raw (non-mapped) sensor data is available.

Parameters

[in]

data

Raw sensor measurement vector.

newRtSensorColors

void DISP3DRHILIB::RtSensorDataWorker::newRtSensorColors ( const QString & surfaceKey, const QVector< uint32_t > & colors )

signal

Emitted when new per-vertex color data is ready for rendering.

Parameters

[in]	surfaceKey	Surface key identifying the target surface.
[in]	colors	Per-vertex ABGR color array.

setColormapType()

void RtSensorDataWorker::setColormapType

(

const QString &

name

)

Set the colormap type used for color conversion.

Parameters

[in]

name

Colormap name ("MNE", "Hot", "Jet", "Viridis", "Cool", "RedBlue").

Definition at line 109 of file rtsensordataworker.cpp.

setLoopState()

void RtSensorDataWorker::setLoopState

(

bool

enabled

)

Enable or disable looping (replay from beginning when queue is exhausted).

Parameters

[in]

enabled

True to enable looping.

Definition at line 133 of file rtsensordataworker.cpp.

setMappingMatrix()

void RtSensorDataWorker::setMappingMatrix

(

QSharedPointer< Eigen::MatrixXf >

mat

)

Set the dense mapping matrix (sensor → surface vertices). This matrix is typically produced by FieldMap::computeMegMapping() or computeEegMapping(). Size: (nVertices × nChannels).

Parameters

[in]

mat

Dense mapping matrix.

Definition at line 93 of file rtsensordataworker.cpp.

setNumberAverages()

void RtSensorDataWorker::setNumberAverages

(

int

numAvr

)

Set the number of samples to average before emitting.

Parameters

[in]

numAvr

Number of averages (1 = no averaging).

Definition at line 101 of file rtsensordataworker.cpp.

setSFreq()

void RtSensorDataWorker::setSFreq

(

double

sFreq

)

Set the sampling frequency of the incoming data.

Parameters

[in]

sFreq

Sampling frequency in Hz.

Definition at line 141 of file rtsensordataworker.cpp.

setStreamSmoothedData()

void RtSensorDataWorker::setStreamSmoothedData

(

bool

bStreamSmoothedData

)

Toggle between emitting per-vertex color data (smoothed) and raw sensor values.

When enabled (default), streamData() performs mapping + normalization + color conversion and emits newRtSensorColors(). When disabled, it emits newRtRawSensorData() with the raw measurement vector, which can be used for GPU-side mapping.

Parameters

[in]

bStreamSmoothedData

True for smoothed colors (default), false for raw.

Definition at line 149 of file rtsensordataworker.cpp.

setThresholds()

void RtSensorDataWorker::setThresholds	(	double	min,
		double	max )

Set explicit normalization thresholds instead of auto-normalization. When set, the symmetric auto-normalization is replaced by fixed thresholds. Values below min are mapped to 0, above max to 1.

Pass min == 0 and max == 0 to re-enable auto-normalization.

Parameters

[in]	min	Lower threshold (values below are at colormap start).
[in]	max	Upper threshold (values above are at colormap end).

Definition at line 117 of file rtsensordataworker.cpp.

streamData

void RtSensorDataWorker::streamData ( )

slot

Stream one frame of data. Called by the controller's timer. Pops data from the queue, averages, maps to surface, normalises symmetrically, and emits per-vertex colors.

Definition at line 157 of file rtsensordataworker.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp3D_rhi/workers/rtsensordataworker.h
• src/libraries/disp3D_rhi/workers/rtsensordataworker.cpp
