StcLoadingWorker Class Reference

StcLoadingWorker class. More...

#include <stcloadingworker.h>

Public Slots
void	process ()

Signals
void	progress (int percent, const QString &message)
void	finished (bool success)
void	error (const QString &message)

Public Member Functions
	StcLoadingWorker (const QString &lhPath, const QString &rhPath, BrainSurface *lhSurface, BrainSurface *rhSurface, double cancelDist=0.05, QObject *parent=nullptr)
	~StcLoadingWorker ()
const MNELIB::MNESourceEstimate &	stcLh () const
const MNELIB::MNESourceEstimate &	stcRh () const
QSharedPointer< Eigen::SparseMatrix< float > >	interpolationMatLh () const
QSharedPointer< Eigen::SparseMatrix< float > >	interpolationMatRh () const
bool	hasLh () const
bool	hasRh () const

Detailed Description

StcLoadingWorker class.

StcLoadingWorker performs source estimate loading and interpolation matrix computation in a background thread to avoid blocking the UI.

Definition at line 63 of file stcloadingworker.h.

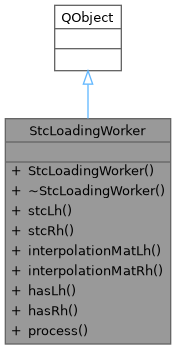

Inheritance diagram for StcLoadingWorker:

Constructor & Destructor Documentation

StcLoadingWorker()

StcLoadingWorker::StcLoadingWorker	(	const QString &	lhPath,
		const QString &	rhPath,
		BrainSurface *	lhSurface,
		BrainSurface *	rhSurface,
		double	cancelDist = 0.05,
		QObject *	parent = nullptr )

Constructor

Parameters

[in]	lhPath	Path to left hemisphere STC file.
[in]	rhPath	Path to right hemisphere STC file.
[in]	lhSurface	Pointer to left hemisphere surface.
[in]	rhSurface	Pointer to right hemisphere surface.
[in]	cancelDist	Cancel distance for interpolation.
[in]	parent	Parent object.

Definition at line 52 of file stcloadingworker.cpp.

~StcLoadingWorker()

StcLoadingWorker::~StcLoadingWorker

(

)

Destructor

Definition at line 69 of file stcloadingworker.cpp.

Member Function Documentation

error

void StcLoadingWorker::error ( const QString & message )

signal

Emitted when an error occurs.

Parameters

[in]

message

Error description.

finished

void StcLoadingWorker::finished ( bool success )

signal

Emitted when loading is complete.

Parameters

[in]

success

True if loading succeeded.

hasLh()

bool StcLoadingWorker::hasLh ( ) const

inline

Check if left hemisphere data was loaded.

Returns

True if LH data is loaded.

Definition at line 130 of file stcloadingworker.h.

hasRh()

bool StcLoadingWorker::hasRh ( ) const

inline

Check if right hemisphere data was loaded.

Returns

True if RH data is loaded.

Definition at line 138 of file stcloadingworker.h.

interpolationMatLh()

QSharedPointer< Eigen::SparseMatrix< float > > StcLoadingWorker::interpolationMatLh ( ) const

inline

Get the computed left hemisphere interpolation matrix.

Returns

Shared pointer to the interpolation matrix.

Definition at line 114 of file stcloadingworker.h.

interpolationMatRh()

QSharedPointer< Eigen::SparseMatrix< float > > StcLoadingWorker::interpolationMatRh ( ) const

inline

Get the computed right hemisphere interpolation matrix.

Returns

Shared pointer to the interpolation matrix.

Definition at line 122 of file stcloadingworker.h.

process

void StcLoadingWorker::process ( )

slot

Perform the loading and computation work. This slot should be called after moving the worker to a thread.

Definition at line 75 of file stcloadingworker.cpp.

progress

void StcLoadingWorker::progress ( int percent, const QString & message )

signal

Emitted to report progress.

Parameters

[in]	percent	Progress percentage (0-100).
[in]	message	Status message describing current operation.

stcLh()

const MNELIB::MNESourceEstimate & StcLoadingWorker::stcLh ( ) const

inline

Get the loaded left hemisphere source estimate.

Returns

The left hemisphere source estimate.

Definition at line 98 of file stcloadingworker.h.

stcRh()

const MNELIB::MNESourceEstimate & StcLoadingWorker::stcRh ( ) const

inline

Get the loaded right hemisphere source estimate.

Returns

The right hemisphere source estimate.

Definition at line 106 of file stcloadingworker.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp3D_rhi/workers/stcloadingworker.h
• src/libraries/disp3D_rhi/workers/stcloadingworker.cpp
