COMLIB::RawCommand Class Reference

Tokenised but unresolved command: a keyword plus a list of raw string arguments awaiting type binding. More...

#include <raw_command.h>

Signals
void	executed (QList< QString > p_qListParameters)

Public Member Functions
	RawCommand (QObject *parent=0)
	RawCommand (const QString &p_sCommand, bool p_bIsJson=true, QObject *parent=0)
	RawCommand (const RawCommand &p_rawCommand)
QString	command () const
quint32	count () const
virtual void	execute ()
bool	isJson () const
QList< QString > &	pValues ()
RawCommand &	operator= (const RawCommand &rhs)
Public Member Functions inherited from UTILSLIB::ICommand
virtual	~ICommand ()

Additional Inherited Members
Public Types inherited from UTILSLIB::ICommand
typedef QSharedPointer< ICommand >	SPtr
typedef QSharedPointer< const ICommand >	ConstSPtr

Detailed Description

Tokenised but unresolved command: a keyword plus a list of raw string arguments awaiting type binding.

Emitted by CommandParser before any CommandManager has claimed the request. Observers turn the QList<QString> arguments into typed Command parameters once the matching schema is located. Retains the JSON-vs-CLI dialect flag so replies travel back in the same encoding the caller used.

Definition at line 70 of file raw_command.h.

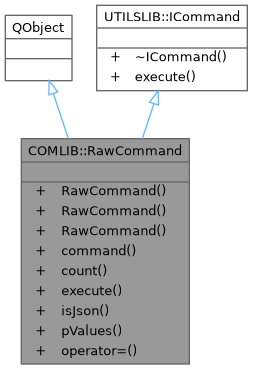

Inheritance diagram for COMLIB::RawCommand:

Constructor & Destructor Documentation

RawCommand() [1/3]

RawCommand::RawCommand ( QObject * parent = 0 )

explicit

Default constructor.

Parameters

[in]

parent

Parent QObject (optional).

Definition at line 36 of file raw_command.cpp.

RawCommand() [2/3]

RawCommand::RawCommand ( const QString & p_sCommand, bool p_bIsJson = true, QObject * parent = 0 )

explicit

Constructor which parses a command stored in a json object

Parameters

[in]	p_sCommand	Command.
[in]	p_bIsJson	If is received/should be send as JSON (optional, default true).
[in]	parent	Parent QObject (optional).

Definition at line 44 of file raw_command.cpp.

RawCommand() [3/3]

RawCommand::RawCommand ( const RawCommand & p_rawCommand )

explicit

Copy constructor.

Parameters

[in]

p_rawCommand

RawCommand which should be copied.

Definition at line 53 of file raw_command.cpp.

Member Function Documentation

command()

QString COMLIB::RawCommand::command ( ) const

inline

Command name

Returns

short command representation.

Definition at line 164 of file raw_command.h.

count()

quint32 COMLIB::RawCommand::count ( ) const

inline

Returns the number of parameters.

Returns

number of parameters.

Definition at line 171 of file raw_command.h.

execute()

void RawCommand::execute ( )

virtual

Executes the ICommand.

Implements UTILSLIB::ICommand.

Definition at line 63 of file raw_command.cpp.

executed

void COMLIB::RawCommand::executed ( QList< QString > p_qListParameters )

signal

Signal which is emitted when command patterns execute method is processed.

Parameters

[in]

p_qListParameters

Parameter List.

isJson()

bool COMLIB::RawCommand::isJson ( ) const

inline

Returns whether the received command was in Json format.

Returns

true if received command was in Json format, false otherwise.

Definition at line 178 of file raw_command.h.

operator=()

RawCommand & RawCommand::operator=

(

const RawCommand &

rhs

)

Assignment Operator

Parameters

[in]

rhs

RawCommand which should be assigned.

Definition at line 70 of file raw_command.cpp.

pValues()

QList< QString > & COMLIB::RawCommand::pValues ( )

inline

Returns parameter values

Returns

parameter values.

Definition at line 185 of file raw_command.h.

---

The documentation for this class was generated from the following files:

• src/libraries/com/rt_command/raw_command.h
• src/libraries/com/rt_command/raw_command.cpp
