Circular-buffer Qt model exposing a rolling window of the live FIFF stream as a table. More...

#include <channeldatamodel.h>

Public Types
typedef QSharedPointer< ChannelDataModel >	SPtr
typedef QSharedPointer< const ChannelDataModel >	ConstSPtr

Signals
void	dataChanged ()
void	metaChanged ()

Public Member Functions
	ChannelDataModel (QObject *parent=nullptr)
void	init (QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo)
void	setData (const Eigen::MatrixXd &data, int firstSample=0)
void	appendData (const Eigen::MatrixXd &data)
void	clearData ()
void	setScaleMap (const QMap< qint32, float > &scaleMap)
void	setScaleMapFromStrings (const QMap< QString, double > &scaleMap)
void	setVirtualChannels (const QVector< ChannelDisplayInfo > &virtualChannels)
void	setSignalColor (const QColor &color)
void	setMaxStoredSamples (int n)
void	setChannelBad (int channelIdx, bool bad)
void	setRemoveDC (bool remove)
bool	removeDC () const
void	setDetrendMode (DetrendMode mode)
DetrendMode	detrendMode () const
int	channelCount () const
int	firstSample () const
int	totalSamples () const
float	sfreq () const
ChannelDisplayInfo	channelInfo (int channelIdx) const
float	channelRms (int channelIdx, int firstSample, int lastSample) const
QVector< float >	decimatedVertices (int channelIdx, int firstSample, int lastSample, int pixelWidth, int &vboFirstSample) const
float	sampleValueAt (int channelIdx, int sample) const

Detailed Description

Circular-buffer Qt model exposing a rolling window of the live FIFF stream as a table.

Keeps a per-channel Eigen::MatrixXd ring buffer of the most recent N seconds, tracks bad-channel flags, trigger annotations and the active SSP / compensation / filter operators so the delegate can render the pre-processed signal without touching the raw buffer.

Definition at line 97 of file channeldatamodel.h.

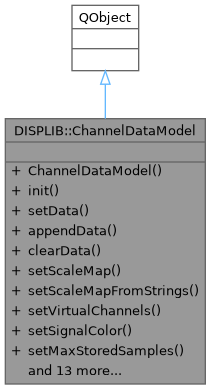

Inheritance diagram for DISPLIB::ChannelDataModel:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const ChannelDataModel> DISPLIB::ChannelDataModel::ConstSPtr

Definition at line 103 of file channeldatamodel.h.

◆ SPtr

typedef QSharedPointer<ChannelDataModel> DISPLIB::ChannelDataModel::SPtr

Definition at line 102 of file channeldatamodel.h.

Constructor & Destructor Documentation

◆ ChannelDataModel()

ChannelDataModel::ChannelDataModel ( QObject * parent = nullptr )

explicit

Definition at line 63 of file channeldatamodel.cpp.

Member Function Documentation

◆ appendData()

void ChannelDataModel::appendData ( const Eigen::MatrixXd & data )

Append new samples to the ring buffer. Oldest samples are dropped when the internal capacity (maxStoredSamples) is exceeded.

Parameters

[in] data Channels × newSamples matrix.

Definition at line 117 of file channeldatamodel.cpp.

◆ channelCount()

int ChannelDataModel::channelCount ( ) const

Definition at line 280 of file channeldatamodel.cpp.

◆ channelInfo()

ChannelDisplayInfo ChannelDataModel::channelInfo ( int channelIdx ) const

Display metadata for the given channel.

Parameters

[in] channelIdx Zero-based channel index.

Returns: ChannelDisplayInfo struct with name, colour, amplitudeMax, bad flag.

Definition at line 305 of file channeldatamodel.cpp.

◆ channelRms()

float ChannelDataModel::channelRms	(	int	channelIdx,
		int	firstSample,
		int	lastSample ) const

Compute the RMS amplitude of a channel over a sample window. Samples outside the buffer are silently ignored. Capped internally at 1000 samples for rendering-thread safety.

Parameters

[in]	channelIdx	Zero-based channel index.
[in]	firstSample	Absolute first sample (inclusive).
[in]	lastSample	Absolute last sample (exclusive).

Returns: RMS in raw (physical) units, or 0 if no data is available.

Definition at line 315 of file channeldatamodel.cpp.

◆ clearData()

void ChannelDataModel::clearData ( )

Override the per-channel-type amplitude scale. Key = FIFF channel kind constant (e.g. FIFFV_MEG_CH), value = physical amplitude.

Parameters

[in] scaleMap Map from FIFF kind to amplitude max. Clear all stored sample data without affecting channel metadata. After this call totalSamples() == 0 and firstSample() == 0. Emits dataChanged().

Definition at line 151 of file channeldatamodel.cpp.

◆ dataChanged

void DISPLIB::ChannelDataModel::dataChanged ( )

signal

Emitted whenever stored data changes (new data appended or replaced).

◆ decimatedVertices()

QVector< float > ChannelDataModel::decimatedVertices	(	int	channelIdx,
		int	firstSample,
		int	lastSample,
		int	pixelWidth,
		int &	vboFirstSample ) const

Return a flat float array ready for VBO upload. The array contains interleaved (x_offset, y_amplitude) pairs.

When samplesPerPixel <= 1 (zoomed in), raw samples are returned. When samplesPerPixel > 1 (zoomed out), min/max decimation is applied so that at most 2 * pixelWidth vertices are returned.

Parameters

[in]	channelIdx	Zero-based channel index.
[in]	firstSample	Absolute sample index of the first desired sample.
[in]	lastSample	Absolute sample index (exclusive) of the last desired sample.
[in]	pixelWidth	Destination viewport width in pixels.
[out]	vboFirstSample	The absolute sample index stored at VBO vertex 0 (= firstSample, returned for the UBO uniform).

Returns: Flat float array: [x0, y0, x1, y1, ...] where x is offset from vboFirstSample.

Definition at line 351 of file channeldatamodel.cpp.

◆ detrendMode()

DetrendMode DISPLIB::ChannelDataModel::detrendMode ( ) const

inline

Definition at line 199 of file channeldatamodel.h.

◆ firstSample()

int ChannelDataModel::firstSample ( ) const

Definition at line 289 of file channeldatamodel.cpp.

◆ init()

void ChannelDataModel::init ( QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo )

Initialise with channel metadata from a FiffInfo.

Parameters

[in] pFiffInfo The FiffInfo describing the channels.

Definition at line 78 of file channeldatamodel.cpp.

◆ metaChanged

void DISPLIB::ChannelDataModel::metaChanged ( )

signal

Emitted when channel metadata (scale, colour, bad-flag) changes.

◆ removeDC()

bool DISPLIB::ChannelDataModel::removeDC ( ) const

inline

Definition at line 196 of file channeldatamodel.h.

◆ sampleValueAt()

float ChannelDataModel::sampleValueAt	(	int	channelIdx,
		int	sample ) const

Return the raw sample value at a specific absolute sample index for the given channel. Returns 0 if the sample is outside the buffer or channel index is out of range.

Parameters

[in]	channelIdx	Zero-based channel index.
[in]	sample	Absolute sample index.

Returns: Sample value in physical units, or 0 if unavailable.

Definition at line 337 of file channeldatamodel.cpp.

◆ setChannelBad()

void ChannelDataModel::setChannelBad	(	int	channelIdx,
		bool	bad )

Mark/unmark a channel as bad.

Parameters

[in]	channelIdx	Zero-based channel index.
[in]	bad	True to mark bad.

Definition at line 256 of file channeldatamodel.cpp.

◆ setData()

void ChannelDataModel::setData	(	const Eigen::MatrixXd &	data,
		int	firstSample = 0 )

Replace all stored data with the provided matrix (channels × samples). The absolute index of the first column is firstSample.

Parameters

[in]	data	Channels × samples matrix (double precision).
[in]	firstSample	Absolute sample index of column 0.

Definition at line 96 of file channeldatamodel.cpp.

◆ setDetrendMode()

void ChannelDataModel::setDetrendMode ( DetrendMode mode )

Definition at line 245 of file channeldatamodel.cpp.

◆ setMaxStoredSamples()

void ChannelDataModel::setMaxStoredSamples ( int n )

Set the maximum number of samples to keep in the ring buffer. When samples are appended beyond this limit, the oldest are dropped. Set to 0 (default) for unlimited storage.

Parameters

[in] n Maximum sample count per channel, or 0 for unlimited.

Definition at line 230 of file channeldatamodel.cpp.

◆ setRemoveDC()

void ChannelDataModel::setRemoveDC ( bool remove )

Enable or disable DC (mean) removal applied on-the-fly during rendering. When enabled each channel's mean amplitude over the requested window is subtracted.

Parameters

[in] remove true = subtract mean, false = raw data.

Definition at line 238 of file channeldatamodel.cpp.

◆ setScaleMap()

void ChannelDataModel::setScaleMap ( const QMap< qint32, float > & scaleMap )

Definition at line 164 of file channeldatamodel.cpp.

◆ setScaleMapFromStrings()

void ChannelDataModel::setScaleMapFromStrings ( const QMap< QString, double > & scaleMap )

Definition at line 176 of file channeldatamodel.cpp.

◆ setSignalColor()

void ChannelDataModel::setSignalColor ( const QColor & color )

Set the signal line colour for all channels. Individual channel colours are derived from this base colour by type.

Parameters

[in] color The base signal colour.

Definition at line 218 of file channeldatamodel.cpp.

◆ setVirtualChannels()

void ChannelDataModel::setVirtualChannels ( const QVector< ChannelDisplayInfo > & virtualChannels )

Set extra browser-level virtual channels appended after the FIFF channels.

Parameters

[in] virtualChannels Display metadata for each appended virtual channel.

Definition at line 200 of file channeldatamodel.cpp.

◆ sfreq()

float ChannelDataModel::sfreq ( ) const

Sampling frequency in Hz; 0 if no FiffInfo attached.

Definition at line 576 of file channeldatamodel.cpp.

◆ totalSamples()

int ChannelDataModel::totalSamples ( ) const

Definition at line 297 of file channeldatamodel.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/helpers/channeldatamodel.h
src/libraries/disp/viewers/helpers/channeldatamodel.cpp
