QAbstractTableModel wrapping a FiffEvokedSet (one row per channel, one column per condition). More...

#include <evokedsetmodel.h>

Public Types
typedef QSharedPointer< EvokedSetModel >	SPtr
typedef QSharedPointer< const EvokedSetModel >	ConstSPtr

Signals
void	newSelection (QList< qint32 > selection)
void	newAverageColorMap (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	newAverageActivationMap (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)

Public Member Functions
	EvokedSetModel (QObject *parent=0)
	~EvokedSetModel ()
bool	isInit () const
qint32	getNumSamples () const
virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const
virtual int	columnCount (const QModelIndex &parent=QModelIndex()) const
QVariant	data (int row, int column, int role=Qt::DisplayRole) const
virtual QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const
virtual QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const
void	init ()
void	setEvokedSet (QSharedPointer< FIFFLIB::FiffEvokedSet > pEvokedSet)
QSharedPointer< FIFFLIB::FiffEvokedSet >	getEvokedSet ()
void	updateData ()
QSharedPointer< QMap< QString, QColor > >	getAverageColor () const
QSharedPointer< QMap< QString, bool > >	getAverageActivation () const
void	setAverageColor (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	setAverageActivation (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)
FIFFLIB::fiff_int_t	getKind (qint32 row) const
bool	getIsChannelBad (qint32 row) const
FIFFLIB::fiff_int_t	getUnit (qint32 row) const
FIFFLIB::fiff_int_t	getCoil (qint32 row) const
const QMap< qint32, qint32 > &	getIdxSelMap () const
int	getNumberOfTimeSpacers () const
QPair< QVariant, QVariant >	getBaselineInfo () const
int	getNumAverages () const
qint32	getNumPreStimSamples () const
float	getSamplingFrequency () const
void	selectRows (const QList< qint32 > &selection)
void	resetSelection ()
qint32	numVLines () const
bool	isFreezed () const
void	updateProjection (const QList< FIFFLIB::FiffProj > &projs)
void	updateCompensator (int to)
void	toggleFreeze ()

Detailed Description

QAbstractTableModel wrapping a FiffEvokedSet (one row per channel, one column per condition).

Propagates baseline-correction, SSP-projection and bad-channel updates so connected views (ButterflyView, AverageLayoutView) stay in sync with the latest pre-processing settings.

Definition at line 92 of file evokedsetmodel.h.

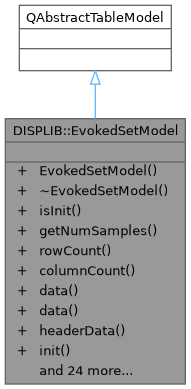

Inheritance diagram for DISPLIB::EvokedSetModel:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const EvokedSetModel> DISPLIB::EvokedSetModel::ConstSPtr

Const shared pointer type for EvokedSetModel.

Definition at line 98 of file evokedsetmodel.h.

◆ SPtr

typedef QSharedPointer<EvokedSetModel> DISPLIB::EvokedSetModel::SPtr

Shared pointer type for EvokedSetModel.

Definition at line 97 of file evokedsetmodel.h.

Constructor & Destructor Documentation

◆ EvokedSetModel()

EvokedSetModel::EvokedSetModel ( QObject * parent = 0 )

Constructs an real-time multi sample array table model for the given parent.

Parameters

[in] parent parent of the table model.

Definition at line 55 of file evokedsetmodel.cpp.

◆ ~EvokedSetModel()

EvokedSetModel::~EvokedSetModel ( )

Definition at line 71 of file evokedsetmodel.cpp.

Member Function Documentation

◆ columnCount()

int EvokedSetModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of columns for the children of the given parent.

Parameters

[in] parent not used.

Returns: number of columns.

Definition at line 88 of file evokedsetmodel.cpp.

◆ data() [1/2]

QVariant EvokedSetModel::data	(	const QModelIndex &	index,
		int	role = Qt::DisplayRole ) const

virtual

Returns the data stored under the given role for the item referred to by the index.

Parameters

[in]	index	determines item location.
[in]	role	role to return.

Returns: accessed data.

Definition at line 95 of file evokedsetmodel.cpp.

◆ data() [2/2]

QVariant EvokedSetModel::data	(	int	row,
		int	column,
		int	role = Qt::DisplayRole ) const

Data for the row and column and given display role

Parameters

[in]	row	index row.
[in]	column	index column.
[in]	role	display role to access.

Returns: the accessed data.

Definition at line 491 of file evokedsetmodel.cpp.

◆ getAverageActivation()

QSharedPointer< QMap< QString, bool > > EvokedSetModel::getAverageActivation ( ) const

Get the current average activations

Returns: Pointer to the current average activations.

Definition at line 400 of file evokedsetmodel.cpp.

◆ getAverageColor()

QSharedPointer< QMap< QString, QColor > > EvokedSetModel::getAverageColor ( ) const

Get the current average colors

Returns: Pointer to the current average colors.

Definition at line 393 of file evokedsetmodel.cpp.

◆ getBaselineInfo()

QPair< QVariant, QVariant > EvokedSetModel::getBaselineInfo ( ) const

Returns the current baseline information

Returns: the current baseline information as a from to QPair.

Definition at line 572 of file evokedsetmodel.cpp.

◆ getCoil()

fiff_int_t EvokedSetModel::getCoil ( qint32 row ) const

Returns the coil type of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: coil type of given channel number.

Definition at line 459 of file evokedsetmodel.cpp.

◆ getEvokedSet()

QSharedPointer< FIFFLIB::FiffEvokedSet > EvokedSetModel::getEvokedSet ( )

Definition at line 776 of file evokedsetmodel.cpp.

◆ getIdxSelMap()

const QMap< qint32, qint32 > & EvokedSetModel::getIdxSelMap ( ) const

Returns a map which conatins the channel idx and its corresponding selection status

Returns: the channel idx to selection status.

Definition at line 498 of file evokedsetmodel.cpp.

◆ getIsChannelBad()

bool EvokedSetModel::getIsChannelBad ( qint32 row ) const

Returns true or fals whether the provided channel is bad.

Parameters

[in] row row number which correspodns to a given channel.

Returns: Returns true or fals whether the provided channel is bad.

Definition at line 433 of file evokedsetmodel.cpp.

◆ getKind()

fiff_int_t EvokedSetModel::getKind ( qint32 row ) const

Returns the kind of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: kind of given channel number.

Definition at line 421 of file evokedsetmodel.cpp.

◆ getNumAverages()

int EvokedSetModel::getNumAverages ( ) const

Returns the current number of stored averages

Returns: the current number of stored averages.

Definition at line 580 of file evokedsetmodel.cpp.

◆ getNumberOfTimeSpacers()

int EvokedSetModel::getNumberOfTimeSpacers ( ) const

Returns the current number for the time spacers

Returns: the current number for the time spacers.

Definition at line 558 of file evokedsetmodel.cpp.

◆ getNumPreStimSamples()

qint32 EvokedSetModel::getNumPreStimSamples ( ) const

Returns the number of pre-stimulus samples

Returns: the number of pre-stimulus samples.

Definition at line 518 of file evokedsetmodel.cpp.

◆ getNumSamples()

qint32 EvokedSetModel::getNumSamples ( ) const

Returns the number of samples.

Returns: The number of samples.

Definition at line 478 of file evokedsetmodel.cpp.

◆ getSamplingFrequency()

float EvokedSetModel::getSamplingFrequency ( ) const

Returns the current sampling frequency

Returns: the current sampling frequency.

Definition at line 544 of file evokedsetmodel.cpp.

◆ getUnit()

fiff_int_t EvokedSetModel::getUnit ( qint32 row ) const

Returns the unit of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: unit of given channel number.

Definition at line 447 of file evokedsetmodel.cpp.

◆ headerData()

QVariant EvokedSetModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role = Qt::DisplayRole ) const

virtual

Returns the data for the given role and section in the header with the specified orientation.

Parameters

[in]	section	For horizontal headers, the section number corresponds to the column number. Similarly, for vertical headers, the section number corresponds to the row number.
[in]	orientation	Qt::Horizontal or Qt::Vertical.
[in]	role	role to show.

Returns: accessed eader data.

Definition at line 199 of file evokedsetmodel.cpp.

◆ init()

void EvokedSetModel::init ( )

Definition at line 245 of file evokedsetmodel.cpp.

◆ isFreezed()

bool EvokedSetModel::isFreezed ( ) const

Returns current freezing status

Returns: the current freezing status.

Definition at line 551 of file evokedsetmodel.cpp.

◆ isInit()

bool EvokedSetModel::isInit ( ) const

Returns whether this class is initalized.

Returns: Flag specifying whether this class is initalized.

Definition at line 471 of file evokedsetmodel.cpp.

◆ newAverageActivationMap

void DISPLIB::EvokedSetModel::newAverageActivationMap ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

signal

Emmited when new average activation is available

Parameters

[in] qMapAverageActivation the average activation map.

◆ newAverageColorMap

void DISPLIB::EvokedSetModel::newAverageColorMap ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

signal

Emmited when new average color is available

Parameters

[in] qMapAverageColor the average color map.

◆ newSelection

void DISPLIB::EvokedSetModel::newSelection ( QList< qint32 > selection )

signal

Emmited when new selcetion was made

Parameters

[in] selection list of all selected channels.

◆ numVLines()

qint32 EvokedSetModel::numVLines ( ) const

Returns the number of vertical lines (one per second)

Returns: number of vertical lines.

Definition at line 505 of file evokedsetmodel.cpp.

◆ resetSelection()

void EvokedSetModel::resetSelection ( )

Resets the current selection (selects all channels)

Definition at line 612 of file evokedsetmodel.cpp.

◆ rowCount()

int EvokedSetModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of rows under the given parent. When the parent is valid it means that rowCount is returning the number of children of parent.

Parameters

[in] parent not used.

Returns: number of rows.

Definition at line 77 of file evokedsetmodel.cpp.

◆ selectRows()

void EvokedSetModel::selectRows ( const QList< qint32 > & selection )

Selects the given list of channel indeces and unselect all other channels

Parameters

[in] selection channel index list to select.

Definition at line 587 of file evokedsetmodel.cpp.

◆ setAverageActivation()

void EvokedSetModel::setAverageActivation ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

Set the average activations

Parameters

[in] qMapAverageActivation Pointer to the new average activations.

Definition at line 414 of file evokedsetmodel.cpp.

◆ setAverageColor()

void EvokedSetModel::setAverageColor ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

Set the average colors

Parameters

[in] qMapAverageColor Pointer to the new average colors.

Definition at line 407 of file evokedsetmodel.cpp.

◆ setEvokedSet()

void EvokedSetModel::setEvokedSet ( QSharedPointer< FIFFLIB::FiffEvokedSet > pEvokedSet )

Sets corresponding evoked set

Parameters

[in] pEvokedSet The evoked set.

Definition at line 232 of file evokedsetmodel.cpp.

◆ toggleFreeze()

void EvokedSetModel::toggleFreeze ( )

Toggle freeze for all channels when a channel is double clicked

Definition at line 759 of file evokedsetmodel.cpp.

◆ updateCompensator()

void EvokedSetModel::updateCompensator ( int to )

Update the compensator

Parameters

[in] to Compensator to use in fiff constant format FiffCtfComp.kind (NOT FiffCtfComp.ctfkind).

Definition at line 700 of file evokedsetmodel.cpp.

◆ updateData()

void EvokedSetModel::updateData ( )

Update stored data

Definition at line 293 of file evokedsetmodel.cpp.

◆ updateProjection()

void EvokedSetModel::updateProjection ( const QList< FIFFLIB::FiffProj > & projs )

Update projections

Definition at line 631 of file evokedsetmodel.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/helpers/evokedsetmodel.h
src/libraries/disp/viewers/helpers/evokedsetmodel.cpp

Public Types

Signals

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ EvokedSetModel()

◆ ~EvokedSetModel()

Member Function Documentation

◆ columnCount()

◆ data() [1/2]

◆ data() [2/2]

◆ getAverageActivation()

◆ getAverageColor()

◆ getBaselineInfo()

◆ getCoil()

◆ getEvokedSet()

◆ getIdxSelMap()

◆ getIsChannelBad()

◆ getKind()

◆ getNumAverages()

◆ getNumberOfTimeSpacers()

◆ getNumPreStimSamples()

◆ getNumSamples()

◆ getSamplingFrequency()

◆ getUnit()

◆ headerData()

◆ init()

◆ isFreezed()

◆ isInit()

◆ newAverageActivationMap

◆ newAverageColorMap

◆ newSelection

◆ numVLines()

◆ resetSelection()

◆ rowCount()

◆ selectRows()

◆ setAverageActivation()

◆ setAverageColor()

◆ setEvokedSet()

◆ toggleFreeze()

◆ updateCompensator()

◆ updateData()

◆ updateProjection()
