DISPLIB::TimeRulerWidget Class Reference

Horizontal time-axis ruler displayed beneath ChannelDataView. More...

#include <timerulerwidget.h>

Public Slots
void	setScrollSample (float sample)
void	setSamplesPerPixel (float spp)

Signals
void	addReferenceMarkerRequested (int sample)
void	removeReferenceMarkerRequested (int sample)
void	clearReferenceMarkersRequested ()

Public Member Functions
	TimeRulerWidget (QWidget *parent=nullptr)
void	setSfreq (double sfreq)
void	setFirstFileSample (int firstFileSample)
QSize	sizeHint () const override
QSize	minimumSizeHint () const override
void	setEvents (const QVector< TimeRulerEventMark > &events)
void	setReferenceMarkers (const QVector< TimeRulerReferenceMark > &markers)
void	toggleTimeFormat ()
void	setClockTimeFormat (bool useClock)
bool	clockTimeFormat () const

Static Public Attributes
static constexpr int	kStimZoneH = 16
	Height of the stimulus lane (px).
static constexpr int	kTimeZoneH = 28
	Height of the time-tick zone (px).
static constexpr int	kTotalH = kStimZoneH + kTimeZoneH
	Total widget height (px).

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
void	contextMenuEvent (QContextMenuEvent *event) override

Detailed Description

Horizontal time-axis ruler displayed beneath ChannelDataView.

Tick spacing adapts to the current zoom so labels stay readable from milliseconds to minutes; supports left-click drag for window scrolling and right-click context actions (jump to event, set marker).

Definition at line 74 of file timerulerwidget.h.

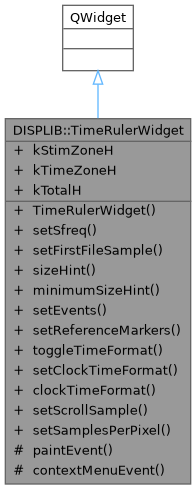

Inheritance diagram for DISPLIB::TimeRulerWidget:

Constructor & Destructor Documentation

TimeRulerWidget()

TimeRulerWidget::TimeRulerWidget ( QWidget * parent = nullptr )

explicit

Definition at line 55 of file timerulerwidget.cpp.

Member Function Documentation

addReferenceMarkerRequested

void DISPLIB::TimeRulerWidget::addReferenceMarkerRequested ( int sample )

signal

Emitted when the user requests a new sample marker from the ruler context menu.

clearReferenceMarkersRequested

void DISPLIB::TimeRulerWidget::clearReferenceMarkersRequested ( )

signal

Emitted when the user requests that all sample markers be cleared.

clockTimeFormat()

bool DISPLIB::TimeRulerWidget::clockTimeFormat ( ) const

inline

Definition at line 135 of file timerulerwidget.h.

contextMenuEvent()

void TimeRulerWidget::contextMenuEvent ( QContextMenuEvent * event )

overrideprotected

Definition at line 396 of file timerulerwidget.cpp.

minimumSizeHint()

QSize DISPLIB::TimeRulerWidget::minimumSizeHint ( ) const

inlineoverride

Definition at line 103 of file timerulerwidget.h.

paintEvent()

void TimeRulerWidget::paintEvent ( QPaintEvent * event )

overrideprotected

Definition at line 199 of file timerulerwidget.cpp.

removeReferenceMarkerRequested

void DISPLIB::TimeRulerWidget::removeReferenceMarkerRequested ( int sample )

signal

Emitted when the user requests removal of the nearest sample marker from the ruler context menu.

setClockTimeFormat()

void TimeRulerWidget::setClockTimeFormat

(

bool

useClock

)

Set whether to use clock time (HH:MM:SS) or float seconds for labels.

Parameters

[in]

useClock

true = HH:MM:SS, false = float seconds.

Definition at line 156 of file timerulerwidget.cpp.

setEvents()

void TimeRulerWidget::setEvents

(

const QVector< TimeRulerEventMark > &

events

)

Set the list of stimulus / event marks to display in the stim lane. Pass an empty vector to clear all marks.

Parameters

[in]

events

Event marks (sample position + colour + label).

Definition at line 80 of file timerulerwidget.cpp.

setFirstFileSample()

void TimeRulerWidget::setFirstFileSample

(

int

firstFileSample

)

Set the absolute sample index of the left viewport edge (file-relative). Also records the file's first sample so labels show elapsed time.

Parameters

[in]

firstFileSample

The absolute sample index of the first sample in the file.

Definition at line 72 of file timerulerwidget.cpp.

setReferenceMarkers()

void TimeRulerWidget::setReferenceMarkers

(

const QVector< TimeRulerReferenceMark > &

markers

)

Set the list of persistent sample markers to display in the ruler.

Parameters

[in]

markers

Reference/sample markers.

Definition at line 88 of file timerulerwidget.cpp.

setSamplesPerPixel

void TimeRulerWidget::setSamplesPerPixel ( float spp )

slot

Update the horizontal zoom and trigger a repaint.

Parameters

[in]

spp

Samples per pixel.

Definition at line 106 of file timerulerwidget.cpp.

setScrollSample

void TimeRulerWidget::setScrollSample ( float sample )

slot

Update the left-edge scroll position and trigger a repaint.

Parameters

[in]

sample

Absolute sample index at the left edge of the view.

Definition at line 96 of file timerulerwidget.cpp.

setSfreq()

void TimeRulerWidget::setSfreq

(

double

sfreq

)

Set the file sampling frequency. Must be called before the first paint.

Parameters

[in]

sfreq

Sampling frequency in Hz.

Definition at line 64 of file timerulerwidget.cpp.

sizeHint()

QSize DISPLIB::TimeRulerWidget::sizeHint ( ) const

inlineoverride

Definition at line 102 of file timerulerwidget.h.

toggleTimeFormat()

void TimeRulerWidget::toggleTimeFormat

(

)

Toggle the time format between float seconds and HH:MM:SS clock time.

Definition at line 148 of file timerulerwidget.cpp.

Member Data Documentation

kStimZoneH

int DISPLIB::TimeRulerWidget::kStimZoneH = 16

staticconstexpr

Height of the stimulus lane (px).

Definition at line 98 of file timerulerwidget.h.

kTimeZoneH

int DISPLIB::TimeRulerWidget::kTimeZoneH = 28

staticconstexpr

Height of the time-tick zone (px).

Definition at line 99 of file timerulerwidget.h.

kTotalH

int DISPLIB::TimeRulerWidget::kTotalH = kStimZoneH + kTimeZoneH

staticconstexpr

Total widget height (px).

Definition at line 100 of file timerulerwidget.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/helpers/timerulerwidget.h
• src/libraries/disp/viewers/helpers/timerulerwidget.cpp
