Circular-buffer QAbstractTableModel feeding the real-time FIFF raw browser. More...

#include <rtfiffrawviewmodel.h>

Public Types
typedef QSharedPointer< RtFiffRawViewModel >	SPtr
typedef QSharedPointer< const RtFiffRawViewModel >	ConstSPtr

Signals
void	newSelection (const QList< qint32 > &selection)
void	windowSizeChanged (int windowSize)
void	triggerDetected (int numberDetectedTriggers, const QMap< int, QList< QPair< int, double > > > &mapDetectedTriggers)

Public Member Functions
	RtFiffRawViewModel (QObject *parent=0)
	~RtFiffRawViewModel ()
virtual int	rowCount (const QModelIndex &parent=QModelIndex()) const
virtual int	columnCount (const QModelIndex &parent=QModelIndex()) const
virtual QVariant	data (const QModelIndex &index, int role=Qt::DisplayRole) const
virtual QVariant	headerData (int section, Qt::Orientation orientation, int role=Qt::DisplayRole) const
void	setFiffInfo (QSharedPointer< FIFFLIB::FiffInfo > &p_pFiffInfo)
void	setSamplingInfo (float sps, int T, bool bSetZero=false)
Eigen::MatrixXd	getLastBlock ()
void	addData (const QList< Eigen::MatrixXd > &data)
FIFFLIB::fiff_int_t	getKind (qint32 row) const
FIFFLIB::fiff_int_t	getUnit (qint32 row) const
FIFFLIB::fiff_int_t	getCoil (qint32 row) const
qint32	getMaxSamples () const
qint32	getCurrentSampleIndex () const
double	getLastBlockFirstValue (int row) const
const QMap< qint32, qint32 > &	getIdxSelMap () const
void	selectRows (const QList< qint32 > &selection)
void	hideRows (const QList< qint32 > &selection)
void	resetSelection ()
void	toggleFreeze (const QModelIndex &index)
void	setScaling (const QMap< qint32, float > &p_qMapChScaling)
void	updateProjection (const QList< FIFFLIB::FiffProj > &projs)
void	updateCompensator (int to)
void	updateSpharaActivation (bool state)
void	updateSpharaOptions (const QString &sSytemType, int nBaseFctsFirst, int nBaseFctsSecond)
void	setFilter (QList< UTILSLIB::FilterKernel > filterData)
void	setFilterActive (bool state)
void	setBackgroundColor (const QColor &color)
void	setFilterChannelType (const QString &channelType)
void	markChBad (QModelIndex ch, bool status)
void	markChBad (QModelIndexList chlist, bool status)
void	triggerInfoChanged (const QMap< double, QColor > &colorMap, bool active, QString triggerCh, double threshold)
void	distanceTimeSpacerChanged (int value)
void	resetTriggerCounter ()
qint32	numVLines () const
bool	isFreezed () const
const QMap< qint32, float > &	getScaling () const
QList< QPair< int, double > >	getDetectedTriggers () const
QList< QPair< int, double > >	getDetectedTriggersOld () const
QMap< double, QColor >	getTriggerColor () const
int	getNumberOfTimeSpacers () const
double	getTriggerThreshold () const
QString	getTriggerName () const
int	getCurrentTriggerIndex () const
bool	triggerDetectionActive () const
int	getCurrentOverlapAddDelay () const
int	getFirstSampleOffset () const
int	getSampleAtColumn (int iColumn) const
double	getValueAtColumn (int iRow, int iColumn) const
double	getMaxValueFromRawViewModel (int row) const
void	addEvent (int iSample)
std::vector< int >	getEventsToDisplay (int iBegin, int iEnd) const
void	setEventCallbacks (std::function< void(int)> addFn, std::function< std::vector< int >(int, int)> getFn)

Detailed Description

Circular-buffer QAbstractTableModel feeding the real-time FIFF raw browser.

Keeps the last few seconds of streaming FIFF data in a per-channel ring buffer and forwards bad-channel flips, trigger detections and annotation edits back to the underlying FiffInfo / event list.

Definition at line 92 of file rtfiffrawviewmodel.h.

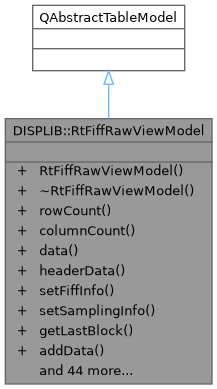

Inheritance diagram for DISPLIB::RtFiffRawViewModel:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const RtFiffRawViewModel> DISPLIB::RtFiffRawViewModel::ConstSPtr

Const shared pointer type for RtFiffRawViewModel.

Definition at line 98 of file rtfiffrawviewmodel.h.

◆ SPtr

typedef QSharedPointer<RtFiffRawViewModel> DISPLIB::RtFiffRawViewModel::SPtr

Shared pointer type for RtFiffRawViewModel.

Definition at line 97 of file rtfiffrawviewmodel.h.

Constructor & Destructor Documentation

◆ RtFiffRawViewModel()

RtFiffRawViewModel::RtFiffRawViewModel ( QObject * parent = 0 )

Constructs an real-time multi sample array table model for the given parent.

Parameters

[in] parent parent of the table model.

Definition at line 86 of file rtfiffrawviewmodel.cpp.

◆ ~RtFiffRawViewModel()

RtFiffRawViewModel::~RtFiffRawViewModel ( )

Destructs RtFiffRawViewModel and stops the use of Shared Memory within the Event Manager.

Definition at line 116 of file rtfiffrawviewmodel.cpp.

Member Function Documentation

◆ addData()

void RtFiffRawViewModel::addData ( const QList< Eigen::MatrixXd > & data )

Adds multiple time points (QVector) for a channel set (VectorXd)

Parameters

[in] data data to add (Time points of channel samples).

Definition at line 404 of file rtfiffrawviewmodel.cpp.

◆ addEvent()

void RtFiffRawViewModel::addEvent ( int iSample )

Adds event based on input parameters

Parameters

[in] iSample Sample of the new event.

Definition at line 1043 of file rtfiffrawviewmodel.cpp.

◆ columnCount()

int RtFiffRawViewModel::columnCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of columns for the children of the given parent.

Parameters

[in] parent not used.

Returns: number of columns.

Definition at line 133 of file rtfiffrawviewmodel.cpp.

◆ data()

QVariant RtFiffRawViewModel::data	(	const QModelIndex &	index,
		int	role = Qt::DisplayRole ) const

virtual

Returns the data stored under the given role for the item referred to by the index.

Parameters

[in]	index	determines item location.
[in]	role	role to return.

Returns: accessed data.

Definition at line 140 of file rtfiffrawviewmodel.cpp.

◆ distanceTimeSpacerChanged()

void RtFiffRawViewModel::distanceTimeSpacerChanged ( int value )

distanceTimeSpacerChanged changes the distance of the time spacers

Parameters

[in] value the new distance for the time spacers.

Definition at line 847 of file rtfiffrawviewmodel.cpp.

◆ getCoil()

fiff_int_t RtFiffRawViewModel::getCoil ( qint32 row ) const

Returns the coil type of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: coil type of given channel number.

Definition at line 547 of file rtfiffrawviewmodel.cpp.

◆ getCurrentOverlapAddDelay()

int DISPLIB::RtFiffRawViewModel::getCurrentOverlapAddDelay ( ) const

inline

Returns the current overlap add delay

Returns: the current overlap add delay.

Definition at line 837 of file rtfiffrawviewmodel.h.

◆ getCurrentSampleIndex()

qint32 DISPLIB::RtFiffRawViewModel::getCurrentSampleIndex ( ) const

inline

Returns the current sample index which represents the index which the next incoming data will be stored at in the data

Returns: the current sample index.

Definition at line 703 of file rtfiffrawviewmodel.h.

◆ getCurrentTriggerIndex()

int DISPLIB::RtFiffRawViewModel::getCurrentTriggerIndex ( ) const

inline

Returns the current trigger channel index

Returns: the current trigger channel index.

Definition at line 823 of file rtfiffrawviewmodel.h.

◆ getDetectedTriggers()

QList< QPair< int, double > > DISPLIB::RtFiffRawViewModel::getDetectedTriggers ( ) const

inline

Returns current detected trigger flanks

Returns: the current detected trigger flanks.

Definition at line 771 of file rtfiffrawviewmodel.h.

◆ getDetectedTriggersOld()

QList< QPair< int, double > > DISPLIB::RtFiffRawViewModel::getDetectedTriggersOld ( ) const

inline

Returns old detected trigger flanks

Returns: the old detected trigger flanks.

Definition at line 786 of file rtfiffrawviewmodel.h.

◆ getEventsToDisplay()

std::vector< int > RtFiffRawViewModel::getEventsToDisplay	(	int	iBegin,
		int	iEnd ) const

Returns event sample positions between two samples.

Parameters

[in]	iBegin	Lower bound for sample (inclusive).
[in]	iEnd	Upper bound for sample (exclusive).

Returns: Vector of event sample positions.

Definition at line 1079 of file rtfiffrawviewmodel.cpp.

◆ getFirstSampleOffset()

int DISPLIB::RtFiffRawViewModel::getFirstSampleOffset ( ) const

inline

Get offset of first drawn sample in the window

Returns: sample offset of window

Definition at line 847 of file rtfiffrawviewmodel.h.

◆ getIdxSelMap()

const QMap< qint32, qint32 > & DISPLIB::RtFiffRawViewModel::getIdxSelMap ( ) const

inline

Returns a map which conatins the channel idx and its corresponding selection status

Returns: the channel idx to selection status.

Definition at line 731 of file rtfiffrawviewmodel.h.

◆ getKind()

fiff_int_t RtFiffRawViewModel::getKind ( qint32 row ) const

Returns the kind of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: kind of given channel number.

Definition at line 523 of file rtfiffrawviewmodel.cpp.

◆ getLastBlock()

MatrixXd RtFiffRawViewModel::getLastBlock ( )

Returns the last received data block.

Returns: the last data block.

Definition at line 388 of file rtfiffrawviewmodel.cpp.

◆ getLastBlockFirstValue()

double DISPLIB::RtFiffRawViewModel::getLastBlockFirstValue ( int row ) const

inline

Returns the first value of the last complete data display block

Parameters

[in] row row for which the first value is to be returned.

Returns: the first value of the last complete data display block.

Definition at line 718 of file rtfiffrawviewmodel.h.

◆ getMaxSamples()

qint32 DISPLIB::RtFiffRawViewModel::getMaxSamples ( ) const

inline

Returns the maximal number of samples of the downsampled data to display

Returns: the maximal number of samples.

Definition at line 696 of file rtfiffrawviewmodel.h.

◆ getMaxValueFromRawViewModel()

double RtFiffRawViewModel::getMaxValueFromRawViewModel ( int row ) const

Get maximum range of respective channel type. range value in FiffChInfo does not seem to contain a reasonable value

Parameters

[in] row Row of the model.

Returns: the max value of the y axis for the channel

Definition at line 981 of file rtfiffrawviewmodel.cpp.

◆ getNumberOfTimeSpacers()

int DISPLIB::RtFiffRawViewModel::getNumberOfTimeSpacers ( ) const

inline

Returns the current number for the time spacers

Returns: the current number for the time spacers.

Definition at line 801 of file rtfiffrawviewmodel.h.

◆ getSampleAtColumn()

int RtFiffRawViewModel::getSampleAtColumn ( int iColumn ) const

Maps a displayed buffer column to the sample it shows.

Parameters

[in] iColumn Buffer column, 0 .. getMaxSamples() - 1.

Returns: The sample index since the start of the stream, or -1 if the column holds no data yet.

Definition at line 1052 of file rtfiffrawviewmodel.cpp.

◆ getScaling()

const QMap< qint32, float > & DISPLIB::RtFiffRawViewModel::getScaling ( ) const

inline

Returns current scaling

Returns: the current scaling.

Definition at line 752 of file rtfiffrawviewmodel.h.

◆ getTriggerColor()

QMap< double, QColor > DISPLIB::RtFiffRawViewModel::getTriggerColor ( ) const

inline

Returns current trigger color

Returns: the current trigger color map fpr each detected type.

Definition at line 759 of file rtfiffrawviewmodel.h.

◆ getTriggerName()

QString DISPLIB::RtFiffRawViewModel::getTriggerName ( ) const

inline

Returns the current trigger name

Returns: the current trigger name.

Definition at line 816 of file rtfiffrawviewmodel.h.

◆ getTriggerThreshold()

double DISPLIB::RtFiffRawViewModel::getTriggerThreshold ( ) const

inline

Returns the current trigger threshold

Returns: the current trigger threshold.

Definition at line 809 of file rtfiffrawviewmodel.h.

◆ getUnit()

fiff_int_t RtFiffRawViewModel::getUnit ( qint32 row ) const

Returns the unit of a given channel number

Parameters

[in] row row number which correspodns to a given channel.

Returns: unit of given channel number.

Definition at line 535 of file rtfiffrawviewmodel.cpp.

◆ getValueAtColumn()

double RtFiffRawViewModel::getValueAtColumn	(	int	iRow,
		int	iColumn ) const

Returns the displayed value of a row at a buffer column, i.e. after projectors, compensators and filters.

Parameters

[in]	iRow	Row of the model.
[in]	iColumn	Buffer column, 0 .. getMaxSamples() - 1.

Returns: The value in SI units, 0 for an invalid row or column.

Definition at line 1067 of file rtfiffrawviewmodel.cpp.

◆ headerData()

QVariant RtFiffRawViewModel::headerData	(	int	section,
		Qt::Orientation	orientation,
		int	role = Qt::DisplayRole ) const

virtual

Returns the data for the given role and section in the header with the specified orientation.

Parameters

[in]	section	For horizontal headers, the section number corresponds to the column number. Similarly, for vertical headers, the section number corresponds to the row number.
[in]	orientation	Qt::Horizontal or Qt::Vertical.
[in]	role	role to show.

Returns: accessed eader data.

Definition at line 205 of file rtfiffrawviewmodel.cpp.

◆ hideRows()

void RtFiffRawViewModel::hideRows ( const QList< qint32 > & selection )

Hides the given list of channel

Parameters

[in] selection channel index list to select.

Definition at line 580 of file rtfiffrawviewmodel.cpp.

◆ isFreezed()

bool DISPLIB::RtFiffRawViewModel::isFreezed ( ) const

inline

Returns current freezing status

Returns: the current freezing status.

Definition at line 745 of file rtfiffrawviewmodel.h.

◆ markChBad() [1/2]

void RtFiffRawViewModel::markChBad	(	QModelIndex	ch,
		bool	status )

markChBad marks the selected channels as bad/good in m_chInfolist

Parameters

[in]	ch	index that is selected for marking.
[in]	status	Mark as bad when true, as good when false.

Definition at line 797 of file rtfiffrawviewmodel.cpp.

◆ markChBad() [2/2]

void RtFiffRawViewModel::markChBad	(	QModelIndexList	chlist,
		bool	status )

markChBad marks the selected channels as bad/good in m_chInfolist

Parameters

[in]	chlist	is the list of indices that are selected for marking.
[in]	status	Mark as bad when true, as good when false.

Definition at line 865 of file rtfiffrawviewmodel.cpp.

◆ newSelection

void DISPLIB::RtFiffRawViewModel::newSelection ( const QList< qint32 > & selection )

signal

Emmited when new selcetion was made

Parameters

[in] selection list of all selected channels.

◆ numVLines()

qint32 DISPLIB::RtFiffRawViewModel::numVLines ( ) const

inline

Returns the number of vertical lines (one per second)

Returns: number of vertical lines.

Definition at line 738 of file rtfiffrawviewmodel.h.

◆ resetSelection()

void RtFiffRawViewModel::resetSelection ( )

Resets the current selection (selects all channels)

Definition at line 597 of file rtfiffrawviewmodel.cpp.

◆ resetTriggerCounter()

void RtFiffRawViewModel::resetTriggerCounter ( )

resetTriggerCounter resets the trigger counter

Definition at line 858 of file rtfiffrawviewmodel.cpp.

◆ rowCount()

int RtFiffRawViewModel::rowCount ( const QModelIndex & parent = QModelIndex() ) const

virtual

Returns the number of rows under the given parent. When the parent is valid it means that rowCount is returning the number of children of parent.

Parameters

[in] parent not used.

Returns: number of rows.

Definition at line 122 of file rtfiffrawviewmodel.cpp.

◆ selectRows()

void RtFiffRawViewModel::selectRows ( const QList< qint32 > & selection )

Selects the given list of channel indeces and unselect all other channels

Parameters

[in] selection channel index list to select.

Definition at line 559 of file rtfiffrawviewmodel.cpp.

◆ setBackgroundColor()

void RtFiffRawViewModel::setBackgroundColor ( const QColor & color )

Set the background color

Parameters

[in] color The background color.

Definition at line 773 of file rtfiffrawviewmodel.cpp.

◆ setEventCallbacks()

void RtFiffRawViewModel::setEventCallbacks	(	std::function< void(int)>	addFn,
		std::function< std::vector< int >(int, int)>	getFn )

Sets callbacks for adding and querying events.

Parameters

[in]	addFn	Callback invoked when an event is added.
[in]	getFn	Callback returning event sample positions in a range.

Definition at line 1089 of file rtfiffrawviewmodel.cpp.

◆ setFiffInfo()

void RtFiffRawViewModel::setFiffInfo ( QSharedPointer< FIFFLIB::FiffInfo > & p_pFiffInfo )

Sets corresponding fiff information

Parameters

[in] p_pFiffInfo The corresponding fiff information.

Definition at line 300 of file rtfiffrawviewmodel.cpp.

◆ setFilter()

void RtFiffRawViewModel::setFilter ( QList< UTILSLIB::FilterKernel > filterData )

Set new filter parameters

Parameters

[in] filterData list of the new filter.

Definition at line 747 of file rtfiffrawviewmodel.cpp.

◆ setFilterActive()

void RtFiffRawViewModel::setFilterActive ( bool state )

Set filter activation

Parameters

[in] state filter on/off flag.

Definition at line 766 of file rtfiffrawviewmodel.cpp.

◆ setFilterChannelType()

void RtFiffRawViewModel::setFilterChannelType ( const QString & channelType )

Sets the type of channel which are to be filtered

Parameters

[in] channelType the channel type which is to be filtered (EEG, MEG, All).

Definition at line 780 of file rtfiffrawviewmodel.cpp.

◆ setSamplingInfo()

void RtFiffRawViewModel::setSamplingInfo	(	float	sps,
		int	T,
		bool	bSetZero = false )

Sets the sampling information and calculates the resulting downsampling factor between actual sps and desired sps

Parameters

[in]	sps	Samples per second of incomming data.
[in]	T	Time window length to display.
[in]	bSetZero	If data should be set to zero. Default is false.

Definition at line 357 of file rtfiffrawviewmodel.cpp.

◆ setScaling()

void RtFiffRawViewModel::setScaling ( const QMap< qint32, float > & p_qMapChScaling )

Set scaling channel scaling

Parameters

[in] p_qMapChScaling Map of scaling factors.

Definition at line 636 of file rtfiffrawviewmodel.cpp.

◆ toggleFreeze()

void RtFiffRawViewModel::toggleFreeze ( const QModelIndex & index )

Toggle freeze for all channels when a channel is double clicked

Parameters

[in] index of the channel which has been double clicked.

Definition at line 612 of file rtfiffrawviewmodel.cpp.

◆ triggerDetected

void DISPLIB::RtFiffRawViewModel::triggerDetected	(	int	numberDetectedTriggers,
		const QMap< int, QList< QPair< int, double > > > &	mapDetectedTriggers )

signal

Emmited when trigger detection was performed

◆ triggerDetectionActive()

bool DISPLIB::RtFiffRawViewModel::triggerDetectionActive ( ) const

inline

Returns whether trigger detection is active or not

Returns: whether trigger detection is active or not.

Definition at line 830 of file rtfiffrawviewmodel.h.

◆ triggerInfoChanged()

void RtFiffRawViewModel::triggerInfoChanged	(	const QMap< double, QColor > &	colorMap,
		bool	active,
		QString	triggerCh,
		double	threshold )

markChBad marks the selected channels as bad/good in m_chInfolist

Parameters

[in]	colorMap	color for each trigger channel.
[in]	active	real time trigger detection active.
[in]	triggerCh	current trigger channel to scan.
[in]	threshold	threshold for the detection process.

Definition at line 820 of file rtfiffrawviewmodel.cpp.

◆ updateCompensator()

void RtFiffRawViewModel::updateCompensator ( int to )

Update the compensator

Parameters

[in] to Compensator to use in fiff constant format FiffCtfComp.kind (NOT FiffCtfComp.ctfkind).

Definition at line 678 of file rtfiffrawviewmodel.cpp.

◆ updateProjection()

void RtFiffRawViewModel::updateProjection ( const QList< FIFFLIB::FiffProj > & projs )

Update the SSP projection

Parameters

[in] projs The new projectors.

Definition at line 645 of file rtfiffrawviewmodel.cpp.

◆ updateSpharaActivation()

void RtFiffRawViewModel::updateSpharaActivation ( bool state )

Update the SPHARA operator

Parameters

[in] state The current state of teh SPHARA tool.

Definition at line 709 of file rtfiffrawviewmodel.cpp.

◆ updateSpharaOptions()

void RtFiffRawViewModel::updateSpharaOptions	(	const QString &	sSytemType,
		int	nBaseFctsFirst,
		int	nBaseFctsSecond )

Update the SPHARA operator

Parameters

[in]	sSytemType	The current acquisition system type (VectorView, BabyMEG, EEG).
[in]	nBaseFctsFirst	The new number of basis function to use for the first SPHARA operator.
[in]	nBaseFctsSecond	The new number of basis function to use for the second SPHARA operator.

Definition at line 716 of file rtfiffrawviewmodel.cpp.

◆ windowSizeChanged

void DISPLIB::RtFiffRawViewModel::windowSizeChanged ( int windowSize )

signal

Emmited when the window size/max number of samples changed

Parameters

[in] windowSize number of samples in the window.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/helpers/rtfiffrawviewmodel.h
src/libraries/disp/viewers/helpers/rtfiffrawviewmodel.cpp

Public Types

Signals

Public Member Functions

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ RtFiffRawViewModel()

◆ ~RtFiffRawViewModel()

Member Function Documentation

◆ addData()

◆ addEvent()

◆ columnCount()

◆ data()

◆ distanceTimeSpacerChanged()

◆ getCoil()

◆ getCurrentOverlapAddDelay()

◆ getCurrentSampleIndex()

◆ getCurrentTriggerIndex()

◆ getDetectedTriggers()

◆ getDetectedTriggersOld()

◆ getEventsToDisplay()

◆ getFirstSampleOffset()

◆ getIdxSelMap()

◆ getKind()

◆ getLastBlock()

◆ getLastBlockFirstValue()

◆ getMaxSamples()

◆ getMaxValueFromRawViewModel()

◆ getNumberOfTimeSpacers()

◆ getSampleAtColumn()

◆ getScaling()

◆ getTriggerColor()

◆ getTriggerName()

◆ getTriggerThreshold()

◆ getUnit()

◆ getValueAtColumn()

◆ headerData()

◆ hideRows()

◆ isFreezed()

◆ markChBad() [1/2]

◆ markChBad() [2/2]

◆ newSelection

◆ numVLines()

◆ resetSelection()

◆ resetTriggerCounter()

◆ rowCount()

◆ selectRows()

◆ setBackgroundColor()

◆ setEventCallbacks()

◆ setFiffInfo()

◆ setFilter()

◆ setFilterActive()

◆ setFilterChannelType()

◆ setSamplingInfo()

◆ setScaling()

◆ toggleFreeze()

◆ triggerDetected

◆ triggerDetectionActive()

◆ triggerInfoChanged()

◆ updateCompensator()

◆ updateProjection()

◆ updateSpharaActivation()

◆ updateSpharaOptions()

◆ windowSizeChanged
