INVLIB::InvVectorSourceEstimate Class Reference

Vector source estimate: each vertex carries a 3D orientation vector across time. More...

#include <inv_vector_source_estimate.h>

Public Types
typedef QSharedPointer< InvVectorSourceEstimate >	SPtr
typedef QSharedPointer< const InvVectorSourceEstimate >	ConstSPtr
Public Types inherited from INVLIB::InvSourceEstimate
typedef QSharedPointer< InvSourceEstimate >	SPtr
typedef QSharedPointer< const InvSourceEstimate >	ConstSPtr

Public Member Functions
	InvVectorSourceEstimate ()
	InvVectorSourceEstimate (const Eigen::MatrixXd &p_sol, const Eigen::VectorXi &p_vertices, float p_tmin, float p_tstep)
int	nVertices () const
InvSourceEstimate	magnitude () const
Eigen::MatrixXd	vertexData (int vertexIdx) const
InvSourceEstimate	projectToNormals (const Eigen::MatrixX3f &normals) const
Public Member Functions inherited from INVLIB::InvSourceEstimate
	InvSourceEstimate ()
	InvSourceEstimate (const Eigen::MatrixXd &p_sol, const Eigen::VectorXi &p_vertices, float p_tmin, float p_tstep)
	InvSourceEstimate (const InvSourceEstimate &p_SourceEstimate)
	InvSourceEstimate (QIODevice &p_IODevice)
void	clear ()
InvSourceEstimate	reduce (qint32 start, qint32 n)
bool	write (QIODevice &p_IODevice)
void	write_w (const QString &path) const
bool	isEmpty () const
InvSourceEstimate &	operator= (const InvSourceEstimate &rhs)
int	samples () const
Eigen::VectorXi	getIndicesByLabel (const QList< FSLIB::FsLabel > &lPickedLabels, bool bIsClustered) const
bool	hasGridData () const
bool	hasCouplings () const
bool	hasFocalDipoles () const
bool	hasPositions () const
bool	hasConnectivity () const

Additional Inherited Members
Static Public Member Functions inherited from INVLIB::InvSourceEstimate
static bool	read (QIODevice &p_IODevice, InvSourceEstimate &p_stc)
static InvSourceEstimate	read_w (const QString &path)
Public Attributes inherited from INVLIB::InvSourceEstimate
Eigen::MatrixXd	data
Eigen::VectorXi	vertices
Eigen::RowVectorXf	times
float	tmin
float	tstep
InvEstimateMethod	method
InvSourceSpaceType	sourceSpaceType
InvOrientationType	orientationType
Eigen::MatrixX3f	positions
std::vector< InvSourceCoupling >	couplings
std::vector< InvFocalDipole >	focalDipoles
std::vector< InvConnectivity >	connectivity

Detailed Description

Vector source estimate: each vertex carries a 3D orientation vector across time.

data has shape (n_vertices*3 x n_times). Rows are interleaved: [x0,y0,z0, x1,y1,z1, ...]. Use magnitude() to collapse to scalar (n_vertices x n_times) for visualisation.

Definition at line 45 of file inv_vector_source_estimate.h.

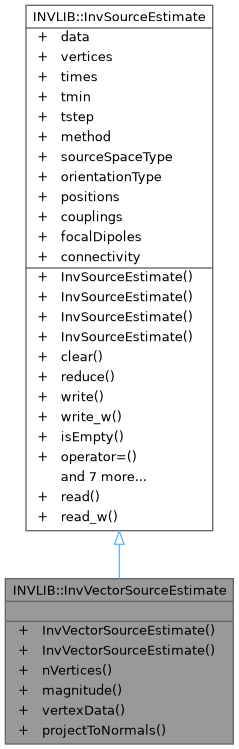

Inheritance diagram for INVLIB::InvVectorSourceEstimate:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const InvVectorSourceEstimate> INVLIB::InvVectorSourceEstimate::ConstSPtr

Definition at line 49 of file inv_vector_source_estimate.h.

SPtr

typedef QSharedPointer<InvVectorSourceEstimate> INVLIB::InvVectorSourceEstimate::SPtr

Definition at line 48 of file inv_vector_source_estimate.h.

Constructor & Destructor Documentation

InvVectorSourceEstimate() [1/2]

InvVectorSourceEstimate::InvVectorSourceEstimate

(

)

Definition at line 42 of file inv_vector_source_estimate.cpp.

InvVectorSourceEstimate() [2/2]

INVLIB::InvVectorSourceEstimate::InvVectorSourceEstimate	(	const Eigen::MatrixXd &	p_sol,
		const Eigen::VectorXi &	p_vertices,
		float	p_tmin,
		float	p_tstep )

Construct from data and vertices.

Parameters

[in]	p_sol	Data (n_vertices*3 x n_times).
[in]	p_vertices	Vertex indices (n_vertices).
[in]	p_tmin	Start time.
[in]	p_tstep	Time step.

Member Function Documentation

magnitude()

InvSourceEstimate InvVectorSourceEstimate::magnitude

(

)

const

Compute the magnitude (L2 norm) at each vertex across time.

Returns

Scalar source estimate (n_vertices x n_times).

Definition at line 67 of file inv_vector_source_estimate.cpp.

nVertices()

int InvVectorSourceEstimate::nVertices

(

)

const

Number of source vertices (data.rows() / 3).

Definition at line 60 of file inv_vector_source_estimate.cpp.

projectToNormals()

InvSourceEstimate InvVectorSourceEstimate::projectToNormals

(

const Eigen::MatrixX3f &

normals

)

const

Project the 3D vectors onto surface normals to produce a signed scalar estimate.

Parameters

[in]

normals

Surface normals (n_vertices x 3).

Returns

Scalar source estimate (n_vertices x n_times).

Definition at line 97 of file inv_vector_source_estimate.cpp.

vertexData()

MatrixXd InvVectorSourceEstimate::vertexData

(

int

vertexIdx

)

const

Extract the (x, y, z) data for a specific vertex.

Parameters

[in]

vertexIdx

Local index into vertices array.

Returns

Matrix (3 x n_times) for the requested vertex.

Definition at line 87 of file inv_vector_source_estimate.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/inv/inv_vector_source_estimate.h
• src/libraries/inv/inv_vector_source_estimate.cpp
