INVLIB::InvVolumeSourceEstimate Class Reference

Volume source estimate: scalar values at voxel locations. More...

#include <inv_volume_source_estimate.h>

Public Types
typedef QSharedPointer< InvVolumeSourceEstimate >	SPtr
typedef QSharedPointer< const InvVolumeSourceEstimate >	ConstSPtr
Public Types inherited from INVLIB::InvSourceEstimate
typedef QSharedPointer< InvSourceEstimate >	SPtr
typedef QSharedPointer< const InvSourceEstimate >	ConstSPtr

Public Member Functions
	InvVolumeSourceEstimate ()
	InvVolumeSourceEstimate (const Eigen::MatrixXd &p_sol, const Eigen::VectorXi &p_vertices, float p_tmin, float p_tstep)
void	setShape (const QVector< int > &shape)
const QVector< int > &	shape () const
bool	hasShape () const
Eigen::VectorXd	toVolume (int timeIdx) const
Eigen::Vector3d	centreOfMass (int timeIdx) const
Public Member Functions inherited from INVLIB::InvSourceEstimate
	InvSourceEstimate ()
	InvSourceEstimate (const Eigen::MatrixXd &p_sol, const Eigen::VectorXi &p_vertices, float p_tmin, float p_tstep)
	InvSourceEstimate (const InvSourceEstimate &p_SourceEstimate)
	InvSourceEstimate (QIODevice &p_IODevice)
void	clear ()
InvSourceEstimate	reduce (qint32 start, qint32 n)
bool	write (QIODevice &p_IODevice)
void	write_w (const QString &path) const
bool	isEmpty () const
InvSourceEstimate &	operator= (const InvSourceEstimate &rhs)
int	samples () const
Eigen::VectorXi	getIndicesByLabel (const QList< FSLIB::FsLabel > &lPickedLabels, bool bIsClustered) const
bool	hasGridData () const
bool	hasCouplings () const
bool	hasFocalDipoles () const
bool	hasPositions () const
bool	hasConnectivity () const

Additional Inherited Members
Static Public Member Functions inherited from INVLIB::InvSourceEstimate
static bool	read (QIODevice &p_IODevice, InvSourceEstimate &p_stc)
static InvSourceEstimate	read_w (const QString &path)
Public Attributes inherited from INVLIB::InvSourceEstimate
Eigen::MatrixXd	data
Eigen::VectorXi	vertices
Eigen::RowVectorXf	times
float	tmin
float	tstep
InvEstimateMethod	method
InvSourceSpaceType	sourceSpaceType
InvOrientationType	orientationType
Eigen::MatrixX3f	positions
std::vector< InvSourceCoupling >	couplings
std::vector< InvFocalDipole >	focalDipoles
std::vector< InvConnectivity >	connectivity

Detailed Description

Volume source estimate: scalar values at voxel locations.

Extends InvSourceEstimate with grid shape information to allow reshaping the flat data into a 3D volume.

Definition at line 51 of file inv_volume_source_estimate.h.

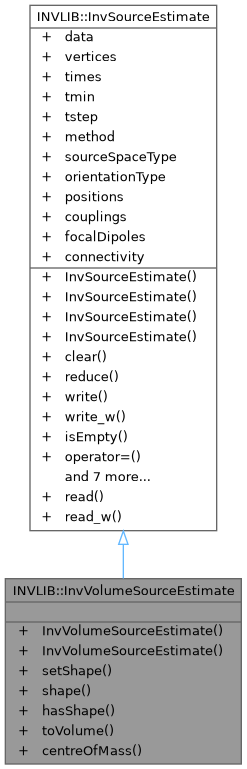

Inheritance diagram for INVLIB::InvVolumeSourceEstimate:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const InvVolumeSourceEstimate> INVLIB::InvVolumeSourceEstimate::ConstSPtr

Definition at line 55 of file inv_volume_source_estimate.h.

SPtr

typedef QSharedPointer<InvVolumeSourceEstimate> INVLIB::InvVolumeSourceEstimate::SPtr

Definition at line 54 of file inv_volume_source_estimate.h.

Constructor & Destructor Documentation

InvVolumeSourceEstimate() [1/2]

InvVolumeSourceEstimate::InvVolumeSourceEstimate

(

)

Definition at line 35 of file inv_volume_source_estimate.cpp.

InvVolumeSourceEstimate() [2/2]

INVLIB::InvVolumeSourceEstimate::InvVolumeSourceEstimate	(	const Eigen::MatrixXd &	p_sol,
		const Eigen::VectorXi &	p_vertices,
		float	p_tmin,
		float	p_tstep )

Construct from data and vertices.

Parameters

[in]	p_sol	Data (n_voxels x n_times).
[in]	p_vertices	Voxel indices.
[in]	p_tmin	Start time.
[in]	p_tstep	Time step.

Member Function Documentation

centreOfMass()

Vector3d InvVolumeSourceEstimate::centreOfMass

(

int

timeIdx

)

const

Compute the centre of mass of the activity at a given time point.

Parameters

[in]

timeIdx

Time sample index.

Returns

3D position (x, y, z) in voxel coordinates, or (0,0,0) if no activity.

Definition at line 80 of file inv_volume_source_estimate.cpp.

hasShape()

bool INVLIB::InvVolumeSourceEstimate::hasShape ( ) const

inline

Check whether the grid shape has been set.

Definition at line 91 of file inv_volume_source_estimate.h.

setShape()

void InvVolumeSourceEstimate::setShape

(

const QVector< int > &

shape

)

Set the 3D grid shape (nx, ny, nz) for volume reshaping.

Parameters

[in]

shape

Grid dimensions {nx, ny, nz}.

Definition at line 53 of file inv_volume_source_estimate.cpp.

shape()

const QVector< int > & INVLIB::InvVolumeSourceEstimate::shape ( ) const

inline

Get the 3D grid shape.

Definition at line 85 of file inv_volume_source_estimate.h.

toVolume()

VectorXd InvVolumeSourceEstimate::toVolume

(

int

timeIdx

)

const

Extract a 3D volume for a given time point, filling the grid with zeros where no source is active.

Parameters

[in]

timeIdx

Time sample index.

Returns

Flattened volume (nx*ny*nz) with values at active voxels.

Definition at line 61 of file inv_volume_source_estimate.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/inv/inv_volume_source_estimate.h
• src/libraries/inv/inv_volume_source_estimate.cpp
