Sensor-layout viewer drawing per-channel evoked traces at their physical 2-D positions. More...

#include <averagelayoutview.h>

Public Types
typedef QSharedPointer< AverageLayoutView >	SPtr
typedef QSharedPointer< const AverageLayoutView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Public Member Functions
	AverageLayoutView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~AverageLayoutView ()
void	updateViewport ()
void	setChannelInfoModel (QSharedPointer< ChannelInfoModel > &pChannelInfoModel)
void	setEvokedSetModel (QSharedPointer< EvokedSetModel > pEvokedSetModel)
QSharedPointer< EvokedSetModel >	getEvokedSetModel ()
void	setBackgroundColor (const QColor &backgroundColor)
QColor	getBackgroundColor ()
void	takeScreenshot (const QString &fileName)
void	setScaleMap (const QMap< qint32, float > &scaleMap)
QSharedPointer< QMap< QString, QColor > >	getAverageColor () const
QSharedPointer< QMap< QString, bool > >	getAverageActivation () const
void	setAverageColor (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	setSingleAverageColor (const QColor &avgColor)
void	setAverageActivation (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)
void	setFiffInfo (const QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo)
void	channelSelectionManagerChanged (const QList< QGraphicsItem * > &selectedChannelItems)
void	channelSelectionChanged (const QVariant &selectionData)
void	updateData ()
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)

Protected Attributes
QSharedPointer< AverageScene >	m_pAverageScene
QSharedPointer< DISPLIB::EvokedSetModel >	m_pEvokedSetModel
QSharedPointer< DISPLIB::ChannelInfoModel >	m_pChannelInfoModel
QSharedPointer< FIFFLIB::FiffInfo >	m_pFiffInfo
QPointer< QGraphicsView >	m_pAverageLayoutView
QSharedPointer< QMap< QString, QColor > >	m_qMapAverageColor
QSharedPointer< QMap< QString, bool > >	m_qMapAverageActivation
QMap< qint32, float >	m_scaleMap
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Additional Inherited Members
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Detailed Description

Sensor-layout viewer drawing per-channel evoked traces at their physical 2-D positions.

Wraps a QGraphicsView around an AverageScene fed by an EvokedSetModel and a ChannelInfoModel; selection groups are pushed in as SelectionItem to show only a subset of channels.

Definition at line 78 of file averagelayoutview.h.

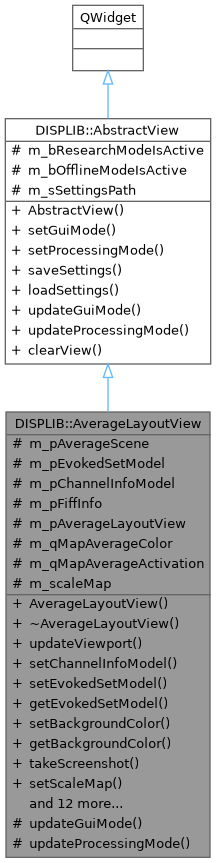

Inheritance diagram for DISPLIB::AverageLayoutView:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const AverageLayoutView> DISPLIB::AverageLayoutView::ConstSPtr

Const shared pointer type for AverageLayoutView.

Definition at line 84 of file averagelayoutview.h.

◆ SPtr

typedef QSharedPointer<AverageLayoutView> DISPLIB::AverageLayoutView::SPtr

Shared pointer type for AverageLayoutView.

Definition at line 83 of file averagelayoutview.h.

Constructor & Destructor Documentation

◆ AverageLayoutView()

AverageLayoutView::AverageLayoutView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a AverageLayoutView which is a child of parent.

Parameters

[in]	sSettingsPath	Settings path under which the widget persists its state (empty = no persistence).
[in]	parent	parent of widget.
[in]	f	Qt window flags passed to the QWidget constructor.

Definition at line 55 of file averagelayoutview.cpp.

◆ ~AverageLayoutView()

AverageLayoutView::~AverageLayoutView ( )

Destroys the AverageLayoutView.

Definition at line 97 of file averagelayoutview.cpp.

Member Function Documentation

◆ channelSelectionChanged()

void AverageLayoutView::channelSelectionChanged ( const QVariant & selectionData )

Sets the currently viewable channels using the corrent name and location parameters

Parameters

[in] selectionData QVariant containing a SelectionItem object with selected channel information.

Definition at line 279 of file averagelayoutview.cpp.

◆ channelSelectionManagerChanged()

void AverageLayoutView::channelSelectionManagerChanged ( const QList< QGraphicsItem * > & selectedChannelItems )

call this whenever the external channel selection manager changes

Parameters

[in] selectedChannelItems list of selected graphic items

Definition at line 263 of file averagelayoutview.cpp.

◆ clearView()

void AverageLayoutView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 438 of file averagelayoutview.cpp.

◆ getAverageActivation()

QSharedPointer< QMap< QString, bool > > AverageLayoutView::getAverageActivation ( ) const

Get the current average activations

Returns: Pointer to the current average activations.

Definition at line 218 of file averagelayoutview.cpp.

◆ getAverageColor()

QSharedPointer< QMap< QString, QColor > > AverageLayoutView::getAverageColor ( ) const

Get the current average colors

Returns: Pointer to the current average colors.

Definition at line 211 of file averagelayoutview.cpp.

◆ getBackgroundColor()

QColor AverageLayoutView::getBackgroundColor ( )

Returns the background color of the scene.

Returns: The current background color.

Definition at line 156 of file averagelayoutview.cpp.

◆ getEvokedSetModel()

QSharedPointer< EvokedSetModel > AverageLayoutView::getEvokedSetModel ( )

Returns the currently set EvokedSetModel

Returns: the currently set EvokedSetModel.

Definition at line 431 of file averagelayoutview.cpp.

◆ loadSettings()

void AverageLayoutView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 389 of file averagelayoutview.cpp.

◆ saveSettings()

void AverageLayoutView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 378 of file averagelayoutview.cpp.

◆ setAverageActivation()

void AverageLayoutView::setAverageActivation ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

Set the average activations

Parameters

[in] qMapAverageActivation Pointer to the new average activations.

Definition at line 250 of file averagelayoutview.cpp.

◆ setAverageColor()

void AverageLayoutView::setAverageColor ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

Set the average colors

Parameters

[in] qMapAverageColor Pointer to the new average colors.

Definition at line 225 of file averagelayoutview.cpp.

◆ setBackgroundColor()

void AverageLayoutView::setBackgroundColor ( const QColor & backgroundColor )

Sets the background color of the scene.

Parameters

[in] backgroundColor The new background color.

Definition at line 142 of file averagelayoutview.cpp.

◆ setChannelInfoModel()

void AverageLayoutView::setChannelInfoModel ( QSharedPointer< ChannelInfoModel > & pChannelInfoModel )

Sets the channel info model.

Parameters

[in] pChannelInfoModel The new channel info model.

Definition at line 123 of file averagelayoutview.cpp.

◆ setEvokedSetModel()

void AverageLayoutView::setEvokedSetModel ( QSharedPointer< EvokedSetModel > pEvokedSetModel )

Sets the evoked set model.

Parameters

[in] pEvokedSetModel The new evoked set model.

Definition at line 130 of file averagelayoutview.cpp.

◆ setFiffInfo()

void AverageLayoutView::setFiffInfo ( const QSharedPointer< FIFFLIB::FiffInfo > pFiffInfo )

Stores FiffInfo to local variable to be used for getting channel info

Parameters

[in] pFiffInfo shared pointer to Fiff Info of currently loaded data.

Definition at line 424 of file averagelayoutview.cpp.

◆ setScaleMap()

void AverageLayoutView::setScaleMap ( const QMap< qint32, float > & scaleMap )

Sets the scale map to scaleMap.

Parameters

[in] scaleMap map with all channel types and their current scaling value.

Definition at line 195 of file averagelayoutview.cpp.

◆ setSingleAverageColor()

void AverageLayoutView::setSingleAverageColor ( const QColor & avgColor )

Sets the color used to draw the average to avgColor

Parameters

[in] avgColor Color of averaged signal.

Definition at line 238 of file averagelayoutview.cpp.

◆ takeScreenshot()

void AverageLayoutView::takeScreenshot ( const QString & fileName )

Renders a screenshot of the scene and saves it to the passed path. SVG and PNG supported.

Parameters

[in] fileName The file name and path where to store the screenshot.

Definition at line 168 of file averagelayoutview.cpp.

◆ updateData()

void AverageLayoutView::updateData ( )

call this function whenever the items' data needs to be updated

Definition at line 298 of file averagelayoutview.cpp.

◆ updateGuiMode()

void AverageLayoutView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

mode	The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 400 of file averagelayoutview.cpp.

◆ updateProcessingMode()

void AverageLayoutView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

mode	The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 412 of file averagelayoutview.cpp.

◆ updateViewport()

void AverageLayoutView::updateViewport ( )

Update the viewport. This, e.g., necessary if this widget was set to a QDockWidget which changes its floating state.

Definition at line 104 of file averagelayoutview.cpp.

Member Data Documentation

◆ m_pAverageLayoutView

QPointer<QGraphicsView> DISPLIB::AverageLayoutView::m_pAverageLayoutView

protected

View for 2D average layout scene.

Definition at line 278 of file averagelayoutview.h.

◆ m_pAverageScene

QSharedPointer<AverageScene> DISPLIB::AverageLayoutView::m_pAverageScene

protected

The pointer to the average scene.

Definition at line 272 of file averagelayoutview.h.

◆ m_pChannelInfoModel

QSharedPointer<DISPLIB::ChannelInfoModel> DISPLIB::AverageLayoutView::m_pChannelInfoModel

protected

Channel info model.

Definition at line 274 of file averagelayoutview.h.

◆ m_pEvokedSetModel

QSharedPointer<DISPLIB::EvokedSetModel> DISPLIB::AverageLayoutView::m_pEvokedSetModel

protected

The data model.

Definition at line 273 of file averagelayoutview.h.

◆ m_pFiffInfo

QSharedPointer<FIFFLIB::FiffInfo> DISPLIB::AverageLayoutView::m_pFiffInfo

protected

FiffInfo for currently loaded file.

Definition at line 276 of file averagelayoutview.h.

◆ m_qMapAverageActivation

QSharedPointer<QMap<QString, bool> > DISPLIB::AverageLayoutView::m_qMapAverageActivation

protected

Average activation status.

Definition at line 281 of file averagelayoutview.h.

◆ m_qMapAverageColor

QSharedPointer<QMap<QString, QColor> > DISPLIB::AverageLayoutView::m_qMapAverageColor

protected

Average colors.

Definition at line 280 of file averagelayoutview.h.

◆ m_scaleMap

QMap<qint32, float> DISPLIB::AverageLayoutView::m_scaleMap

protected

The current scaling map.

Definition at line 282 of file averagelayoutview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/averagelayoutview.h
src/libraries/disp/viewers/averagelayoutview.cpp

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ AverageLayoutView()

◆ ~AverageLayoutView()

Member Function Documentation

◆ channelSelectionChanged()

◆ channelSelectionManagerChanged()

◆ clearView()

◆ getAverageActivation()

◆ getAverageColor()

◆ getBackgroundColor()

◆ getEvokedSetModel()

◆ loadSettings()

◆ saveSettings()

◆ setAverageActivation()

◆ setAverageColor()

◆ setBackgroundColor()

◆ setChannelInfoModel()

◆ setEvokedSetModel()

◆ setFiffInfo()

◆ setScaleMap()

◆ setSingleAverageColor()

◆ takeScreenshot()

◆ updateData()

◆ updateGuiMode()

◆ updateProcessingMode()

◆ updateViewport()

Member Data Documentation

◆ m_pAverageLayoutView

◆ m_pAverageScene

◆ m_pChannelInfoModel

◆ m_pEvokedSetModel

◆ m_pFiffInfo

◆ m_qMapAverageActivation

◆ m_qMapAverageColor

◆ m_scaleMap
