Tree-view control panel for the 3-D scene (visibility, colour, alpha, threshold per item). More...

#include <control3dview.h>

Public Types
typedef QSharedPointer< Control3DView >	SPtr
typedef QSharedPointer< const Control3DView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	sceneColorChanged (const QColor &color)
void	showFullScreen (bool bShowFullScreen)
void	rotationChanged (bool bRotationChanged)
void	showCoordAxis (bool bShowCoordAxis)
void	lightColorChanged (const QColor &color)
void	lightIntensityChanged (double value)
void	takeScreenshotChanged ()
void	toggleSingleView ()
void	toggleMutiview ()
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	Control3DView (const QString &sSettingsPath="", QWidget *parent=0, const QStringList &slFlags=QStringList()<< "Data"<< "View"<< "Light", Qt::WindowType type=Qt::Widget)
	~Control3DView ()
void	setFlags (const QStringList &slFlags)
void	setDelegate (QStyledItemDelegate *pItemDelegate)
void	setModel (QStandardItemModel *pDataTreeModel)
void	onTreeViewHeaderHide ()
void	onTreeViewRemoveItem (const QModelIndex &index)
void	onTreeViewDescriptionHide ()
void	saveSettings ()
void	loadSettings ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	onOpacityChange (qint32 value)
void	onSceneColorPicker ()
void	onCustomContextMenuRequested (QPoint pos)
	customContextMenuRequested
void	onAlwaysOnTop (bool state)
void	onSceneColorChanged (const QColor &color)
void	onShowFullScreen (bool checked)
void	onRotationClicked (bool checked)
void	onCoordAxisClicked (bool checked)
void	onLightColorPicker ()
void	onLightColorChanged (const QColor &color)
void	onLightIntensityChanged (double value)
void	clearView ()

Protected Attributes
Ui::Control3DViewWidget *	m_pUi
QColor	m_colCurrentSceneColor
QColor	m_colCurrentLightColor
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Tree-view control panel for the 3-D scene (visibility, colour, alpha, threshold per item).

Hosts a QTreeView bound to the Data3DTreeModel and a custom QStyledItemDelegate that paints colour swatches and slider editors inline so edits propagate directly to the renderer.

Definition at line 72 of file control3dview.h.

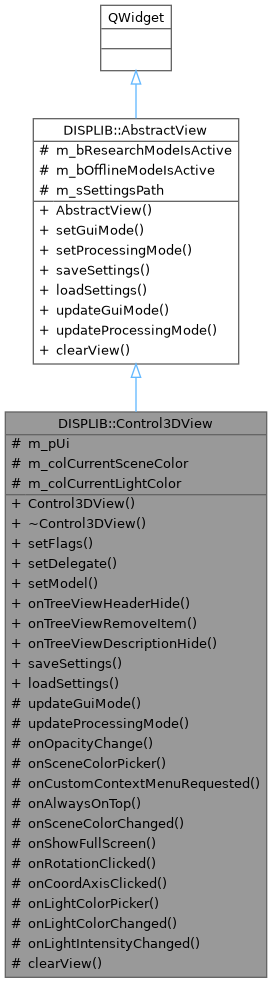

Inheritance diagram for DISPLIB::Control3DView:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const Control3DView> DISPLIB::Control3DView::ConstSPtr

Const shared pointer type for Control3DView.

Definition at line 78 of file control3dview.h.

◆ SPtr

typedef QSharedPointer<Control3DView> DISPLIB::Control3DView::SPtr

Shared pointer type for Control3DView.

Definition at line 77 of file control3dview.h.

Constructor & Destructor Documentation

◆ Control3DView()

Control3DView::Control3DView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		const QStringList &	slFlags = QStringList() << "Data" << "View" << "Light",
		Qt::WindowType	type = Qt::Widget )

explicit

Default constructor.

Parameters

[in]	sSettingsPath	Settings path under which the widget persists its state (empty = no persistence).
[in]	parent	The parent of the QObject.
[in]	slFlags	The flags indicating which tools to display. Scaling is displayed as default. Possible flags are: "Data", "View", "Light".
[in]	type	Qt window type passed to the QWidget constructor.

Definition at line 52 of file control3dview.cpp.

◆ ~Control3DView()

Control3DView::~Control3DView ( )

Destroys the Control3DView.

Definition at line 82 of file control3dview.cpp.

Member Function Documentation

◆ clearView()

void Control3DView::clearView ( )

protectedvirtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 372 of file control3dview.cpp.

◆ lightColorChanged

void DISPLIB::Control3DView::lightColorChanged ( const QColor & color )

signal

Use this signal whenever the light color was changed by the user.

Parameters

[in] color The newly picked color.

◆ lightIntensityChanged

void DISPLIB::Control3DView::lightIntensityChanged ( double value )

signal

Use this signal whenever the light intensity was changed by the user.

Parameters

[in] value The newly picked intensity.

◆ loadSettings()

void Control3DView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 203 of file control3dview.cpp.

◆ onAlwaysOnTop()

void Control3DView::onAlwaysOnTop ( bool state )

protected

Slot called when the user wants to change the always on top window flag.

Parameters

[in] state The newly picked on top state.

Definition at line 297 of file control3dview.cpp.

◆ onCoordAxisClicked()

void Control3DView::onCoordAxisClicked ( bool checked )

protected

Slot called when the user wants to toggle the coord axis.

Parameters

[in] checked True to show the coordinate axis.

Definition at line 331 of file control3dview.cpp.

◆ onCustomContextMenuRequested()

void Control3DView::onCustomContextMenuRequested ( QPoint pos )

protected

customContextMenuRequested

Parameters

[in] pos The position, where the right-click occurred.

Definition at line 266 of file control3dview.cpp.

◆ onLightColorChanged()

void Control3DView::onLightColorChanged ( const QColor & color )

protected

Slot called when the user wants change the color of the lights.

Parameters

[in] color The newly picked light color.

Definition at line 358 of file control3dview.cpp.

◆ onLightColorPicker()

void Control3DView::onLightColorPicker ( )

protected

Slot called when the user wants change the color of the lights.

Definition at line 338 of file control3dview.cpp.

◆ onLightIntensityChanged()

void Control3DView::onLightIntensityChanged ( double value )

protected

Slot called when the user wants to change the light intensity.

Parameters

[in] value The newly picked light intensity value.

Definition at line 365 of file control3dview.cpp.

◆ onOpacityChange()

void Control3DView::onOpacityChange ( qint32 value )

protected

Slot called when opacity slider was changed.

Parameters

[in] value opacity value.

Definition at line 239 of file control3dview.cpp.

◆ onRotationClicked()

void Control3DView::onRotationClicked ( bool checked )

protected

Slot called when the user wants to rotate the models.

Parameters

[in] checked The newly picked rotation state.

Definition at line 324 of file control3dview.cpp.

◆ onSceneColorChanged()

void Control3DView::onSceneColorChanged ( const QColor & color )

protected

Slot called when the user wants change the color of the scene.

Parameters

[in] color The newly picked scene color.

Definition at line 310 of file control3dview.cpp.

◆ onSceneColorPicker()

void Control3DView::onSceneColorPicker ( )

protected

Slot called when the scene color changed.

Definition at line 246 of file control3dview.cpp.

◆ onShowFullScreen()

void Control3DView::onShowFullScreen ( bool checked )

protected

Slot called when the user wants to show the view in full screen.

Parameters

[in] checked The newly picked full screen state.

Definition at line 317 of file control3dview.cpp.

◆ onTreeViewDescriptionHide()

void Control3DView::onTreeViewDescriptionHide ( )

Slot called when tree view description visibilty changed.

Definition at line 180 of file control3dview.cpp.

◆ onTreeViewHeaderHide()

void Control3DView::onTreeViewHeaderHide ( )

Slot called when tree view header visibilty changed.

Definition at line 160 of file control3dview.cpp.

◆ onTreeViewRemoveItem()

void Control3DView::onTreeViewRemoveItem ( const QModelIndex & index )

Slot called when an item should be removed.

Parameters

[in] index Model index of the tree view row to remove; ignored if invalid.

Definition at line 171 of file control3dview.cpp.

◆ rotationChanged

void DISPLIB::Control3DView::rotationChanged ( bool bRotationChanged )

signal

Use this signal whenever the user wants to rotate the 3D model.

Parameters

[in] bRotationChanged The rotation flag.

◆ saveSettings()

void Control3DView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 191 of file control3dview.cpp.

◆ sceneColorChanged

void DISPLIB::Control3DView::sceneColorChanged ( const QColor & color )

signal

Use this signal whenever the scene color was changed by the user.

Parameters

[in] color The newly picked color.

◆ setDelegate()

void Control3DView::setDelegate ( QStyledItemDelegate * pItemDelegate )

Set the delegate for the tree view.

Parameters

[in] pItemDelegate The delegate.

Definition at line 139 of file control3dview.cpp.

◆ setFlags()

void Control3DView::setFlags ( const QStringList & slFlags )

Set the flags specifying which part of the GUI should be shown.

Parameters

[in] slFlags flags.

Definition at line 90 of file control3dview.cpp.

◆ setModel()

void Control3DView::setModel ( QStandardItemModel * pDataTreeModel )

Init the control widget based on the 3D view and data model.

Parameters

[in] pDataTreeModel The 3D data tree model.

Definition at line 149 of file control3dview.cpp.

◆ showCoordAxis

void DISPLIB::Control3DView::showCoordAxis ( bool bShowCoordAxis )

signal

Use this signal whenever the user wants to show the coordinate axis.

Parameters

[in] bShowCoordAxis The coordinate axis flag.

◆ showFullScreen

void DISPLIB::Control3DView::showFullScreen ( bool bShowFullScreen )

signal

Use this signal whenever the user wants to use full screen mode.

Parameters

[in] bShowFullScreen The full screen flag.

◆ takeScreenshotChanged

void DISPLIB::Control3DView::takeScreenshotChanged ( )

signal

Use this signal whenever the take screenshot button was clicked by the user.

◆ toggleMutiview

void DISPLIB::Control3DView::toggleMutiview ( )

signal

Notifies the 'Multiview' radio button has been checked.

◆ toggleSingleView

void DISPLIB::Control3DView::toggleSingleView ( )

signal

Notifies the 'Single View' radio button has been checked.

◆ updateGuiMode()

void Control3DView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in] mode The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 215 of file control3dview.cpp.

◆ updateProcessingMode()

void Control3DView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in] mode The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 227 of file control3dview.cpp.

Member Data Documentation

◆ m_colCurrentLightColor

QColor DISPLIB::Control3DView::m_colCurrentLightColor

protected

Current color of the lights in all View3D's.

Definition at line 267 of file control3dview.h.

◆ m_colCurrentSceneColor

QColor DISPLIB::Control3DView::m_colCurrentSceneColor

protected

Current color of the scene in all View3D's.

Definition at line 266 of file control3dview.h.

◆ m_pUi

Ui::Control3DViewWidget* DISPLIB::Control3DView::m_pUi

protected

The pointer to the QtDesigner ui class.

Definition at line 264 of file control3dview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/control3dview.h
src/libraries/disp/viewers/control3dview.cpp

Public Types

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ Control3DView()

◆ ~Control3DView()

Member Function Documentation

◆ clearView()

◆ lightColorChanged

◆ lightIntensityChanged

◆ loadSettings()

◆ onAlwaysOnTop()

◆ onCoordAxisClicked()

◆ onCustomContextMenuRequested()

◆ onLightColorChanged()

◆ onLightColorPicker()

◆ onLightIntensityChanged()

◆ onOpacityChange()

◆ onRotationClicked()

◆ onSceneColorChanged()

◆ onSceneColorPicker()

◆ onShowFullScreen()

◆ onTreeViewDescriptionHide()

◆ onTreeViewHeaderHide()

◆ onTreeViewRemoveItem()

◆ rotationChanged

◆ saveSettings()

◆ sceneColorChanged

◆ setDelegate()

◆ setFlags()

◆ setModel()

◆ showCoordAxis

◆ showFullScreen

◆ takeScreenshotChanged

◆ toggleMutiview

◆ toggleSingleView

◆ updateGuiMode()

◆ updateProcessingMode()

Member Data Documentation

◆ m_colCurrentLightColor

◆ m_colCurrentSceneColor

◆ m_pUi
