QRhi-based GPU-accelerated channel time-series renderer used by the modern raw browser. More...

#include <channelrhiview.h>

Classes
struct	EventMarker
	Stimulus / event marker — a coloured vertical line at a given sample. More...
struct	AnnotationSpan
	Time-span annotation overlay. More...

Signals
void	scrollSampleChanged (float sample)
void	samplesPerPixelChanged (float spp)
void	viewResized (int newWidth, int newHeight)
void	channelOffsetChanged (int firstChannel)
void	sampleClicked (int sample)
void	sampleRangeSelected (int startSample, int endSample)
void	annotationBoundaryMoved (int annotationIndex, bool isStartBoundary, int newSample)
void	cursorDataChanged (float timeSec, float amplitude, const QString &channelName, const QString &unitLabel)

Public Member Functions
	ChannelRhiView (QWidget *parent=nullptr)
	~ChannelRhiView () override
void	setModel (ChannelDataModel *model)
void	setEvents (const QVector< EventMarker > &events)
void	setEpochMarkers (const QVector< int > &triggerSamples)
void	setEpochMarkersVisible (bool visible)
bool	epochMarkersVisible () const
void	setClippingVisible (bool visible)
bool	clippingVisible () const
void	setZScoreMode (bool enabled)
bool	zScoreMode () const
void	setAnnotations (const QVector< AnnotationSpan > &annotations)
void	setAnnotationSelectionEnabled (bool enabled)
void	setEventsVisible (bool visible)
bool	eventsVisible () const
void	setAnnotationsVisible (bool visible)
bool	annotationsVisible () const
float	scrollSample () const
float	samplesPerPixel () const
void	setScrollSample (float sample)
void	setSamplesPerPixel (float spp)
void	scrollTo (float targetSample, int durationMs=200)
void	scrollBy (float deltaSamples, int durationMs=200)
void	zoomTo (float targetSpp, int durationMs=200)
void	setBackgroundColor (const QColor &color)
QColor	backgroundColor () const
void	setPrefetchFactor (float factor)
int	visibleFirstSample () const
int	visibleSampleCount () const
void	setChannelIndices (const QVector< int > &indices)
int	totalLogicalChannels () const
void	setFirstVisibleChannel (int ch)
int	firstVisibleChannel () const
void	setVisibleChannelCount (int count)
int	visibleChannelCount () const
void	setFrozen (bool frozen)
bool	isFrozen () const
void	setGridVisible (bool visible)
bool	gridVisible () const
void	setSfreq (float sfreq)
void	setFirstFileSample (int first)
void	setLastFileSample (int last)
int	lastFileSample () const
void	setWheelScrollsChannels (bool channelsMode)
bool	wheelScrollsChannels () const
void	setScrollSpeedFactor (float factor)
float	scrollSpeedFactor () const
void	setHideBadChannels (bool hide)
bool	hideBadChannels () const
void	setCrosshairEnabled (bool enabled)
bool	crosshairEnabled () const
void	setClockTimeFormat (bool useClock)
bool	clockTimeFormat () const
QImage	renderToImage (const QSize &size=QSize()) const
void	setScalebarsVisible (bool visible)
bool	scalebarsVisible () const
void	setButterflyMode (bool enabled)
bool	butterflyMode () const

Protected Member Functions
void	initialize (QRhiCommandBuffer *cb) override
void	render (QRhiCommandBuffer *cb) override
void	releaseResources () override
void	paintEvent (QPaintEvent *event) override
void	renderFrame (QRhi rhi, QRhiRenderTarget target, QRhiCommandBuffer *cb)
void	drawCrosshair (QPainter &p)
void	drawScalebars (QPainter &p)
void	drawRulerOverlay (QPainter &p)
void	drawAnnotationSelectionOverlay (QPainter &p)
void	emitCursorData ()
bool	rulerActive () const
bool	annotationSelecting () const
void	resizeEvent (QResizeEvent *event) override
void	wheelEvent (QWheelEvent *event) override
void	mousePressEvent (QMouseEvent *event) override
void	mouseMoveEvent (QMouseEvent *event) override
void	mouseReleaseEvent (QMouseEvent *event) override
void	mouseDoubleClickEvent (QMouseEvent *event) override

Properties
float	scrollSample
float	samplesPerPixel

Friends
class	::CrosshairOverlay

Detailed Description

QRhi-based GPU-accelerated channel time-series renderer used by the modern raw browser.

Manages its own pipeline, samplers, resource bindings and a small CrosshairOverlay for the time / amplitude cursor; exposes callbacks for the host ChannelDataView to push samples, change scaling or update the visible window.

Definition at line 76 of file channelrhiview.h.

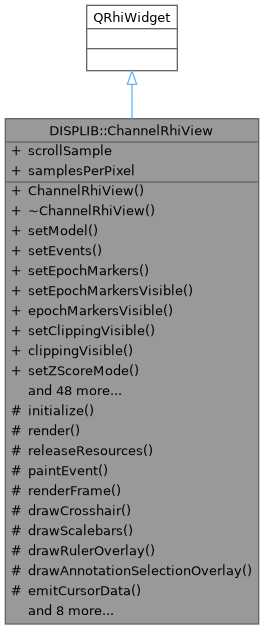

Inheritance diagram for DISPLIB::ChannelRhiView:

Constructor & Destructor Documentation

◆ ChannelRhiView()

ChannelRhiView::ChannelRhiView ( QWidget * parent = nullptr )

explicit

Definition at line 141 of file channelrhiview.cpp.

◆ ~ChannelRhiView()

ChannelRhiView::~ChannelRhiView ( )

overridedefault

Member Function Documentation

◆ annotationBoundaryMoved

void DISPLIB::ChannelRhiView::annotationBoundaryMoved	(	int	annotationIndex,
		bool	isStartBoundary,
		int	newSample )

signal

Emitted when the user finishes dragging an annotation boundary.

Parameters

[in]	annotationIndex	Index in the annotation span list.
[in]	isStartBoundary	True if the start boundary was dragged.
[in]	newSample	New absolute sample position of the boundary.

◆ annotationSelecting()

bool DISPLIB::ChannelRhiView::annotationSelecting ( ) const

inlineprotected

Definition at line 550 of file channelrhiview.h.

◆ annotationsVisible()

bool ChannelRhiView::annotationsVisible ( ) const

Definition at line 722 of file channelrhiview.cpp.

◆ backgroundColor()

QColor DISPLIB::ChannelRhiView::backgroundColor ( ) const

inline

Definition at line 236 of file channelrhiview.h.

◆ butterflyMode()

bool DISPLIB::ChannelRhiView::butterflyMode ( ) const

inline

Definition at line 473 of file channelrhiview.h.

◆ channelOffsetChanged

void DISPLIB::ChannelRhiView::channelOffsetChanged ( int firstChannel )

signal

Emitted whenever the first visible channel index changes.

◆ clippingVisible()

bool DISPLIB::ChannelRhiView::clippingVisible ( ) const

inline

Definition at line 138 of file channelrhiview.h.

◆ clockTimeFormat()

bool DISPLIB::ChannelRhiView::clockTimeFormat ( ) const

inline

Definition at line 428 of file channelrhiview.h.

◆ crosshairEnabled()

bool DISPLIB::ChannelRhiView::crosshairEnabled ( ) const

inline

Definition at line 413 of file channelrhiview.h.

◆ cursorDataChanged

void DISPLIB::ChannelRhiView::cursorDataChanged	(	float	timeSec,
		float	amplitude,
		const QString &	channelName,
		const QString &	unitLabel )

signal

Emitted continuously when the crosshair is active and the mouse moves.

Parameters

[in]	timeSec	Time at cursor in seconds relative to file start.
[in]	amplitude	Raw amplitude value under the cursor in physical units.
[in]	channelName	Name of the channel under the cursor.
[in]	unitLabel	Short unit label ("T", "V", "AU", …).

◆ drawAnnotationSelectionOverlay()

void ChannelRhiView::drawAnnotationSelectionOverlay ( QPainter & p )

protected

Definition at line 2242 of file channelrhiview.cpp.

◆ drawCrosshair()

void ChannelRhiView::drawCrosshair ( QPainter & p )

protected

Definition at line 1879 of file channelrhiview.cpp.

◆ drawRulerOverlay()

void ChannelRhiView::drawRulerOverlay ( QPainter & p )

protected

Definition at line 2091 of file channelrhiview.cpp.

◆ drawScalebars()

void ChannelRhiView::drawScalebars ( QPainter & p )

protected

Definition at line 2008 of file channelrhiview.cpp.

◆ emitCursorData()

void ChannelRhiView::emitCursorData ( )

protected

Definition at line 1969 of file channelrhiview.cpp.

◆ epochMarkersVisible()

bool DISPLIB::ChannelRhiView::epochMarkersVisible ( ) const

inline

Definition at line 132 of file channelrhiview.h.

◆ eventsVisible()

bool ChannelRhiView::eventsVisible ( ) const

Definition at line 706 of file channelrhiview.cpp.

◆ firstVisibleChannel()

int DISPLIB::ChannelRhiView::firstVisibleChannel ( ) const

inline

Definition at line 293 of file channelrhiview.h.

◆ gridVisible()

bool DISPLIB::ChannelRhiView::gridVisible ( ) const

inline

Definition at line 330 of file channelrhiview.h.

◆ hideBadChannels()

bool DISPLIB::ChannelRhiView::hideBadChannels ( ) const

inline

Definition at line 397 of file channelrhiview.h.

◆ initialize()

void ChannelRhiView::initialize ( QRhiCommandBuffer * cb )

overrideprotected

Definition at line 748 of file channelrhiview.cpp.

◆ isFrozen()

bool DISPLIB::ChannelRhiView::isFrozen ( ) const

inline

Definition at line 318 of file channelrhiview.h.

◆ lastFileSample()

int DISPLIB::ChannelRhiView::lastFileSample ( ) const

inline

Definition at line 362 of file channelrhiview.h.

◆ mouseDoubleClickEvent()

void ChannelRhiView::mouseDoubleClickEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2658 of file channelrhiview.cpp.

◆ mouseMoveEvent()

void ChannelRhiView::mouseMoveEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2408 of file channelrhiview.cpp.

◆ mousePressEvent()

void ChannelRhiView::mousePressEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2332 of file channelrhiview.cpp.

◆ mouseReleaseEvent()

void ChannelRhiView::mouseReleaseEvent ( QMouseEvent * event )

overrideprotected

Definition at line 2541 of file channelrhiview.cpp.

◆ paintEvent()

void ChannelRhiView::paintEvent ( QPaintEvent * event )

overrideprotected

Definition at line 1552 of file channelrhiview.cpp.

◆ releaseResources()

void ChannelRhiView::releaseResources ( )

overrideprotected

Definition at line 757 of file channelrhiview.cpp.

◆ render()

void ChannelRhiView::render ( QRhiCommandBuffer * cb )

overrideprotected

Definition at line 1351 of file channelrhiview.cpp.

◆ renderFrame()

void ChannelRhiView::renderFrame	(	QRhi *	rhi,
		QRhiRenderTarget *	target,
		QRhiCommandBuffer *	cb )

protected

Records one frame into target; render() calls it with the widget's own QRhi and render target.

Parameters

[in]	rhi	The QRhi that owns `target` and the view's GPU resources.
[in]	target	Render target sized like the widget times its device pixel ratio.
[in]	cb	Command buffer of the current frame.

Definition at line 1358 of file channelrhiview.cpp.

◆ renderToImage()

QImage ChannelRhiView::renderToImage ( const QSize & size = QSize() ) const

Render the current view (background bands, grid, annotations, traces, event and epoch markers) into an image with QPainter, without the GPU. Rows, scaling, butterfly layout, z-score mode and clipping highlight match the on-screen rendering, so this also works offscreen, e.g. for reports.

Parameters

[in] size Output size in pixels; the visible time span is stretched to fit. An invalid size (default) uses the widget size.

Returns: The rendered image (only the background if no channel is shown), or a null image if there is no model or the size is empty.

Definition at line 1560 of file channelrhiview.cpp.

◆ resizeEvent()

void ChannelRhiView::resizeEvent ( QResizeEvent * event )

overrideprotected

Definition at line 2285 of file channelrhiview.cpp.

◆ rulerActive()

bool DISPLIB::ChannelRhiView::rulerActive ( ) const

inlineprotected

Definition at line 546 of file channelrhiview.h.

◆ sampleClicked

void DISPLIB::ChannelRhiView::sampleClicked ( int sample )

signal

Emitted whenever the user clicks; provides the sample index under the cursor.

◆ sampleRangeSelected

void DISPLIB::ChannelRhiView::sampleRangeSelected	(	int	startSample,
		int	endSample )

signal

Emitted when the user selects a time span with Shift+drag in annotation mode.

◆ samplesPerPixel()

float DISPLIB::ChannelRhiView::samplesPerPixel ( ) const

inline

Definition at line 178 of file channelrhiview.h.

◆ samplesPerPixelChanged

void DISPLIB::ChannelRhiView::samplesPerPixelChanged ( float spp )

signal

◆ scalebarsVisible()

bool DISPLIB::ChannelRhiView::scalebarsVisible ( ) const

inline

Definition at line 459 of file channelrhiview.h.

◆ scrollBy()

void ChannelRhiView::scrollBy	(	float	deltaSamples,
		int	durationMs = 200 )

Smoothly scroll by a number of samples. While a scroll animation runs, the step continues from its target, so repeated wheel ticks or key presses add up.

Parameters

[in]	deltaSamples	Samples to scroll (negative = earlier).
[in]	durationMs	Animation duration in milliseconds (0 = instant).

Definition at line 307 of file channelrhiview.cpp.

◆ scrollSample()

float DISPLIB::ChannelRhiView::scrollSample ( ) const

inline

Definition at line 174 of file channelrhiview.h.

◆ scrollSampleChanged

void DISPLIB::ChannelRhiView::scrollSampleChanged ( float sample )

signal

◆ scrollSpeedFactor()

float DISPLIB::ChannelRhiView::scrollSpeedFactor ( ) const

inline

Definition at line 382 of file channelrhiview.h.

◆ scrollTo()

void ChannelRhiView::scrollTo	(	float	targetSample,
		int	durationMs = 200 )

Smoothly animate the scroll position.

Parameters

[in]	targetSample	Target left-edge sample index.
[in]	durationMs	Animation duration in milliseconds (0 = instant).

Definition at line 275 of file channelrhiview.cpp.

◆ setAnnotations()

void ChannelRhiView::setAnnotations ( const QVector< AnnotationSpan > & annotations )

Set the list of time-span annotations to overlay on the traces.

Parameters

[in] annotations List of AnnotationSpan objects.

Definition at line 681 of file channelrhiview.cpp.

◆ setAnnotationSelectionEnabled()

void ChannelRhiView::setAnnotationSelectionEnabled ( bool enabled )

Enable or disable annotation range selection. When enabled, Shift+drag emits sampleRangeSelected on mouse release instead of acting as a pure measurement tool.

Parameters

[in] enabled True to make Shift+drag select annotation ranges.

Definition at line 690 of file channelrhiview.cpp.

◆ setAnnotationsVisible()

void ChannelRhiView::setAnnotationsVisible ( bool visible )

Definition at line 713 of file channelrhiview.cpp.

◆ setBackgroundColor()

void ChannelRhiView::setBackgroundColor ( const QColor & color )

Background colour of the render surface.

Parameters

[in] color The new background colour.

Definition at line 331 of file channelrhiview.cpp.

◆ setButterflyMode()

void ChannelRhiView::setButterflyMode ( bool enabled )

Toggle butterfly mode: all channels of the same type are overlaid in a single lane.

Parameters

[in] enabled True to enable butterfly mode.

Definition at line 496 of file channelrhiview.cpp.

◆ setChannelIndices()

void ChannelRhiView::setChannelIndices ( const QVector< int > & indices )

Restrict rendering to a specific subset of channel indices. When indices is empty all channels in the model are shown (no filter). When set, scrolling and visible-channel-count are relative to this subset.

Parameters

[in] indices Ordered list of model channel indices to display. Pass an empty vector to clear the filter.

Definition at line 558 of file channelrhiview.cpp.

◆ setClippingVisible()

void ChannelRhiView::setClippingVisible ( bool visible )

Definition at line 660 of file channelrhiview.cpp.

◆ setClockTimeFormat()

void DISPLIB::ChannelRhiView::setClockTimeFormat ( bool useClock )

inline

Set whether the crosshair label uses clock time (mm:ss.ms) or seconds.

Parameters

[in] useClock True for clock time, false for float seconds.

Definition at line 423 of file channelrhiview.h.

◆ setCrosshairEnabled()

void ChannelRhiView::setCrosshairEnabled ( bool enabled )

Enable or disable the crosshair cursor overlay. When enabled, a vertical + horizontal cross follows the mouse and the view continuously emits cursorDataChanged() with the time/amplitude under the cursor.

Parameters

[in] enabled True to show the crosshair overlay.

Definition at line 470 of file channelrhiview.cpp.

◆ setEpochMarkers()

void ChannelRhiView::setEpochMarkers ( const QVector< int > & triggerSamples )

Definition at line 640 of file channelrhiview.cpp.

◆ setEpochMarkersVisible()

void ChannelRhiView::setEpochMarkersVisible ( bool visible )

Definition at line 649 of file channelrhiview.cpp.

◆ setEvents()

void ChannelRhiView::setEvents ( const QVector< EventMarker > & events )

Set the list of stimulus / event markers to overlay on the traces. Each marker is drawn as a coloured vertical line spanning all channel rows, with a small colour-coded label chip at the bottom of the view. Pass an empty vector to clear all markers.

Parameters

[in] events List of EventMarker objects.

Definition at line 631 of file channelrhiview.cpp.

◆ setEventsVisible()

void ChannelRhiView::setEventsVisible ( bool visible )

Definition at line 697 of file channelrhiview.cpp.

◆ setFirstFileSample()

void ChannelRhiView::setFirstFileSample ( int first )

Set the absolute sample index of the first sample in the file. Used to align grid tick lines with the time ruler labels.

Parameters

[in] first Absolute sample index of the file's first sample.

Definition at line 419 of file channelrhiview.cpp.

◆ setFirstVisibleChannel()

void ChannelRhiView::setFirstVisibleChannel ( int ch )

Set the index of the first visible channel row.

Parameters

[in] ch Zero-based channel index (within the active filter if any).

Definition at line 361 of file channelrhiview.cpp.

◆ setFrozen()

void ChannelRhiView::setFrozen ( bool frozen )

Freeze or unfreeze drag-panning (mouse drag and inertia). Wheel scroll and the scrollbar remain active when frozen.

Parameters

[in] frozen True to disable drag-panning.

Definition at line 389 of file channelrhiview.cpp.

◆ setGridVisible()

void ChannelRhiView::setGridVisible ( bool visible )

Show or hide the time and amplitude grid overlay.

Parameters

[in] visible True to draw the grid.

Definition at line 399 of file channelrhiview.cpp.

◆ setHideBadChannels()

void ChannelRhiView::setHideBadChannels ( bool hide )

Show or hide waveform traces of channels marked bad. When hide is true bad channels are removed from the logical channel list used for scrolling and rendering so the trace lanes collapse upward in sync with the label panel.

Parameters

[in] hide true = remove bad channels from the visible trace list.

Definition at line 437 of file channelrhiview.cpp.

◆ setLastFileSample()

void ChannelRhiView::setLastFileSample ( int last )

Set the absolute sample index of the last sample in the file. Used to clamp scrolling so mouse pan cannot exceed the file end. Pass -1 (default) for unlimited.

Parameters

[in] last Absolute sample index of the file's last sample.

Definition at line 430 of file channelrhiview.cpp.

◆ setModel()

void ChannelRhiView::setModel ( ChannelDataModel * model )

Attach the data model. The view does NOT take ownership.

Parameters

[in] model The channel data model to render.

Definition at line 182 of file channelrhiview.cpp.

◆ setPrefetchFactor()

void ChannelRhiView::setPrefetchFactor ( float factor )

How many samples to prefetch beyond the visible window on each side (in multiples of the visible window). Default = 1.0.

Parameters

[in] factor Prefetch factor.

Definition at line 340 of file channelrhiview.cpp.

◆ setSamplesPerPixel()

void ChannelRhiView::setSamplesPerPixel ( float spp )

Set the horizontal zoom (samples per screen pixel). Triggers a VBO rebuild with new decimation.

Parameters

[in] spp Samples per pixel (> 1 = zoomed out, < 1 = zoomed in).

Definition at line 261 of file channelrhiview.cpp.

◆ setScalebarsVisible()

void ChannelRhiView::setScalebarsVisible ( bool visible )

Show or hide per-channel-type scalebars in the bottom-right corner.

Parameters

[in] visible True to draw the scalebars.

Definition at line 486 of file channelrhiview.cpp.

◆ setScrollSample()

void ChannelRhiView::setScrollSample ( float sample )

Set the left-edge scroll position. Updates only the GPU uniform — no VBO rebuild unless the prefetch window is exhausted.

Parameters

[in] sample Absolute sample index for the left viewport edge.

Definition at line 228 of file channelrhiview.cpp.

◆ setScrollSpeedFactor()

void ChannelRhiView::setScrollSpeedFactor ( float factor )

Definition at line 463 of file channelrhiview.cpp.

◆ setSfreq()

void ChannelRhiView::setSfreq ( float sfreq )

Set the sampling frequency (Hz) used to place time-grid tick lines. Call this from ChannelDataView::init() after FiffInfo is available.

Parameters

[in] sfreq Sampling frequency in Hz.

Definition at line 410 of file channelrhiview.cpp.

◆ setVisibleChannelCount()

void ChannelRhiView::setVisibleChannelCount ( int count )

Set how many channel rows are displayed simultaneously.

Parameters

[in] count Number of channels to show (clamped to 1–model count).

Definition at line 376 of file channelrhiview.cpp.

◆ setWheelScrollsChannels()

void ChannelRhiView::setWheelScrollsChannels ( bool channelsMode )

Control what the vertical mouse wheel scrolls. When channelsMode is true the vertical wheel scrolls through channels. When false the vertical wheel scrolls through time (same as horizontal).

Parameters

[in] channelsMode true = vertical wheel → channels, false → time.

Definition at line 456 of file channelrhiview.cpp.

◆ setZScoreMode()

void ChannelRhiView::setZScoreMode ( bool enabled )

Definition at line 670 of file channelrhiview.cpp.

◆ totalLogicalChannels()

int ChannelRhiView::totalLogicalChannels ( ) const

Total number of logical channels available for scrolling (respects active filter).

Returns: Number of channels after applying the index filter and bad-channel hiding.

Definition at line 575 of file channelrhiview.cpp.

◆ viewResized

void DISPLIB::ChannelRhiView::viewResized	(	int	newWidth,
		int	newHeight )

signal

◆ visibleChannelCount()

int DISPLIB::ChannelRhiView::visibleChannelCount ( ) const

inline

Definition at line 305 of file channelrhiview.h.

◆ visibleFirstSample()

int ChannelRhiView::visibleFirstSample ( ) const

Returns the absolute sample index currently shown at x = 0 (left edge). (Same as scrollSample rounded to int.)

Returns: Absolute sample index at the left viewport edge.

Definition at line 347 of file channelrhiview.cpp.

◆ visibleSampleCount()

int ChannelRhiView::visibleSampleCount ( ) const

Returns the number of samples currently visible.

Returns: Widget width in pixels times samples per pixel, truncated to int.

Definition at line 354 of file channelrhiview.cpp.

◆ wheelEvent()

void ChannelRhiView::wheelEvent ( QWheelEvent * event )

overrideprotected

Definition at line 2298 of file channelrhiview.cpp.

◆ wheelScrollsChannels()

bool DISPLIB::ChannelRhiView::wheelScrollsChannels ( ) const

inline

Definition at line 376 of file channelrhiview.h.

◆ zoomTo()

void ChannelRhiView::zoomTo	(	float	targetSpp,
		int	durationMs = 200 )

Smoothly animate the zoom level.

Parameters

[in]	targetSpp	Target samples-per-pixel.
[in]	durationMs	Animation duration in milliseconds (0 = instant).

Definition at line 314 of file channelrhiview.cpp.

◆ zScoreMode()

bool DISPLIB::ChannelRhiView::zScoreMode ( ) const

inline

Definition at line 144 of file channelrhiview.h.

◆ ::CrosshairOverlay

friend class ::CrosshairOverlay

friend

Definition at line 540 of file channelrhiview.h.

Property Documentation

◆ samplesPerPixel

float DISPLIB::ChannelRhiView::samplesPerPixel

readwrite

Definition at line 81 of file channelrhiview.h.

◆ scrollSample

float DISPLIB::ChannelRhiView::scrollSample

readwrite

Definition at line 80 of file channelrhiview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/helpers/channelrhiview.h
src/libraries/disp/viewers/helpers/channelrhiview.cpp

Classes

Signals

Public Member Functions

Protected Member Functions

Properties

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ChannelRhiView()

◆ ~ChannelRhiView()

Member Function Documentation

◆ annotationBoundaryMoved

◆ annotationSelecting()

◆ annotationsVisible()

◆ backgroundColor()

◆ butterflyMode()

◆ channelOffsetChanged

◆ clippingVisible()

◆ clockTimeFormat()

◆ crosshairEnabled()

◆ cursorDataChanged

◆ drawAnnotationSelectionOverlay()

◆ drawCrosshair()

◆ drawRulerOverlay()

◆ drawScalebars()

◆ emitCursorData()

◆ epochMarkersVisible()

◆ eventsVisible()

◆ firstVisibleChannel()

◆ gridVisible()

◆ hideBadChannels()

◆ initialize()

◆ isFrozen()

◆ lastFileSample()

◆ mouseDoubleClickEvent()

◆ mouseMoveEvent()

◆ mousePressEvent()

◆ mouseReleaseEvent()

◆ paintEvent()

◆ releaseResources()

◆ render()

◆ renderFrame()

◆ renderToImage()

◆ resizeEvent()

◆ rulerActive()

◆ sampleClicked

◆ sampleRangeSelected

◆ samplesPerPixel()

◆ samplesPerPixelChanged

◆ scalebarsVisible()

◆ scrollBy()

◆ scrollSample()

◆ scrollSampleChanged

◆ scrollSpeedFactor()

◆ scrollTo()

◆ setAnnotations()

◆ setAnnotationSelectionEnabled()

◆ setAnnotationsVisible()

◆ setBackgroundColor()

◆ setButterflyMode()

◆ setChannelIndices()

◆ setClippingVisible()

◆ setClockTimeFormat()

◆ setCrosshairEnabled()

◆ setEpochMarkers()

◆ setEpochMarkersVisible()

◆ setEvents()

◆ setEventsVisible()

◆ setFirstFileSample()

◆ setFirstVisibleChannel()

◆ setFrozen()

◆ setGridVisible()

◆ setHideBadChannels()

◆ setLastFileSample()

◆ setModel()

◆ setPrefetchFactor()

◆ setSamplesPerPixel()

◆ setScalebarsVisible()

◆ setScrollSample()

◆ setScrollSpeedFactor()
