DISP3DLIB::RtSensorStreamManager Class Reference

Real-time sensor streaming lifecycle manager. More...

#include <rtsensorstreammanager.h>

Signals
void	colorsAvailable (const QString &surfaceKey, const QVector< uint32_t > &colors)

Public Member Functions
	RtSensorStreamManager (QObject *parent=nullptr)
	~RtSensorStreamManager () override
bool	startStreaming (const QString &modality, const SensorFieldMapper &fieldMapper, const QMap< QString, std::shared_ptr< BrainSurface > > &surfaces)
void	stopStreaming ()
bool	isStreaming () const
QString	modality () const
void	pushData (const Eigen::VectorXf &data)
void	setInterval (int msec)
void	setLooping (bool enabled)
void	setAverages (int numAvr)
void	setColormap (const QString &name)

Detailed Description

Real-time sensor streaming lifecycle manager.

Manages real-time sensor data streaming via RtSensorDataController.

BrainView delegates all sensor streaming operations to this component, keeping its own code free of the RtSensorDataController lifecycle.

Definition at line 56 of file rtsensorstreammanager.h.

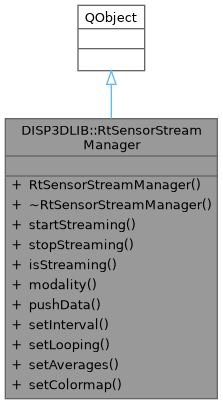

Inheritance diagram for DISP3DLIB::RtSensorStreamManager:

Constructor & Destructor Documentation

RtSensorStreamManager()

DISP3DLIB::RtSensorStreamManager::RtSensorStreamManager ( QObject * parent = nullptr )

explicit

Constructor.

Parameters

[in]

parent

Parent QObject.

Definition at line 31 of file rtsensorstreammanager.cpp.

~RtSensorStreamManager()

DISP3DLIB::RtSensorStreamManager::~RtSensorStreamManager ( )

override

Destructor.

Definition at line 38 of file rtsensorstreammanager.cpp.

Member Function Documentation

colorsAvailable

void DISP3DLIB::RtSensorStreamManager::colorsAvailable ( const QString & surfaceKey, const QVector< uint32_t > & colors )

signal

Emitted when the streaming pipeline produces a new set of per-vertex colours for a sensor surface.

Parameters

[in]	surfaceKey	Key of the target surface.
[in]	colors	Per-vertex ABGR colour array.

isStreaming()

bool DISP3DLIB::RtSensorStreamManager::isStreaming ( ) const

inline

Returns

true while real-time sensor streaming is active.

Definition at line 97 of file rtsensorstreammanager.h.

modality()

QString DISP3DLIB::RtSensorStreamManager::modality ( ) const

inline

Returns

the active modality ("MEG" or "EEG"), or empty.

Definition at line 103 of file rtsensorstreammanager.h.

pushData()

void DISP3DLIB::RtSensorStreamManager::pushData

(

const Eigen::VectorXf &

data

)

Push a single measurement vector into the streaming queue.

Parameters

[in]

data

One sample of sensor values; ignored if no controller exists.

Definition at line 152 of file rtsensorstreammanager.cpp.

setAverages()

void DISP3DLIB::RtSensorStreamManager::setAverages

(

int

numAvr

)

Set the number of averages for smoothing.

Parameters

[in]

numAvr

Number of consecutive samples averaged per frame.

Definition at line 176 of file rtsensorstreammanager.cpp.

setColormap()

void DISP3DLIB::RtSensorStreamManager::setColormap

(

const QString &

name

)

Set the colormap used for colour mapping.

Parameters

[in]

name

Colormap name (e.g. "MNE", "Jet").

Definition at line 184 of file rtsensorstreammanager.cpp.

setInterval()

void DISP3DLIB::RtSensorStreamManager::setInterval

(

int

msec

)

Set the streaming playback interval in milliseconds.

Parameters

[in]

msec

Interval between streamed samples in milliseconds.

Definition at line 160 of file rtsensorstreammanager.cpp.

setLooping()

void DISP3DLIB::RtSensorStreamManager::setLooping

(

bool

enabled

)

Enable or disable looping of the streaming queue.

Parameters

[in]

enabled

True to replay the queue from the start when it ends.

Definition at line 168 of file rtsensorstreammanager.cpp.

startStreaming()

bool DISP3DLIB::RtSensorStreamManager::startStreaming	(	const QString &	modality,
		const SensorFieldMapper &	fieldMapper,
		const QMap< QString, std::shared_ptr< BrainSurface > > &	surfaces )

Start real-time sensor streaming for the given modality.

Reads mapping matrices, pick vectors, evoked data, and colourmap from the provided fieldMapper. Validates that the target surface key exists in surfaces.

Parameters

[in]	modality	"MEG" or "EEG".
[in]	fieldMapper	Sensor-field mapper with built mapping data.
[in]	surfaces	FsSurface map for target-surface validation.

Returns

true if streaming was started successfully.

Definition at line 45 of file rtsensorstreammanager.cpp.

stopStreaming()

void DISP3DLIB::RtSensorStreamManager::stopStreaming

(

)

Stop real-time sensor streaming.

Definition at line 138 of file rtsensorstreammanager.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp3D/scene/rtsensorstreammanager.h
• src/libraries/disp3D/scene/rtsensorstreammanager.cpp
