Background worker thread that accumulates and averages epochs in real time. More...

#include <rt_averaging.h>

Signals
void	resultReady (const FIFFLIB::FiffEvokedSet &evokedStimSet, const QStringList &lResponsibleTriggerTypes)

Public Member Functions
	RtAveragingWorker (quint32 numAverages, quint32 iPreStimSamples, quint32 iPostStimSamples, quint32 iBaselineFromMSecs, quint32 iBaselineToMSecs, quint32 iTriggerIndex, FIFFLIB::FiffInfo::SPtr pFiffInfo)
void	doWork (const Eigen::MatrixXd &matData)
void	setAverageNumber (qint32 numAve)
void	setPreStim (qint32 samples, qint32 secs)
void	setPostStim (qint32 samples, qint32 secs)
void	setTriggerChIndx (qint32 idx)
void	setArtifactReduction (const QMap< QString, double > &mapThresholds)
void	setBaselineActive (bool activate)
void	setBaselineFrom (int fromSamp, int fromMSec)
void	setBaselineTo (int toSamp, int toMSec)
void	reset ()

Protected Member Functions
void	doAveraging (const Eigen::MatrixXd &rawSegment)
void	fillFrontBuffer (const Eigen::MatrixXd &data, double dTriggerType)
void	emitEvoked (double dTriggerType, QStringList &lResponsibleTriggerTypes)
void	fillBackBuffer (const Eigen::MatrixXd &data, double dTriggerType)
void	mergeData (double dTriggerType)
void	generateEvoked (double dTriggerType)
bool	controlValuesChanged ()

Protected Attributes
qint32	m_iNumAverages
qint32	m_iPreStimSamples
qint32	m_iNewPreStimSamples
qint32	m_iPostStimSamples
qint32	m_iNewPostStimSamples
qint32	m_iTriggerChIndex
qint32	m_iNewTriggerIndex
float	m_fTriggerThreshold
bool	m_bActivateThreshold
bool	m_bDoBaselineCorrection
QPair< float, float >	m_pairBaselineSec
QPair< float, float >	m_pairBaselineSamp
FIFFLIB::FiffInfo::SPtr	m_pFiffInfo
FIFFLIB::FiffEvokedSet	m_stimEvokedSet
QMap< QString, double >	m_mapThresholds
QMap< double, QList< Eigen::MatrixXd > >	m_mapStimAve
QMap< double, Eigen::MatrixXd >	m_mapDataPre
QMap< double, Eigen::MatrixXd >	m_mapDataPost
QMap< double, qint32 >	m_mapMatDataPostIdx
QMap< double, bool >	m_mapFillingBackBuffer

Detailed Description

Background worker thread that accumulates and averages epochs in real time.

Real-time averaging worker

Definition at line 76 of file rt_averaging.h.

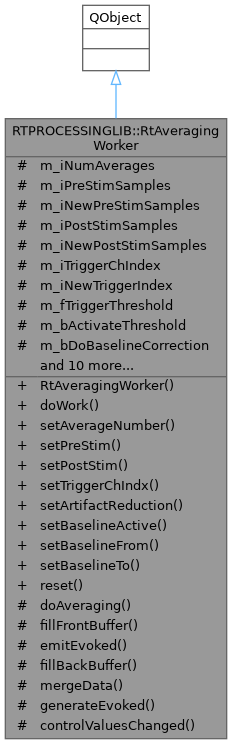

Inheritance diagram for RTPROCESSINGLIB::RtAveragingWorker:

Constructor & Destructor Documentation

◆ RtAveragingWorker()

RtAveragingWorker::RtAveragingWorker	(	quint32	numAverages,
		quint32	iPreStimSamples,
		quint32	iPostStimSamples,
		quint32	iBaselineFromMSecs,
		quint32	iBaselineToMSecs,
		quint32	iTriggerIndex,
		FIFFLIB::FiffInfo::SPtr	pFiffInfo )

Creates the real-time averaging object.

Parameters

[in]	numAverages	Number of evkos to average.
[in]	iPreStimSamples	Number of samples averaged before the stimulus.
[in]	iPostStimSamples	Number of samples averaged after the stimulus (including the stimulus).
[in]	iBaselineFromMSecs	Start of baseline area which was/is used for correction in msecs.
[in]	iBaselineToMSecs	End of baseline area which was/is used for correction in msecs.
[in]	iTriggerIndex	Row in dex of channel which is to be scanned for triggers.
[in]	pFiffInfo	Associated Fiff Information.

Definition at line 49 of file rt_averaging.cpp.

Member Function Documentation

◆ controlValuesChanged()

bool RTPROCESSINGLIB::RtAveragingWorker::controlValuesChanged ( )

inlineprotected

Check if control values have been changed

Returns: True if pre-stimulus samples, post-stimulus samples or trigger channel index differ from their pending new values.

Definition at line 477 of file rt_averaging.h.

◆ doAveraging()

void RtAveragingWorker::doAveraging ( const Eigen::MatrixXd & rawSegment )

protected

do the actual averaging here.

Parameters

[in] rawSegment Incoming data block (n_channels × n_samples) scanned for triggers and averaged.

Definition at line 209 of file rt_averaging.cpp.

◆ doWork()

void RtAveragingWorker::doWork ( const Eigen::MatrixXd & matData )

Perform one averaging step on new incoming data.

Parameters

[in] matData Data to average.

Definition at line 83 of file rt_averaging.cpp.

◆ emitEvoked()

void RtAveragingWorker::emitEvoked	(	double	dTriggerType,
		QStringList &	lResponsibleTriggerTypes )

protected

Definition at line 317 of file rt_averaging.cpp.

◆ fillBackBuffer()

void RtAveragingWorker::fillBackBuffer	(	const Eigen::MatrixXd &	data,
		double	dTriggerType )

protected

Prepends incoming data to back/post stim buffer.

Parameters

[in]	data	Incoming data block (n_channels × n_samples); excess columns beyond the post-stimulus length are dropped.
[in]	dTriggerType	Trigger type whose post-stimulus buffer is filled.

Definition at line 340 of file rt_averaging.cpp.

◆ fillFrontBuffer()

void RtAveragingWorker::fillFrontBuffer	(	const Eigen::MatrixXd &	data,
		double	dTriggerType )

protected

Prepends incoming data to front/pre stim buffer.

Parameters

[in]	data	Incoming data block (n_channels × n_samples).
[in]	dTriggerType	Trigger type whose pre-stimulus buffer is updated (-1.0 for the shared buffer).

Definition at line 355 of file rt_averaging.cpp.

◆ generateEvoked()

void RtAveragingWorker::generateEvoked ( double dTriggerType )

protected

Generates the final evoke variable.

Parameters

[in] dTriggerType Trigger type whose stored epochs are averaged into the evoked response.

Definition at line 434 of file rt_averaging.cpp.

◆ mergeData()

void RtAveragingWorker::mergeData ( double dTriggerType )

protected

Packs the buffers togehter as one and calcualtes the current running average and emits the result if number of averages has been reached.

Parameters

[in] dTriggerType Trigger type whose pre- and post-stimulus buffers are merged.

Definition at line 396 of file rt_averaging.cpp.

◆ reset()

void RtAveragingWorker::reset ( )

Resets the averaged data stored.

Definition at line 499 of file rt_averaging.cpp.

◆ resultReady

void RTPROCESSINGLIB::RtAveragingWorker::resultReady	(	const FIFFLIB::FiffEvokedSet &	evokedStimSet,
		const QStringList &	lResponsibleTriggerTypes )

signal

Signal which is emitted when new evoked stimulus data are available.

Parameters

[in]	evokedStimSet	The evoked stimulus data set.
[in]	lResponsibleTriggerTypes	List of all trigger types which lead to the recent emit of a new evoked set.

◆ setArtifactReduction()

void RtAveragingWorker::setArtifactReduction ( const QMap< QString, double > & mapThresholds )

Sets the artifact reduction

Parameters

[in] mapThresholds The new map including the current thresholds for the channels.

Definition at line 153 of file rt_averaging.cpp.

◆ setAverageNumber()

void RtAveragingWorker::setAverageNumber ( qint32 numAve )

Sets the number of averages

Parameters

[in] numAve new number of averages.

Definition at line 98 of file rt_averaging.cpp.

◆ setBaselineActive()

void RtAveragingWorker::setBaselineActive ( bool activate )

Sets the baseline correction on or off

Parameters

[in] activate activate baseline correction.

Definition at line 166 of file rt_averaging.cpp.

◆ setBaselineFrom()

void RtAveragingWorker::setBaselineFrom	(	int	fromSamp,
		int	fromMSec )

Sets the from mSeconds of the baseline area

Parameters

[in]	fromSamp	from of baseline area in samples.
[in]	fromMSec	from of baseline area in mSeconds.

Definition at line 183 of file rt_averaging.cpp.

◆ setBaselineTo()

void RtAveragingWorker::setBaselineTo	(	int	toSamp,
		int	toMSec )

Sets the to mSeconds of the baseline area

Parameters

[in]	toSamp	to of baseline area in samples.
[in]	toMSec	to of baseline area in mSeconds.

Definition at line 196 of file rt_averaging.cpp.

◆ setPostStim()

void RtAveragingWorker::setPostStim	(	qint32	samples,
		qint32	secs )

Sets the number of post stimulus samples

Parameters

[in]	samples	new number of post stimulus samples.
[in]	secs	new number of pre stimulus seconds.

Definition at line 137 of file rt_averaging.cpp.

◆ setPreStim()

void RtAveragingWorker::setPreStim	(	qint32	samples,
		qint32	secs )

Sets the number of pre stimulus samples

Parameters

[in]	samples	new number of pre stimulus samples.
[in]	secs	new number of pre stimulus seconds.

Definition at line 128 of file rt_averaging.cpp.

◆ setTriggerChIndx()

void RtAveragingWorker::setTriggerChIndx ( qint32 idx )

Sets the index of the trigger channel which is to be scanned fo triggers

Parameters

[in] idx trigger channel index.

Definition at line 146 of file rt_averaging.cpp.

Member Data Documentation

◆ m_bActivateThreshold

bool RTPROCESSINGLIB::RtAveragingWorker::m_bActivateThreshold

protected

Whether to do threshold artifact reduction or not.

Definition at line 256 of file rt_averaging.h.

◆ m_bDoBaselineCorrection

bool RTPROCESSINGLIB::RtAveragingWorker::m_bDoBaselineCorrection

protected

Whether to perform baseline correction.

Definition at line 258 of file rt_averaging.h.

◆ m_fTriggerThreshold

float RTPROCESSINGLIB::RtAveragingWorker::m_fTriggerThreshold

protected

Threshold to detect trigger.

Definition at line 254 of file rt_averaging.h.

◆ m_iNewPostStimSamples

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iNewPostStimSamples

protected

New amount of samples averaged after the stimulus, including the stimulus sample.

Definition at line 249 of file rt_averaging.h.

◆ m_iNewPreStimSamples

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iNewPreStimSamples

protected

New amount of samples averaged before the stimulus.

Definition at line 246 of file rt_averaging.h.

◆ m_iNewTriggerIndex

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iNewTriggerIndex

protected

Old row index of the data matrix which is to be scanned for triggers.

Definition at line 252 of file rt_averaging.h.

◆ m_iNumAverages

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iNumAverages

protected

Number of averages.

Definition at line 243 of file rt_averaging.h.

◆ m_iPostStimSamples

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iPostStimSamples

protected

Amount of samples averaged after the stimulus, including the stimulus sample.

Definition at line 248 of file rt_averaging.h.

◆ m_iPreStimSamples

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iPreStimSamples

protected

Amount of samples averaged before the stimulus.

Definition at line 245 of file rt_averaging.h.

◆ m_iTriggerChIndex

qint32 RTPROCESSINGLIB::RtAveragingWorker::m_iTriggerChIndex

protected

Current row index of the data matrix which is to be scanned for triggers.

Definition at line 251 of file rt_averaging.h.

◆ m_mapDataPost

QMap<double, Eigen::MatrixXd> RTPROCESSINGLIB::RtAveragingWorker::m_mapDataPost

protected

The matrix holding post stim data.

Definition at line 269 of file rt_averaging.h.

◆ m_mapDataPre

QMap<double, Eigen::MatrixXd> RTPROCESSINGLIB::RtAveragingWorker::m_mapDataPre

protected

The matrix holding pre stim data.

Definition at line 268 of file rt_averaging.h.

◆ m_mapFillingBackBuffer

QMap<double, bool> RTPROCESSINGLIB::RtAveragingWorker::m_mapFillingBackBuffer

protected

Whether the back buffer is currently getting filled.

Definition at line 271 of file rt_averaging.h.

◆ m_mapMatDataPostIdx

QMap<double, qint32> RTPROCESSINGLIB::RtAveragingWorker::m_mapMatDataPostIdx

protected

Current index inside of the matrix m_matDataPost.

Definition at line 270 of file rt_averaging.h.

◆ m_mapStimAve

QMap<double, QList<Eigen::MatrixXd> > RTPROCESSINGLIB::RtAveragingWorker::m_mapStimAve

protected

the current stimulus average buffer. Holds m_iNumAverages vectors.

Definition at line 267 of file rt_averaging.h.

◆ m_mapThresholds

QMap<QString, double> RTPROCESSINGLIB::RtAveragingWorker::m_mapThresholds

protected

Holds the current thresholds for artifact rejection.

Definition at line 266 of file rt_averaging.h.

◆ m_pairBaselineSamp

QPair<float, float> RTPROCESSINGLIB::RtAveragingWorker::m_pairBaselineSamp

protected

Baseline information in samples form where the seconds are seen relative to the trigger, meaning they can also be negative [from to]

Definition at line 261 of file rt_averaging.h.

◆ m_pairBaselineSec

QPair<float, float> RTPROCESSINGLIB::RtAveragingWorker::m_pairBaselineSec

protected

Baseline information in seconds form where the seconds are seen relative to the trigger, meaning they can also be negative [from to]

Definition at line 260 of file rt_averaging.h.

◆ m_pFiffInfo

FIFFLIB::FiffInfo::SPtr RTPROCESSINGLIB::RtAveragingWorker::m_pFiffInfo

protected

Holds the fiff measurement information.

Definition at line 263 of file rt_averaging.h.

◆ m_stimEvokedSet

FIFFLIB::FiffEvokedSet RTPROCESSINGLIB::RtAveragingWorker::m_stimEvokedSet

protected

Holds the evoked information.

Definition at line 264 of file rt_averaging.h.

The documentation for this class was generated from the following files:

src/libraries/dsp/rt/rt_averaging.h
src/libraries/dsp/rt/rt_averaging.cpp

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RtAveragingWorker()

Member Function Documentation

◆ controlValuesChanged()

◆ doAveraging()

◆ doWork()

◆ emitEvoked()

◆ fillBackBuffer()

◆ fillFrontBuffer()

◆ generateEvoked()

◆ mergeData()

◆ reset()

◆ resultReady

◆ setArtifactReduction()

◆ setAverageNumber()

◆ setBaselineActive()

◆ setBaselineFrom()

◆ setBaselineTo()

◆ setPostStim()

◆ setPreStim()

◆ setTriggerChIndx()

Member Data Documentation

◆ m_bActivateThreshold

◆ m_bDoBaselineCorrection

◆ m_fTriggerThreshold

◆ m_iNewPostStimSamples

◆ m_iNewPreStimSamples

◆ m_iNewTriggerIndex

◆ m_iNumAverages

◆ m_iPostStimSamples

◆ m_iPreStimSamples

◆ m_iTriggerChIndex

◆ m_mapDataPost

◆ m_mapDataPre

◆ m_mapFillingBackBuffer

◆ m_mapMatDataPostIdx

◆ m_mapStimAve

◆ m_mapThresholds

◆ m_pairBaselineSamp

◆ m_pairBaselineSec

◆ m_pFiffInfo

◆ m_stimEvokedSet
