MNE Analyze Studio Walkthrough

Preview

This walkthrough targets the staging branch of MNE Analyze Studio (v2.3.0). For an architectural overview of the Workbench, Neuro Kernel and Skill Host, see MNE Analyze Studio. For the on-disk format used by the workflow files referenced below, see MNA Format.

This page is an end-user walkthrough of MNE Analyze Studio. It uses the three demo workflows that ship under src/applications/mne_analyze_studio/examples/workflows/ to illustrate how an MNA (MNE Node Authoring) project is loaded, inspected and executed through the three project-level skills bundled with the Studio.

MNA in one minute

An MNA project is a declarative description of an analysis pipeline. It is a small JSON document (.mna) — or its compact CBOR sibling (.mnx) — listing:

• resources — the data artifacts the pipeline consumes (raw FIFFs, MRIs, inverse operators, …).
• pipeline — an ordered list of MNA nodes. Each node names a skill_id (the tool that runs it), its inputs, parameters and the outputs it publishes back to the project.

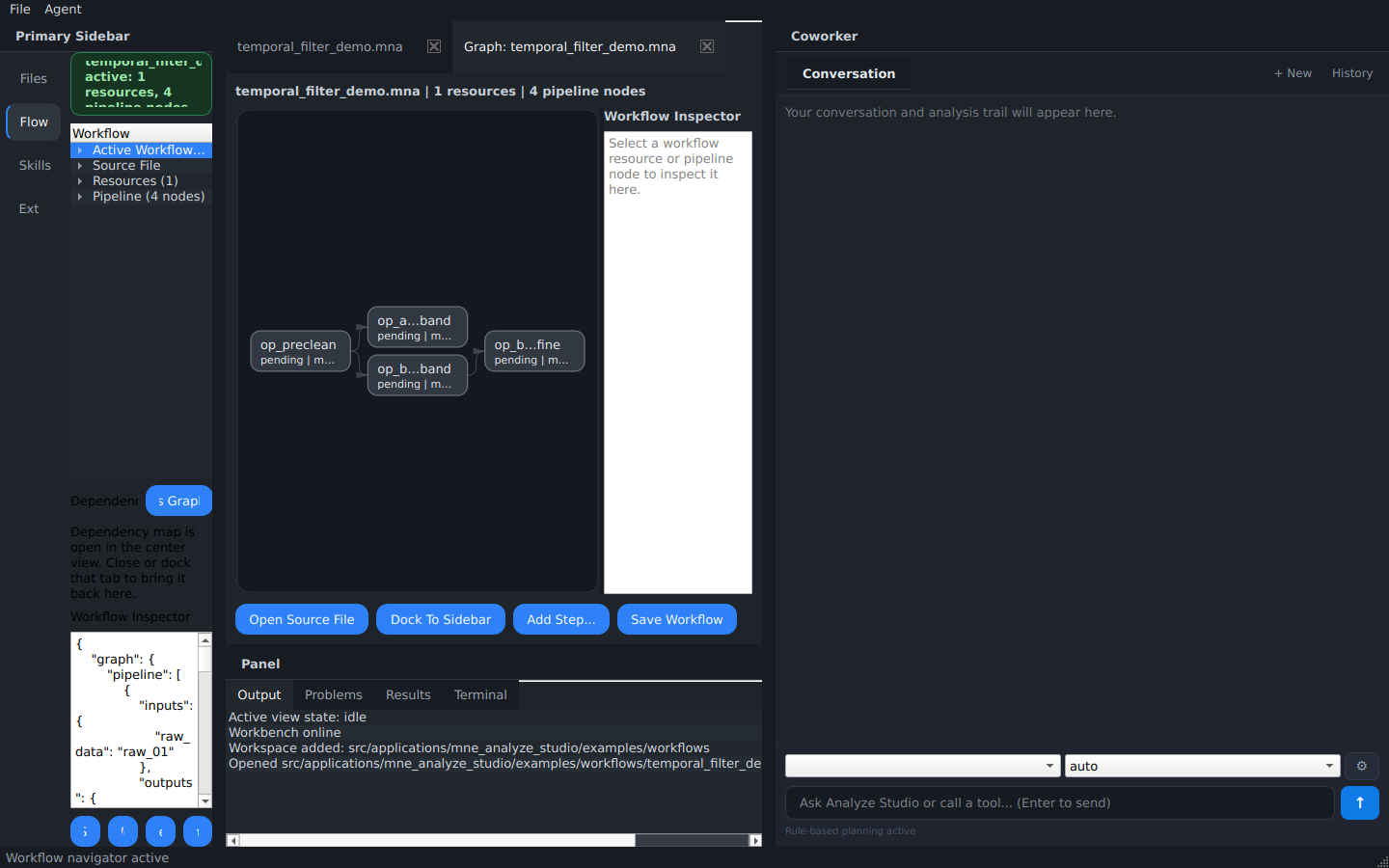

Inside MNE Analyze Studio the Workbench discovers MNA files in the project browser. Opening one renders the pipeline in the Workflow Map and lets you drive it through three project-level skills:

Skill ID	When to use it
mne.skills.read_mna	Inspect an MNA file (subject count, pipeline length) without running it.
mne.skills.write_mna	Persist a freshly authored or round-tripped project to .mna / .mnx.
mne.skills.run_mna_graph	Execute the pipeline of an MNA project end-to-end.

These three skills are implemented by the MNA Project Skills extension (extensions/mna_skills/) and registered with the Skill Host at startup.

Demo 1 — temporal_filter_demo.mna

A minimal four-node pipeline that exercises the temporal-filter skill in isolation. Use this workflow as your first smoke test after building the Studio.

Pipeline:

Node UID	Skill	Purpose
op_preclean	mne.skills.temporal_filter	1–80 Hz broadband clean-up of raw_01.
op_alpha_band	mne.skills.temporal_filter	8–13 Hz alpha-band extraction from the cleaned signal.
op_beta_band	mne.skills.temporal_filter	13–30 Hz beta-band extraction (parallel branch).
op_beta_refine	mne.skills.temporal_filter	18–24 Hz refinement on top of op_beta_band.

Walkthrough:

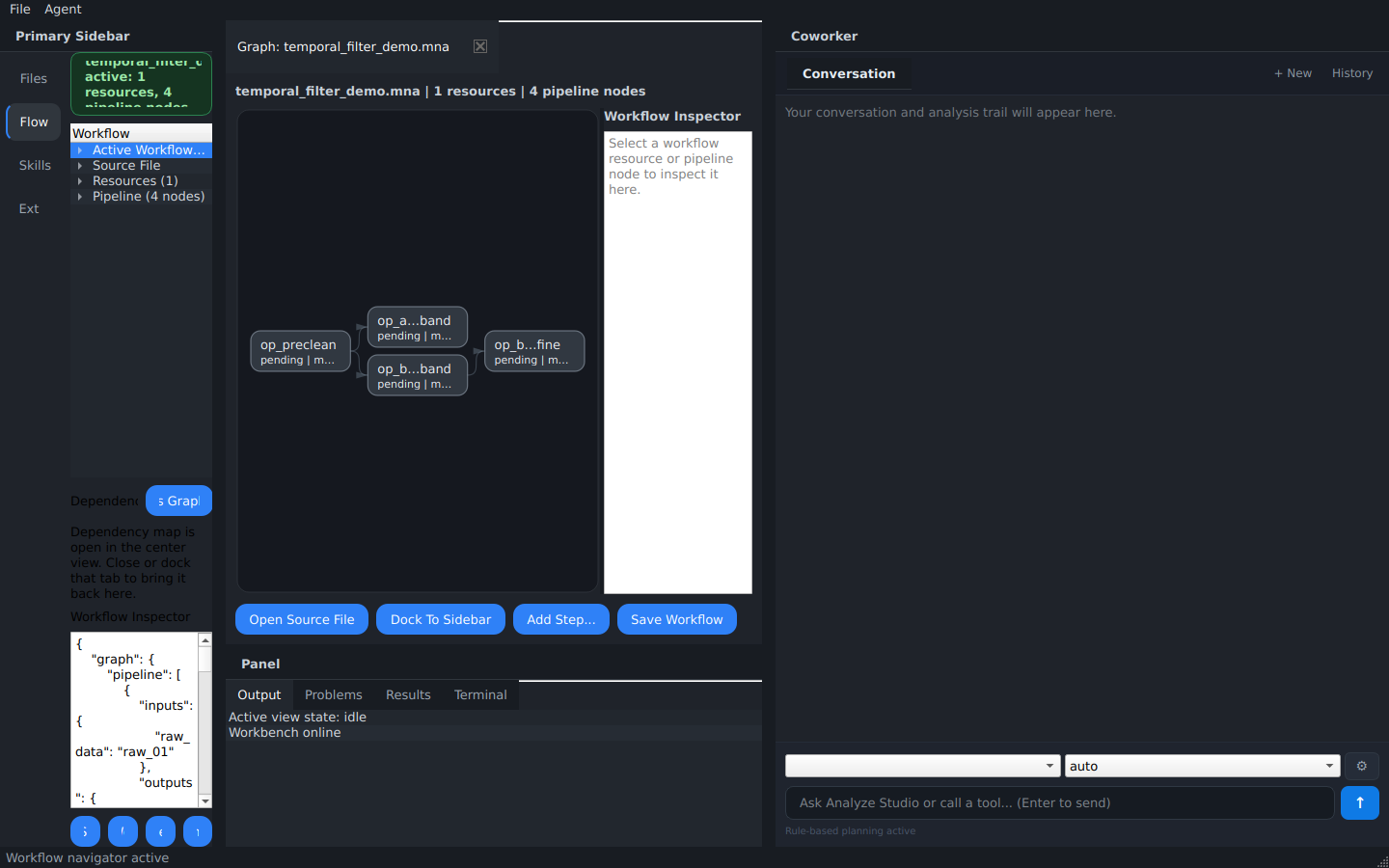

1. From the Workbench file browser, open examples/workflows/temporal_filter_demo.mna. The Workflow Map will draw the four temporal-filter nodes as a Y-shaped graph: op_preclean fans out into op_alpha_band and op_beta_band, with op_beta_refine chained downstream of the beta branch.
2. (Optional) Drop a Read MNA Project node into the Studio session and point its path input at the .mna file. Executing it reports the project summary (pipeline_length: 4) without touching the data — a quick way to confirm the file is well-formed.
3. Drop a Run MNA Pipeline node (mne.skills.run_mna_graph) and route the same path into its project_path input. Run it. The skill loads the project, wraps pipeline into a transient MnaGraph, executes it via MnaGraphExecutor, and reports node_count: 4 plus the result_keys published by each filter node.

Demo 2 — filter_then_source_estimation_demo.mna

A two-node MEG/EEG pipeline that filters a raw recording and then applies a pre-computed inverse operator to produce distributed source timecourses.

Resources:

• raw_meg — fiff_raw, path to subject_raw.fif.
• inv_op — fiff_inv, path to subject-inv.fif.

Pipeline:

Node UID	Skill	Purpose
bandpass	mne.skills.temporal_filter	1–40 Hz band-pass to drop drifts and high-frequency noise.
source_est	mne.skills.source_estimation	dSPM inverse on the band-passed data, writing an STC.

Walkthrough:

1. Edit the two uri fields in resources to point at a real raw FIFF and an inverse operator on disk (the shipped file uses file:///path/to/your/... placeholders).
2. Open the file in the Workbench. The Workflow Map shows a straight bandpass → source_est chain.
3. Use Read MNA Project first if you want to confirm the resolved paths without running the pipeline.
4. Trigger Run MNA Pipeline with project_path set to the demo file. MnaGraphExecutor runs bandpass first, hands its filtered_data output to source_est via the inputs map, and finally publishes source_est_out. The skill returns node_count: 2 and the result keys for both nodes; the Studio's Analysis Results widget will pick the STC up for cortical-surface rendering.

Demo 3 — source_estimation_multimodal_demo.mna

A full auditory source-estimation pipeline (Auditory_Source_Estimation_Demo) that fuses MEG/EEG and MRI branches. All nodes in the shipped file are registered against mne.skills.temporal_filter as placeholders for the conceptual operator named in each node's parameters.conceptual_operator — this lets the entire graph traverse with the current skill set while the specialised skills land in follow-up releases.

Resources:

• raw_run1 — auditory MEG/EEG recording placeholder.
• empty_room_meg — empty-room recording for noise covariance.
• mri_raw_anatomical — anatomical T1 placeholder.

Pipeline (12 nodes, three stages):

MEG/EEG Processing

Node UID	Conceptual operator	Produces
op_noise_covariance	mne_compute_raw_covariance	noise_cov_01
op_filtered_evoked	mne_process_raw	evoked_auditory_01

MRI Processing

Node UID	Conceptual operator	Produces
op_reconstructed_mri	FreeSurfer	reconstructed_mri_01
op_cor_brain	mne_setup_mri	cor_brain_01
op_source_space	mne_setup_source_space	source_space_01
op_bem_mesh	mne_watershed_bem	bem_mesh_01
op_bem_model	mne_setup_forward_model	bem_model_01
op_cor_t1	mne_setup_mri	cor_t1_01
op_coregistration	mne_setup_mri	coreg_aligned_01

Source Estimation

Node UID	Conceptual operator	Produces
op_forward_solution	mne_forward_solution	forward_solution_01
op_inverse_operator	mne_inverse_operator	inverse_operator_01
op_analyze_visualize	MNE Analyze	source_estimates_01

Walkthrough:

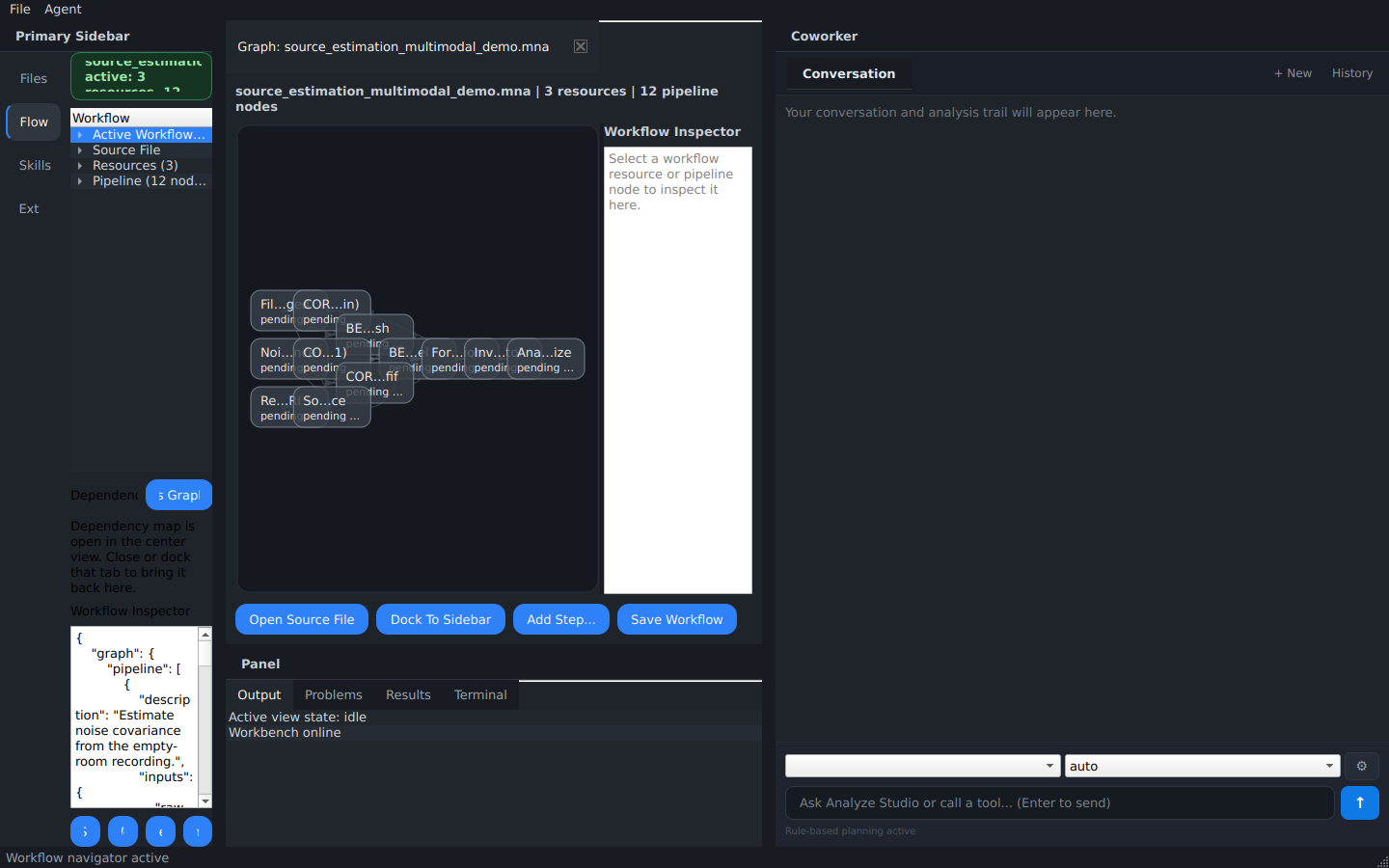

1. Open the file. The Workflow Map will draw the MRI branch on one side, the MEG/EEG branch on the other, and the Source Estimation stage as the confluence node that consumes forward_solution_01, noise_cov_01 and raw_run1.
2. Run Read MNA Project to confirm the resource resolution; the summary reports pipeline_length: 12 and the project name Auditory_Source_Estimation_Demo.
3. (Optional) Drop a Write MNA Project node to round-trip the loaded project into a sibling .mnx file — handy when you want a compact binary snapshot to commit alongside the JSON. Set parameters.output_path and (optionally) parameters.format = "mnx".
4. Run Run MNA Pipeline with the demo file as project_path. The executor walks all twelve nodes in topological order and reports result_keys containing the published artifacts of every stage so downstream Studio steps can pick the final source_estimates_01 for visualisation.

Skills reference

The three skills below live under src/applications/mne_analyze_studio/extensions/mna_skills/ and ship in the MNA Project Skills extension (extension_id: mna-skills).

mne.skills.read_mna — Read MNA Project

Loads an .mna (JSON) or .mnx (CBOR) project and reports a summary.

• Inputs: path (string, required) — file path or file:// URI.
• Parameters: (none)
• Outputs:
  • project_summary (object) — name, description, mna_version, subject_count, pipeline_length.
  • project_path (string) — the resolved on-disk path.
• Status: completed on success; error with a message if the input is missing or the file does not exist.

mne.skills.write_mna — Write MNA Project

Persists a (possibly newly created) MNA project to disk.

• Inputs: source_project (string, optional) — an existing project to round-trip. If omitted, an empty project is created.
• Parameters:
  • output_path (string, required) — destination file.
  • format ("mna" | "mnx" | "auto", default "auto") — serialisation format; auto is inferred from the extension.
  • project_name (string) — used when creating a new project from scratch.
• Outputs: output_path (string) — the file actually written.

mne.skills.run_mna_graph — Run MNA Pipeline

Executes the pipeline of an MNA project end-to-end.

• Inputs: project_path (string, required) — file path or file:// URI of the .mna / .mnx project to run.
• Parameters: graph_inputs (object, optional) — name→value map injected into MnaGraphExecutor::execute as initial graph inputs.
• Outputs:
  • result_keys (array of nodeId::portName strings) — every value the executor published during the run.
  • node_count (integer) — the number of nodes executed.
• Behaviour: the project's pipeline list is wrapped into a transient MnaGraph. If MnaGraph::validate fails the skill returns status: "error" with the validation messages; otherwise it reports status: "completed" together with the result summary above.

See also

• MNE Analyze Studio — architectural overview of the Workbench, Neuro Kernel and Skill Host.
• MNA Format — on-disk schema for .mna / .mnx projects.
• Workflow — general analysis workflow guidance.
