COMMUNICATIONLIB::CommandManager Class Reference

#include <commandmanager.h>

Signals
void	commandMapChanged ()
void	triggered (Command p_command)
void	response (QString p_sReply, Command p_command)

Public Member Functions
	CommandManager (bool p_bIsActive=true, QObject *parent=0)
	CommandManager (const QByteArray &p_qByteArrayJsonDoc, bool p_bIsActive=true, QObject *parent=0)
	CommandManager (const QJsonDocument &p_jsonDoc, bool p_bIsActive=true, QObject *parent=0)
virtual	~CommandManager ()
void	clear ()
QMap< QString, Command > &	commandMap ()
bool	hasCommand (const QString &p_sCommand) const
void	insert (const QJsonDocument &p_jsonDocument)
void	insert (const QString &p_sKey, const QString &p_sDescription)
void	insert (const QString &p_sKey, const Command &p_command)
bool	isActive () const
void	setStatus (bool status)
virtual void	update (UTILSLIB::Subject *p_pSubject)
Command &	operator[] (const QString &key)
const Command	operator[] (const QString &key) const
Public Member Functions inherited from UTILSLIB::IObserver
virtual	~IObserver ()

Additional Inherited Members
Public Types inherited from UTILSLIB::IObserver
typedef QSharedPointer< IObserver >	SPtr
typedef QSharedPointer< const IObserver >	ConstSPtr

Detailed Description

Definition at line 36 of file commandmanager.h.

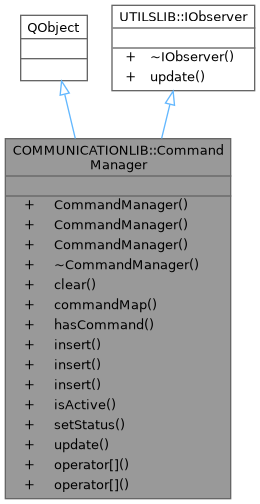

Inheritance diagram for COMMUNICATIONLIB::CommandManager:

Constructor & Destructor Documentation

CommandManager() [1/3]

CommandManager::CommandManager ( bool p_bIsActive = true, QObject * parent = 0 )

explicit

Definition at line 28 of file commandmanager.cpp.

CommandManager() [2/3]

CommandManager::CommandManager ( const QByteArray & p_qByteArrayJsonDoc, bool p_bIsActive = true, QObject * parent = 0 )

explicit

Definition at line 37 of file commandmanager.cpp.

CommandManager() [3/3]

CommandManager::CommandManager ( const QJsonDocument & p_jsonDoc, bool p_bIsActive = true, QObject * parent = 0 )

explicit

Definition at line 50 of file commandmanager.cpp.

~CommandManager()

CommandManager::~CommandManager ( )

virtual

Definition at line 62 of file commandmanager.cpp.

Member Function Documentation

clear()

void CommandManager::clear

(

)

Clears the command manager

Definition at line 72 of file commandmanager.cpp.

commandMap()

QMap< QString, Command > & COMMUNICATIONLIB::CommandManager::commandMap ( )

inline

Returns the lookup table of all available commands.

Returns

the command lookup table.

Definition at line 184 of file commandmanager.h.

commandMapChanged

void COMMUNICATIONLIB::CommandManager::commandMapChanged ( )

signal

hasCommand()

bool COMMUNICATIONLIB::CommandManager::hasCommand ( const QString & p_sCommand ) const

inline

Checks if a command is managed;

Parameters

p_sCommand

COmmand to check.

Returns

true if part of command manager, false otherwise.

Definition at line 191 of file commandmanager.h.

insert() [1/3]

void CommandManager::insert

(

const QJsonDocument &

p_jsonDocument

)

Inserts commands encoded in a json document. Attention existing items are overwritten.

Parameters

p_jsonDocument

JSON document containing commands.

Definition at line 85 of file commandmanager.cpp.

insert() [2/3]

void CommandManager::insert	(	const QString &	p_sKey,
		const Command &	p_command )

Inserts a new command and emmits dataChanged signal.

Parameters

p_sKey	Command key word.
p_command	Command content. Attention CommandManager takes ownership of that command by reseting commad's parent;.

Definition at line 117 of file commandmanager.cpp.

insert() [3/3]

void CommandManager::insert	(	const QString &	p_sKey,
		const QString &	p_sDescription )

Inserts a single command. Attention existing items are overwritten.

Parameters

p_jsonDocument

JSON document containing commands.

Definition at line 109 of file commandmanager.cpp.

isActive()

bool COMMUNICATIONLIB::CommandManager::isActive ( ) const

inline

Returns if CommandManager is active. If true, this manager parses incomming commands.

Returns

if true, incomming commands are parsed.

Definition at line 198 of file commandmanager.h.

operator[]() [1/2]

Command & CommandManager::operator[]

(

const QString &

key

)

Subscript operator [] to access commands by command name

Parameters

[in]

key

the command key word.

Returns

Command object related to command key word.

Definition at line 165 of file commandmanager.cpp.

operator[]() [2/2]

const Command CommandManager::operator[]

(

const QString &

key

)

const

Subscript operator [] to access commands by command name

Parameters

key	the command key word.

Returns

Command object related to command key word.

Definition at line 172 of file commandmanager.cpp.

response

void COMMUNICATIONLIB::CommandManager::response ( QString p_sReply, Command p_command )

signal

Is triggered when a reply is available. Commands are the emmiters of this signal -> access trough parent.

Parameters

p_sReply	the plain or JSON formatted reply.
p_command	Command which send the response

setStatus()

void COMMUNICATIONLIB::CommandManager::setStatus ( bool status )

inline

Sets the activation status of the CommandManager.

Parameters

[in]

status

the new activation status of the CommandManager.

Definition at line 205 of file commandmanager.h.

triggered

void COMMUNICATIONLIB::CommandManager::triggered ( Command p_command )

signal

Is emitted when a command is ready to send

Parameters

p_command

Command which should be send.

update()

void CommandManager::update ( UTILSLIB::Subject * p_pSubject )

virtual

Updates the IObserver (CommandManager) when a new command was received.

Parameters

[in]

p_pSubject

pointer to the subject (CommandParser) to which observer (CommandManager) is attached to.

Implements UTILSLIB::IObserver.

Definition at line 127 of file commandmanager.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/communication/rtCommand/commandmanager.h
• src/libraries/communication/rtCommand/commandmanager.cpp
