DISPLIB::CovarianceSettingsView Class Reference

User GUI control for Covariance estimation. More...

#include <covariancesettingsview.h>

Public Types
typedef QSharedPointer< CovarianceSettingsView >	SPtr
typedef QSharedPointer< CovarianceSettingsView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	samplesChanged (int iSamples)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	CovarianceSettingsView (const QString &sSettingsPath="", QWidget *parent=0)
	~CovarianceSettingsView ()
void	setCurrentSamples (int iSamples)
void	setMinSamples (int iSamples)
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)

Additional Inherited Members
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

User GUI control for Covariance estimation.

User GUI control for Covariance estimation.

Definition at line 74 of file covariancesettingsview.h.

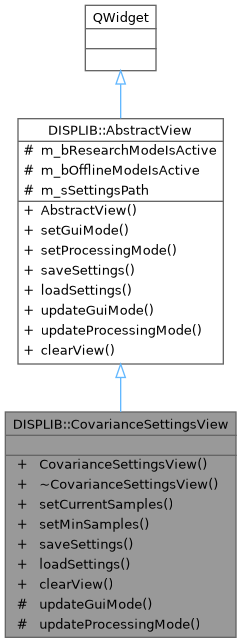

Inheritance diagram for DISPLIB::CovarianceSettingsView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<CovarianceSettingsView> DISPLIB::CovarianceSettingsView::ConstSPtr

Const shared pointer type for CovarianceAdjustmentWidget.

Definition at line 80 of file covariancesettingsview.h.

SPtr

typedef QSharedPointer<CovarianceSettingsView> DISPLIB::CovarianceSettingsView::SPtr

Shared pointer type for CovarianceAdjustmentWidget.

Definition at line 79 of file covariancesettingsview.h.

Constructor & Destructor Documentation

CovarianceSettingsView()

CovarianceSettingsView::CovarianceSettingsView ( const QString & sSettingsPath = "", QWidget * parent = 0 )

explicit

Definition at line 61 of file covariancesettingsview.cpp.

~CovarianceSettingsView()

CovarianceSettingsView::~CovarianceSettingsView

(

)

Destroys the CovarianceSettingsView.

Definition at line 92 of file covariancesettingsview.cpp.

Member Function Documentation

clearView()

void CovarianceSettingsView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 162 of file covariancesettingsview.cpp.

loadSettings()

void CovarianceSettingsView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 126 of file covariancesettingsview.cpp.

samplesChanged

void DISPLIB::CovarianceSettingsView::samplesChanged ( int iSamples )

signal

saveSettings()

void CovarianceSettingsView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 114 of file covariancesettingsview.cpp.

setCurrentSamples()

void CovarianceSettingsView::setCurrentSamples

(

int

iSamples

)

Set current samples to gather until a new covariance is calculated.

Parameters

[in]

iSamples

new number samples.

Definition at line 99 of file covariancesettingsview.cpp.

setMinSamples()

void CovarianceSettingsView::setMinSamples

(

int

iSamples

)

Set minimum number of samples to gather until a new covariance is calculated.

Parameters

[in]

iSamples

new minimum number of samples.

Definition at line 106 of file covariancesettingsview.cpp.

updateGuiMode()

void CovarianceSettingsView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in]

mode

The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 138 of file covariancesettingsview.cpp.

updateProcessingMode()

void CovarianceSettingsView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in]

mode

The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 150 of file covariancesettingsview.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/covariancesettingsview.h
• src/libraries/disp/viewers/covariancesettingsview.cpp
