Public Types | Signals | Public Member Functions | Protected Attributes | List of all members
DISPLIB::AbstractView Class Referenceabstract

The AbstractView class provides the base calss for all Disp viewers. More...

#include <abstractview.h>

Public Types

enum  StyleMode { Default , Dark }
enum  GuiMode { Clinical , Research }
enum  ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView > SPtr
typedef QSharedPointer< const AbstractView > ConstSPtr

Signals

void guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions

 AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void setGuiMode (GuiMode mode)
virtual void setProcessingMode (ProcessingMode mode)
virtual void saveSettings ()=0
virtual void loadSettings ()=0
virtual void updateGuiMode (GuiMode mode)=0
virtual void updateProcessingMode (ProcessingMode mode)=0
virtual void clearView ()=0

Protected Attributes

bool m_bResearchModeIsActive
bool m_bOfflineModeIsActive
QString m_sSettingsPath

Detailed Description

The AbstractView class provides the base calss for all Disp viewers.

DECLARE CLASS AbstractView

Definition at line 75 of file abstractview.h.

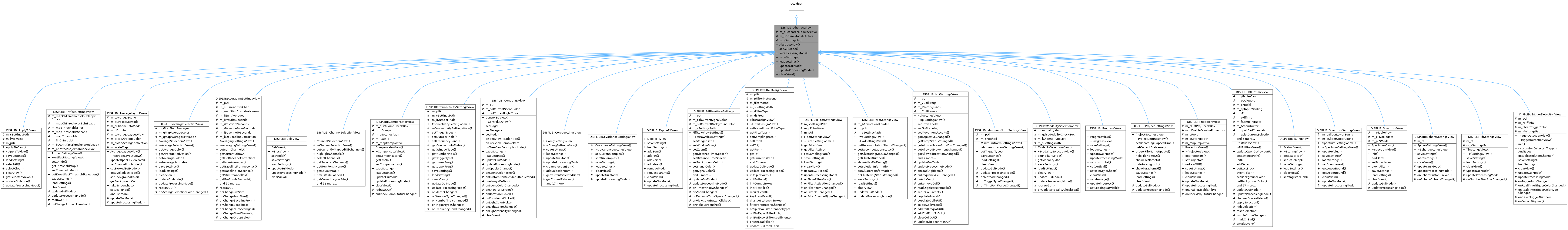

Inheritance diagram for DISPLIB::AbstractView:
Inheritance graph

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const AbstractView> DISPLIB::AbstractView::ConstSPtr

Const shared pointer type for AbstractView.

Definition at line 81 of file abstractview.h.

◆ SPtr

typedef QSharedPointer<AbstractView> DISPLIB::AbstractView::SPtr

Shared pointer type for AbstractView.

Definition at line 80 of file abstractview.h.

Member Enumeration Documentation

◆ GuiMode

enum DISPLIB::AbstractView::GuiMode
Enumerator
Clinical
Research

Definition at line 88 of file abstractview.h.

◆ ProcessingMode

enum DISPLIB::AbstractView::ProcessingMode
Enumerator
RealTime
Offline

Definition at line 93 of file abstractview.h.

◆ StyleMode

enum DISPLIB::AbstractView::StyleMode
Enumerator
Default
Dark

Definition at line 83 of file abstractview.h.

Constructor & Destructor Documentation

◆ AbstractView()

AbstractView::AbstractView ( QWidget * parent = 0,
Qt::WindowFlags f = Qt::Widget )

Constructs a AbstractView which is a child of parent.

Parameters
[in]parentparent of widget.

Definition at line 60 of file abstractview.cpp.

Member Function Documentation

◆ clearView()

virtual void DISPLIB::AbstractView::clearView ( )
pure virtual

Clears the view

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

◆ guiStyleChanged

void DISPLIB::AbstractView::guiStyleChanged ( DISPLIB::AbstractView::StyleMode style)
signal

Signal emited whenever the gui style mode changes.

◆ loadSettings()

virtual void DISPLIB::AbstractView::loadSettings ( )
pure virtual

Loads and inits all important settings of this view via QSettings.

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

◆ saveSettings()

virtual void DISPLIB::AbstractView::saveSettings ( )
pure virtual

Saves all important settings of this view via QSettings.

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

◆ setGuiMode()

void AbstractView::setGuiMode ( GuiMode mode)
virtual

Sets the GUI of this view to a specific mode. Clinical = 0, Research = 0.

Parameters
modeThe new mode.

Definition at line 68 of file abstractview.cpp.

◆ setProcessingMode()

void AbstractView::setProcessingMode ( ProcessingMode mode)
virtual

Sets the GUI of this view to a specific mode. RealTime = 0, Offline = 0.

Parameters
modeThe new mode.

Definition at line 75 of file abstractview.cpp.

◆ updateGuiMode()

virtual void DISPLIB::AbstractView::updateGuiMode ( GuiMode mode)
pure virtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters
modeThe new mode (Clinical=0, Research=1).

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

◆ updateProcessingMode()

virtual void DISPLIB::AbstractView::updateProcessingMode ( ProcessingMode mode)
pure virtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters
modeThe new mode (RealTime=0, Offline=1).

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

Member Data Documentation

◆ m_bOfflineModeIsActive

bool DISPLIB::AbstractView::m_bOfflineModeIsActive
protected

The flag describing whether offline mode of the view is active or not.

Definition at line 167 of file abstractview.h.

◆ m_bResearchModeIsActive

bool DISPLIB::AbstractView::m_bResearchModeIsActive
protected

The flag describing whether the research mode of the view is active or not.

Definition at line 166 of file abstractview.h.

◆ m_sSettingsPath

QString DISPLIB::AbstractView::m_sSettingsPath
protected

The settings path to store the GUI settings to.

Definition at line 169 of file abstractview.h.

The documentation for this class was generated from the following files:
