The MinimumNormSettingsView class provides a view to control settings for estiamting functional connectivity. More...

#include <minimumnormsettingsview.h>

Public Types
typedef QSharedPointer< MinimumNormSettingsView >	SPtr
typedef QSharedPointer< const MinimumNormSettingsView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	methodChanged (const QString &method)
void	triggerTypeChanged (const QString &triggerType)
void	timePointChanged (int iTimePoint)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	MinimumNormSettingsView (const QString &sSettingsPath="", const QString &sMethod="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~MinimumNormSettingsView ()
void	setTriggerTypes (const QStringList &lTriggerTypes)
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	onMethodChanged (const QString &method)
void	onTriggerTypeChanged (const QString &sTriggerType)
void	onTimePointValueChanged ()

Protected Attributes
Ui::MinimumNormSettingsViewWidget *	m_pUi
QString	m_sMethod
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

The MinimumNormSettingsView class provides a view to control settings for estiamting functional connectivity.

DECLARE CLASS MinimumNormSettingsView

Definition at line 78 of file minimumnormsettingsview.h.

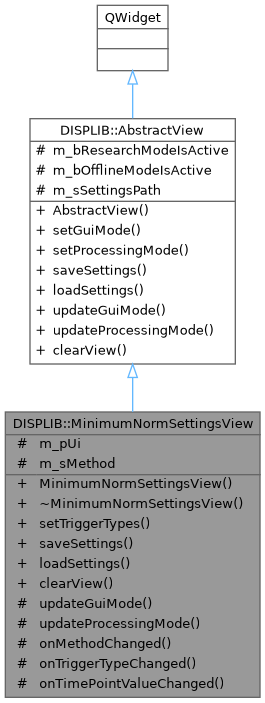

Inheritance diagram for DISPLIB::MinimumNormSettingsView:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const MinimumNormSettingsView> DISPLIB::MinimumNormSettingsView::ConstSPtr

Const shared pointer type for MinimumNormSettingsView.

Definition at line 84 of file minimumnormsettingsview.h.

◆ SPtr

typedef QSharedPointer<MinimumNormSettingsView> DISPLIB::MinimumNormSettingsView::SPtr

Shared pointer type for MinimumNormSettingsView.

Definition at line 83 of file minimumnormsettingsview.h.

Constructor & Destructor Documentation

◆ MinimumNormSettingsView()

MinimumNormSettingsView::MinimumNormSettingsView	(	const QString &	sSettingsPath = "",
		const QString &	sMethod = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a MinimumNormSettingsView which is a child of parent.

Parameters

[in] parent parent of widget.

Definition at line 63 of file minimumnormsettingsview.cpp.

◆ ~MinimumNormSettingsView()

MinimumNormSettingsView::~MinimumNormSettingsView ( )

Destroys the MinimumNormSettingsView.

Definition at line 98 of file minimumnormsettingsview.cpp.

Member Function Documentation

◆ clearView()

void MinimumNormSettingsView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 186 of file minimumnormsettingsview.cpp.

◆ loadSettings()

void MinimumNormSettingsView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 129 of file minimumnormsettingsview.cpp.

◆ methodChanged

void DISPLIB::MinimumNormSettingsView::methodChanged ( const QString & method )

signal

Emit signal whenever the method changed.

Parameters

[in] method The new method.

◆ onMethodChanged()

void MinimumNormSettingsView::onMethodChanged ( const QString & method )

protected

Slot called when the method changed.

Parameters

[in] method The new method.

Definition at line 165 of file minimumnormsettingsview.cpp.

◆ onTimePointValueChanged()

void MinimumNormSettingsView::onTimePointValueChanged ( )

protected

Slot called when the time point changes.

Definition at line 179 of file minimumnormsettingsview.cpp.

◆ onTriggerTypeChanged()

void MinimumNormSettingsView::onTriggerTypeChanged ( const QString & sTriggerType )

protected

Slot called when the trigger type changed.

Parameters

[in] sTriggerType The new trigger type.

Definition at line 172 of file minimumnormsettingsview.cpp.

◆ saveSettings()

void MinimumNormSettingsView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 117 of file minimumnormsettingsview.cpp.

◆ setTriggerTypes()

void MinimumNormSettingsView::setTriggerTypes ( const QStringList & lTriggerTypes )

Destroys the MinimumNormSettingsView.

Parameters

[in] lTriggerTypes The new trigger types.

Definition at line 106 of file minimumnormsettingsview.cpp.

◆ timePointChanged

void DISPLIB::MinimumNormSettingsView::timePointChanged ( int iTimePoint )

signal

Emit signal whenever the time point changed.

Parameters

[in] iTimePoint The new time point.

◆ triggerTypeChanged

void DISPLIB::MinimumNormSettingsView::triggerTypeChanged ( const QString & triggerType )

signal

Emit signal whenever the trigger type changed.

Parameters

[in] triggerType The new trigger type.

◆ updateGuiMode()

void MinimumNormSettingsView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in] mode The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 141 of file minimumnormsettingsview.cpp.

◆ updateProcessingMode()

void MinimumNormSettingsView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in] mode The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 153 of file minimumnormsettingsview.cpp.

Member Data Documentation

◆ m_pUi

Ui::MinimumNormSettingsViewWidget* DISPLIB::MinimumNormSettingsView::m_pUi

protected

Definition at line 168 of file minimumnormsettingsview.h.

◆ m_sMethod

QString DISPLIB::MinimumNormSettingsView::m_sMethod

protected

Definition at line 169 of file minimumnormsettingsview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/minimumnormsettingsview.h
src/libraries/disp/viewers/minimumnormsettingsview.cpp
