#include <dipolefitview.h>

Signals
void	performDipoleFit (const QString &sFitName)
void	modalityChanged (bool bEEG, bool bMEG)
void	timeChanged (int iMin, int iMax, int iStep, int iInt)
void	fittingChanged (int iMinDistance, int iSize)
void	baselineChanged (int iBMin, int iBMax)
void	noiseChanged (double dGrad, double dMag, double dEeg)
void	regChanged (double dRegGrad, double dRegMag, double dRegEeg)
void	setChanged (int iSet)
void	sphereChanged (double dX, double dY, double dZ, double dRadius)
void	selectedBem (const QString &sName)
void	selectedMri (const QString &sName)
void	selectedNoise (const QString &sName)
void	selectedMeas (const QString &sName)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	DipoleFitView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
void	saveSettings ()
void	loadSettings ()
void	addBem (const QString &sFileName)
void	addMri (const QString &sFileName)
void	addNoise (const QString &sFileName)
void	addMeas (const QString &sFileName)
void	removeModel (const QString &sModelName, int iType)
void	requestParams ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)

Additional Inherited Members
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Definition at line 72 of file dipolefitview.h.

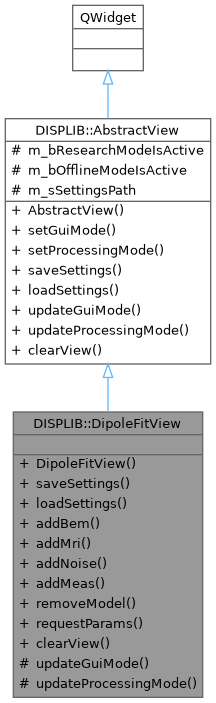

Inheritance diagram for DISPLIB::DipoleFitView:

Constructor & Destructor Documentation

◆ DipoleFitView()

DipoleFitView::DipoleFitView	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Definition at line 59 of file dipolefitview.cpp.

Member Function Documentation

◆ addBem()

void DipoleFitView::addBem ( const QString & sFileName )

Updates GUI to show selected BEM file

Parameters

[in] sFileName.

Definition at line 110 of file dipolefitview.cpp.

◆ addMeas()

void DipoleFitView::addMeas ( const QString & sFileName )

Updates GUI to show selected measurement file

Parameters

[in] sFileName.

Definition at line 325 of file dipolefitview.cpp.

◆ addMri()

void DipoleFitView::addMri ( const QString & sFileName )

Updates GUI to show selected MRI file

Parameters

[in] sFileName.

Definition at line 117 of file dipolefitview.cpp.

◆ addNoise()

void DipoleFitView::addNoise ( const QString & sFileName )

Updates GUI to show selecte Noise file

Parameters

[in] sFileName.

Definition at line 124 of file dipolefitview.cpp.

◆ baselineChanged

void DISPLIB::DipoleFitView::baselineChanged	(	int	iBMin,
		int	iBMax )

signal

Send new basline values

Parameters

[in]	iBMin	new minimum in milliseconds.
[in]	iBMax	new maximum in milliseconds.

◆ clearView()

void DipoleFitView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 339 of file dipolefitview.cpp.

◆ fittingChanged

void DISPLIB::DipoleFitView::fittingChanged	(	int	iMinDistance,
		int	iSize )

signal

Send new fitting values

Parameters

[in]	iMinDistance	distance to inner skull in millimeters.
[in]	iSize	radisu size guess in millimeters.

◆ loadSettings()

void DipoleFitView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 79 of file dipolefitview.cpp.

◆ modalityChanged

void DISPLIB::DipoleFitView::modalityChanged	(	bool	bEEG,
		bool	bMEG )

signal

Send new modality selection

Parameters

[in]	bEEG	whether to use EEG (true = yes, false = no).
[in]	bMEG	whether to use MEG (true = yes, false = no).

◆ noiseChanged

void DISPLIB::DipoleFitView::noiseChanged	(	double	dGrad,
		double	dMag,
		double	dEeg )

signal

Set new manual noise parameters

Parameters

[in]	dGrad	gradiometer value.
[in]	dMag	magnetometer value.
[in]	dEeg	eeg value.

◆ performDipoleFit

void DISPLIB::DipoleFitView::performDipoleFit ( const QString & sFitName )

signal

Triggers dipole fit calculation

◆ regChanged

void DISPLIB::DipoleFitView::regChanged	(	double	dRegGrad,
		double	dRegMag,
		double	dRegEeg )

signal

Set new regularization parameters

Parameters

[in]	iReg	overall regularization parameter.
[in]	iRegGrad	gradiatometer regularizaation parameter.
[in]	iRegMag	magnetometer regularization parameter.
[in]	iRegEeg	eeg regularization parameter.

◆ removeModel()

void DipoleFitView::removeModel	(	const QString &	sModelName,
		int	iType )

Removes model from view

Parameters

[in]	sModelName	name of model to be removed.
[in]	iType	type of model (1-measurement, 2-BEM, 3-MRI, 4-Cov).

Definition at line 349 of file dipolefitview.cpp.

◆ requestParams()

void DipoleFitView::requestParams ( )

Sends updated signals for parameters (excluding selected models)

Definition at line 131 of file dipolefitview.cpp.

◆ saveSettings()

void DipoleFitView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 72 of file dipolefitview.cpp.

◆ selectedBem

void DISPLIB::DipoleFitView::selectedBem ( const QString & sName )

signal

Set new Bem model

Parameters

[in] sName file name.

◆ selectedMeas

void DISPLIB::DipoleFitView::selectedMeas ( const QString & sName )

signal

Set new measurement model

Parameters

[in] sName file name.

◆ selectedMri

void DISPLIB::DipoleFitView::selectedMri ( const QString & sName )

signal

Set new Mri model

Parameters

[in] sName file name.

◆ selectedNoise

void DISPLIB::DipoleFitView::selectedNoise ( const QString & sName )

signal

Set new Noise model

Parameters

[in] sName file name.

◆ setChanged

void DISPLIB::DipoleFitView::setChanged ( int iSet )

signal

Select set from measurement to use

Parameters

[in] iSet.

◆ sphereChanged

void DISPLIB::DipoleFitView::sphereChanged	(	double	dX,
		double	dY,
		double	dZ,
		double	dRadius )

signal

Set new spherer model parameters

Parameters

[in]	dX	x position in millimeters.
[in]	dY	y position in millimeters.
[in]	dZ	z position in millimeters.
[in]	dRadius	radius in millimeters.

◆ timeChanged

void DISPLIB::DipoleFitView::timeChanged	(	int	iMin,
		int	iMax,
		int	iStep,
		int	iInt )

signal

Send new time values

Parameters

[in]	iMin	new minimum in milliseconds.
[in]	iMax	new maximum in milliseconds.
[in]	iStep	new step value in milliseconds.
[in]	iInt	new integration value in milliseconds.

◆ updateGuiMode()

void DipoleFitView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in] mode The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 86 of file dipolefitview.cpp.

◆ updateProcessingMode()

void DipoleFitView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in] mode The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 98 of file dipolefitview.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/dipolefitview.h
src/libraries/disp/viewers/dipolefitview.cpp
