DISPLIB::ScalingView Class Reference

The ScalingView class provides a view to select the scaling for different channels modalities. More...

#include <scalingview.h>

Public Types
typedef QSharedPointer< ScalingView >	SPtr
typedef QSharedPointer< const ScalingView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	scalingChanged (const QMap< qint32, float > &scalingMap)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	ScalingView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget, const QStringList &lChannelsToShow=QStringList()<< "all")
	~ScalingView ()
QMap< qint32, float >	getScaleMap () const
void	setScaleMap (const QMap< qint32, float > &qMapChScaling)
void	saveSettings () override
void	loadSettings () override
void	clearView () override
void	setMagGradLink (Qt::CheckState l)
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Additional Inherited Members
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

The ScalingView class provides a view to select the scaling for different channels modalities.

DECLARE CLASS ScalingView

Definition at line 114 of file scalingview.h.

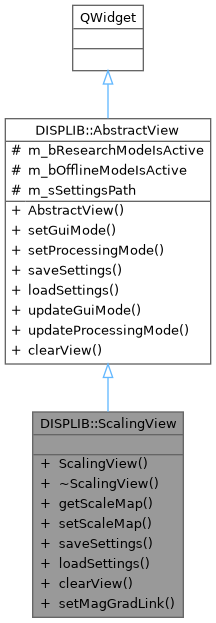

Inheritance diagram for DISPLIB::ScalingView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const ScalingView> DISPLIB::ScalingView::ConstSPtr

Const shared pointer type for ScalingView.

Definition at line 120 of file scalingview.h.

SPtr

typedef QSharedPointer<ScalingView> DISPLIB::ScalingView::SPtr

Shared pointer type for ScalingView.

Definition at line 119 of file scalingview.h.

Constructor & Destructor Documentation

ScalingView()

ScalingView::ScalingView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget,
		const QStringList &	lChannelsToShow = QStringList() << "all" )

Constructs a ScalingView which is a child of parent.

Parameters

[in]

parent

Parent of widget.

Definition at line 156 of file scalingview.cpp.

~ScalingView()

ScalingView::~ScalingView

(

)

Destroys the ScalingView.

Definition at line 182 of file scalingview.cpp.

Member Function Documentation

clearView()

void ScalingView::clearView ( )

overridevirtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 595 of file scalingview.cpp.

getScaleMap()

QMap< qint32, float > ScalingView::getScaleMap

(

)

const

Get the current scaling map

Returns

The current scaling map.

Definition at line 218 of file scalingview.cpp.

loadSettings()

void ScalingView::loadSettings ( )

overridevirtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 273 of file scalingview.cpp.

saveSettings()

void ScalingView::saveSettings ( )

overridevirtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 234 of file scalingview.cpp.

scalingChanged

void DISPLIB::ScalingView::scalingChanged ( const QMap< qint32, float > & scalingMap )

signal

Emit this signal whenever the scaling sliders or spin boxes changed.

Parameters

[in]

scalingMap

this is a list of scaling values ordered by integer keys. These keys are resolved with the use of defined macros with names of channel-types, vendors, etc.

setMagGradLink()

void ScalingView::setMagGradLink

(

Qt::CheckState

l

)

Link the Magnetometers to the Gradiometers scale.

Parameters

[in]

l

Set the link between MAGs and GRADs active or inactive.

Definition at line 459 of file scalingview.cpp.

setScaleMap()

void ScalingView::setScaleMap

(

const QMap< qint32, float > &

qMapChScaling

)

Set the current scaling map. This also recreates the GUI.

Definition at line 225 of file scalingview.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/scalingview.h
• src/libraries/disp/viewers/scalingview.cpp
