DISPLIB::AverageSceneItem Class Reference

The AverageSceneItem class provides a new data structure for visualizing averages in a 2D layout. More...

#include <averagesceneitem.h>

Signals
void	sceneUpdateRequested ()

Public Member Functions
	AverageSceneItem (const QString &channelName, int channelNumber, const QPointF &channelPosition, int channelKind, int channelUnit, const QColor &color=Qt::yellow)
QRectF	boundingRect () const
void	mousePressEvent (QGraphicsSceneMouseEvent *event)
void	mouseReleaseEvent (QGraphicsSceneMouseEvent *event)
virtual void	paint (QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget)
void	setDefaultColor (const QColor &viewColor)

Public Attributes
QString	m_sChannelName
int	m_iChannelNumber
int	m_iChannelKind
int	m_iChannelUnit
int	m_iTotalNumberChannels
int	m_iFontTextSize
int	m_iMaxWidth
int	m_iMaxHeigth
bool	m_bIsBad
QPointF	m_qpChannelPosition
QList< QPair< QString, RowVectorPair > >	m_lAverageData
QPair< int, int >	m_firstLastSample
QMap< qint32, float >	m_scaleMap
QMap< QString, bool >	m_qMapAverageActivation
QMap< QString, QColor >	m_qMapAverageColor
QRectF	m_rectBoundingRect
QColor	m_colorDefault

Protected Member Functions
void	paintAveragePath (QPainter *painter)
void	paintStimLine (QPainter *painter)

Detailed Description

The AverageSceneItem class provides a new data structure for visualizing averages in a 2D layout.

DECLARE CLASS AverageSceneItem

Definition at line 79 of file averagesceneitem.h.

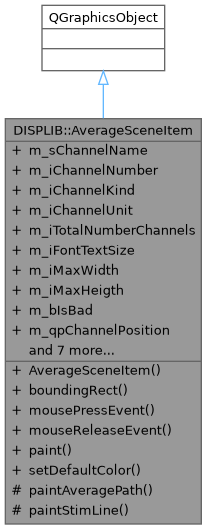

Inheritance diagram for DISPLIB::AverageSceneItem:

Constructor & Destructor Documentation

AverageSceneItem()

AverageSceneItem::AverageSceneItem	(	const QString &	channelName,
		int	channelNumber,
		const QPointF &	channelPosition,
		int	channelKind,
		int	channelUnit,
		const QColor &	color = Qt::yellow )

Constructs a AverageSceneItem.

Definition at line 67 of file averagesceneitem.cpp.

Member Function Documentation

boundingRect()

QRectF AverageSceneItem::boundingRect

(

)

const

Reimplemented virtual functions

Definition at line 90 of file averagesceneitem.cpp.

mousePressEvent()

void AverageSceneItem::mousePressEvent

(

QGraphicsSceneMouseEvent *

event

)

Definition at line 97 of file averagesceneitem.cpp.

mouseReleaseEvent()

void AverageSceneItem::mouseReleaseEvent

(

QGraphicsSceneMouseEvent *

event

)

Definition at line 106 of file averagesceneitem.cpp.

paint()

void AverageSceneItem::paint ( QPainter * painter, const QStyleOptionGraphicsItem * option, QWidget * widget )

virtual

Definition at line 115 of file averagesceneitem.cpp.

paintAveragePath()

void AverageSceneItem::paintAveragePath ( QPainter * painter )

protected

Create a plot path and paint the average data

Parameters

[in]

painter

The painter used to plot in this item.

Definition at line 167 of file averagesceneitem.cpp.

paintStimLine()

void AverageSceneItem::paintStimLine ( QPainter * painter )

protected

Create a plot path and paint the average data

Parameters

[in]

painter

The painter used to plot in this item.

Definition at line 239 of file averagesceneitem.cpp.

sceneUpdateRequested

void DISPLIB::AverageSceneItem::sceneUpdateRequested ( )

signal

Signal to request a scene update.

setDefaultColor()

void AverageSceneItem::setDefaultColor

(

const QColor &

viewColor

)

Sets the item color to the input parameter viewColor

Parameters

[in]

viewColor

desired item color.

Definition at line 274 of file averagesceneitem.cpp.

Member Data Documentation

m_bIsBad

bool DISPLIB::AverageSceneItem::m_bIsBad

Whether this channel is bad.

Definition at line 121 of file averagesceneitem.h.

m_colorDefault

QColor DISPLIB::AverageSceneItem::m_colorDefault

The color for the avergaed signal.

Definition at line 134 of file averagesceneitem.h.

m_firstLastSample

QPair<int,int> DISPLIB::AverageSceneItem::m_firstLastSample

The first and last sample.

Definition at line 126 of file averagesceneitem.h.

m_iChannelKind

int DISPLIB::AverageSceneItem::m_iChannelKind

The channel kind.

Definition at line 114 of file averagesceneitem.h.

m_iChannelNumber

int DISPLIB::AverageSceneItem::m_iChannelNumber

The channel number.

Definition at line 113 of file averagesceneitem.h.

m_iChannelUnit

int DISPLIB::AverageSceneItem::m_iChannelUnit

The channel unit.

Definition at line 115 of file averagesceneitem.h.

m_iFontTextSize

int DISPLIB::AverageSceneItem::m_iFontTextSize

The font text size of the electrode names.

Definition at line 117 of file averagesceneitem.h.

m_iMaxHeigth

int DISPLIB::AverageSceneItem::m_iMaxHeigth

The max heigth.

Definition at line 119 of file averagesceneitem.h.

m_iMaxWidth

int DISPLIB::AverageSceneItem::m_iMaxWidth

The max width.

Definition at line 118 of file averagesceneitem.h.

m_iTotalNumberChannels

int DISPLIB::AverageSceneItem::m_iTotalNumberChannels

The total number of channels loaded in the curent evoked data set.

Definition at line 116 of file averagesceneitem.h.

m_lAverageData

QList<QPair<QString, RowVectorPair> > DISPLIB::AverageSceneItem::m_lAverageData

The channels average data which is to be plotted.

Definition at line 124 of file averagesceneitem.h.

m_qMapAverageActivation

QMap<QString, bool> DISPLIB::AverageSceneItem::m_qMapAverageActivation

The average activation information.

Definition at line 129 of file averagesceneitem.h.

m_qMapAverageColor

QMap<QString, QColor> DISPLIB::AverageSceneItem::m_qMapAverageColor

The average color information.

Definition at line 130 of file averagesceneitem.h.

m_qpChannelPosition

QPointF DISPLIB::AverageSceneItem::m_qpChannelPosition

The channels 2D position in the scene.

Definition at line 123 of file averagesceneitem.h.

m_rectBoundingRect

QRectF DISPLIB::AverageSceneItem::m_rectBoundingRect

The bounding rect.

Definition at line 132 of file averagesceneitem.h.

m_scaleMap

QMap<qint32,float> DISPLIB::AverageSceneItem::m_scaleMap

Map with all channel types and their current scaling value.

Definition at line 128 of file averagesceneitem.h.

m_sChannelName

QString DISPLIB::AverageSceneItem::m_sChannelName

The channel name.

Definition at line 112 of file averagesceneitem.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/helpers/averagesceneitem.h
• src/libraries/disp/viewers/helpers/averagesceneitem.cpp
