Digitizer point group tree item. More...

#include <digitizertreeitem.h>

Public Types
enum	PointKind { Cardinal = 0 , HPI , EEG , Extra }
Public Types inherited from AbstractTreeItem
enum	ItemRole { TypeRole = Qt::UserRole + 100 , VisibleRole , TransformRole , ColorRole , AlphaRole }
enum	ItemType { AbstractItem = 0 , SurfaceItem , BemItem , SensorItem , DipoleItem , SourceSpaceItem , DigitizerItem , NetworkItem }

Public Member Functions
	DigitizerTreeItem (const QString &text, PointKind kind, const QVector< QVector3D > &positions, const QStringList &names, const QColor &color, float scale, int type=AbstractTreeItem::DigitizerItem)
	~DigitizerTreeItem ()=default
const QVector< QVector3D > &	positions () const
const QStringList &	pointNames () const
float	scale () const
PointKind	pointKind () const
Public Member Functions inherited from AbstractTreeItem
	AbstractTreeItem (const QString &text="", int type=AbstractItem)
virtual	~AbstractTreeItem ()=default
int	type () const override
void	setVisible (bool visible)
bool	isVisible () const
void	setTransform (const QMatrix4x4 &transform)
QMatrix4x4	transform () const
void	setColor (const QColor &color)
QColor	color () const
void	setAlpha (float alpha)
float	alpha () const

Additional Inherited Members
Protected Attributes inherited from AbstractTreeItem
int	m_type

Detailed Description

Digitizer point group tree item.

DigitizerTreeItem represents a group of digitizer points of the same category (Cardinal, HPI, EEG, Extra) in the tree model. Each item stores batched 3D positions for efficient rendering as a single mesh with replicated sphere geometry.

This matches the disp3D DigitizerTreeItem pattern using per-category grouping with color-coded sphere rendering.

Definition at line 62 of file digitizertreeitem.h.

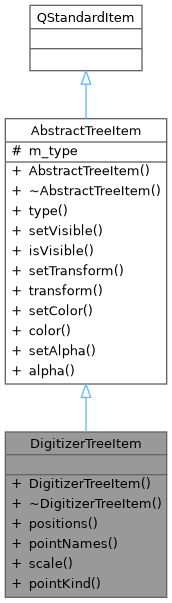

Inheritance diagram for DigitizerTreeItem:

Member Enumeration Documentation

◆ PointKind

enum DigitizerTreeItem::PointKind

Digitizer point category, matching FIFF digitizer point kinds.

Enumerator
Cardinal	Cardinal (fiducial) points: Nasion, LPA, RPA.
HPI	HPI (Head Position Indicator) coil positions.
EEG	EEG electrode positions.
Extra	Extra head shape digitization points.

Definition at line 68 of file digitizertreeitem.h.

Constructor & Destructor Documentation

◆ DigitizerTreeItem()

DigitizerTreeItem::DigitizerTreeItem	(	const QString &	text,
		PointKind	kind,
		const QVector< QVector3D > &	positions,
		const QStringList &	names,
		const QColor &	color,
		float	scale,
		int	type = AbstractTreeItem::DigitizerItem )

explicit

Constructs a DigitizerTreeItem for a single category of digitizer points.

Parameters

[in]	text	Display text for the item (e.g. "Cardinal", "HPI", "EEG", "Extra").
[in]	kind	The digitizer point category.
[in]	positions	3D positions of all points in this category (in meters).
[in]	names	Display names for individual points (e.g. "Nasion", "LPA").
[in]	color	Color for rendering this category.
[in]	scale	Radius of each rendered sphere.
[in]	type	Item type identifier.

Definition at line 47 of file digitizertreeitem.cpp.

◆ ~DigitizerTreeItem()

DigitizerTreeItem::~DigitizerTreeItem ( )

default

Member Function Documentation

◆ pointKind()

DigitizerTreeItem::PointKind DigitizerTreeItem::pointKind ( ) const

Returns the digitizer point category.

Returns: Point kind enum value.

Definition at line 86 of file digitizertreeitem.cpp.

◆ pointNames()

const QStringList & DigitizerTreeItem::pointNames ( ) const

Returns the display names for individual points.

Returns: List of point names.

Definition at line 72 of file digitizertreeitem.cpp.

◆ positions()

const QVector< QVector3D > & DigitizerTreeItem::positions ( ) const

Returns all point positions in this category.

Returns: Vector of 3D position vectors.

Definition at line 65 of file digitizertreeitem.cpp.

◆ scale()

float DigitizerTreeItem::scale ( ) const

Returns the rendering scale (sphere radius).

Returns: Scale value in meters.

Definition at line 79 of file digitizertreeitem.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp3D_rhi/model/items/digitizertreeitem.h
src/libraries/disp3D_rhi/model/items/digitizertreeitem.cpp
