CONNECTIVITYLIB::PhaseLagIndex Class Reference

Phase Lag Index estimator (Stam et al. 2007); rejects zero-lag volume-conduction mixing. More...

#include <phaselagindex.h>

Public Types
typedef QSharedPointer< PhaseLagIndex >	SPtr
typedef QSharedPointer< const PhaseLagIndex >	ConstSPtr
Public Types inherited from CONNECTIVITYLIB::AbstractMetric
typedef QSharedPointer< AbstractMetric >	SPtr
typedef QSharedPointer< const AbstractMetric >	ConstSPtr

Public Member Functions
	PhaseLagIndex ()
Public Member Functions inherited from CONNECTIVITYLIB::AbstractMetric
	AbstractMetric ()

Static Public Member Functions
static Network	calculate (ConnectivitySettings &connectivitySettings)

Static Protected Member Functions
static void	compute (ConnectivitySettings::IntermediateTrialData &inputData, QVector< QPair< int, Eigen::MatrixXcd > > &vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXd > > &vecPairCsdImagSignSum, QMutex &mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > &tapers)
static void	computePLI (ConnectivitySettings &connectivitySettings, Network &finalNetwork)

Additional Inherited Members
Static Public Attributes inherited from CONNECTIVITYLIB::AbstractMetric
static bool	m_bStorageModeIsActive = false
static int	m_iNumberBinStart = -1
static int	m_iNumberBinAmount = -1

Detailed Description

Phase Lag Index estimator (Stam et al. 2007); rejects zero-lag volume-conduction mixing.

Computes the Phase Lag Index of Stam, Nolte & Daffertshofer (2007).

For every channel pair the estimator averages sign(Im(S_{xy}(f))) across DPSS-tapered trial spectra and returns the magnitude of that average. Zero-lag mixing (volume conduction, common reference) yields sign = 0 and is rejected; consistently lagged or leading interactions yield magnitudes close to 1. The per-trial accumulation is parallelised over trials via QtConcurrent and reduced under a single QMutex.

Definition at line 94 of file phaselagindex.h.

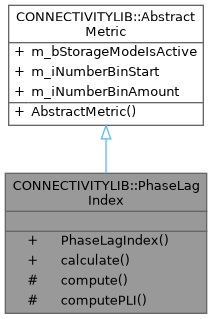

Inheritance diagram for CONNECTIVITYLIB::PhaseLagIndex:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const PhaseLagIndex> CONNECTIVITYLIB::PhaseLagIndex::ConstSPtr

Const shared pointer type for PhaseLagIndex.

Definition at line 99 of file phaselagindex.h.

SPtr

typedef QSharedPointer<PhaseLagIndex> CONNECTIVITYLIB::PhaseLagIndex::SPtr

Shared pointer type for PhaseLagIndex.

Definition at line 98 of file phaselagindex.h.

Constructor & Destructor Documentation

PhaseLagIndex()

PhaseLagIndex::PhaseLagIndex ( )

explicit

Constructs a PhaseLagIndex object.

Definition at line 56 of file phaselagindex.cpp.

Member Function Documentation

calculate()

Network PhaseLagIndex::calculate ( ConnectivitySettings & connectivitySettings )

static

Calculates the PLI between the rows of the data matrix.

Parameters

[in]

connectivitySettings

The input data and parameters.

Returns

The connectivity information in form of a network structure.

Definition at line 62 of file phaselagindex.cpp.

compute()

void PhaseLagIndex::compute ( ConnectivitySettings::IntermediateTrialData & inputData, QVector< QPair< int, Eigen::MatrixXcd > > & vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXd > > & vecPairCsdImagSignSum, QMutex & mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > & tapers )

staticprotected

Computes the PLI values. This function gets called in parallel.

Parameters

[in]	inputData	The input data.
[out]

The sum of all CSD matrices for each trial.

Parameters

[out]

The sum of all imag sign CSD matrices for each trial.

Parameters

[in]	mutex	The mutex used to safely access vecPairCsdSum.
[in]	iNRows	The number of rows.
[in]	iNFreqs	The number of frequenciy bins.
[in]	iNfft	The FFT length.
[in]	tapers	The taper information.

Definition at line 164 of file phaselagindex.cpp.

computePLI()

void PhaseLagIndex::computePLI ( ConnectivitySettings & connectivitySettings, Network & finalNetwork )

staticprotected

Reduces the PLI computation to a final result.

Parameters

[out]	connectivitySettings	The input data.
[in]	finalNetwork	The final network.

Definition at line 286 of file phaselagindex.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/connectivity/metrics/phaselagindex.h
• src/libraries/connectivity/metrics/phaselagindex.cpp
