CONNECTIVITYLIB::PhaseLockingValue Class Reference

Phase Locking Value estimator (Lachaux et al. 1999); amplitude-independent phase coupling, sensitive to zero-lag. More...

#include <phaselockingvalue.h>

Public Types
typedef QSharedPointer< PhaseLockingValue >	SPtr
typedef QSharedPointer< const PhaseLockingValue >	ConstSPtr
Public Types inherited from CONNECTIVITYLIB::AbstractMetric
typedef QSharedPointer< AbstractMetric >	SPtr
typedef QSharedPointer< const AbstractMetric >	ConstSPtr

Public Member Functions
	PhaseLockingValue ()
Public Member Functions inherited from CONNECTIVITYLIB::AbstractMetric
	AbstractMetric ()

Static Public Member Functions
static Network	calculate (ConnectivitySettings &connectivitySettings)

Static Protected Member Functions
static void	compute (ConnectivitySettings::IntermediateTrialData &inputData, QVector< QPair< int, Eigen::MatrixXcd > > &vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXcd > > &vecPairCsdNormalizedSum, QMutex &mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > &tapers)
static void	computePLV (ConnectivitySettings &connectivitySettings, Network &finalNetwork)

Additional Inherited Members
Static Public Attributes inherited from CONNECTIVITYLIB::AbstractMetric
static bool	m_bStorageModeIsActive = false
static int	m_iNumberBinStart = -1
static int	m_iNumberBinAmount = -1

Detailed Description

Phase Locking Value estimator (Lachaux et al. 1999); amplitude-independent phase coupling, sensitive to zero-lag.

Computes the Phase Locking Value of Lachaux et al. (HBM 1999).

Each cross-spectral sample is divided by its magnitude (yielding a unit complex number that encodes only the instantaneous phase difference) and averaged across trials; PLV is the magnitude of that average. Per- trial normalised cross-spectra are accumulated in ConnectivitySettings::IntermediateSumData and the resulting edge weights are averaged over the frequency window defined on AbstractMetric.

Definition at line 94 of file phaselockingvalue.h.

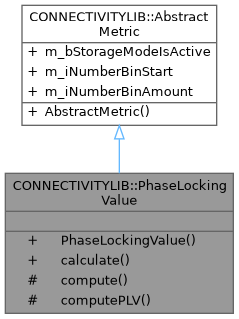

Inheritance diagram for CONNECTIVITYLIB::PhaseLockingValue:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const PhaseLockingValue> CONNECTIVITYLIB::PhaseLockingValue::ConstSPtr

Const shared pointer type for PhaseLockingValue.

Definition at line 99 of file phaselockingvalue.h.

SPtr

typedef QSharedPointer<PhaseLockingValue> CONNECTIVITYLIB::PhaseLockingValue::SPtr

Shared pointer type for PhaseLockingValue.

Definition at line 98 of file phaselockingvalue.h.

Constructor & Destructor Documentation

PhaseLockingValue()

PhaseLockingValue::PhaseLockingValue ( )

explicit

Constructs a PhaseLockingValue object.

Definition at line 56 of file phaselockingvalue.cpp.

Member Function Documentation

calculate()

Network PhaseLockingValue::calculate ( ConnectivitySettings & connectivitySettings )

static

Calculates the phase locking value between the rows of the data matrix.

Parameters

[in]

connectivitySettings

The input data and parameters.

Returns

The connectivity information in form of a network structure.

Definition at line 62 of file phaselockingvalue.cpp.

compute()

void PhaseLockingValue::compute ( ConnectivitySettings::IntermediateTrialData & inputData, QVector< QPair< int, Eigen::MatrixXcd > > & vecPairCsdSum, QVector< QPair< int, Eigen::MatrixXcd > > & vecPairCsdNormalizedSum, QMutex & mutex, int iNRows, int iNFreqs, int iNfft, const QPair< Eigen::MatrixXd, Eigen::VectorXd > & tapers )

staticprotected

Computes the PLV values. This function gets called in parallel.

Parameters

[in]	inputData	The input data.
[out]

The sum of all CSD matrices for each trial.

Parameters

[out]

The sum of all normalized CSD matrices for each trial.

Parameters

[in]	mutex	The mutex used to safely access vecPairCsdSum.
[in]	iNRows	The number of rows.
[in]	iNFreqs	The number of frequenciy bins.
[in]	iNfft	The FFT length.
[in]	tapers	The taper information.

Definition at line 165 of file phaselockingvalue.cpp.

computePLV()

void PhaseLockingValue::computePLV ( ConnectivitySettings & connectivitySettings, Network & finalNetwork )

staticprotected

Reduces the PLV computation to a final result.

Parameters

[out]	connectivitySettings	The input data.
[in]	finalNetwork	The final network.

Definition at line 287 of file phaselockingvalue.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/connectivity/metrics/phaselockingvalue.h
• src/libraries/connectivity/metrics/phaselockingvalue.cpp
