Tabular picker for active / colour of each averaged condition in the current evoked set. More...

#include <averageselectionview.h>

Public Types
typedef QSharedPointer< AverageSelectionView >	SPtr
typedef QSharedPointer< const AverageSelectionView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	newAverageColorMap (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	newAverageActivationMap (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	AverageSelectionView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~AverageSelectionView ()
QSharedPointer< QMap< QString, QColor > >	getAverageColor () const
QSharedPointer< QMap< QString, bool > >	getAverageActivation () const
void	setAverageColor (const QSharedPointer< QMap< QString, QColor > > qMapAverageColor)
void	setAverageActivation (const QSharedPointer< QMap< QString, bool > > qMapAverageActivation)
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	redrawGUI ()
void	onAverageSelectionColorChanged ()

Protected Attributes
int	m_iMaxNumAverages
QSharedPointer< QMap< QString, QColor > >	m_qMapAverageColor
QSharedPointer< QMap< QString, bool > >	m_qMapAverageActivation
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Tabular picker for active / colour of each averaged condition in the current evoked set.

Emits newAverageActivationMap and newAverageColorMap whenever the user toggles a row or changes a colour; consumers refresh their evoked plots accordingly.

Definition at line 65 of file averageselectionview.h.

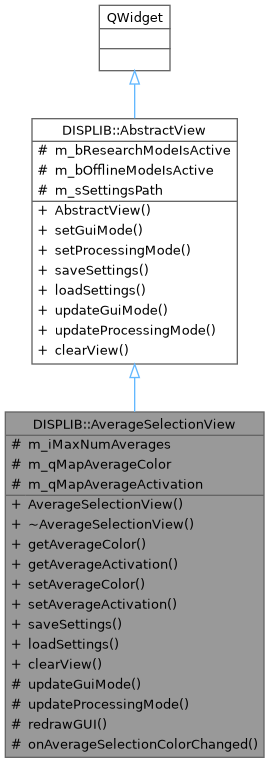

Inheritance diagram for DISPLIB::AverageSelectionView:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const AverageSelectionView> DISPLIB::AverageSelectionView::ConstSPtr

Const shared pointer type for AverageSelectionView.

Definition at line 71 of file averageselectionview.h.

◆ SPtr

typedef QSharedPointer<AverageSelectionView> DISPLIB::AverageSelectionView::SPtr

Shared pointer type for AverageSelectionView.

Definition at line 70 of file averageselectionview.h.

Constructor & Destructor Documentation

◆ AverageSelectionView()

AverageSelectionView::AverageSelectionView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a AverageSelectionView which is a child of parent.

Parameters

[in] parent parent of widget.

Definition at line 53 of file averageselectionview.cpp.

◆ ~AverageSelectionView()

AverageSelectionView::~AverageSelectionView ( )

Destroys the AverageSelectionView.

Definition at line 72 of file averageselectionview.cpp.

Member Function Documentation

◆ clearView()

void AverageSelectionView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 275 of file averageselectionview.cpp.

◆ getAverageActivation()

QSharedPointer< QMap< QString, bool > > AverageSelectionView::getAverageActivation ( ) const

Get the current average activations

Returns: Pointer to the current average activations.

Definition at line 86 of file averageselectionview.cpp.

◆ getAverageColor()

QSharedPointer< QMap< QString, QColor > > AverageSelectionView::getAverageColor ( ) const

Get the current average colors

Returns: Pointer to the current average colors.

Definition at line 79 of file averageselectionview.cpp.

◆ loadSettings()

void AverageSelectionView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 136 of file averageselectionview.cpp.

◆ newAverageActivationMap

void DISPLIB::AverageSelectionView::newAverageActivationMap ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

signal

Emmited when new average activation is available

Parameters

[in] qMapAverageActivation the average activation map.

◆ newAverageColorMap

void DISPLIB::AverageSelectionView::newAverageColorMap ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

signal

Emmited when new average color is available

Parameters

[in] qMapAverageColor the average color map.

◆ onAverageSelectionColorChanged()

void AverageSelectionView::onAverageSelectionColorChanged ( )

protected

Call this slot whenever the average selection or color changed.

Definition at line 239 of file averageselectionview.cpp.

◆ redrawGUI()

void AverageSelectionView::redrawGUI ( )

protected

Redraw the GUI.

Definition at line 185 of file averageselectionview.cpp.

◆ saveSettings()

void AverageSelectionView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 109 of file averageselectionview.cpp.

◆ setAverageActivation()

void AverageSelectionView::setAverageActivation ( const QSharedPointer< QMap< QString, bool > > qMapAverageActivation )

Set the average activations

Parameters

[in] qMapAverageActivation Pointer to the new average activations.

Definition at line 101 of file averageselectionview.cpp.

◆ setAverageColor()

void AverageSelectionView::setAverageColor ( const QSharedPointer< QMap< QString, QColor > > qMapAverageColor )

Set the average colors

Parameters

[in] qMapAverageColor Pointer to the new average colors.

Definition at line 93 of file averageselectionview.cpp.

◆ updateGuiMode()

void AverageSelectionView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

mode	The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 161 of file averageselectionview.cpp.

◆ updateProcessingMode()

void AverageSelectionView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

mode	The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 173 of file averageselectionview.cpp.

Member Data Documentation

◆ m_iMaxNumAverages

int DISPLIB::AverageSelectionView::m_iMaxNumAverages

protected

Definition at line 168 of file averageselectionview.h.

◆ m_qMapAverageActivation

QSharedPointer<QMap<QString, bool> > DISPLIB::AverageSelectionView::m_qMapAverageActivation

protected

Average activation status.

Definition at line 171 of file averageselectionview.h.

◆ m_qMapAverageColor

QSharedPointer<QMap<QString, QColor> > DISPLIB::AverageSelectionView::m_qMapAverageColor

protected

Average colors.

Definition at line 170 of file averageselectionview.h.

The documentation for this class was generated from the following files:

src/libraries/disp/viewers/averageselectionview.h
src/libraries/disp/viewers/averageselectionview.cpp
