DISPLIB::AbstractView Class Reference

Base widget for every dockable settings panel in DISPLIB; centralises GUI / processing mode and settings persistence. More...

#include <abstractview.h>

Public Types
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)
virtual void	saveSettings ()=0
virtual void	loadSettings ()=0
virtual void	updateGuiMode (GuiMode mode)=0
virtual void	updateProcessingMode (ProcessingMode mode)=0
virtual void	clearView ()=0

Protected Attributes
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

Base widget for every dockable settings panel in DISPLIB; centralises GUI / processing mode and settings persistence.

Subclasses override updateGuiMode, updateProcessingMode and saveSettings / loadSettings to react to mode changes and to round-trip their state through QSettings. The class deliberately exposes no domain-specific API.

Definition at line 69 of file abstractview.h.

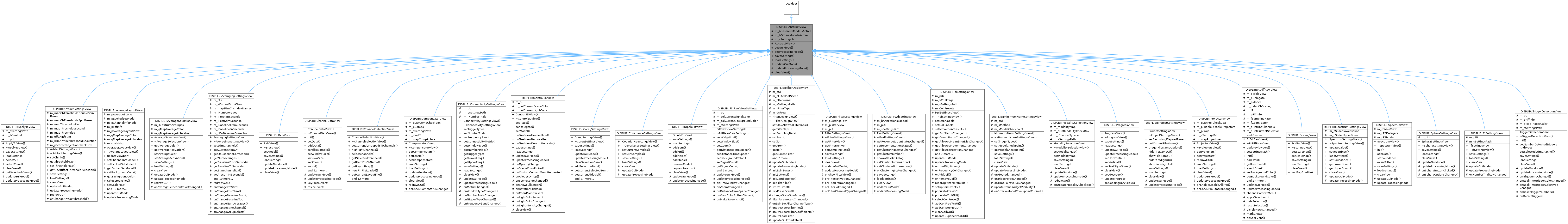

Inheritance diagram for DISPLIB::AbstractView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const AbstractView> DISPLIB::AbstractView::ConstSPtr

Const shared pointer type for AbstractView.

Definition at line 75 of file abstractview.h.

SPtr

typedef QSharedPointer<AbstractView> DISPLIB::AbstractView::SPtr

Shared pointer type for AbstractView.

Definition at line 74 of file abstractview.h.

Member Enumeration Documentation

GuiMode

enum DISPLIB::AbstractView::GuiMode

Enumerator
Clinical
Research

Definition at line 82 of file abstractview.h.

ProcessingMode

enum DISPLIB::AbstractView::ProcessingMode

Enumerator
RealTime
Offline

Definition at line 87 of file abstractview.h.

StyleMode

enum DISPLIB::AbstractView::StyleMode

Enumerator
Default
Dark

Definition at line 77 of file abstractview.h.

Constructor & Destructor Documentation

AbstractView()

AbstractView::AbstractView	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a AbstractView which is a child of parent.

Parameters

[in]

parent

parent of widget.

Definition at line 40 of file abstractview.cpp.

Member Function Documentation

clearView()

virtual void DISPLIB::AbstractView::clearView ( )

pure virtual

Clears the view

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelDataView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

guiStyleChanged

void DISPLIB::AbstractView::guiStyleChanged ( DISPLIB::AbstractView::StyleMode style )

signal

Signal emited whenever the gui style mode changes.

loadSettings()

virtual void DISPLIB::AbstractView::loadSettings ( )

pure virtual

Loads and inits all important settings of this view via QSettings.

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelDataView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

saveSettings()

virtual void DISPLIB::AbstractView::saveSettings ( )

pure virtual

Saves all important settings of this view via QSettings.

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelDataView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::ScalingView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

setGuiMode()

void AbstractView::setGuiMode ( GuiMode mode )

virtual

Sets the GUI of this view to a specific mode. Clinical = 0, Research = 0.

Parameters

mode	The new mode.

Definition at line 48 of file abstractview.cpp.

setProcessingMode()

void AbstractView::setProcessingMode ( ProcessingMode mode )

virtual

Sets the GUI of this view to a specific mode. RealTime = 0, Offline = 0.

Parameters

mode	The new mode.

Definition at line 55 of file abstractview.cpp.

updateGuiMode()

virtual void DISPLIB::AbstractView::updateGuiMode ( GuiMode mode )

pure virtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

mode	The new mode (Clinical=0, Research=1).

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelDataView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

updateProcessingMode()

virtual void DISPLIB::AbstractView::updateProcessingMode ( ProcessingMode mode )

pure virtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

mode	The new mode (RealTime=0, Offline=1).

Implemented in DISPLIB::ApplyToView, DISPLIB::ArtifactSettingsView, DISPLIB::AverageLayoutView, DISPLIB::AverageSelectionView, DISPLIB::AveragingSettingsView, DISPLIB::BidsView, DISPLIB::ChannelDataView, DISPLIB::ChannelSelectionView, DISPLIB::CompensatorView, DISPLIB::ConnectivitySettingsView, DISPLIB::Control3DView, DISPLIB::CoregSettingsView, DISPLIB::CovarianceSettingsView, DISPLIB::DipoleFitView, DISPLIB::FiffRawViewSettings, DISPLIB::FilterDesignView, DISPLIB::FilterSettingsView, DISPLIB::FwdSettingsView, DISPLIB::HpiSettingsView, DISPLIB::MinimumNormSettingsView, DISPLIB::ModalitySelectionView, DISPLIB::ProgressView, DISPLIB::ProjectorsView, DISPLIB::ProjectSettingsView, DISPLIB::RtFiffRawView, DISPLIB::SpectrumSettingsView, DISPLIB::SpectrumView, DISPLIB::SpharaSettingsView, DISPLIB::TfSettingsView, and DISPLIB::TriggerDetectionView.

Member Data Documentation

m_bOfflineModeIsActive

bool DISPLIB::AbstractView::m_bOfflineModeIsActive

protected

The flag describing whether offline mode of the view is active or not.

Definition at line 161 of file abstractview.h.

m_bResearchModeIsActive

bool DISPLIB::AbstractView::m_bResearchModeIsActive

protected

The flag describing whether the research mode of the view is active or not.

Definition at line 160 of file abstractview.h.

m_sSettingsPath

QString DISPLIB::AbstractView::m_sSettingsPath

protected

The settings path to store the GUI settings to.

Definition at line 163 of file abstractview.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/abstractview.h
• src/libraries/disp/viewers/abstractview.cpp
