DISPLIB::ApplyToView Class Reference

Three-way radio selector for scope = Selected / Visible / All channels. More...

#include <applytoview.h>

Public Member Functions
	ApplyToView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	ApplyToView.
	~ApplyToView ()
void	saveSettings ()
void	loadSettings ()
void	selectAll (bool)
void	selectClear (bool)
void	clearView ()
QList< QString >	getSelectedViews ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)

Protected Attributes
QString	m_sSettingsPath
QList< QString >	m_lViewList
Ui::ApplyToViewWidget *	m_pUi
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Additional Inherited Members
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Detailed Description

Three-way radio selector for scope = Selected / Visible / All channels.

Emits selectionChanged(int) when the active radio flips; the integer matches the QButtonGroup id of the chosen scope.

Definition at line 62 of file applytoview.h.

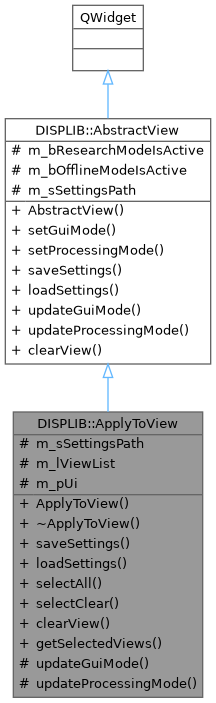

Inheritance diagram for DISPLIB::ApplyToView:

Constructor & Destructor Documentation

ApplyToView()

ApplyToView::ApplyToView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

ApplyToView.

Parameters

[in]	sSettingsPath	path for saving view settings.
[in]	parent	parent of widget.
[in]	f	flag to denote window porperties of the widget.

Definition at line 32 of file applytoview.cpp.

~ApplyToView()

ApplyToView::~ApplyToView

(

)

Definition at line 51 of file applytoview.cpp.

Member Function Documentation

clearView()

void ApplyToView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 139 of file applytoview.cpp.

getSelectedViews()

QList< QString > ApplyToView::getSelectedViews

(

)

Definition at line 118 of file applytoview.cpp.

loadSettings()

void ApplyToView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 65 of file applytoview.cpp.

saveSettings()

void ApplyToView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 58 of file applytoview.cpp.

selectAll()

void ApplyToView::selectAll

(

bool

bChecked

)

Selects all View Select checkboxes

Definition at line 96 of file applytoview.cpp.

selectClear()

void ApplyToView::selectClear

(

bool

bChecked

)

Clear all View Select checkboxes

Definition at line 107 of file applytoview.cpp.

updateGuiMode()

void ApplyToView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

mode	The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 72 of file applytoview.cpp.

updateProcessingMode()

void ApplyToView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

mode	The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 84 of file applytoview.cpp.

Member Data Documentation

m_lViewList

QList<QString> DISPLIB::ApplyToView::m_lViewList

protected

Definition at line 131 of file applytoview.h.

m_pUi

Ui::ApplyToViewWidget* DISPLIB::ApplyToView::m_pUi

protected

Definition at line 133 of file applytoview.h.

m_sSettingsPath

QString DISPLIB::ApplyToView::m_sSettingsPath

protected

Definition at line 129 of file applytoview.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/applytoview.h
• src/libraries/disp/viewers/applytoview.cpp
