DISPLIB::ProjectorsView Class Reference

SSP projector enable / disable checkbox list. More...

#include <projectorsview.h>

Public Types
typedef QSharedPointer< ProjectorsView >	SPtr
typedef QSharedPointer< const ProjectorsView >	ConstSPtr
Public Types inherited from DISPLIB::AbstractView
enum	StyleMode { Default , Dark }
enum	GuiMode { Clinical , Research }
enum	ProcessingMode { RealTime , Offline }
typedef QSharedPointer< AbstractView >	SPtr
typedef QSharedPointer< const AbstractView >	ConstSPtr

Signals
void	projSelectionChanged (const QList< FIFFLIB::FiffProj > &projs)
Signals inherited from DISPLIB::AbstractView
void	guiStyleChanged (DISPLIB::AbstractView::StyleMode style)

Public Member Functions
	ProjectorsView (const QString &sSettingsPath="", QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
	~ProjectorsView ()
QList< FIFFLIB::FiffProj >	getProjectors () const
void	setProjectors (const QList< FIFFLIB::FiffProj > &projs)
void	redrawGUI ()
void	saveSettings ()
void	loadSettings ()
void	clearView ()
Public Member Functions inherited from DISPLIB::AbstractView
	AbstractView (QWidget *parent=0, Qt::WindowFlags f=Qt::Widget)
virtual void	setGuiMode (GuiMode mode)
virtual void	setProcessingMode (ProcessingMode mode)

Protected Member Functions
void	updateGuiMode (GuiMode mode)
void	updateProcessingMode (ProcessingMode mode)
void	onEnableDisableAllProj (bool status)
void	onCheckProjStatusChanged ()

Protected Attributes
QList< QCheckBox * >	m_qListProjCheckBox
QCheckBox *	m_pEnableDisableProjectors
QList< FIFFLIB::FiffProj >	m_pProjs
QString	m_sSettingsPath
QMap< QString, bool >	m_mapProjActive
Protected Attributes inherited from DISPLIB::AbstractView
bool	m_bResearchModeIsActive
bool	m_bOfflineModeIsActive
QString	m_sSettingsPath

Detailed Description

SSP projector enable / disable checkbox list.

One QCheckBox per FiffProj plus a master toggle; emits projSelectionChanged so the rtprocessing pipeline can (de)project the streaming data on the fly.

Definition at line 69 of file projectorsview.h.

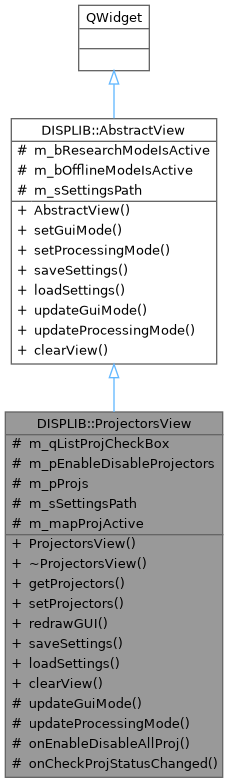

Inheritance diagram for DISPLIB::ProjectorsView:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const ProjectorsView> DISPLIB::ProjectorsView::ConstSPtr

Const shared pointer type for ProjectorsView.

Definition at line 75 of file projectorsview.h.

SPtr

typedef QSharedPointer<ProjectorsView> DISPLIB::ProjectorsView::SPtr

Shared pointer type for ProjectorsView.

Definition at line 74 of file projectorsview.h.

Constructor & Destructor Documentation

ProjectorsView()

ProjectorsView::ProjectorsView	(	const QString &	sSettingsPath = "",
		QWidget *	parent = 0,
		Qt::WindowFlags	f = Qt::Widget )

Constructs a ProjectorsView which is a child of parent.

Parameters

[in]

parent

parent of widget.

Definition at line 46 of file projectorsview.cpp.

~ProjectorsView()

ProjectorsView::~ProjectorsView

(

)

Destroys the ProjectorsView.

Definition at line 63 of file projectorsview.cpp.

Member Function Documentation

clearView()

void ProjectorsView::clearView ( )

virtual

Clears the view

Implements DISPLIB::AbstractView.

Definition at line 258 of file projectorsview.cpp.

getProjectors()

QList< FIFFLIB::FiffProj > ProjectorsView::getProjectors

(

)

const

Get the current projectors

Returns

The current projectors.

Definition at line 70 of file projectorsview.cpp.

loadSettings()

void ProjectorsView::loadSettings ( )

virtual

Loads and inits all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 166 of file projectorsview.cpp.

onCheckProjStatusChanged()

void ProjectorsView::onCheckProjStatusChanged ( )

protected

Slot called when the projector check state changes

Definition at line 234 of file projectorsview.cpp.

onEnableDisableAllProj()

void ProjectorsView::onEnableDisableAllProj ( bool status )

protected

Slot called when user enables/disables all projectors

Definition at line 209 of file projectorsview.cpp.

projSelectionChanged

void DISPLIB::ProjectorsView::projSelectionChanged ( const QList< FIFFLIB::FiffProj > & projs )

signal

Emit this signal whenever the user changes the projections.

redrawGUI()

void ProjectorsView::redrawGUI

(

)

Redraw the view.

Definition at line 94 of file projectorsview.cpp.

saveSettings()

void ProjectorsView::saveSettings ( )

virtual

Saves all important settings of this view via QSettings.

Implements DISPLIB::AbstractView.

Definition at line 145 of file projectorsview.cpp.

setProjectors()

void ProjectorsView::setProjectors

(

const QList< FIFFLIB::FiffProj > &

projs

)

Set the current projectors

Parameters

[in]

projs

The new projectors.

Definition at line 77 of file projectorsview.cpp.

updateGuiMode()

void ProjectorsView::updateGuiMode ( GuiMode mode )

protectedvirtual

Update the views GUI based on the set GuiMode (Clinical=0, Research=1).

Parameters

[in]

mode

The new mode (Clinical=0, Research=1).

Implements DISPLIB::AbstractView.

Definition at line 185 of file projectorsview.cpp.

updateProcessingMode()

void ProjectorsView::updateProcessingMode ( ProcessingMode mode )

protectedvirtual

Update the views GUI based on the set ProcessingMode (RealTime=0, Offline=1).

Parameters

[in]

mode

The new mode (RealTime=0, Offline=1).

Implements DISPLIB::AbstractView.

Definition at line 197 of file projectorsview.cpp.

Member Data Documentation

m_mapProjActive

QMap<QString,bool> DISPLIB::ProjectorsView::m_mapProjActive

protected

Definition at line 169 of file projectorsview.h.

m_pEnableDisableProjectors

QCheckBox* DISPLIB::ProjectorsView::m_pEnableDisableProjectors

protected

Holds the enable disable all check box.

Definition at line 163 of file projectorsview.h.

m_pProjs

QList<FIFFLIB::FiffProj> DISPLIB::ProjectorsView::m_pProjs

protected

The current projectors.

Definition at line 165 of file projectorsview.h.

m_qListProjCheckBox

QList<QCheckBox*> DISPLIB::ProjectorsView::m_qListProjCheckBox

protected

List of projection CheckBox.

Definition at line 162 of file projectorsview.h.

m_sSettingsPath

QString DISPLIB::ProjectorsView::m_sSettingsPath

protected

The settings path to store the GUI settings to.

Definition at line 167 of file projectorsview.h.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/projectorsview.h
• src/libraries/disp/viewers/projectorsview.cpp
