MNELIB::MNEEpochDataList Class Reference

Epoch data list. More...

#include <mne_epoch_data_list.h>

Public Types
typedef QSharedPointer< MNEEpochDataList >	SPtr
typedef QSharedPointer< const MNEEpochDataList >	ConstSPtr

Public Member Functions
	MNEEpochDataList ()
	~MNEEpochDataList ()
FIFFLIB::FiffEvoked	average (const FIFFLIB::FiffInfo &p_info, FIFFLIB::fiff_int_t first, FIFFLIB::fiff_int_t last, Eigen::VectorXi sel=FIFFLIB::defaultVectorXi, bool proj=false)
void	applyBaselineCorrection (const QPair< float, float > &baseline)
void	dropRejected ()
void	pick_channels (const Eigen::RowVectorXi &sel)

Static Public Member Functions
static MNEEpochDataList	readEpochs (const FIFFLIB::FiffRawData &raw, const Eigen::MatrixXi &events, float tmin, float tmax, qint32 event, const QMap< QString, double > &mapReject, const QStringList &lExcludeChs=QStringList(), const Eigen::RowVectorXi &picks=Eigen::RowVectorXi())
static bool	checkForArtifact (const Eigen::MatrixXd &data, const FIFFLIB::FiffInfo &pFiffInfo, const QMap< QString, double > &mapReject, const QStringList &lExcludeChs=QStringList())
static void	checkChThreshold (ArtifactRejectionData &inputData)

Detailed Description

Epoch data list.

Epoch data list, which corresponds to a set of events

Definition at line 78 of file mne_epoch_data_list.h.

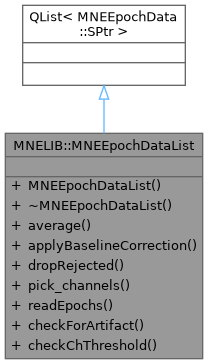

Inheritance diagram for MNELIB::MNEEpochDataList:

Member Typedef Documentation

ConstSPtr

typedef QSharedPointer<const MNEEpochDataList> MNELIB::MNEEpochDataList::ConstSPtr

Const shared pointer type for MNEEpochDataList.

Definition at line 83 of file mne_epoch_data_list.h.

SPtr

typedef QSharedPointer<MNEEpochDataList> MNELIB::MNEEpochDataList::SPtr

Shared pointer type for MNEEpochDataList.

Definition at line 82 of file mne_epoch_data_list.h.

Constructor & Destructor Documentation

MNEEpochDataList()

MNEEpochDataList::MNEEpochDataList

(

)

Default constructor.

Definition at line 67 of file mne_epoch_data_list.cpp.

~MNEEpochDataList()

MNEEpochDataList::~MNEEpochDataList

(

)

Destroys the MNEEpochDataList.

Definition at line 73 of file mne_epoch_data_list.cpp.

Member Function Documentation

applyBaselineCorrection()

void MNEEpochDataList::applyBaselineCorrection

(

const QPair< float, float > &

baseline

)

Applies baseline correction to the evoked data.

Parameters

[in]

baseline

time definition of the baseline in seconds [from, to].

Definition at line 240 of file mne_epoch_data_list.cpp.

average()

FiffEvoked MNEEpochDataList::average	(	const FIFFLIB::FiffInfo &	p_info,
		FIFFLIB::fiff_int_t	first,
		FIFFLIB::fiff_int_t	last,
		Eigen::VectorXi	sel = FIFFLIB::defaultVectorXi,
		bool	proj = false )

Averages epoch list. Note that no baseline correction performed.

Parameters

[in]	info	measurement info.
[in]	first	First time sample.
[in]	last	Last time sample.
[in]	sel	Which epochs should be averaged (optional).
[in]	proj	Apply SSP projection vectors (optional, default = false).

Definition at line 179 of file mne_epoch_data_list.cpp.

checkChThreshold()

void MNEEpochDataList::checkChThreshold ( ArtifactRejectionData & inputData )

static

Definition at line 360 of file mne_epoch_data_list.cpp.

checkForArtifact()

bool MNEEpochDataList::checkForArtifact ( const Eigen::MatrixXd & data, const FIFFLIB::FiffInfo & pFiffInfo, const QMap< QString, double > & mapReject, const QStringList & lExcludeChs = QStringList() )

static

Checks the givven matrix for artifacts beyond a threshold value.

Parameters

[in]	data	The data matrix.
[in]	pFiffInfo	The fiff info.
[in]	mapReject	The channel data types to scan for. EEG, MEG or EOG.
[in]	lExcludeChs	List of channel names to exclude.

Returns

Whether a threshold artifact was detected.

Definition at line 273 of file mne_epoch_data_list.cpp.

dropRejected()

void MNEEpochDataList::dropRejected

(

)

Drop/Remove all epochs tagged as rejected

Definition at line 251 of file mne_epoch_data_list.cpp.

pick_channels()

void MNEEpochDataList::pick_channels

(

const Eigen::RowVectorXi &

sel

)

Reduces alld epochs to the selected rows.

Parameters

[in]

sel

The selected rows to keep.

Definition at line 263 of file mne_epoch_data_list.cpp.

readEpochs()

MNEEpochDataList MNEEpochDataList::readEpochs ( const FIFFLIB::FiffRawData & raw, const Eigen::MatrixXi & events, float tmin, float tmax, qint32 event, const QMap< QString, double > & mapReject, const QStringList & lExcludeChs = QStringList(), const Eigen::RowVectorXi & picks = Eigen::RowVectorXi() )

static

Read the epochs from a raw file based on provided events.

Parameters

[in]	raw	The raw data.
[in]	events	The events provided in samples and event kind.
[in]	tmin	The start time relative to the event in seconds.
[in]	tmax	The end time relative to the event in seconds.
[in]	event	The event kind.
[in]	lExcludeChs	List of channel names to exclude.
[in]	picks	Which channels to pick.

Definition at line 84 of file mne_epoch_data_list.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/mne/mne_epoch_data_list.h
• src/libraries/mne/mne_epoch_data_list.cpp
