FIFF File I/O routines. More...

#include <fiff_stream.h>

Public Types
typedef QSharedPointer< FiffStream >	SPtr
typedef QSharedPointer< const FiffStream >	ConstSPtr

Public Member Functions
	FiffStream (QIODevice *p_pIODevice)
	FiffStream (QByteArray *a, QIODevice::OpenMode mode)
QString	streamName ()
FiffId	id () const
QList< FiffDirEntry::SPtr > &	dir ()
const QList< FiffDirEntry::SPtr > &	dir () const
int	nent () const
const FiffDirNode::SPtr &	dirtree () const
fiff_long_t	end_block (fiff_int_t kind, fiff_int_t next=FIFFV_NEXT_SEQ)
void	end_file ()
void	finish_writing_raw ()
bool	get_evoked_entries (const QList< FiffDirNode::SPtr > &evoked_node, QStringList &comments, QList< fiff_int_t > &aspect_kinds, QString &t)
bool	open (QIODevice::OpenModeFlag mode=QIODevice::ReadOnly)
bool	close ()
FiffDirNode::SPtr	make_subtree (QList< FiffDirEntry::SPtr > &dentry)
QStringList	read_bad_channels (const FiffDirNode::SPtr &p_Node)
bool	read_cov (const FiffDirNode::SPtr &p_Node, fiff_int_t cov_kind, FiffCov &p_covData)
QList< FiffCtfComp >	read_ctf_comp (const FiffDirNode::SPtr &p_Node, const QList< FiffChInfo > &p_Chs)
bool	read_digitizer_data (const FiffDirNode::SPtr &p_Node, FiffDigitizerData &p_digData)
bool	read_meas_info (const FiffDirNode::SPtr &p_Node, FiffInfo &p_Info, FiffDirNode::SPtr &p_NodeInfo)
bool	read_meas_info_base (const FiffDirNode::SPtr &p_Node, FiffInfoBase &p_InfoForward)
bool	read_named_matrix (const FiffDirNode::SPtr &p_Node, fiff_int_t matkind, FiffNamedMatrix &mat)
QList< FiffProj >	read_proj (const FiffDirNode::SPtr &p_Node)
bool	read_tag_data (QSharedPointer< FiffTag > &p_pTag, fiff_long_t pos=-1)
fiff_long_t	read_tag_info (QSharedPointer< FiffTag > &p_pTag, bool p_bDoSkip=true)
bool	read_rt_tag (QSharedPointer< FiffTag > &p_pTag)
bool	read_tag (QSharedPointer< FiffTag > &p_pTag, fiff_long_t pos=-1)
fiff_long_t	start_block (fiff_int_t kind)
fiff_long_t	write_tag (const QSharedPointer< FiffTag > &p_pTag, fiff_long_t pos=-1)
fiff_long_t	write_ch_info (const FiffChInfo &ch)
fiff_long_t	write_ch_pos (const FiffChPos &chpos)
fiff_long_t	write_coord_trans (const FiffCoordTrans &trans)
fiff_long_t	write_cov (const FiffCov &p_FiffCov)
fiff_long_t	write_ctf_comp (const QList< FiffCtfComp > &comps)
fiff_long_t	write_dig_point (const FiffDigPoint &dig)
fiff_long_t	write_dir_pointer (fiff_int_t dirpos, fiff_long_t pos=-1, fiff_int_t next=FIFFV_NEXT_SEQ)
fiff_long_t	write_dir_entries (const QList< FiffDirEntry::SPtr > &dir, fiff_long_t pos=-1)
fiff_long_t	write_double (fiff_int_t kind, const double *data, fiff_int_t nel=1)
fiff_long_t	write_id (fiff_int_t kind, const FiffId &id=FiffId::getDefault())
fiff_long_t	write_info_base (const FiffInfoBase &p_FiffInfoBase)
fiff_long_t	write_int (fiff_int_t kind, const fiff_int_t *data, fiff_int_t nel=1, fiff_int_t next=FIFFV_NEXT_SEQ)
fiff_long_t	write_int_matrix (fiff_int_t kind, const Eigen::MatrixXi &mat)
fiff_long_t	write_float (fiff_int_t kind, const float *data, fiff_int_t nel=1)
fiff_long_t	write_float_matrix (fiff_int_t kind, const Eigen::MatrixXf &mat)
fiff_long_t	write_float_sparse_ccs (fiff_int_t kind, const Eigen::SparseMatrix< float > &mat)
fiff_long_t	write_float_sparse_rcs (fiff_int_t kind, const Eigen::SparseMatrix< float > &mat)
fiff_long_t	write_name_list (fiff_int_t kind, const QStringList &data)
fiff_long_t	write_named_matrix (fiff_int_t kind, const FiffNamedMatrix &mat)
fiff_long_t	write_evoked_set (const FiffEvokedSet &p_FiffEvokedSet)
fiff_long_t	write_proj (const QList< FiffProj > &projs)
bool	write_raw_buffer (const Eigen::MatrixXd &buf, const Eigen::RowVectorXd &cals)
bool	write_raw_buffer (const Eigen::MatrixXd &buf, const Eigen::SparseMatrix< double > &mult)
bool	write_raw_buffer (const Eigen::MatrixXd &buf)
fiff_long_t	write_string (fiff_int_t kind, const QString &data)
void	write_rt_command (fiff_int_t command, const QString &data)

Static Public Member Functions
static bool	setup_read_raw (QIODevice &p_IODevice, FiffRawData &data, bool allow_maxshield=true, bool is_littleEndian=false)
static QStringList	split_name_list (QString p_sNameList)
static FiffStream::SPtr	start_file (QIODevice &p_IODevice)
static FiffStream::SPtr	open_update (QIODevice &p_IODevice)
static FiffStream::SPtr	start_writing_raw (QIODevice &p_IODevice, const FiffInfo &info, Eigen::RowVectorXd &cals, Eigen::MatrixXi sel=defaultMatrixXi, bool bResetRange=true)

Detailed Description

FIFF File I/O routines.

FiffStream provides an interface for reading from and writing to fiff files Comparable to: fiffFile (struct *fiffFile,fiffFileRec)

Definition at line 105 of file fiff_stream.h.

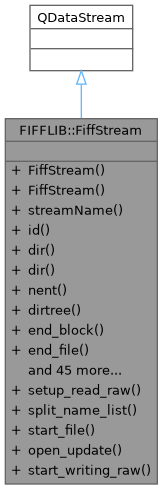

Inheritance diagram for FIFFLIB::FiffStream:

Member Typedef Documentation

◆ ConstSPtr

typedef QSharedPointer<const FiffStream> FIFFLIB::FiffStream::ConstSPtr

Const shared pointer type for FiffStream.

Definition at line 109 of file fiff_stream.h.

◆ SPtr

typedef QSharedPointer<FiffStream> FIFFLIB::FiffStream::SPtr

Shared pointer type for FiffStream.

Definition at line 108 of file fiff_stream.h.

Constructor & Destructor Documentation

◆ FiffStream() [1/2]

FiffStream::FiffStream ( QIODevice * p_pIODevice )

explicit

Constructs a fiff stream that uses the I/O device p_pIODevice.

Parameters

[in] p_pIODevice A fiff IO device like a fiff QFile or QTCPSocket.

Definition at line 91 of file fiff_stream.cpp.

◆ FiffStream() [2/2]

FiffStream::FiffStream	(	QByteArray *	a,
		QIODevice::OpenMode	mode )

explicit

Constructs a fiff stream that operates on a byte array, a. The mode describes how the device is to be used.

Parameters

[in]	a	The byte array.
[in]	mode	The open mode.

Definition at line 101 of file fiff_stream.cpp.

Member Function Documentation

◆ close()

bool FiffStream::close ( )

Close stream

Returns
true if succeeded, false otherwise.

Definition at line 334 of file fiff_stream.cpp.

◆ dir() [1/2]

QList< FiffDirEntry::SPtr > & FiffStream::dir ( )

Returns the directory compiled into a tree dir is set when open() was called.

Returns: the directory.

Definition at line 133 of file fiff_stream.cpp.

◆ dir() [2/2]

const QList< FiffDirEntry::SPtr > & FiffStream::dir ( ) const

Returns the directory compiled into a tree dir is set when open() was called.

Returns: the directory.

Definition at line 140 of file fiff_stream.cpp.

◆ dirtree()

const FiffDirNode::SPtr & FiffStream::dirtree ( ) const

Returns the directory compiled into a tree tree is set when open() was called.

Returns: the compiled directory.

Definition at line 154 of file fiff_stream.cpp.

◆ end_block()

fiff_long_t FiffStream::end_block	(	fiff_int_t	kind,
		fiff_int_t	next = FIFFV_NEXT_SEQ )

Writes a FIFF_BLOCK_END tag

Parameters

[in]	kind	The block kind to end.
[in]	next	Position of the next tag (default = FIFFV_NEXT_SEQ).

Returns: the position where the end block struct was written to.

Definition at line 161 of file fiff_stream.cpp.

◆ end_file()

void FiffStream::end_file ( )

Writes the closing tags to a fif file and closes the file

Definition at line 168 of file fiff_stream.cpp.

◆ finish_writing_raw()

void FiffStream::finish_writing_raw ( )

Finishes a raw file by writing all necessary end tags.

Definition at line 180 of file fiff_stream.cpp.

◆ get_evoked_entries()

bool FiffStream::get_evoked_entries	(	const QList< FiffDirNode::SPtr > &	evoked_node,
		QStringList &	comments,
		QList< fiff_int_t > &	aspect_kinds,
		QString &	t )

Helper to get all evoked entries

Parameters

[in]	evoked_node	evoked tree nodes.
[out]	comments	found comments.
[out]	aspect_kinds	found aspect_kinds.
[out]	t	text formatted found information.

Returns: true if information is available, false otherwise.

Definition at line 190 of file fiff_stream.cpp.

◆ id()

FiffId FiffStream::id ( ) const

Returns the file identifier

Returns: The file identifier.

Definition at line 126 of file fiff_stream.cpp.

◆ make_subtree()

FiffDirNode::SPtr FiffStream::make_subtree ( QList< FiffDirEntry::SPtr > & dentry )

Create the directory tree structure

Parameters

[in] dentry The dir entries of which the tree should be constructed.

Returns: The created dir tree.

Definition at line 344 of file fiff_stream.cpp.

◆ nent()

int FiffStream::nent ( ) const

How many entries?

Returns: The number of directory entries.

Definition at line 147 of file fiff_stream.cpp.

◆ open()

bool FiffStream::open ( QIODevice::OpenModeFlag mode = QIODevice::ReadOnly )

QFile::open

unmask base class open function Opens a fif file and provides the directory of tags

Parameters

[in] mode The open mode (Default = ReadOnly).

Returns: true if succeeded, false otherwise.

Definition at line 247 of file fiff_stream.cpp.

◆ open_update()

FiffStream::SPtr FiffStream::open_update ( QIODevice & p_IODevice )

static

Open fiff file for update

Parameters

[in] p_IODevice The IODevice (like QFile or QTCPSocket) to open. It is recommended that the name ends with .fif.

Returns: The opened file stream.

Definition at line 1947 of file fiff_stream.cpp.

◆ read_bad_channels()

QStringList FiffStream::read_bad_channels ( const FiffDirNode::SPtr & p_Node )

fiff_read_bad_channels

Reads the bad channel list from a node if it exists Note: In difference to mne-matlab this is not a static function. This is a method of the FiffDirNode class, that's why a tree object doesn't need to be handed to the function.

Parameters

[in] p_Node The node of interest.

Returns: the bad channel list.

Definition at line 412 of file fiff_stream.cpp.

◆ read_cov()

bool FiffStream::read_cov	(	const FiffDirNode::SPtr &	p_Node,
		fiff_int_t	cov_kind,
		FiffCov &	p_covData )

mne_read_cov - also for mne_read_noise_cov

Reads a covariance matrix from a fiff file

Parameters

[in]	p_Node	look for the matrix in here.
[in]	cov_kind	what kind of a covariance matrix do we want?.
[in,out]	p_covData	the read covariance matrix.

Returns: true if succeeded, false otherwise.

Definition at line 428 of file fiff_stream.cpp.

◆ read_ctf_comp()

QList< FiffCtfComp > FiffStream::read_ctf_comp	(	const FiffDirNode::SPtr &	p_Node,
		const QList< FiffChInfo > &	p_Chs )

fiff_read_ctf_comp

Read the CTF software compensation data from the given node

Parameters

[in]	p_Node	The node of interest.
[in]	p_Chs	channels with the calibration info.

Returns: the CTF software compensation data.

Definition at line 647 of file fiff_stream.cpp.

◆ read_digitizer_data()

bool FiffStream::read_digitizer_data	(	const FiffDirNode::SPtr &	p_Node,
		FiffDigitizerData &	p_digData )

Reimplemntation of load_digitizer_data (digitizer.c)

Read the digitizer data from the given node.

Parameters

[in]	p_Node	The node of interest.
[out]	p_digData	The read digitizer data.

Returns: true if succeeded, false otherwise.

Definition at line 803 of file fiff_stream.cpp.

◆ read_meas_info()

bool FiffStream::read_meas_info	(	const FiffDirNode::SPtr &	p_Node,
		FiffInfo &	p_Info,
		FiffDirNode::SPtr &	p_NodeInfo )

fiff_read_meas_info

Read the measurement info Source is assumed to be an open fiff file.

Parameters

[in]	p_Node	The node of interest.
[out]	p_Info	The read measurement info.
[out]	p_NodeInfo	The to measurement corresponding fiff_dir_node.

Returns: true if successful.

Definition at line 938 of file fiff_stream.cpp.

◆ read_meas_info_base()

bool FiffStream::read_meas_info_base	(	const FiffDirNode::SPtr &	p_Node,
		FiffInfoBase &	p_InfoForward )

python read_forward_meas_info

Read light measurement info from forward operator.

Parameters

[in]	p_Node	The node of interest.
[out]	p_InfoForward	The read light measurement info.

Returns: true when successful.

Definition at line 869 of file fiff_stream.cpp.

◆ read_named_matrix()

bool FiffStream::read_named_matrix	(	const FiffDirNode::SPtr &	p_Node,
		fiff_int_t	matkind,
		FiffNamedMatrix &	mat )

fiff_read_named_matrix

Reads a named matrix.

Parameters

[in]	p_Node	The node of interest.
[in]	matkind	The matrix kind to look for.
[out]	mat	The named matrix.

Returns: true if succeeded, false otherwise.

Definition at line 1306 of file fiff_stream.cpp.

◆ read_proj()

QList< FiffProj > FiffStream::read_proj ( const FiffDirNode::SPtr & p_Node )

Read the SSP data under a given directory node

Parameters

[in] p_Node The node of interest.

Returns: a list of SSP projectors.

Definition at line 1408 of file fiff_stream.cpp.

◆ read_rt_tag()

bool FiffStream::read_rt_tag ( QSharedPointer< FiffTag > & p_pTag )

Read one tag from a fif real-time stream. difference to the other read tag functions is: that this function has blocking behaviour (waitForReadyRead)

Parameters

[out] p_pTag the read tag.

Returns: true if succeeded, false otherwise.

Definition at line 1634 of file fiff_stream.cpp.

◆ read_tag()

bool FiffStream::read_tag	(	QSharedPointer< FiffTag > &	p_pTag,
		fiff_long_t	pos = -1 )

Read one tag from a fif file. if pos is not provided, reading starts from the current file position

Parameters

[out]	p_pTag	the read tag.
[in]	pos	position of the tag inside the fif file.

Returns: true if succeeded, false otherwise.

Definition at line 1654 of file fiff_stream.cpp.

◆ read_tag_data()

bool FiffStream::read_tag_data	(	QSharedPointer< FiffTag > &	p_pTag,
		fiff_long_t	pos = -1 )

Read tag data from a fif file. if pos is not provided, reading starts from the current file position

Parameters

[out]	p_pTag	the read tag.
[in]	pos	position of the tag inside the fif file.

Returns: true if succeeded, false otherwise.

Definition at line 1554 of file fiff_stream.cpp.

◆ read_tag_info()

fiff_long_t FiffStream::read_tag_info	(	QSharedPointer< FiffTag > &	p_pTag,
		bool	p_bDoSkip = true )

Read tag information of one tag from a fif file. if pos is not provided, reading starts from the current file position

Parameters

[out]	p_pTag	the read tag info.
[in]	p_bDoSkip	if true it skips the data of the tag (optional, default = true).

Returns: the position where the tag info was read from.

Definition at line 1581 of file fiff_stream.cpp.

◆ setup_read_raw()

bool FiffStream::setup_read_raw	(	QIODevice &	p_IODevice,
		FiffRawData &	data,
		bool	allow_maxshield = true,
		bool	is_littleEndian = false )

static

fiff_setup_read_raw

Read information about raw data file

Parameters

[in]	p_IODevice	An fiff IO device like a fiff QFile or QTCPSocket.
[out]	data	The raw data information - contains the opened fiff file.
[in]	allow_maxshield	Accept unprocessed MaxShield data.

Returns: true if succeeded, false otherwise.

Definition at line 1703 of file fiff_stream.cpp.

◆ split_name_list()

QStringList FiffStream::split_name_list ( QString p_sNameList )

static

fiff_split_name_list

Splits a string by looking for seperator ":"

Parameters

[in] p_sNameList string to split.

Returns: the splitted string list.

Definition at line 1906 of file fiff_stream.cpp.

◆ start_block()

fiff_long_t FiffStream::start_block ( fiff_int_t kind )

Writes a FIFF_BLOCK_START tag

Parameters

[in] kind The block kind to start.

Returns: the position where the start block struct was written to.

Definition at line 1913 of file fiff_stream.cpp.

◆ start_file()

FiffStream::SPtr FiffStream::start_file ( QIODevice & p_IODevice )

static

Opens a fiff file for writing and writes the compulsory header tags

Parameters

[in] p_IODevice The IODevice (like QFile or QTCPSocket) to open. It is recommended that the name ends with .fif.

Returns: The opened file.

Definition at line 1920 of file fiff_stream.cpp.

◆ start_writing_raw()

FiffStream::SPtr FiffStream::start_writing_raw	(	QIODevice &	p_IODevice,
		const FiffInfo &	info,
		Eigen::RowVectorXd &	cals,
		Eigen::MatrixXi	sel = defaultMatrixXi,
		bool	bResetRange = true )

static

fiff_start_writing_raw

function [fid,cals] = fiff_start_writing_raw(name,info,sel)

Parameters

[in]	p_IODevice	A fiff IO device like a fiff QFile or QTCPSocket.
[in]	info	The measurement info block of the source file.
[out]	cals	A copy of the calibration values.
[in]	sel	Which channels will be included in the output file (optional).
[in]	bResetRange	Flag whether to reset the channel range to 1.0. Default is true.

Returns: the started fiff file.

Definition at line 2013 of file fiff_stream.cpp.

◆ streamName()

QString FiffStream::streamName ( )

Get the stream name

Returns: the name of the current stream.

Definition at line 112 of file fiff_stream.cpp.

◆ write_ch_info()

fiff_long_t FiffStream::write_ch_info ( const FiffChInfo & ch )

Writes a channel information record to a fif file The type, cal, unit, and pos members are explained in Table 9.5 of the MNE manual

Parameters

[in] ch The channel information structure to write.

Returns: the position where the channel info struct was written to.

Definition at line 2228 of file fiff_stream.cpp.

◆ write_ch_pos()

fiff_long_t FiffStream::write_ch_pos ( const FiffChPos & chpos )

Writes a channel position to a fif file

Parameters

[in] chpos Channel position structure to write.

Returns: the position where the channel position struct was written to.

Definition at line 2304 of file fiff_stream.cpp.

◆ write_coord_trans()

fiff_long_t FiffStream::write_coord_trans ( const FiffCoordTrans & trans )

Writes a coordinate transformation structure

Parameters

[in] trans The coordinate transfomation structure.

Returns: the position where the coordinate transformation struct was written to.

Definition at line 2332 of file fiff_stream.cpp.

◆ write_cov()

fiff_long_t FiffStream::write_cov ( const FiffCov & p_FiffCov )

Write a noise covariance matrix

Parameters

[in] p_FiffCov The noise covariance matrix to write.

Returns: the position where the covaraince was written to.

Definition at line 2381 of file fiff_stream.cpp.

◆ write_ctf_comp()

fiff_long_t FiffStream::write_ctf_comp ( const QList< FiffCtfComp > & comps )

fiff_write_ctf_comp

Writes the CTF compensation data into a fif file

Parameters

[in] comps The compensation data to write.

Returns: the position where the ctf compensators struct was written to.

Definition at line 2454 of file fiff_stream.cpp.

◆ write_dig_point()

fiff_long_t FiffStream::write_dig_point ( const FiffDigPoint & dig )

fiff_write_dig_point

Writes a digitizer data point into a fif file

Parameters

[in] dig The point to write.

Returns: the position where the digitizer points struct was written to.

Definition at line 2492 of file fiff_stream.cpp.

◆ write_dir_entries()

fiff_long_t FiffStream::write_dir_entries	(	const QList< FiffDirEntry::SPtr > &	dir,
		fiff_long_t	pos = -1 )

Writes a list of dir entries to a fif file, as a FIFFT_DIR_ENTRY_STRUCT Returns the postion where the structure was written to.

Parameters

[in]	dir	The dir entries to write.
[in]	pos	the position where the entires should be written to (default -1, i.e. end of the file).

Returns: the position where the directory entries struct was written to.

Directories are composed of these structures. * typedef struct _fiffDirEntryRec { fiff_int_t kind; /**< Tag number * fiff_int_t type; /**< Data type * fiff_int_t size; /**< How many bytes * fiff_int_t pos; /**< Location in file Note: the data is located at pos + FIFFC_DATA_OFFSET * } fiffDirEntryRec,*fiffDirEntry;/**< Directory is composed of these *

/*
   Write entires to specified position

Definition at line 2552 of file fiff_stream.cpp.

◆ write_dir_pointer()

fiff_long_t FiffStream::write_dir_pointer	(	fiff_int_t	dirpos,
		fiff_long_t	pos = -1,
		fiff_int_t	next = FIFFV_NEXT_SEQ )

Writes directory position pointer FIFF_DIR_POINTER Returns the postion where the structure was written to.

Parameters

[in]	dirpos	The directory position pointer.
[in]	pos	the position where the directory pointer should be written to (default -1, i.e. end of the file).
[in]	next	Position of the next tag (default = FIFFV_NEXT_SEQ).

Returns: the position where the directory position pointer was written to.

Definition at line 2523 of file fiff_stream.cpp.

◆ write_double()

fiff_long_t FiffStream::write_double	(	fiff_int_t	kind,
		const double *	data,
		fiff_int_t	nel = 1 )

Writes a double-precision floating point tag to a fif file

Parameters

[in]	kind	Tag kind.
[in]	data	The float data pointer.
[in]	nel	Number of doubles to write (default = 1).

Returns: the position where the double struct was written to.

Definition at line 2601 of file fiff_stream.cpp.

◆ write_evoked_set()

fiff_long_t FiffStream::write_evoked_set ( const FiffEvokedSet & p_FiffEvokedSet )

fiff_write_evoked_set

Writes a complete evoked data set to a fif stream (file). This writes FIFFB_MEAS containing measurement info and one FIFFB_EVOKED/FIFFB_ASPECT block per evoked response.

Parameters

[in] p_FiffEvokedSet The evoked data set to write.

Returns: the position where the evoked set was written to, or -1 on failure.

Definition at line 3085 of file fiff_stream.cpp.

◆ write_float()

fiff_long_t FiffStream::write_float	(	fiff_int_t	kind,
		const float *	data,
		fiff_int_t	nel = 1 )

Writes a single-precision floating point tag to a fif file

Parameters

[in]	kind	Tag kind.
[in]	data	The float data pointer.
[in]	nel	Number of floats to write (default = 1).

Returns: the position where the float struct was written to.

Definition at line 2620 of file fiff_stream.cpp.

◆ write_float_matrix()

fiff_long_t FiffStream::write_float_matrix	(	fiff_int_t	kind,
		const Eigen::MatrixXf &	mat )

Writes a single-precision floating-point matrix tag

Parameters

[in]	kind	The tag kind.
[in]	mat	The data matrix.

Returns: the position where the float matrix struct was written to.

Definition at line 2639 of file fiff_stream.cpp.

◆ write_float_sparse_ccs()

fiff_long_t FiffStream::write_float_sparse_ccs	(	fiff_int_t	kind,
		const Eigen::SparseMatrix< float > &	mat )

fiff_write_float_sparse_ccs

Writes a single-precision sparse (ccs) floating-point matrix tag

Parameters

[in]	kind	The tag kind.
[in]	mat	The data matrix.

Returns: the position where the float sparse ccs matrix struct was written to.

Definition at line 2671 of file fiff_stream.cpp.

◆ write_float_sparse_rcs()

fiff_long_t FiffStream::write_float_sparse_rcs	(	fiff_int_t	kind,
		const Eigen::SparseMatrix< float > &	mat )

fiff_write_float_sparse_rcs

Writes a single-precision sparse (RCS) floating-point matrix tag

Parameters

[in]	kind	The tag kind.
[in]	mat	The data matrix.

Returns: the position where the float sparse rcs matrix struct was written to.

Definition at line 2764 of file fiff_stream.cpp.

◆ write_id()

fiff_long_t FiffStream::write_id	(	fiff_int_t	kind,
		const FiffId &	id = FiffId::getDefault() )

Writes fiff id If the id argument is missing it will be generated here

Parameters

[in]	kind	The tag kind.
[in]	id	The id to write.

Returns: the position where the file id struct was written to.

Definition at line 2863 of file fiff_stream.cpp.

◆ write_info_base()

fiff_long_t FiffStream::write_info_base ( const FiffInfoBase & p_FiffInfoBase )

Write measurement info stored in forward solution

Parameters

[in] p_FiffInfoBase The measurement info.

Returns: the position where the info base struct was written to.

Definition at line 2902 of file fiff_stream.cpp.

◆ write_int()

fiff_long_t FiffStream::write_int	(	fiff_int_t	kind,
		const fiff_int_t *	data,
		fiff_int_t	nel = 1,
		fiff_int_t	next = FIFFV_NEXT_SEQ )

Writes a 32-bit integer tag to a fif file

Parameters

[in]	kind	Tag kind.
[in]	data	The integer data pointer.
[in]	nel	Number of integers to write (default = 1).
[in]	next	Position of the next tag (default = FIFFV_NEXT_SEQ).

Returns: the position where the int was written to.

Definition at line 2969 of file fiff_stream.cpp.

◆ write_int_matrix()

fiff_long_t FiffStream::write_int_matrix	(	fiff_int_t	kind,
		const Eigen::MatrixXi &	mat )

fiff_write_int_matrix

Writes a integer matrix tag

Parameters

[in]	kind	The tag kind.
[in]	mat	The data matrix.

Returns: the position where the write_int_matrix was written to.

Definition at line 2988 of file fiff_stream.cpp.

◆ write_name_list()

fiff_long_t FiffStream::write_name_list	(	fiff_int_t	kind,
		const QStringList &	data )

fiff_write_name_list

Writes a colon-separated list of names

Parameters

[in]	kind	The tag kind.
[in]	data	An array of names to create the list from.

Returns: the position where the name list struct was written to.

Definition at line 3023 of file fiff_stream.cpp.

◆ write_named_matrix()

fiff_long_t FiffStream::write_named_matrix	(	fiff_int_t	kind,
		const FiffNamedMatrix &	mat )

fiff_write_named_matrix

Writes a named single-precision floating-point matrix

Parameters

[in]	kind	The tag kind to use for the data.
[in]	mat	The data matrix.

Returns: the position where the named matrix struct was written to.

Definition at line 3031 of file fiff_stream.cpp.

◆ write_proj()

fiff_long_t FiffStream::write_proj ( const QList< FiffProj > & projs )

fiff_write_proj

Writes the projection data into a fif stream (file)

Parameters

[in] projs The compensation data to write.

Returns: the position where the projector struct was written to.

Definition at line 3050 of file fiff_stream.cpp.

◆ write_raw_buffer() [1/3]

bool FIFFLIB::FiffStream::write_raw_buffer ( const Eigen::MatrixXd & buf )

fiff_write_raw_buffer

Writes a raw buffer without calibrations.

Parameters

[in] buf the buffer to write.

Returns: true if succeeded, false otherwise.

◆ write_raw_buffer() [2/3]

bool FIFFLIB::FiffStream::write_raw_buffer	(	const Eigen::MatrixXd &	buf,
		const Eigen::RowVectorXd &	cals )

fiff_write_raw_buffer

Writes a raw buffer.

Parameters

[in]	buf	the buffer to write.
[in]	cals	calibration factors.

Returns: true if succeeded, false otherwise.

◆ write_raw_buffer() [3/3]

bool FIFFLIB::FiffStream::write_raw_buffer	(	const Eigen::MatrixXd &	buf,
		const Eigen::SparseMatrix< double > &	mult )

fiff_write_raw_buffer

Writes a raw buffer.

Parameters

[in]	buf	the buffer to write.
[in]	mult	the used multiplication matrix consisting out of projection,calibration and compensation.

Returns: true if succeeded, false otherwise.

◆ write_rt_command()

void FiffStream::write_rt_command	(	fiff_int_t	command,
		const QString &	data )

Writes a real-time command

Parameters

[in]	command	The real time command.
[in]	data	The string data to write.

Definition at line 3212 of file fiff_stream.cpp.

◆ write_string()

fiff_long_t FiffStream::write_string	(	fiff_int_t	kind,
		const QString &	data )

Writes a string tag

Parameters

[in]	kind	The tag kind.
[in]	data	The string data to write.

Returns: the position where the string struct was written to.

Definition at line 3194 of file fiff_stream.cpp.

◆ write_tag()

fiff_long_t FiffStream::write_tag	(	const QSharedPointer< FiffTag > &	p_pTag,
		fiff_long_t	pos = -1 )

Write one tag to file including its data Data is not written if it is nullptr

Parameters

[in]	p_pTag	Tag to write;.
[in]	pos	the position where the entires should be written to (default -1, i.e. end of the file).

Returns: the position where the tag struct was written to.

Definition at line 2191 of file fiff_stream.cpp.

The documentation for this class was generated from the following files:

src/libraries/fiff/fiff_stream.h
src/libraries/fiff/fiff_stream.cpp

Public Types

Public Member Functions

Static Public Member Functions

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ FiffStream() [1/2]

◆ FiffStream() [2/2]

Member Function Documentation

◆ close()

◆ dir() [1/2]

◆ dir() [2/2]

◆ dirtree()

◆ end_block()

◆ end_file()

◆ finish_writing_raw()

◆ get_evoked_entries()

◆ id()

◆ make_subtree()

◆ nent()

◆ open()

◆ open_update()

◆ read_bad_channels()

◆ read_cov()

◆ read_ctf_comp()

◆ read_digitizer_data()

◆ read_meas_info()

◆ read_meas_info_base()

◆ read_named_matrix()

◆ read_proj()

◆ read_rt_tag()

◆ read_tag()

◆ read_tag_data()

◆ read_tag_info()

◆ setup_read_raw()

◆ split_name_list()

◆ start_block()

◆ start_file()

◆ start_writing_raw()

◆ streamName()

◆ write_ch_info()

◆ write_ch_pos()

◆ write_coord_trans()

◆ write_cov()

◆ write_ctf_comp()

◆ write_dig_point()

◆ write_dir_entries()

◆ write_dir_pointer()

◆ write_double()

◆ write_evoked_set()

◆ write_float()

◆ write_float_matrix()

◆ write_float_sparse_ccs()

◆ write_float_sparse_rcs()

◆ write_id()

◆ write_info_base()

◆ write_int()

◆ write_int_matrix()

◆ write_name_list()

◆ write_named_matrix()

◆ write_proj()

◆ write_raw_buffer() [1/3]

◆ write_raw_buffer() [2/3]

◆ write_raw_buffer() [3/3]

◆ write_rt_command()

◆ write_string()

◆ write_tag()
