Digitizer point group tree item. More...

#include <digitizertreeitem.h>

Public Types
enum	PointKind { Cardinal = 0 , HPI , EEG , Extra }
Public Types inherited from AbstractTreeItem
enum	ItemRole { TypeRole = Qt::UserRole + 100 , VisibleRole , TransformRole , ColorRole , AlphaRole }
enum	ItemType { AbstractItem = 0 , SurfaceItem , BemItem , SensorItem , DipoleItem , SourceSpaceItem , DigitizerItem , NetworkItem }

Public Member Functions
	DigitizerTreeItem (const QString &text, PointKind kind, const QVector< QVector3D > &positions, const QStringList &names, const QColor &color, float scale, int type=AbstractTreeItem::DigitizerItem)
	~DigitizerTreeItem ()=default
const QVector< QVector3D > &	positions () const
const QStringList &	pointNames () const
float	scale () const
PointKind	pointKind () const
Public Member Functions inherited from AbstractTreeItem
	AbstractTreeItem (const QString &text="", int type=AbstractItem)
virtual	~AbstractTreeItem ()=default
int	type () const override
void	setVisible (bool visible)
bool	isVisible () const
void	setTransform (const QMatrix4x4 &transform)
QMatrix4x4	transform () const
void	setColor (const QColor &color)
QColor	color () const
void	setAlpha (float alpha)
float	alpha () const

Additional Inherited Members
Static Public Member Functions inherited from AbstractTreeItem
static constexpr int	itemTypeId (ItemType type)
Protected Attributes inherited from AbstractTreeItem
int	m_type

Detailed Description

Digitizer point group tree item.

DigitizerTreeItem represents a group of digitizer points of the same category (Cardinal, HPI, EEG, Extra) in the tree model. Each item stores batched 3D positions for efficient rendering as a single mesh with replicated sphere geometry.

This matches the disp3D DigitizerTreeItem pattern using per-category grouping with color-coded sphere rendering.

Definition at line 62 of file digitizertreeitem.h.

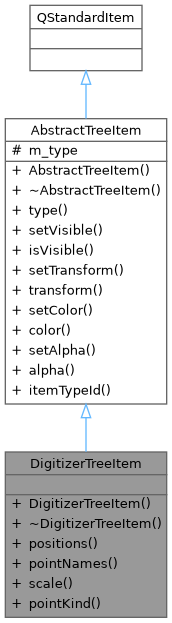

Inheritance diagram for DigitizerTreeItem:

Member Enumeration Documentation

◆ PointKind

enum DigitizerTreeItem::PointKind

Digitizer point category, matching FIFF digitizer point kinds.

Enumerator
Cardinal	Cardinal (fiducial) points: Nasion, LPA, RPA.
HPI	HPI (Head Position Indicator) coil positions.
EEG	EEG electrode positions.
Extra	Extra head shape digitization points.

Definition at line 68 of file digitizertreeitem.h.

Constructor & Destructor Documentation

◆ DigitizerTreeItem()

DigitizerTreeItem::DigitizerTreeItem	(	const QString &	text,
		PointKind	kind,
		const QVector< QVector3D > &	positions,
		const QStringList &	names,
		const QColor &	color,
		float	scale,
		int	type = AbstractTreeItem::DigitizerItem )

explicit

Constructs a DigitizerTreeItem for a single category of digitizer points.

Parameters

[in]	text	Display text for the item (e.g. "Cardinal", "HPI", "EEG", "Extra").
[in]	kind	The digitizer point category.
[in]	positions	3D positions of all points in this category (in meters).
[in]	names	Display names for individual points (e.g. "Nasion", "LPA").
[in]	color	Color for rendering this category.
[in]	scale	Radius of each rendered sphere.
[in]	type	Item type identifier.

Definition at line 47 of file digitizertreeitem.cpp.

◆ ~DigitizerTreeItem()

DigitizerTreeItem::~DigitizerTreeItem ( )

default

Member Function Documentation

◆ pointKind()

DigitizerTreeItem::PointKind DigitizerTreeItem::pointKind ( ) const

Returns the digitizer point category.

Returns: Point kind enum value.

Definition at line 86 of file digitizertreeitem.cpp.

◆ pointNames()

const QStringList & DigitizerTreeItem::pointNames ( ) const

Returns the display names for individual points.

Returns: List of point names.

Definition at line 72 of file digitizertreeitem.cpp.

◆ positions()

const QVector< QVector3D > & DigitizerTreeItem::positions ( ) const

Returns all point positions in this category.

Returns: Vector of 3D position vectors.

Definition at line 65 of file digitizertreeitem.cpp.

◆ scale()

float DigitizerTreeItem::scale ( ) const

Returns the rendering scale (sphere radius).

Returns: Scale value in meters.

Definition at line 79 of file digitizertreeitem.cpp.

The documentation for this class was generated from the following files:

src/libraries/disp3D/model/items/digitizertreeitem.h
src/libraries/disp3D/model/items/digitizertreeitem.cpp
