Hemisphere provides geometry information. More...

#include <mne_hemisphere.h>

Public Types
using	SPtr = std::shared_ptr<MNEHemisphere>
using	ConstSPtr = std::shared_ptr<const MNEHemisphere>
Public Types inherited from MNELIB::MNESourceSpace
using	SPtr = std::shared_ptr<MNESourceSpace>
using	ConstSPtr = std::shared_ptr<const MNESourceSpace>
Public Types inherited from MNELIB::MNESurfaceOrVolume
typedef QSharedPointer< MNESurfaceOrVolume >	SPtr
typedef QSharedPointer< const MNESurfaceOrVolume >	ConstSPtr
typedef Eigen::Matrix< float, Eigen::Dynamic, 3, Eigen::RowMajor >	PointsT
typedef Eigen::Matrix< float, Eigen::Dynamic, 3, Eigen::RowMajor >	NormalsT
typedef Eigen::Matrix< int, Eigen::Dynamic, 3, Eigen::RowMajor >	TrianglesT

Public Member Functions
	MNEHemisphere ()
	MNEHemisphere (const MNEHemisphere &p_MNEHemisphere)
	~MNEHemisphere () override
MNESourceSpace::SPtr	clone () const override
bool	add_geometry_info ()
bool	complete_source_space_info ()
bool	compute_patch_info ()
void	clear ()
Eigen::MatrixXf &	getTriCoords (float p_fScaling=1.0f)
bool	isClustered () const
bool	transform_hemisphere_to (FIFFLIB::fiff_int_t dest, const FIFFLIB::FiffCoordTrans &p_Trans)
void	writeToStream (FIFFLIB::FiffStream *p_pStream)
MNEHemisphere &	operator= (const MNEHemisphere &other)
Public Member Functions inherited from MNELIB::MNESourceSpace
	MNESourceSpace (int np=0)
	~MNESourceSpace () override
void	enable_all_sources ()
int	is_left_hemi () const
qint32	find_source_space_hemi () const
void	update_inuse (Eigen::VectorXi new_inuse)
int	transform_source_space (const FIFFLIB::FiffCoordTrans &t)
int	add_patch_stats ()
void	rearrange_source_space ()
Public Member Functions inherited from MNELIB::MNESurfaceOrVolume
	MNESurfaceOrVolume ()
	Constructs the MNE Surface or Volume.
virtual	~MNESurfaceOrVolume ()
	Destroys the MNE Surface or Volume description.
	MNESurfaceOrVolume (const MNESurfaceOrVolume &)=default
MNESurfaceOrVolume &	operator= (const MNESurfaceOrVolume &)=default
	MNESurfaceOrVolume (MNESurfaceOrVolume &&)=default
MNESurfaceOrVolume &	operator= (MNESurfaceOrVolume &&)=default
void	add_uniform_curv ()
void	add_triangle_data ()
void	compute_surface_cm ()
void	calculate_vertex_distances ()
int	add_vertex_normals ()
int	add_geometry_info (int do_normals, int check_too_many_neighbors)
int	add_geometry_info (int do_normals)
int	add_geometry_info2 (int do_normals)
Eigen::VectorXi	nearestVertIdx () const
Eigen::VectorXd	nearestDistVec () const
void	setNearestData (const Eigen::VectorXi &nearestIdx, const Eigen::VectorXd &nearestDist)

Public Attributes
QList< Eigen::VectorXi >	pinfo
Eigen::VectorXi	patch_inds
Eigen::MatrixX3d	tri_cent
Eigen::MatrixX3d	tri_nn
Eigen::VectorXd	tri_area
Eigen::MatrixX3d	use_tri_cent
Eigen::MatrixX3d	use_tri_nn
Eigen::VectorXd	use_tri_area
MNEClusterInfo	cluster_info
Public Attributes inherited from MNELIB::MNESurfaceOrVolume
int	type
QString	subject
int	id
int	coord_frame
std::optional< MNEVolGeom >	vol_geom
std::optional< MNEMghTagGroup >	mgh_tags
int	np
PointsT	rr
NormalsT	nn
float	cm [3]
Eigen::VectorXi	inuse
Eigen::VectorXi	vertno
int	nuse
std::vector< Eigen::VectorXi >	neighbor_vert
Eigen::VectorXi	nneighbor_vert
std::vector< Eigen::VectorXf >	vert_dist
float	sigma
int	ntri
std::vector< MNETriangle >	tris
TrianglesT	itris
float	tot_area
int	nuse_tri
std::vector< MNETriangle >	use_tris
TrianglesT	use_itris
std::vector< Eigen::VectorXi >	neighbor_tri
Eigen::VectorXi	nneighbor_tri
std::vector< MNENearest >	nearest
std::vector< std::optional< MNEPatchInfo > >	patches
FIFFLIB::FiffSparseMatrix	dist
float	dist_limit
Eigen::VectorXf	curv
Eigen::VectorXf	val
std::optional< FIFFLIB::FiffCoordTrans >	voxel_surf_RAS_t
int	vol_dims [3]
float	voxel_size [3]
std::optional< FIFFLIB::FiffSparseMatrix >	interpolator
QString	MRI_volume
std::optional< FIFFLIB::FiffCoordTrans >	MRI_voxel_surf_RAS_t
std::optional< FIFFLIB::FiffCoordTrans >	MRI_surf_RAS_RAS_t
int	MRI_vol_dims [3]

Friends
bool	operator== (const MNEHemisphere &a, const MNEHemisphere &b)

Additional Inherited Members
Static Public Member Functions inherited from MNELIB::MNESourceSpace
static std::unique_ptr< MNESourceSpace >	create_source_space (int np)
static std::unique_ptr< MNESourceSpace >	load_surface (const QString &surf_file, const QString &curv_file)
static std::unique_ptr< MNESourceSpace >	load_surface_geom (const QString &surf_file, const QString &curv_file, int add_geometry, int check_too_many_neighbors)
static MNESourceSpace *	make_volume_source_space (const MNESurface &surf, float grid, float exclude, float mindist)
static int	filter_source_spaces (const MNESurface &surf, float limit, const FIFFLIB::FiffCoordTrans &mri_head_t, std::vector< std::unique_ptr< MNESourceSpace > > &spaces, QTextStream *filtered)
static void	filter_source_space (FilterThreadArg *arg)
static int	filter_source_spaces (float limit, const QString &bemfile, const FIFFLIB::FiffCoordTrans &mri_head_t, std::vector< std::unique_ptr< MNESourceSpace > > &spaces, QTextStream *filtered, bool use_threads)
static int	read_source_spaces (const QString &name, std::vector< std::unique_ptr< MNESourceSpace > > &spaces)
static int	transform_source_spaces_to (int coord_frame, const FIFFLIB::FiffCoordTrans &t, std::vector< std::unique_ptr< MNESourceSpace > > &spaces)
static int	restrict_sources_to_labels (std::vector< std::unique_ptr< MNESourceSpace > > &spaces, const QStringList &labels, int nlabel)
static int	read_label (const QString &label, Eigen::VectorXi &sel)
Static Public Member Functions inherited from MNELIB::MNESurfaceOrVolume
static double	solid_angle (const Eigen::Vector3f &from, const MNELIB::MNETriangle &tri)
static void	compute_cm (const PointsT &rr, int np, float(&cm)[3])

Detailed Description

Hemisphere provides geometry information.

Hemisphere source space geometry information

Definition at line 82 of file mne_hemisphere.h.

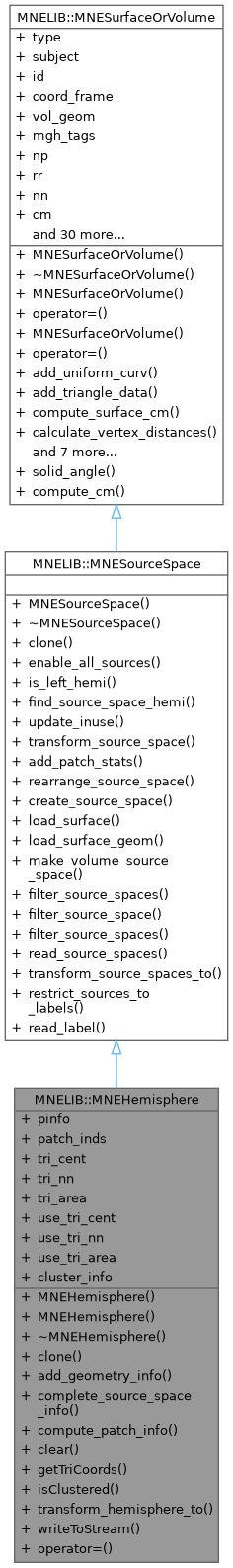

Inheritance diagram for MNELIB::MNEHemisphere:

Member Typedef Documentation

◆ ConstSPtr

using MNELIB::MNEHemisphere::ConstSPtr = std::shared_ptr<const MNEHemisphere>

Const shared pointer type for MNEHemisphere.

Definition at line 86 of file mne_hemisphere.h.

◆ SPtr

using MNELIB::MNEHemisphere::SPtr = std::shared_ptr<MNEHemisphere>

Shared pointer type for MNEHemisphere.

Definition at line 85 of file mne_hemisphere.h.

Constructor & Destructor Documentation

◆ MNEHemisphere() [1/2]

MNEHemisphere::MNEHemisphere ( )

Constructors the hemisphere source space.

Definition at line 61 of file mne_hemisphere.cpp.

◆ MNEHemisphere() [2/2]

MNEHemisphere::MNEHemisphere ( const MNEHemisphere & p_MNEHemisphere )

Copy constructor.

Parameters

[in] p_MNEHemisphere Hemisphere source space which should be copied.

Definition at line 86 of file mne_hemisphere.cpp.

◆ ~MNEHemisphere()

MNEHemisphere::~MNEHemisphere ( )

override

Destroys the hemisphere source space.

Definition at line 166 of file mne_hemisphere.cpp.

Member Function Documentation

◆ add_geometry_info()

bool MNEHemisphere::add_geometry_info ( )

Add vertex normals and neighbourhood information

Parameters

[in,out] p_pHemisphere Hemisphere to be completed.

Returns: true if succeeded, false otherwise.

Definition at line 351 of file mne_hemisphere.cpp.

◆ clear()

void MNEHemisphere::clear ( )

Initializes the hemisphere source space.

Definition at line 407 of file mne_hemisphere.cpp.

◆ clone()

MNESourceSpace::SPtr MNEHemisphere::clone ( ) const

overridevirtual

Creates a deep copy of this hemisphere, preserving the MNEHemisphere type.

Returns: a shared_ptr<MNESourceSpace> pointing to a cloned MNEHemisphere.

Reimplemented from MNELIB::MNESourceSpace.

Definition at line 172 of file mne_hemisphere.cpp.

◆ complete_source_space_info()

bool MNEHemisphere::complete_source_space_info ( )

Complete triangulation information (triangle centers, normals, areas) for both the main and use triangulations.

Returns: true if succeeded, false otherwise.

Definition at line 179 of file mne_hemisphere.cpp.

◆ compute_patch_info()

bool MNEHemisphere::compute_patch_info ( )

Compute patch statistics from the nearest-vertex data. Fills pinfo (per-patch vertex lists) and patch_inds (patch index per vertex).

Returns: true if patch info was computed, false if nearest data is empty.

Definition at line 278 of file mne_hemisphere.cpp.

◆ getTriCoords()

MatrixXf & MNEHemisphere::getTriCoords ( float p_fScaling = 1.0f )

Qt 3d geometry information. Data are generated within first call.

Parameters

[in] p_fScaling Scale factor of the returned geometry tri model.

Returns: the geometry model.

Definition at line 448 of file mne_hemisphere.cpp.

◆ isClustered()

bool MNELIB::MNEHemisphere::isClustered ( ) const

inline

is hemisphere clustered?

Returns: true if hemisphere is clustered, false otherwise.

Definition at line 250 of file mne_hemisphere.h.

◆ operator=()

MNEHemisphere & MNEHemisphere::operator= ( const MNEHemisphere & other )

Copy assignment operator.

Parameters

[in] other The MNEHemisphere to assign from.

Returns: Reference to this object.

Definition at line 122 of file mne_hemisphere.cpp.

◆ transform_hemisphere_to()

bool MNEHemisphere::transform_hemisphere_to	(	FIFFLIB::fiff_int_t	dest,
		const FIFFLIB::FiffCoordTrans &	p_Trans )

mne_transform_source_space_to

MNE toolbox root function

Definition of the mne_transform_source_space_to for a single hemisphere function Transform source space data to the desired coordinate system.

Parameters

[in]	dest	The id of the destination coordinate system (FIFFV_COORD_...).
[in]	p_Trans	The coordinate transformation structure to use.

Returns: true if succeeded, false otherwise.

Definition at line 468 of file mne_hemisphere.cpp.

◆ writeToStream()

void MNEHemisphere::writeToStream ( FIFFLIB::FiffStream * p_pStream )

mne_python _write_one_source_space

MNE toolbox root function

Write the hemisphere to a FIF stream

Parameters

[in] p_pStream The stream to write to.

Definition at line 502 of file mne_hemisphere.cpp.

◆ operator==

bool operator==	(	const MNEHemisphere &	a,
		const MNEHemisphere &	b )

friend

Overloaded == operator to compare an object to this instance.

Parameters

[in] object The object which should be compared to.

Returns: true if equal, false otherwise.

Definition at line 257 of file mne_hemisphere.h.

Member Data Documentation

◆ cluster_info

MNEClusterInfo MNELIB::MNEHemisphere::cluster_info

Holds the cluster information.

Definition at line 240 of file mne_hemisphere.h.

◆ patch_inds

Eigen::VectorXi MNELIB::MNEHemisphere::patch_inds

List of neighboring vertices in the high resolution triangulation.

Definition at line 230 of file mne_hemisphere.h.

◆ pinfo

QList<Eigen::VectorXi> MNELIB::MNEHemisphere::pinfo

Patch information (using option -cps during mne_setup_source_space).

Definition at line 229 of file mne_hemisphere.h.

◆ tri_area

Eigen::VectorXd MNELIB::MNEHemisphere::tri_area

Triangle areas.

Definition at line 235 of file mne_hemisphere.h.

◆ tri_cent

Eigen::MatrixX3d MNELIB::MNEHemisphere::tri_cent

Triangle centers.

Definition at line 233 of file mne_hemisphere.h.

◆ tri_nn

Eigen::MatrixX3d MNELIB::MNEHemisphere::tri_nn

Triangle normals.

Definition at line 234 of file mne_hemisphere.h.

◆ use_tri_area

Eigen::VectorXd MNELIB::MNEHemisphere::use_tri_area

Triangle areas of used triangles.

Definition at line 238 of file mne_hemisphere.h.

◆ use_tri_cent

Eigen::MatrixX3d MNELIB::MNEHemisphere::use_tri_cent

Triangle centers of used triangles.

Definition at line 236 of file mne_hemisphere.h.

◆ use_tri_nn

Eigen::MatrixX3d MNELIB::MNEHemisphere::use_tri_nn

Triangle normals of used triangles.

Definition at line 237 of file mne_hemisphere.h.

The documentation for this class was generated from the following files:

src/libraries/mne/mne_hemisphere.h
src/libraries/mne/mne_hemisphere.cpp

Public Types

Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConstSPtr

◆ SPtr

Constructor & Destructor Documentation

◆ MNEHemisphere() [1/2]

◆ MNEHemisphere() [2/2]

◆ ~MNEHemisphere()

Member Function Documentation

◆ add_geometry_info()

◆ clear()

◆ clone()

◆ complete_source_space_info()

◆ compute_patch_info()

◆ getTriCoords()

◆ isClustered()

◆ operator=()

◆ transform_hemisphere_to()

MNE toolbox root function

◆ writeToStream()

MNE toolbox root function

Friends And Related Symbol Documentation

◆ operator==

Member Data Documentation

◆ cluster_info

◆ patch_inds

◆ pinfo

◆ tri_area

◆ tri_cent

◆ tri_nn

◆ use_tri_area

◆ use_tri_cent

◆ use_tri_nn
