DISPLIB::ChannelLabelPanel Class Reference

Vertical column of channel-name labels synced with ChannelDataView row geometry. More...

#include <channellabelpanel.h>

Signals
void	channelScrollRequested (int targetFirst)
void	channelBadToggled (int channelIndex, bool bad)

Public Member Functions
	ChannelLabelPanel (QWidget *parent=nullptr)
void	setModel (ChannelDataModel *model)
void	setFirstVisibleChannel (int ch)
void	setVisibleChannelCount (int count)
void	setChannelIndices (const QVector< int > &indices)
void	setHideBadChannels (bool hide)
void	setButterflyMode (bool enabled)
void	setVisibleSampleRange (int firstSample, int lastSample)
QSize	sizeHint () const override
QSize	minimumSizeHint () const override

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
void	mousePressEvent (QMouseEvent *event) override
void	mouseMoveEvent (QMouseEvent *event) override
void	mouseReleaseEvent (QMouseEvent *event) override
bool	event (QEvent *e) override

Detailed Description

Vertical column of channel-name labels synced with ChannelDataView row geometry.

Listens to the same ChannelDataModel as the central data view; bad channels are greyed and label clicks emit channel selection signals.

Definition at line 56 of file channellabelpanel.h.

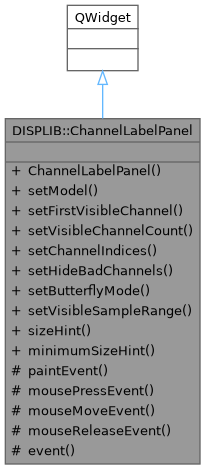

Inheritance diagram for DISPLIB::ChannelLabelPanel:

Constructor & Destructor Documentation

ChannelLabelPanel()

ChannelLabelPanel::ChannelLabelPanel ( QWidget * parent = nullptr )

explicit

Definition at line 54 of file channellabelpanel.cpp.

Member Function Documentation

channelBadToggled

void DISPLIB::ChannelLabelPanel::channelBadToggled ( int channelIndex, bool bad )

signal

channelScrollRequested

void DISPLIB::ChannelLabelPanel::channelScrollRequested ( int targetFirst )

signal

Emitted while the user drags vertically on the panel.

Parameters

[in]

targetFirst

The desired new first-visible-channel index.

event()

bool ChannelLabelPanel::event ( QEvent * e )

overrideprotected

Definition at line 457 of file channellabelpanel.cpp.

minimumSizeHint()

QSize ChannelLabelPanel::minimumSizeHint ( ) const

override

Definition at line 72 of file channellabelpanel.cpp.

mouseMoveEvent()

void ChannelLabelPanel::mouseMoveEvent ( QMouseEvent * event )

overrideprotected

Definition at line 359 of file channellabelpanel.cpp.

mousePressEvent()

void ChannelLabelPanel::mousePressEvent ( QMouseEvent * event )

overrideprotected

Definition at line 346 of file channellabelpanel.cpp.

mouseReleaseEvent()

void ChannelLabelPanel::mouseReleaseEvent ( QMouseEvent * event )

overrideprotected

Definition at line 392 of file channellabelpanel.cpp.

paintEvent()

void ChannelLabelPanel::paintEvent ( QPaintEvent * event )

overrideprotected

Definition at line 144 of file channellabelpanel.cpp.

setButterflyMode()

void ChannelLabelPanel::setButterflyMode

(

bool

enabled

)

Enable or disable butterfly mode. When active, lanes show type group labels (e.g. "MEG", "EEG") instead of individual channel names.

Parameters

[in]

enabled

true = butterfly mode, false = normal per-channel mode.

Definition at line 125 of file channellabelpanel.cpp.

setChannelIndices()

void ChannelLabelPanel::setChannelIndices

(

const QVector< int > &

indices

)

Restrict the panel to a subset of model channel indices. When indices is empty all model channels are available (no filter). Must be kept in sync with ChannelRhiView::setChannelIndices().

Parameters

[in]

indices

Ordered list of model channel indices to display.

Definition at line 87 of file channellabelpanel.cpp.

setFirstVisibleChannel()

void ChannelLabelPanel::setFirstVisibleChannel

(

int

ch

)

Set the index of the first visible channel row (kept in sync with ChannelRhiView).

Parameters

[in]

ch

Index of the first visible row in the displayed channel list.

Definition at line 95 of file channellabelpanel.cpp.

setHideBadChannels()

void ChannelLabelPanel::setHideBadChannels

(

bool

hide

)

Show or hide bad-channel rows. When hide is true, bad channels are removed from the visible row list so the panel stays aligned with the trace view.

Parameters

[in]

hide

True to hide bad-channel rows.

Definition at line 115 of file channellabelpanel.cpp.

setModel()

void ChannelLabelPanel::setModel

(

ChannelDataModel *

model

)

Definition at line 79 of file channellabelpanel.cpp.

setVisibleChannelCount()

void ChannelLabelPanel::setVisibleChannelCount

(

int

count

)

Set how many channel rows are simultaneously visible (kept in sync with ChannelRhiView).

Parameters

[in]

count

Number of simultaneously visible channel rows.

Definition at line 105 of file channellabelpanel.cpp.

setVisibleSampleRange()

void ChannelLabelPanel::setVisibleSampleRange	(	int	firstSample,
		int	lastSample )

Update the visible sample window used for the per-channel RMS level bar. Call this whenever the horizontal scroll position changes.

Parameters

[in]	firstSample	Absolute first sample in the visible window.
[in]	lastSample	Absolute last sample (exclusive) in the visible window.

Definition at line 135 of file channellabelpanel.cpp.

sizeHint()

QSize ChannelLabelPanel::sizeHint ( ) const

override

Definition at line 65 of file channellabelpanel.cpp.

---

The documentation for this class was generated from the following files:

• src/libraries/disp/viewers/helpers/channellabelpanel.h
• src/libraries/disp/viewers/helpers/channellabelpanel.cpp
