COMLIB::RawCommand Class Reference

Parsed but untyped command holding raw string parameters before type resolution. More...

#include <raw_command.h>

Signals
void	executed (QList< QString > p_qListParameters)

Public Member Functions
	RawCommand (QObject *parent=0)
	RawCommand (const QString &p_sCommand, bool p_bIsJson=true, QObject *parent=0)
	RawCommand (const RawCommand &p_rawCommand)
QString	command () const
quint32	count () const
virtual void	execute ()
bool	isJson () const
QList< QString > &	pValues ()
RawCommand &	operator= (const RawCommand &rhs)
Public Member Functions inherited from UTILSLIB::ICommand
virtual	~ICommand ()

Additional Inherited Members
Public Types inherited from UTILSLIB::ICommand
typedef QSharedPointer< ICommand >	SPtr
typedef QSharedPointer< const ICommand >	ConstSPtr

Detailed Description

Parsed but untyped command holding raw string parameters before type resolution.

RawCommand, which includes beside command name also command parameters. The parameter type is not jet specified.

Definition at line 69 of file raw_command.h.

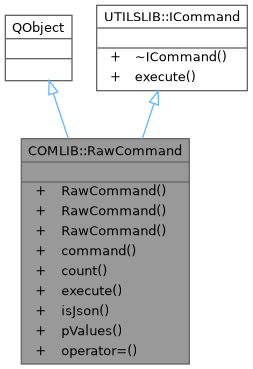

Inheritance diagram for COMLIB::RawCommand:

Constructor & Destructor Documentation

RawCommand() [1/3]

RawCommand::RawCommand ( QObject * parent = 0 )

explicit

Default constructor.

Parameters

[in]

parent

Parent QObject (optional).

Definition at line 53 of file raw_command.cpp.

RawCommand() [2/3]

RawCommand::RawCommand ( const QString & p_sCommand, bool p_bIsJson = true, QObject * parent = 0 )

explicit

Constructor which parses a command stored in a json object

Parameters

[in]	p_sCommand	Command.
[in]	p_bIsJson	If is received/should be send as JSON (optional, default true).
[in]	parent	Parent QObject (optional).

Definition at line 61 of file raw_command.cpp.

RawCommand() [3/3]

RawCommand::RawCommand ( const RawCommand & p_rawCommand )

explicit

Copy constructor.

Parameters

[in]

p_rawCommand

RawCommand which should be copied.

Definition at line 70 of file raw_command.cpp.

Member Function Documentation

command()

QString COMLIB::RawCommand::command ( ) const

inline

Command name

Returns

short command representation.

Definition at line 163 of file raw_command.h.

count()

quint32 COMLIB::RawCommand::count ( ) const

inline

Returns the number of parameters.

Returns

number of parameters.

Definition at line 170 of file raw_command.h.

execute()

void RawCommand::execute ( )

virtual

Executes the ICommand.

Implements UTILSLIB::ICommand.

Definition at line 80 of file raw_command.cpp.

executed

void COMLIB::RawCommand::executed ( QList< QString > p_qListParameters )

signal

Signal which is emitted when command patterns execute method is processed.

Parameters

[in]

p_qListParameters

Parameter List.

isJson()

bool COMLIB::RawCommand::isJson ( ) const

inline

Returns whether the received command was in Json format.

Returns

true if received command was in Json format, false otherwise.

Definition at line 177 of file raw_command.h.

operator=()

RawCommand & RawCommand::operator=

(

const RawCommand &

rhs

)

Assignment Operator

Parameters

[in]

rhs

RawCommand which should be assigned.

Definition at line 87 of file raw_command.cpp.

pValues()

QList< QString > & COMLIB::RawCommand::pValues ( )

inline

Returns parameter values

Returns

parameter values.

Definition at line 184 of file raw_command.h.

---

The documentation for this class was generated from the following files:

• src/libraries/com/rt_command/raw_command.h
• src/libraries/com/rt_command/raw_command.cpp
